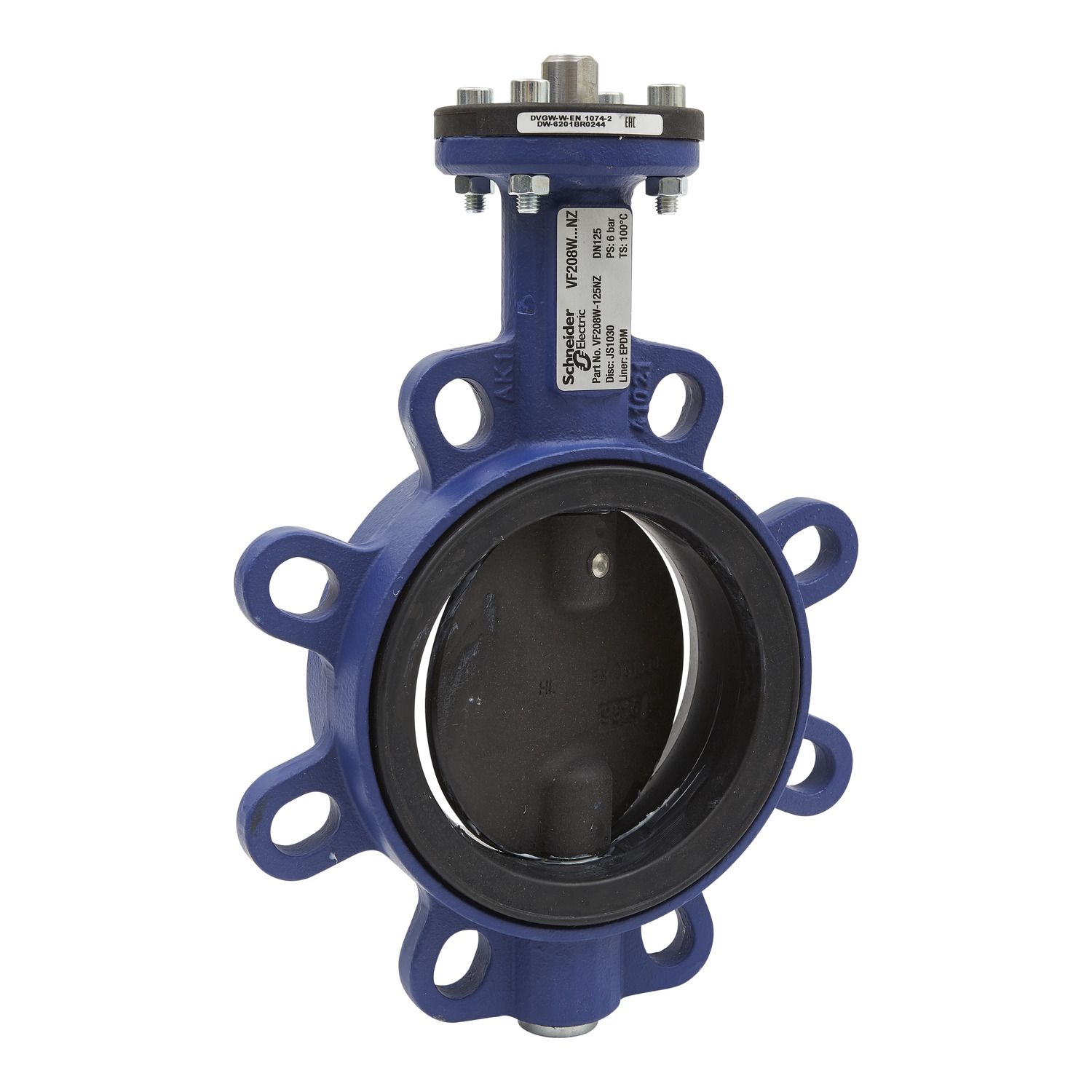

Picture of VF208W Butterfly Valve, 2-Way, DN125, Wafer Flanged, Zinc Plated Disc, EPDM Liner, Kvs 1025 m³/h, Max ∆P 600 kPa.
SKU:

VF208W-125NZ

VF208W Butterfly Valve, 2-Way, DN125, Wafer Flanged, Zinc Plated Disc, EPDM Liner, Kvs 1025 m³/h, Max ∆P 600 kPa.

Please Contact Sales to buy this Product. click here
VF208W Butterfly Valve, 2-Way, DN125, Wafer Flanged, Zinc Plated Disc, EPDM Liner, Kvs 1025 m³/h, Max ∆P 600 kPa.
  • Butterfly valve for general duty HVAC applications
  • Condensation barrier reduces water build up on the external surface of the actuator
  • Can be hand actuated or driven under 2-position, floating or modulating control signals
  • Thick EPDM liner provides a tight close off for zero leakage
  • Zinc coated Disc for suitability with glycol solutions up to 50% concentration
  • Wafer Flange fits between pipe flange faces, PN6, PN10, PN16 bolt patterns
  • PN16, Max ∆P 600 kPa
  • Kvs 1025 m³/h
  • Suitable actuator: Type MF40
  • Suitable Hand Operator: 9150200000
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 12-Oct-2024
Product environmental
Catalogue
Product Page Link
Product Data Sheet
The VF28W is a butterfly valve for the isolation and control of water for HVAC systems. The valve can be operated either by an electric actuator or hand using a handlever. Nodular iron body with a full EPDM liner provides a long life and high corrosion resistance. Valve size: DN125, ISO Wafer Flange, uncharacterized flow, kvs: 125m³/h. The thick EPDM liner/seat provides tight shut off and zero leakge, for a better energy saving. Maintenance free, double sealing of stem, centrical disc bearing. Constructed and flanged to a PN16 pressure class. ΔPm of maximum 6 Kpa. Zinc coated Disc EPDM liner provide a working temperature range of -1 °C to + 1 °C, the soft sealing ensures a tight close off with no leakage. High flow capacity, non characterized flow curve Dew point barrier fitted on actuator mounting flange No linkage kits required. Fits to MF4 Actuators
