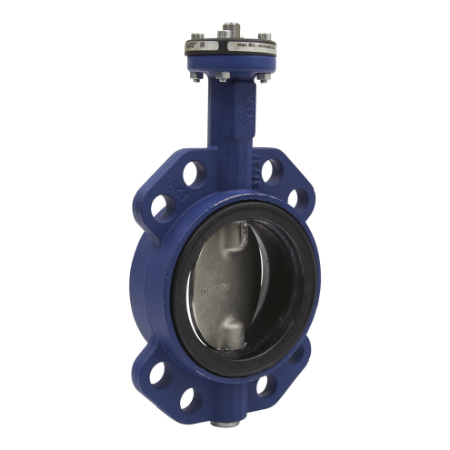

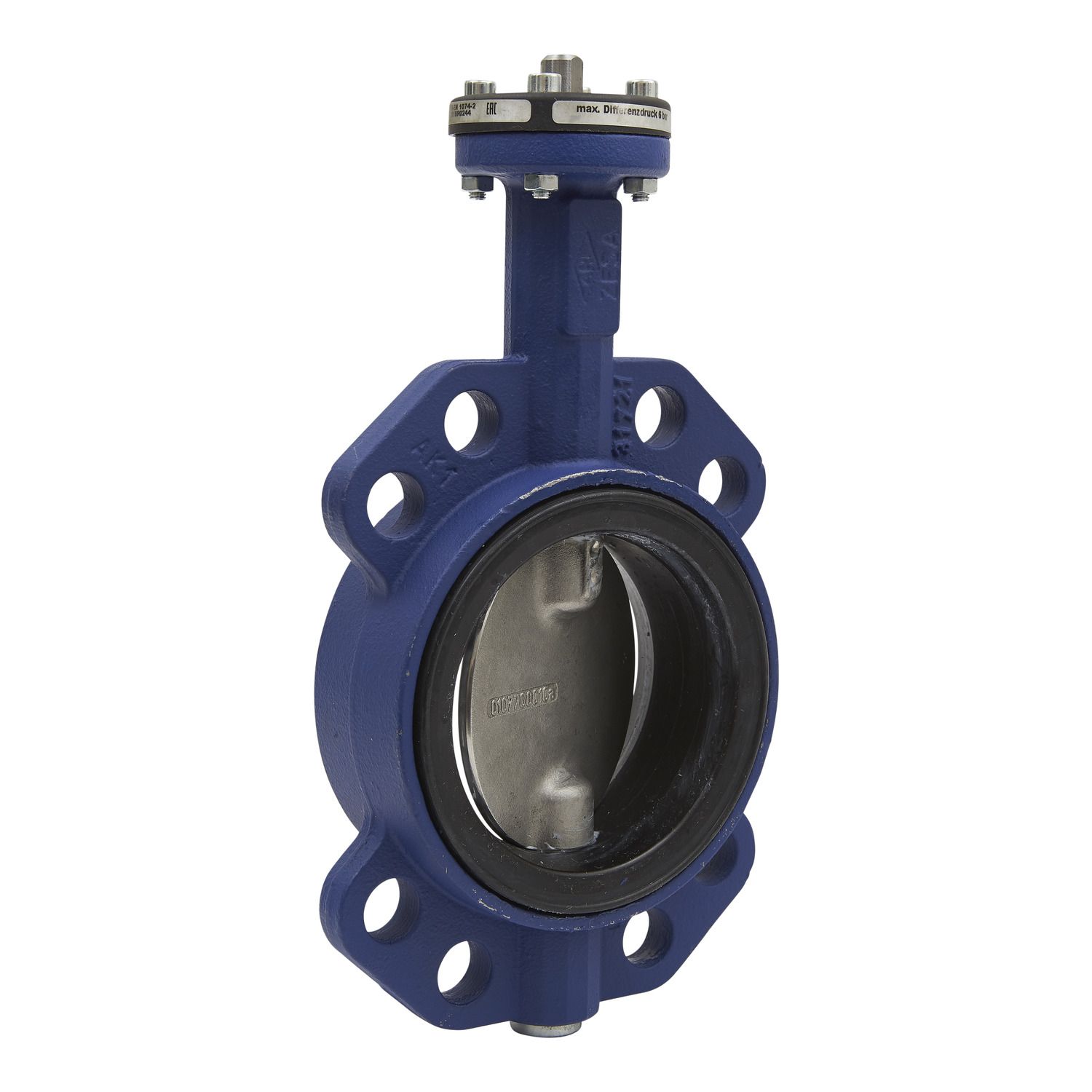

Picture of VF208W Butterfly Valve, 2-Way, DN150, Wafer Flanged, 316 Stainless Steel Disc, EPDM Liner, Kvs 1790m³/h, Max ∆P 300 kPa.
SKU:

VF208W-150NS

VF208W Butterfly Valve, 2-Way, DN150, Wafer Flanged, 316 Stainless Steel Disc, EPDM Liner, Kvs 1790m³/h, Max ∆P 300 kPa.

Please Contact Sales to buy this Product. click here
VF208W Butterfly Valve, 2-Way, DN150, Wafer Flanged, 316 Stainless Steel Disc, EPDM Liner, Kvs 1790m³/h, Max ∆P 300 kPa.
  • Butterfly valve for general duty HVAC applications
  • Condensation barrier reduces water build up on the external surface of the actuator
  • Can be hand actuated or driven under 2-position, floating or modulating control signals
  • Thick EPDM liner provides a tight close off for zero leakage
  • Stainless Steel Disc for suitability on many media solutions including glycol up to 50% concentration
  • Wafer Flange fits between pipe flange faces, PN6, PN10, PN16 bolt patterns
  • PN16, Max ∆P 300 kPa
  • Kvs 1790 m³/h
  • Suitable actuator: Type MF40
  • Suitable Hand Operator: 9150200000
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 12-Oct-2024
Product environmental
Catalogue
Product Page Link
Product Data Sheet
The VF28W is a new generation butterfly valve for the isolation and control of water for HVAC systems. The valve can be operated either by an electric actuator or hand using a handlever. Nodular iron construction provides a long life and high corrosion resistance. The EPDM soft seats provide tight shut off and zero leakge, for a better energy saving, maintenance free, double sealing of stem, centrical disc bearing. Valve size: DN15, Flange, uncharacterized flow, kvs: 179 m³/h. Constructed and flanged to a PN16 pressure class. ΔPm of maximum 3 Kpa. EPDM seals provide a working temperature range of -1 °C to + 1 °C, the soft seat seal ensures a tight close off with no leakage. Uncharacterized flow characteristics provide a good flow control, integrated dew point barrier. No linkage kits required.

Products specifications

Attribute nameAttribute value
Main
Operating fluid temperature-10-100 °C
Body materialnodular cast iron EN-JS 1030
Seat leakagePort A: Class IV-S1 (0.005 %)
Product or component typevalve
Targeted regionAustralia., Asia Pacific., Europe
Medium compatibilityWater, Glycol 50 %, Glycol 30 %, Glycol 25 %
Valve product seriesVF208W
Flow coefficient1790.01 kvs, 2069.64 cv
Disc materialstainless steel 316
Valve configuration2-Way
Stem movementrotary
Pressure fluid max delta P normal life44 psi
Valve typebutterfly
Valve modelVF208W-150NS 1790E B00
Valve connection typeflanged
Flow characteristicuncharacterized
Disc shapefull
Stem materialstainless steel AISI 420
Pipe size150 mm
Material sealEPDM (ethylene propylene diene monomer)
Pressure classPN16
Body size150 mm (6 in)
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height8.89 cm
Package 1 Width26.67 cm
Package 1 Length19.05 cm
Package 1 Weight9.4 kg
