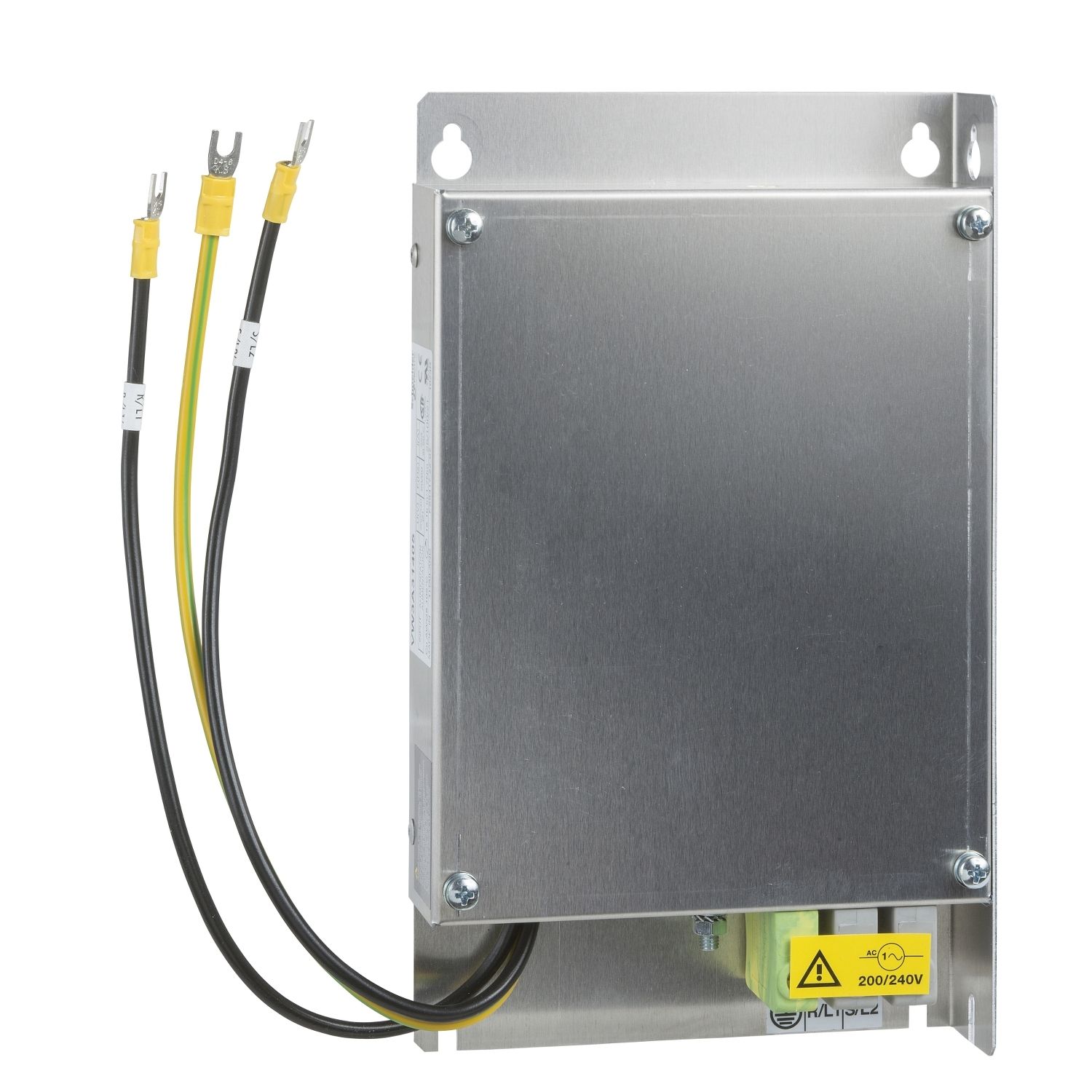

Picture of Altivar 31, Additionnal EMC filter, S6 M2, 1-phase supply, 16 A
SKU:

VW3A31403

Altivar 31, Additionnal EMC filter, S6 M2, 1-phase supply, 16 A

$418.26
Available for Shipping : 03-Dec-2024
Product Selector
Altivar 31, Additionnal EMC filter, S6 M2, 1-phase supply, 16 A
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet
This EMC filter is an option for variable speed drives of the Altivar range and servo drives of the Lexium range. The additional EMC input filters enable the drives to meet more stringent requirements. Its rated current is equal to 16A. It is used to reduce conducted emissions on the line supply below the limits of standards IEC/EN 61800-3 category C1 or C2 and enlarge the maximum motor cable length for category C3. Its protection index is IP20. It weighs 0.775kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems. It can be mounted beside or under the drive. The drive's power supply is then connected directly via the filter output cable.

Products specifications

Attribute name Attribute value
Main
Thermal losses 6.9 W for ATV31CU11M2
Range compatibility Altivar Machine ATV320, Altivar 312 Solar, Lexium 23 Plus, Altivar 31C, Altivar 312, Lexium 05
[In] rated current 16 A
Product specific application radio interference input filter
Network number of phases single phase
Product or component type EMC input filter
Product compatibility variable speed drive ATV320...W/ATV320...WS motor: 1.5 kW, 200...240 V single phase, variable speed drive ATV320...W/ATV320...WS motor: 1.1 kW, 200...240 V single phase, variable speed drive ATV320...C motor: 1.5 kW, 200...240 V single phase, variable speed drive ATV320...C motor: 1.1 kW, 200...240 V single phase, LXM05CD17M2, LXM05BD17M2, LXM05BD17F1, LXM05AD17M2, LXM05AD17F1, ATV31CU15M2, ATV31CU11M2, ATV312HU15M2, ATV312HU11M2, servo drive LXM23 motor: 1.5 kW, servo drive LXM23 motor: 1 kW, servo drive LXM23 motor: 0.75 kW
Range of product Altivar
Complementary
Compatibility code LXM23
Network rated voltage 200-240 V
Earth leakage current 150 mA 50 Hz
Net weight 0.775 kg
Tolerance 10 %
Environment
Operating altitude 1000...3000 m with current derating 1 % per 100 m, <= 1000 m without current derating
IP degree of protection IP41 (upper part), IP20
Relative humidity 0-93 % conforming to IEC 68-2-3
Ambient air temperature for storage -25-70 °C
Vibration resistance 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-150 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Ambient air temperature for operation -10-50 °C
Standards IEC 61800-3
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.0 cm
Package 1 Width 18.6 cm
Package 1 Length 24.2 cm
Package 1 Weight 632.0 g
Unit Type of Package 2 2
Number of Units in Package 2 7
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 5.043 kg

Related products

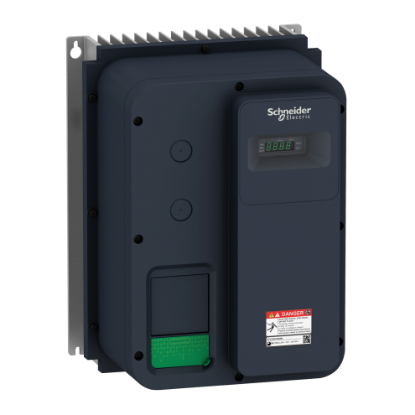

Picture of variable speed drive, Altivar Machine ATV320, 1.1kW, 200 to 240V, 1 phase, enclosed
