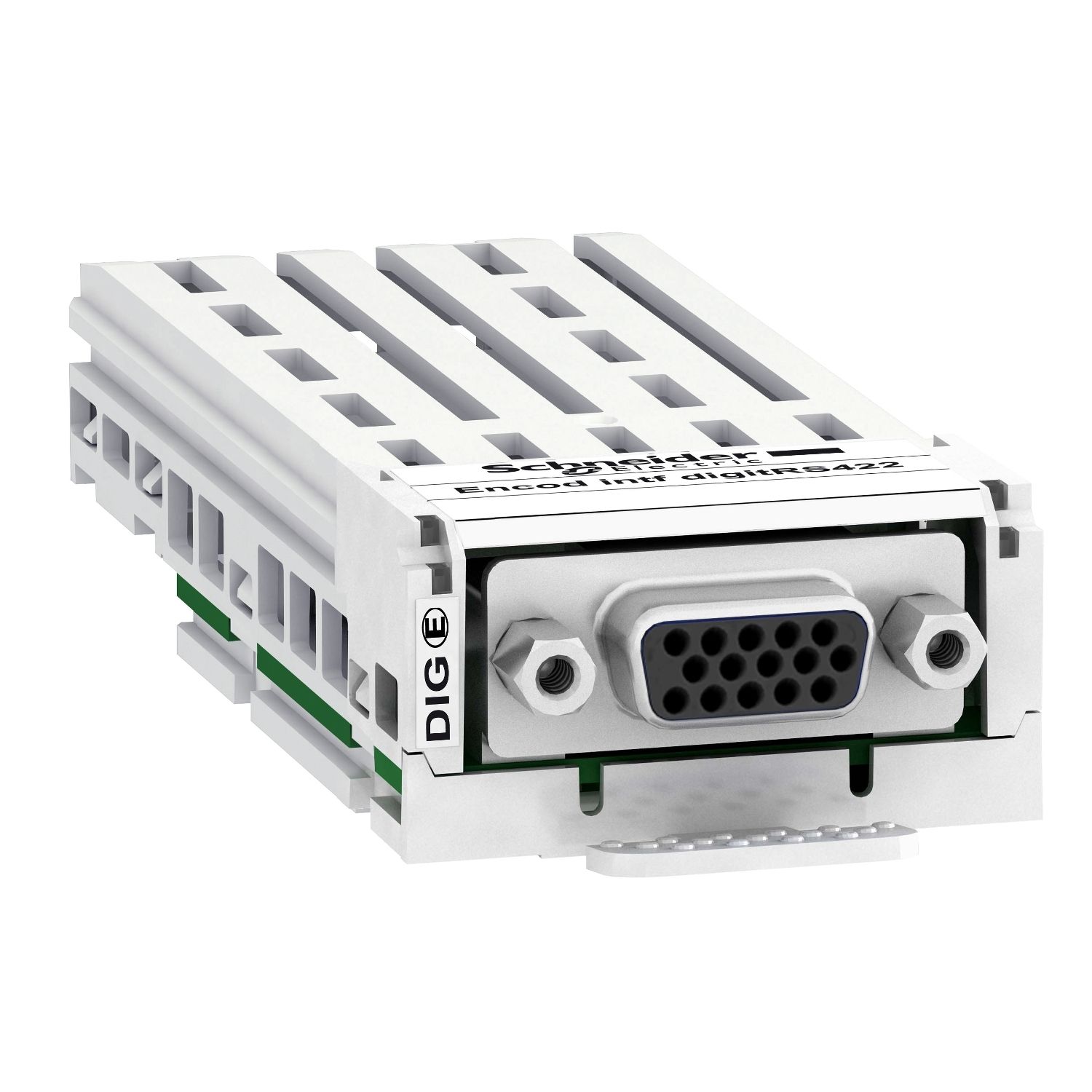

Picture of digital encoder interface module, Altivar, 5 to 24V, with RS422 compatible, 1 female high density SUB D15 connector
SKU:

VW3A3420

digital encoder interface module, Altivar, 5 to 24V, with RS422 compatible, 1 female high density SUB D15 connector

$335.63
Available for Shipping : 28-Jan-2025
Product Selector
digital encoder interface module, Altivar, 5 to 24V, with RS422 compatible, 1 female high density SUB D15 connector
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet
This digital encoder interface module is an option for variable speed drives of Altivar range. It is compatible with Altivar Machine ATV340 and Altivar Process ATV900 drives. It improves drive performance irrespective of the motor load state, zero speed torque, accurate speed regulation, torque accuracy, shorter response times on a torque surge, improved dynamic performance in transient state. It is protected against short circuits and overloads. It weighs 150g. It is used for Flux Vector Control operation with sensor (FVC mode) for asynchronous motors, or for Vector Control operation with speed feedback (FSY mode) for synchronous motors. It is inserted in a dedicated slot of the drive.

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 24 V DC (voltage limits: 22.8-25.2 V), 12 V DC (voltage limits: 11.4-12.6 V), 5 V DC (voltage limits: 4.75-5.25 V)
Encoder type SSI absolute encoder XCC3 type SB, SSI absolute encoder XCC2 type SG, A/B/I incremental XCC1 type X, A/B/I incremental XCC1 type R, EnDat 2.2
Range of product Altivar
Range compatibility Altivar Machine ATV340, Altivar Process Modular, Altivar Process ATV900
Communication port protocol RS422
Product or component type digital encoder interface module
Complementary
Output signal Data+, Data-, Clock+, Clock- (EnDat 2.2), Clock+, Clock- (SSI)
Protection type overload protection, short-circuit protection
Maximum cable distance between devices 100 m (EnDat 2.2)with propagation delay compensation, 50 m (EnDat 2.2), 100 m (SSI)at 300 kHz, 50 m (SSI), 100 m (A/B/I)
Maximum operating frequency 1000 kHz
Input signal TTL, A+,A-/B+,B-/I+,I- (A/B/I), Temp+, Temp-, Data+, Data- (SSI), Data+, Data- (EnDat 2.2)
Input impedance 121 Ohm
Maximum supply current 0.1 A at 24 V DC, 0.1 A at 12 V DC, 0.25 A at 5 V DC
Net weight 0.15 kg
Connector type 1 female high density SUB-D 15
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.0 cm
Package 1 Width 13.0 cm
Package 1 Length 19.0 cm
Package 1 Weight 155.0 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.206 kg

Related products

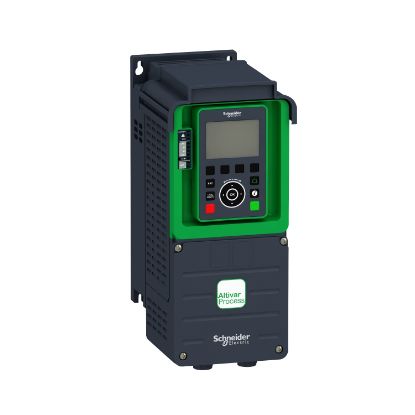

variable speed drive, Altivar Process ATV900, ATV930, 2.2kW, 400 to 480V, with braking unit, IP21
