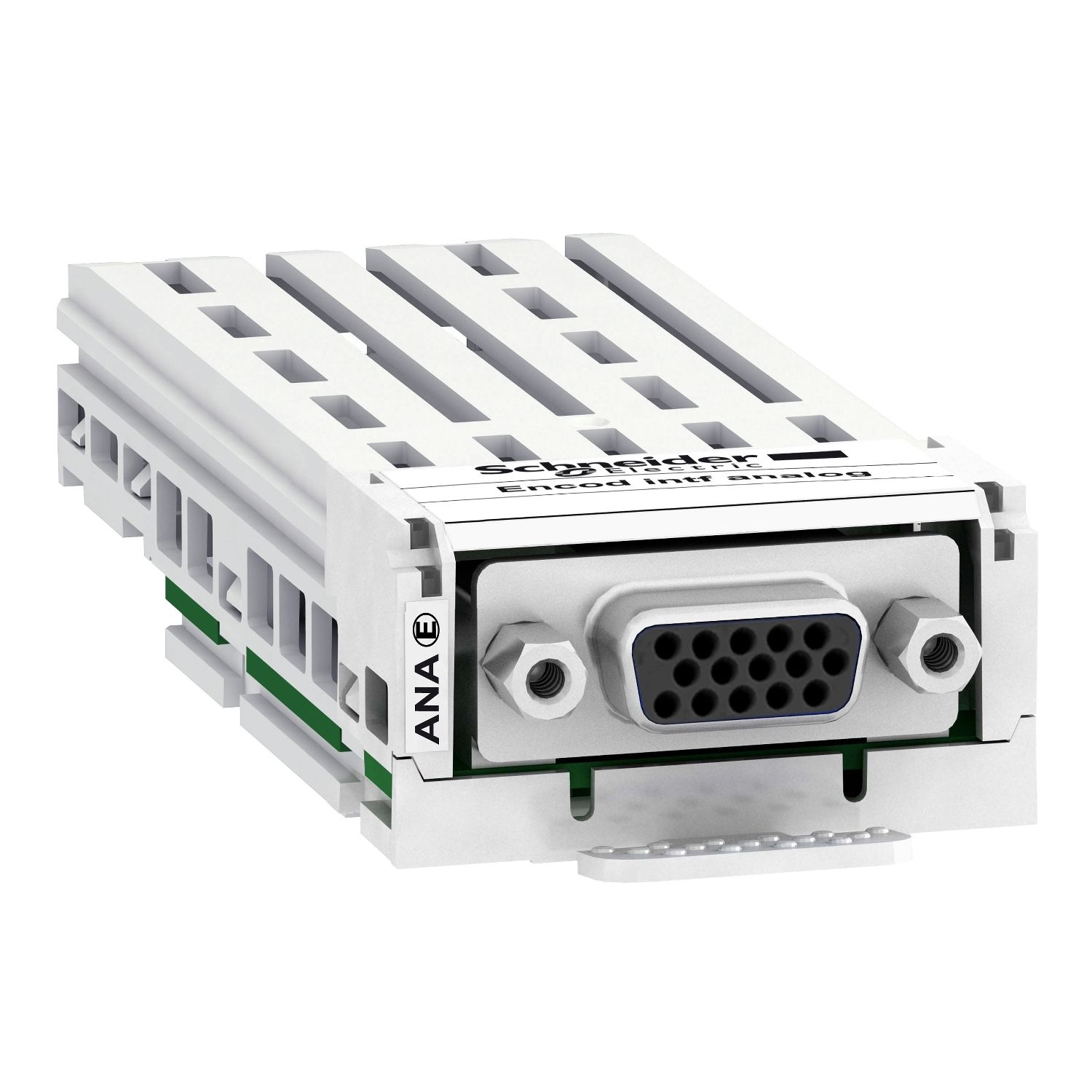

Picture of analog encoder interface module, Altivar, 5 to 24V, 1 female SUB D15 connector
SKU:

VW3A3422

analog encoder interface module, Altivar, 5 to 24V, 1 female SUB D15 connector

$335.63
Available for Shipping : 10-Dec-2024
Product Selector
analog encoder interface module, Altivar, 5 to 24V, 1 female SUB D15 connector
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Product environmental
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet
This analog encoder interface module can be used for Flux Vector Control operation with sensor for asynchronous motors. It can also be used for Vector Control operation with speed feedback for synchronous motors. It improves drive performance irrespective of the motor load state. This module is inserted in a dedicated slot of the variable speed drive. It is protected against encoder supply short circuits and overloads. It is compatible with Altivar Process ATV900 and Modular, and Altivar Machine ATV340. It has 1 female high density SUB-D 15 connector.

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 24 V DC (voltage limits: 22.8-25.2 V), 12 V DC (voltage limits: 11.4-12.6 V), 5 V DC (voltage limits: 4.75-5.25 V)
Encoder type 1 Vpp, SinCos Hiperface
Range of product Altivar
Range compatibility Altivar Process Modular, Altivar Process ATV900, Altivar Machine ATV340
Product or component type analog encoder interface module
Complementary
Output signal Data+, Data-
Protection type short-circuit protection,  overload protection
Maximum cable distance between devices 100 m
Maximum operating frequency 100 kHz
Input signal Data+, Data-, Sin, RefSin, Cos, RefCos, Temp+, Temp-
Maximum supply current 0.05 A at 24 V DC, 0.1 A at 12 V DC, 0.25 A at 5 V DC
Net weight 0.15 kg
Connector type 1 female high density SUB-D 15
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.6 cm
Package 1 Width 13 cm
Package 1 Length 19 cm
Package 1 Weight 151 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 3.025 kg

Related products

variable speed drive, Altivar Process ATV900, ATV930, 2.2kW, 400 to 480V, with braking unit, IP21

ATV930U22N4
$1,809.30
View Detail
