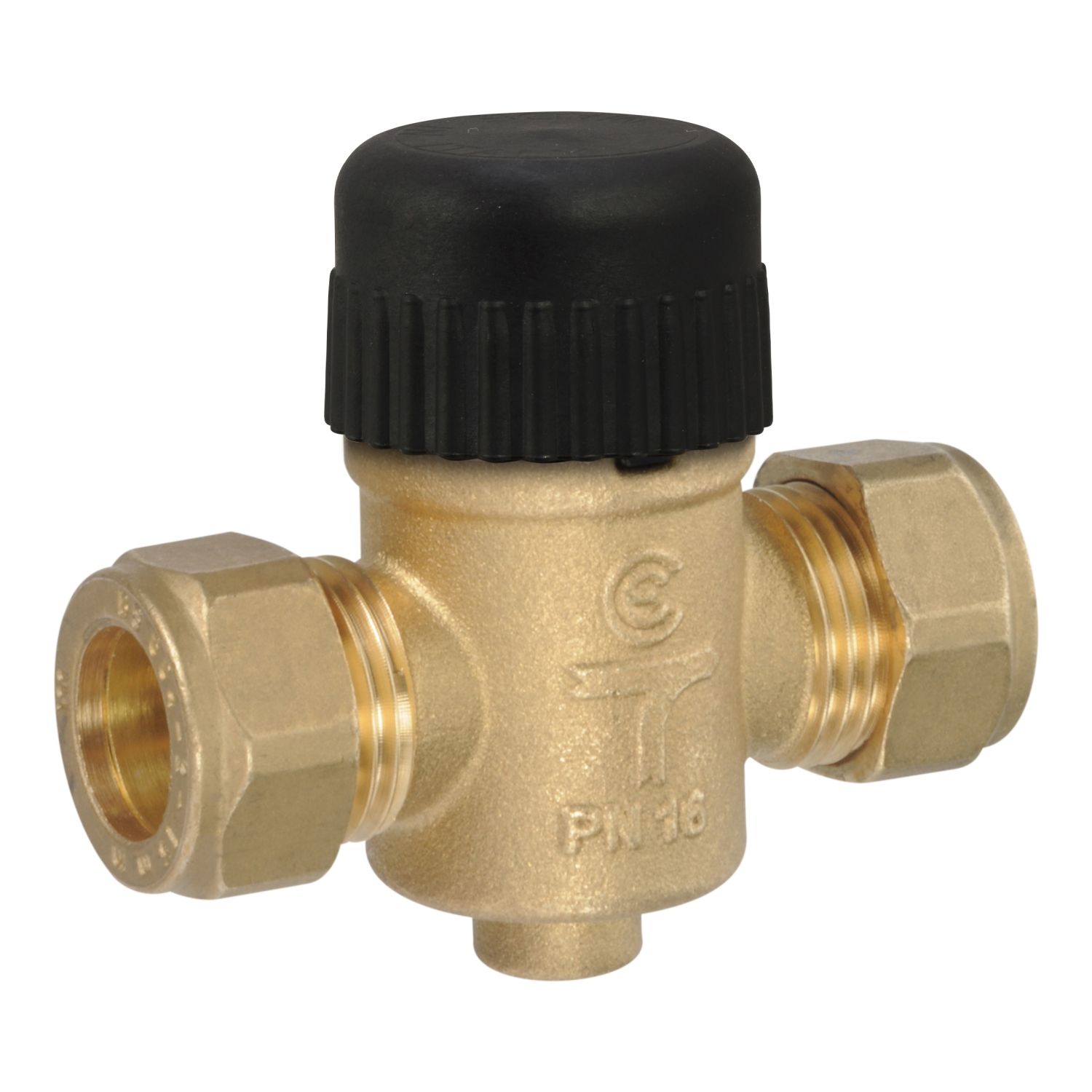

Picture of Zone Valve, 15mm, 2-Way, Compression, Brass, 0.6kvs
SKU:

VZ219C-15BP03

Zone Valve, 15mm, 2-Way, Compression, Brass, 0.6kvs

$92.09 INC GST
Available for Shipping : 19-Jan-2026
Zone Valve, 15mm, 2-Way, Compression, Brass, 0.6kvs
  • Compact design zone valve
  • For use with MZ20 motoric actuators for precise positional control
  • EQ Flow curve for proportional control and soft seated for tight close off
  • Integrated compression end connections save the need for additional fittings
  • Brass construction, PPS cartridge and EPDM seals for excellent corrosion resistance
  • Maintenance free
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 19-Jan-2026
Catalog
Product Page Link
Product Data Sheet
The VZ219C is a short stroke and small linear zone valve designed for control of hot and chilled water. It is designed to be used with the MZ2 family of electro-mechanical actuators, these actuators are available in 3 point floating and modulating control. The valve utilise a double O-ring design on the plug to ensure a leak tight seal on both valve ports, this ensures no loss of energy leakage through the valve. 15mm Compression connection Two-way valve, Normally closed without actuator fitted. DN15, Kvs: .6 m³/h Pressure class PN16, stroke 5.5 mm, Normally closed (A-Ab). It is recommended to fit a strainer upstream of the valve to increase reliability and to follow water treatment guidelines as detailed in VDI 235. Valves should be installed in the return pipe to reduce exposure to media temperature extremes.
