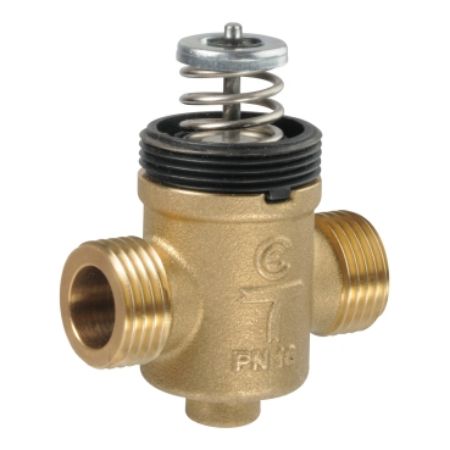

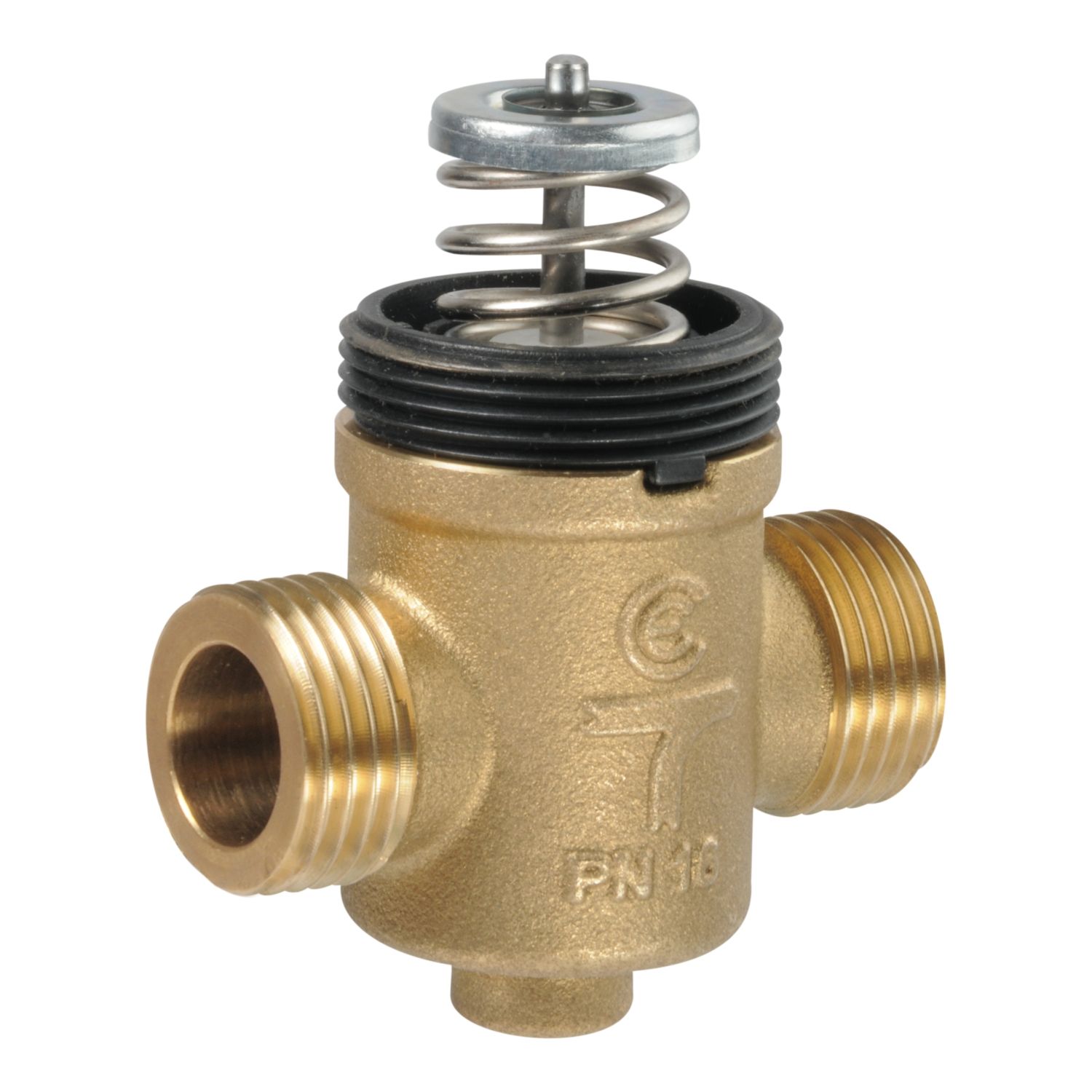

Picture of Zone Valve, 15mm, 2-Way, G External, Brass, 2kvs
SKU:

VZ219E-15BP06

Zone Valve, 15mm, 2-Way, G External, Brass, 2kvs

$79.19 INC GST
Available for Shipping : 19-Jan-2026
Zone Valve, 15mm, 2-Way, G External, Brass, 2kvs
  • Compact design zone valve
  • For use with MZ20 motoric actuators for precise positional control
  • EQ Flow curve for proportional control and soft seated for tight close off
  • External thread allows ease of mounting in any orientation and a simple disassembly
  • Brass construction, PPS cartridge and EPDM seals for excellent corrosion resistance
  • Maintenance free
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 19-Jan-2026
Catalog
Product Page Link
Product Data Sheet
The VZ219E is a small linear two-way zone valve used for the fine control of hot or chilled water in terminal units. It is designed to be used with the MZ2 family of electro-mechanical actuators, these actuators are available in 3 point floating and modulating control. The valve utilise a double O-ring design on the plug to ensure a leak tight seal on both valve ports, this ensures no loss of energy leakage through the valve. The 5.5mm stroke length coupled with the high resolution MZ2 electro-mechanical actuator provides good hydronic control. The valve is male threaded valves with flat face seals, a range of connection sets are available to mate onto pipe. Size DN 15, G1/2A connection, 2 Kvs. Pressure class PN16, stroke 5.5 mm, Normally closed (A-Ab). External thread to ISO 228/1 (flat face seal).
