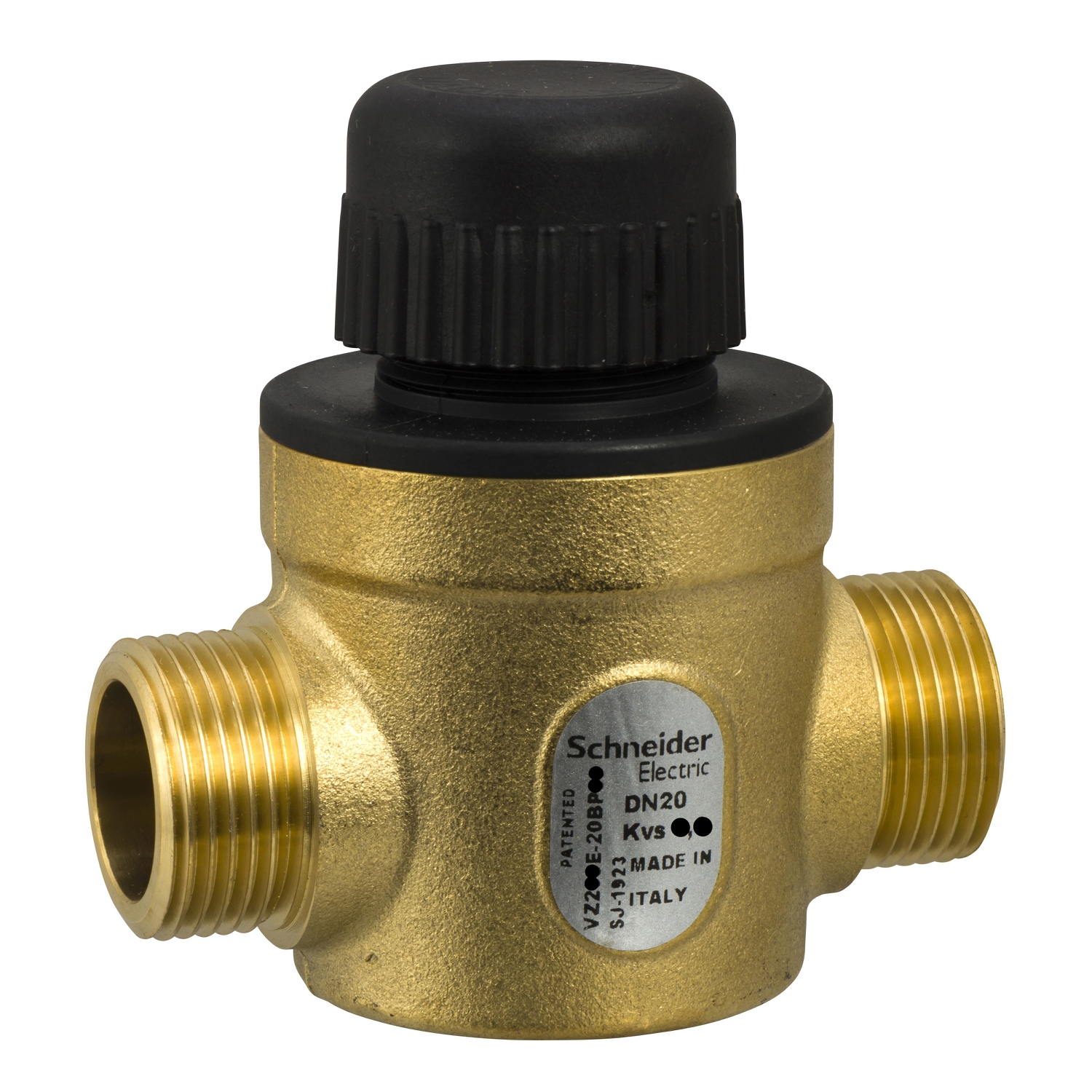

Picture of Zone Valve, 20mm, 2-Way, G External, Brass, 6kvs
SKU:

VZ219E-20BP09

Zone Valve, 20mm, 2-Way, G External, Brass, 6kvs

$185.70 INC GST
Available for Shipping : 19-Jan-2026
Zone Valve, 20mm, 2-Way, G External, Brass, 6kvs
  • Compact design zone valve
  • For use with MZ20 motoric actuators for precise positional control
  • EQ Flow curve for proportional control and soft seated for tight close off
  • External thread allows ease of mounting in any orientation and a simple disassembly
  • Brass construction, PPS cartridge and EPDM seals for excellent corrosion resistance
  • Maintenance free
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 19-Jan-2026
Catalog
Product Page Link
Product Data Sheet
The VZ219E is a small linear two-way zone valve used for the fine control of hot or chilled water in terminal units. It is designed to be used with the MZ2 family of electro-mechanical actuators, these actuators are available in 3 point floating and modulating control. The valve utilise a double O-ring design on the plug to ensure a leak tight seal on both valve ports, this ensures no loss of energy leakage through the valve. The 5.5mm stroke length coupled with the high resolution MZ2 electro-mechanical actuator provides good hydronic control. The valve is male threaded valves with flat face seals, a range of connection sets are available to mate onto pipe. Size DN 2, G3/4A connection, 6 Kvs. Pressure class PN16, stroke 5.5 mm, Normally closed (A-Ab). External thread to ISO 228/1 (flat face seal).

Products specifications

Attribute name Attribute value
Main
Device application terminal unit, chilled ceiling, fan coil unit
Body material brass
Seating seal material Port A:EPDM (ethylene propylene diene monomer)
Seat leakage Port A: Class IV-S1 (0.005 %)
Product or component type valve
Targeted region Australia., Asia Pacific., Europe
Valve connection size G 3/4A
Medium compatibility Glycol 50 %, Water, Glycol 30 %, Glycol 25 %
Control valve rangeability 50:1
Pressure fluid max delta P quiet service 9 psi
Flow coefficient 6.94 cv, 6 kvs
Valve configuration 2-Way
Stem movement linear
Pressure fluid max delta P normal life 22 psi
Valve type zone
Valve connection type G External
Stem seal material EPDM (ethylene propylene diene monomer)
Flow characteristic equal percentage
Trim material brass
Stem material stainless steel AISI 303
Pipe size 20 mm
Pressure class PN16
Body size 20 mm (3/4 in)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.8 cm
Package 1 Width 13.1 cm
Package 1 Length 6 cm
Package 1 Weight 420 g
