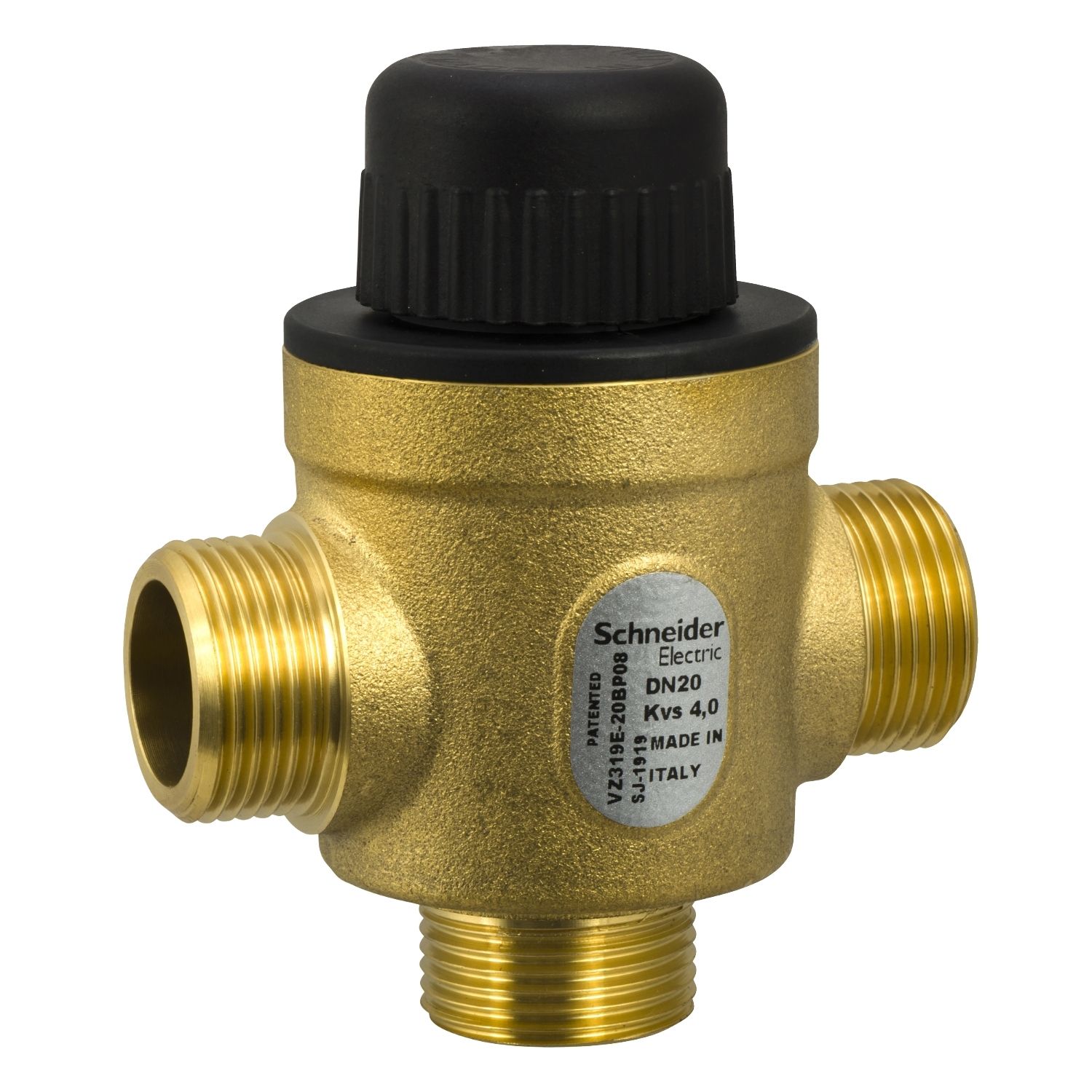

Picture of Zone Valve, 20mm, 3-Way, G External, Brass, 4kvs
SKU:

VZ319E-20BP08

Zone Valve, 20mm, 3-Way, G External, Brass, 4kvs

$172.04 INC GST
Available for Shipping : 08-Dec-2025
Zone Valve, 20mm, 3-Way, G External, Brass, 4kvs
  • Compact design zone valve
  • For use with MZ20 motoric actuators for precise positional control
  • EQ Flow curve for proportional control and soft seated for tight close off
  • External thread allows ease of mounting in any orientation and a simple disassembly
  • Brass construction, PPS cartridge and EPDM seals for excellent corrosion resistance
  • Maintenance free
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Catalog
Product Page Link
Product Data Sheet
The VZ319E is a small linear three-way zone valve used for the fine control of hot or chilled water in terminal units. It is designed to be used with the MZ2 family of electro-mechanical actuators, these actuators are available in 3 point floating and modulating control. The valve utilise a double O-ring design on the plug to ensure a leak tight seal on both valve ports, this ensures no loss of energy leakage through the valve. The 5.5mm stroke length coupled with the high resolution MZ2 electro-mechanical actuator provides good hydronic control. The valve is male threaded valves with flat face seals, a range of connection sets are available to mate onto pipe. Size DN 2, G3/4A connection, 2.5 Kvs. Pressure class PN16, stroke 5.5 mm, Normally closed (A-Ab). External thread to ISO 228/1 (flat face seal).

Products specifications

Attribute name Attribute value
Main
Device application terminal unit, chilled ceiling, fan coil unit
Body material brass
Seating seal material Port A:EPDM (ethylene propylene diene monomer)
Seat leakage Port A: Class IV-S1 (0.005 %)
Product or component type valve
Targeted region Australia., Asia Pacific., Europe
Valve connection size G 3/4A
Medium compatibility Glycol 50 %, Water, Glycol 30 %, Glycol 25 %
Control valve rangeability 50:1
Pressure fluid max delta P quiet service 9 psi
Flow coefficient 4.62 cv, 4 kvs
Valve configuration 3-Way
Stem movement linear
Pressure fluid max delta P normal life 15 psi
Valve type zone
Valve connection type G External
Stem seal material EPDM (ethylene propylene diene monomer)
Flow characteristic equal percentage
Trim material brass
Stem material stainless steel AISI 303
Flow coefficient B to AB 2.5 kvs, 2.89 cv
Pipe size 20 mm
Pressure class PN16
Body size 20 mm (3/4 in)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.8 cm
Package 1 Width 13 cm
Package 1 Length 6 cm
Package 1 Weight 440 g
