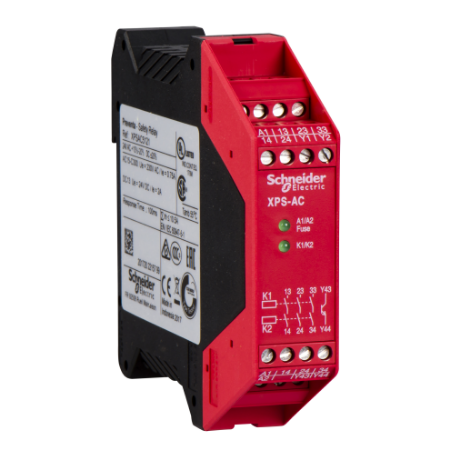

Picture of module XPSAC - Emergency stop - 24 V AC DC
SKU:

XPSAC5121P

module XPSAC - Emergency stop - 24 V AC DC

$662.05
Availability: Please contact our sales team on 1300 724 622.
Product Selector
module XPSAC - Emergency stop - 24 V AC DC
Be the first to review this product
Manufacturer: Telemecanique
End of life manual
CAD
Product environmental
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
This XPSAC safety module monitors emergency shutdown pushbuttons and limit switches. It meets the requirements of Performance Level PL e/Category 4 conforming to standard EN/ISO 13849-1 and SILCL3 conforming to EN/IEC 61508 and EN/IEC 62061. It can be used for monitoring emergency stop circuits conforming to standards EN/ISO 13850 and EN/IEC 60204-1. 24V AC/DC supply allows direct supply via an auxiliary transformer, like ABT7 or ABL6, allowing saving at installation time. It has removable terminals for easier and better control wires tightening, thus improving installation reliability. It has additional solid-state output for communication with PLCs about safety status of your process.

Products specifications

Attribute name Attribute value
Main
Safety reliability data PFHd = 3.56E-9 1/h conforming to EN/IEC 62061, DC > 99 % conforming to EN/ISO 13849-1, MTTFd = 210.4 years conforming to EN/ISO 13849-1
Safety module application for emergency stop and switch monitoring
Safety module name XPSAC
Range of product Preventa Safety automation
[Us] rated supply voltage 24 V DC - 20...20 %, 24 V AC - 20...10 %
Safety level can reach SILCL 3 conforming to EN/IEC 62061, can reach PL e/category 4 conforming to EN/ISO 13849-1
Function of module emergency stop, switch monitoring
Number of additional circuits 1 solid state output
Connections - terminals captive screw clamp terminals, removable terminal block, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel, captive screw clamp terminals, removable terminal block, 2 x 0.25...2 x 1 mm² flexible with cable end, with double bezel, captive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1.5 mm² flexible with cable end, with double bezel, captive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1 mm² solid with cable end, with double bezel, captive screw clamp terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, with double bezel, captive screw clamp terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² solid with cable end, with double bezel, captive screw clamp terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² flexible with cable end, with double bezel
Output type relay instantaneous opening, 3 NO circuit(s), volt-free
Type of start unmonitored
Product or component type Preventa safety module
Complementary
Maximum response time on input open 100 ms
Supply frequency 50/60 Hz
Associated fuse rating 6 A fast blow for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200, 4 A gG or gL for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200
Minimum output voltage 16 V for relay output
Output thermal current 6 A per relay for relay output
Breaking capacity 1800 VA inrush AC-15 C300 relay output, 180 VA holding AC-15 C300 relay output, 1.5 A at 24 V (DC-13) time constant: 50 ms for relay output
Maximum power consumption in W 1.2 W DC
Maximum power consumption in VA 2.5 VA AC
Local signalling 2 LEDs
[Ui] rated insulation voltage 300 V (pollution degree 2) conforming to DIN VDE 0110 part 1, 300 V (pollution degree 2) conforming to IEC 60947-5-1
Net weight 0.16 kg
[Uimp] rated impulse withstand voltage 4 kV overvoltage category III conforming to DIN VDE 0110 part 1, 4 kV overvoltage category III conforming to IEC 60947-5-1
[Ith] conventional free air thermal current 10.5 A
Minimum output current 10 mA for relay output
Current consumption 90 mA at 24 V AC on power supply, 40 mA at 24 V DC on power supply
Mounting support 35 mm symmetrical DIN rail
[Uc] control circuit voltage 24 V
Environment
Ambient air temperature for storage -25-85 °C
IP degree of protection IP40 (enclosure) conforming to EN/IEC 60529, IP20 (terminals) conforming to EN/IEC 60529
Ambient air temperature for operation -10-55 °C
Standards EN 1088/ISO 14119, EN 60204-1, EN/IEC 60947-5-1, EN/ISO 13850
Product certifications TÜV, CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.800 cm
Package 1 Width 11.600 cm
Package 1 Length 14.000 cm
Package 1 Weight 205.000 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.665 kg
