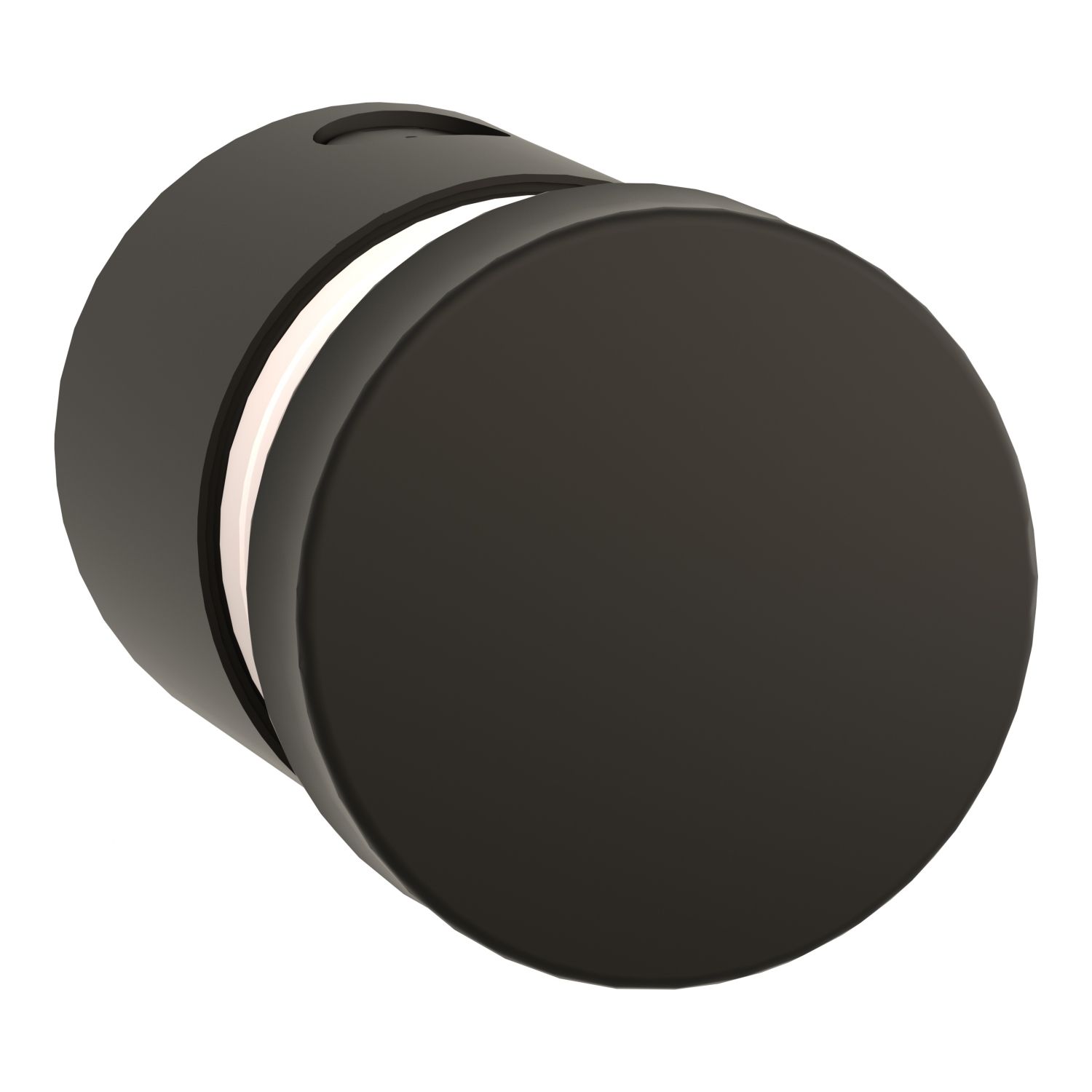

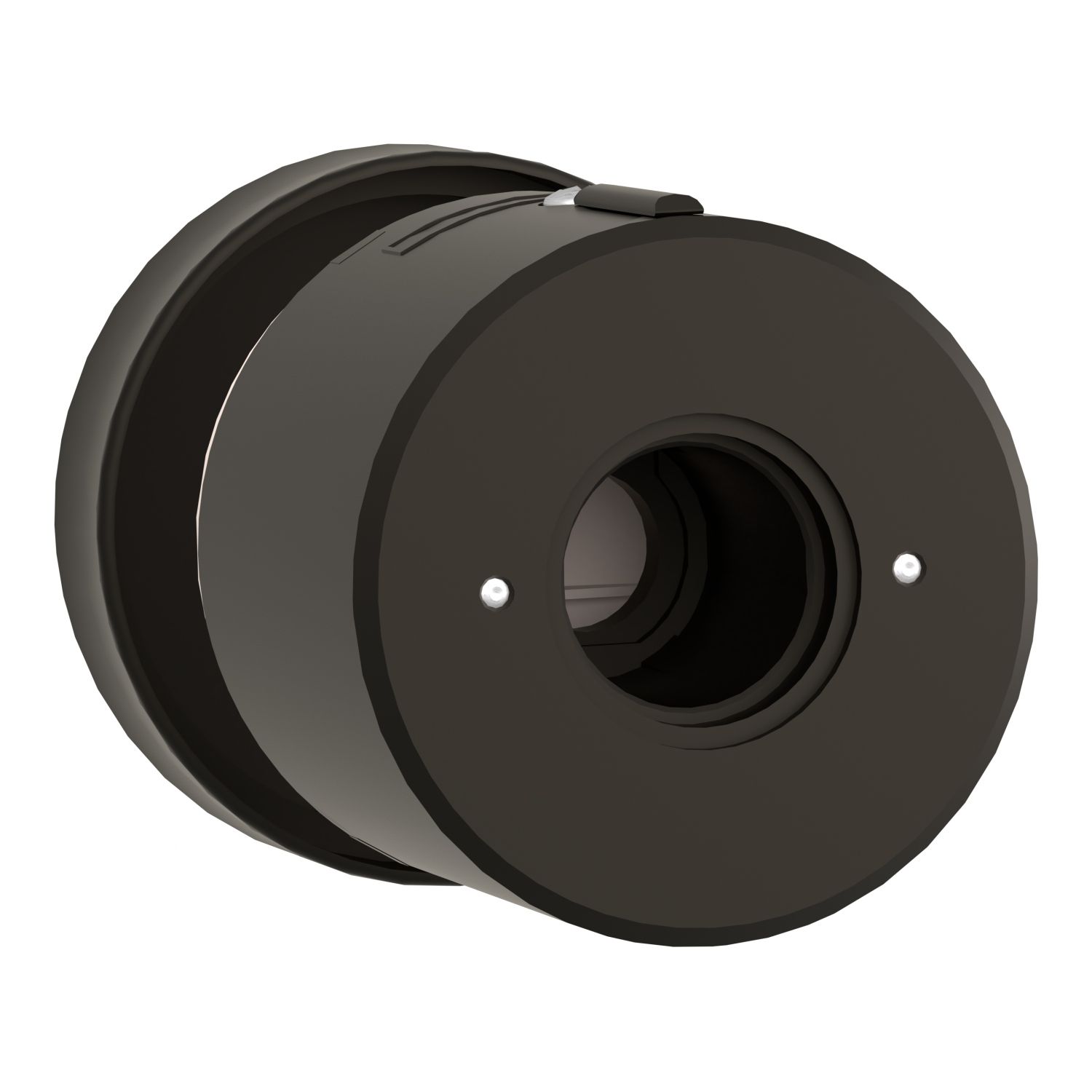

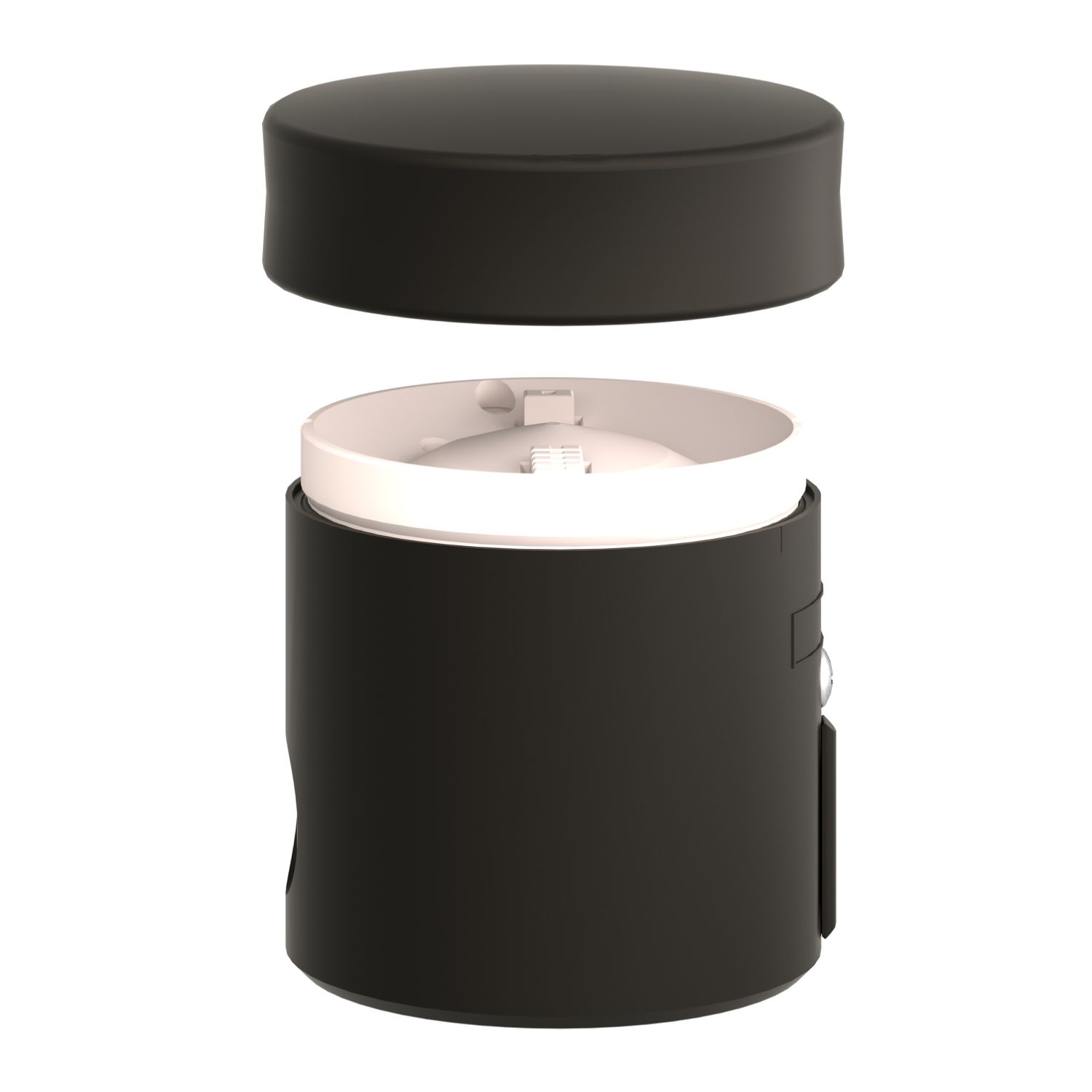

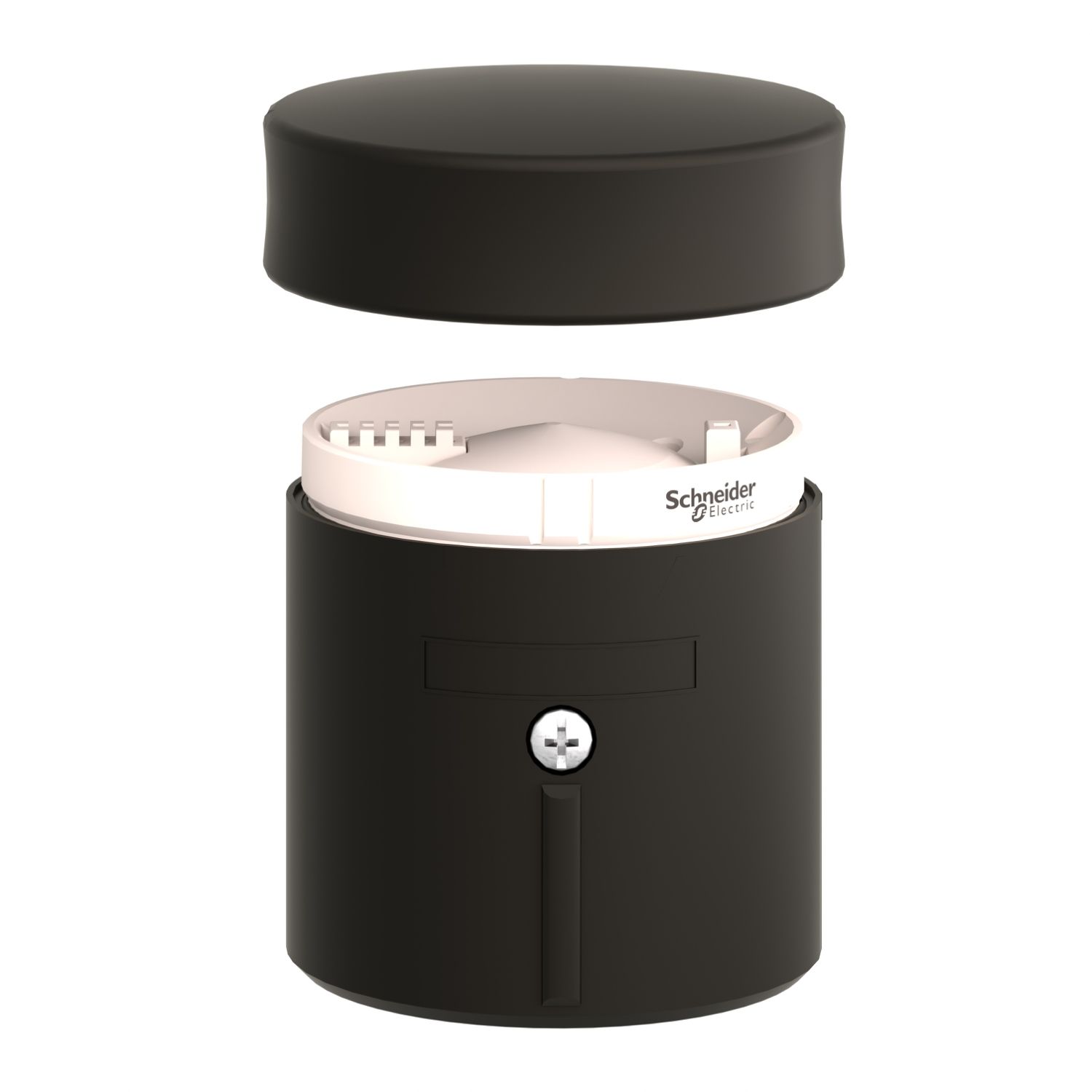

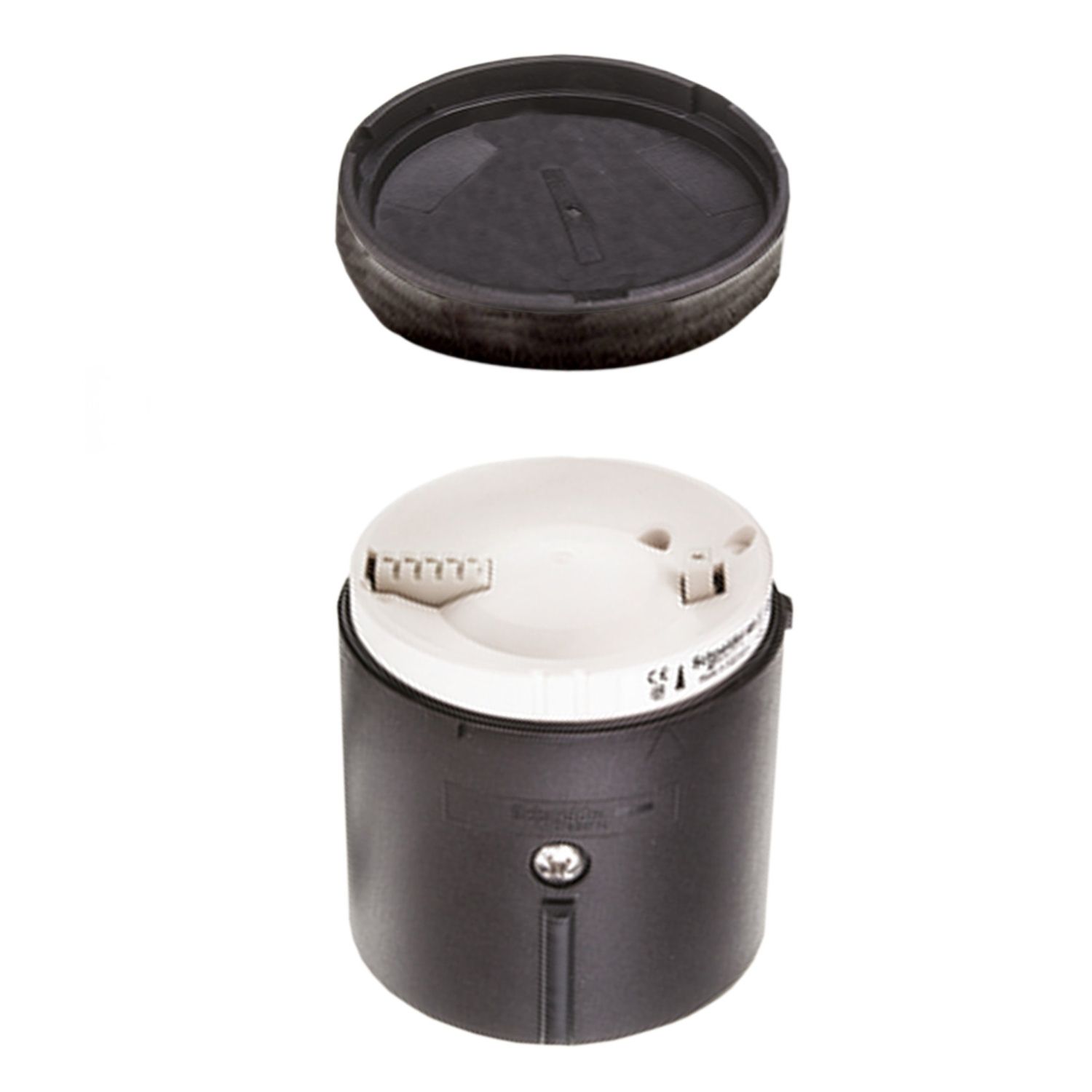

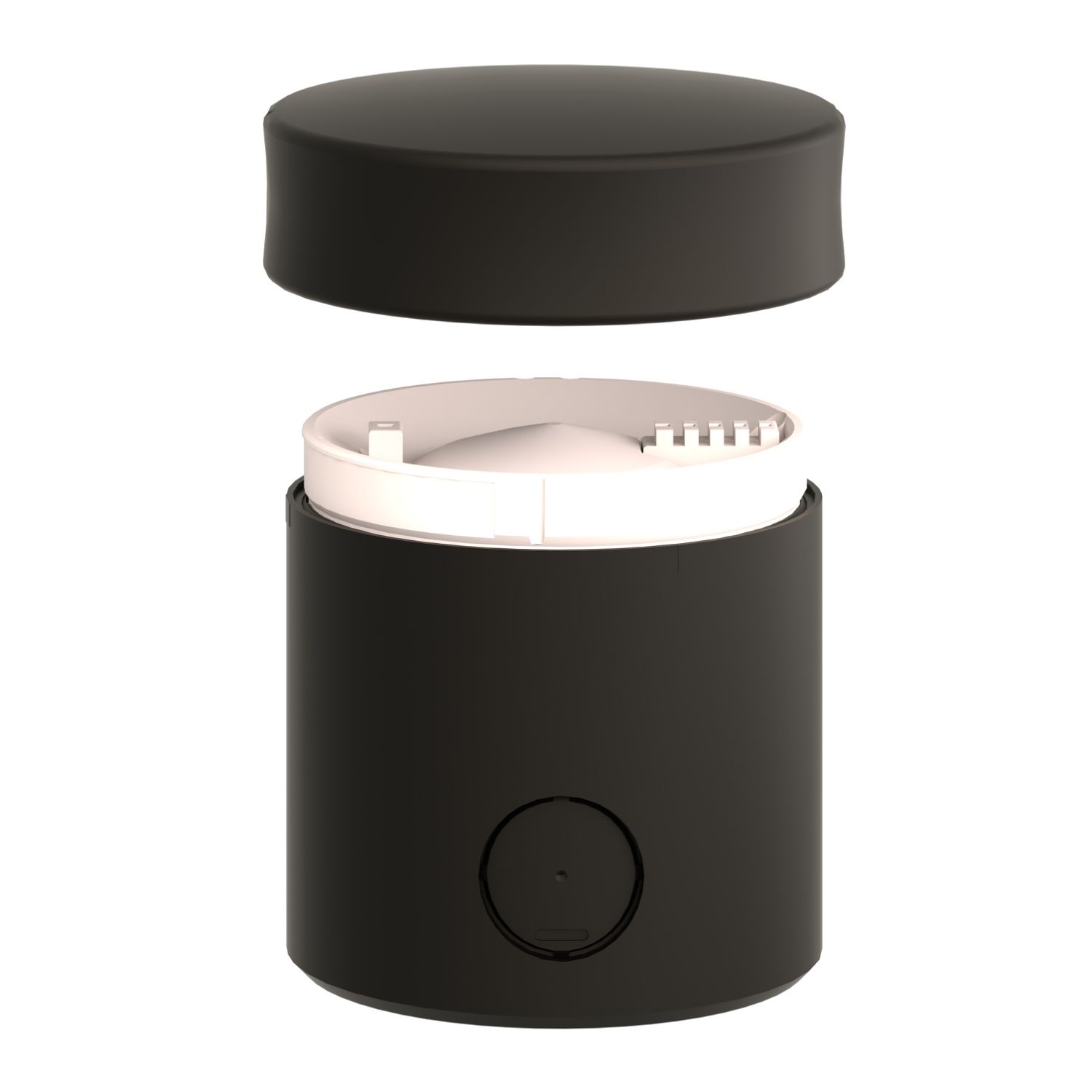

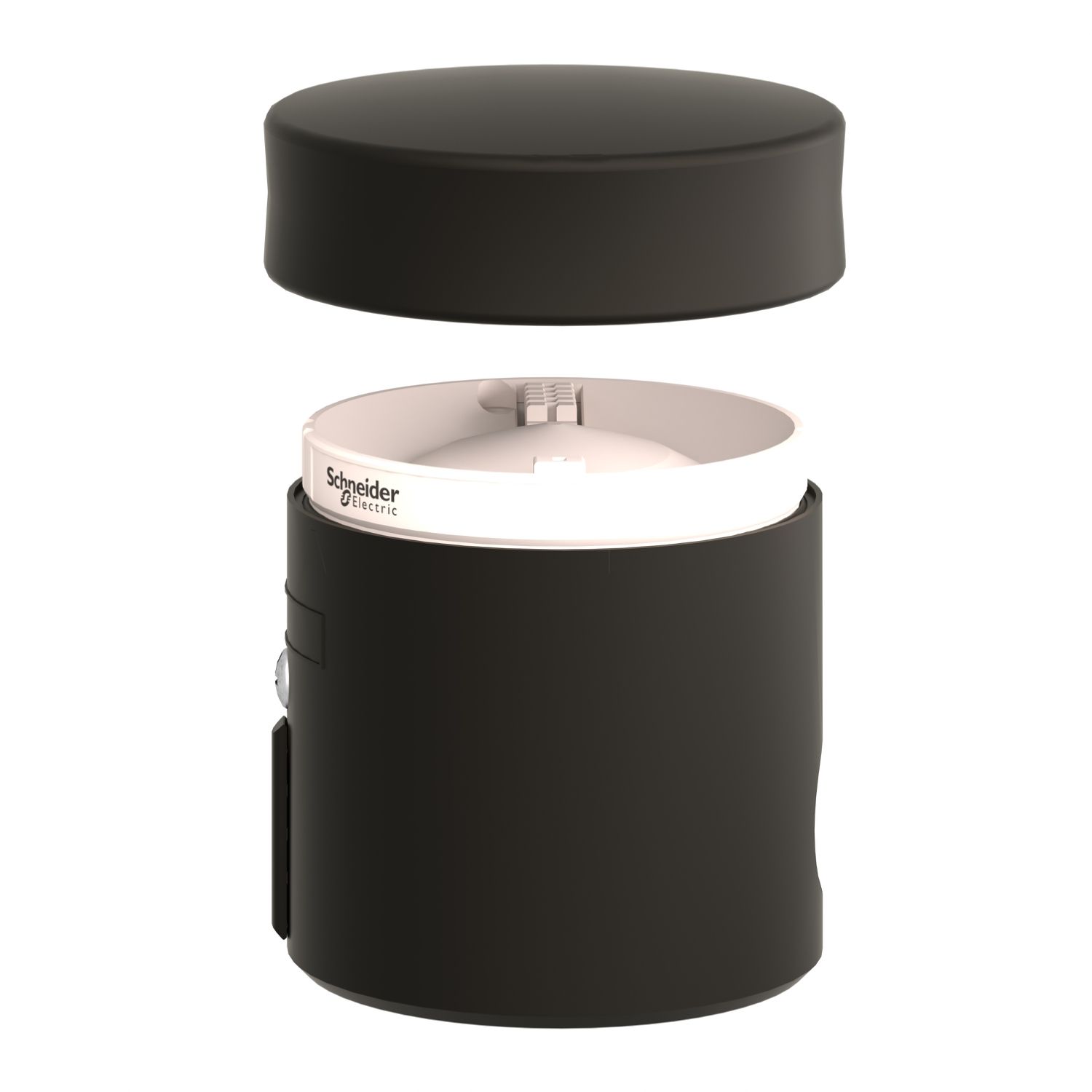

Picture of AS-Interface, Base unit with cover, Harmony XVB Universal, side cable entry, plastic, black, 70mm, AS-Interface connection
Picture of AS-Interface, Base unit with cover, Harmony XVB Universal, side cable entry, plastic, black, 70mm, AS-Interface connection
Picture of AS-Interface, Base unit with cover, Harmony XVB Universal, side cable entry, plastic, black, 70mm, AS-Interface connection
SKU:

XVBC21A

AS-Interface, Base unit with cover, Harmony XVB Universal, side cable entry, plastic, black, 70mm, AS-Interface connection

$426.84 INC GST
Available for Shipping : 29-Jan-2025
Product Selector
AS-Interface, Base unit with cover, Harmony XVB Universal, side cable entry, plastic, black, 70mm, AS-Interface connection
Be the first to review this product
Manufacturer: Schneider Electric
Technical illustration
Catalogue
Declaration of conformity
Instruction sheet
Technical illustration
Product environmental
Product Page Link
Product Data Sheet

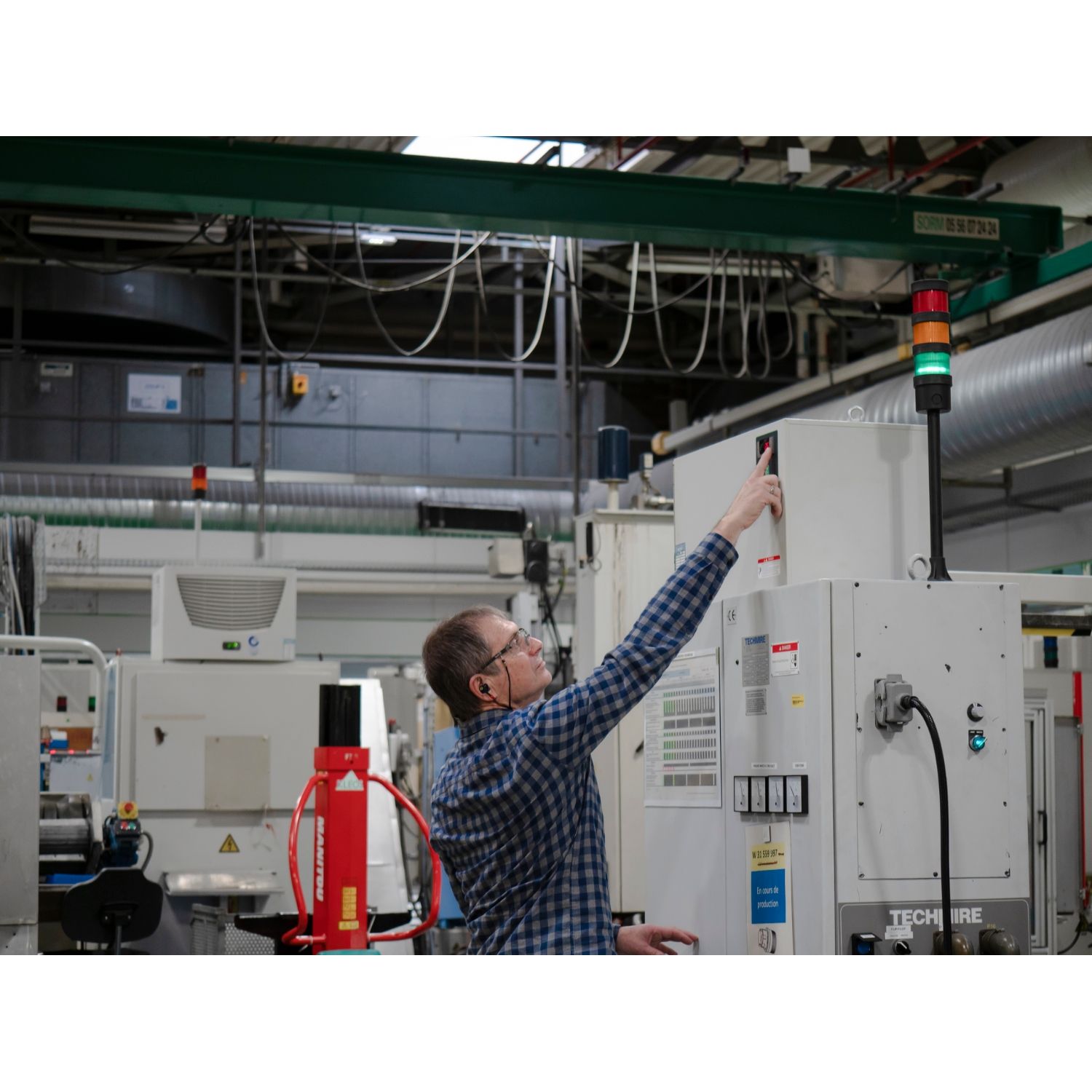

This base unit is designed to be fitted with indicator bank to create complete tower light and allow clear display of the status of your machines. It is made of glass reinforced polyamide material and it allows the cable to entry from the side. It complies with EN/IEC 60947-5-1, EN/IEC 60068-2-27, UL 508, CSA, AS-Interface No 25701 standards with NEMA 4X protection.

Products specifications

Attribute name Attribute value
Main
Component name XVBC
Product or component type base unit with cover
Range of product Harmony XVB Universal
Complementary
[Us] rated supply voltage AS-Interface line: 24...31.6 V, external: 19.2...30 V
Range compatibility AS-Interface cabling system
Cable entry side entry
Material polycarbonate: cover unit, glass reinforced polyamide: base unit
Assembly style customer assembly, up to 5 units
Electrical connection 1 connector M12 for AS-Interface line
Actuator sensor interface profile [AS-i] S.7.F
[Ui] rated insulation voltage 250 V conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60947-1
Net weight 0.19 kg
Mounting diameter 70 mm
Terminals description ISO n°1 (COM-2)PW, (GND)GROUND, (COM-3)PW, (COM-4)PW, (COM-1)PW, (COM-5)PW
Current consumption 30 mA no load, 30 mA under load external, 250 mA under load via AS-Interface line
Environment
Protective treatment TC
NEMA degree of protection NEMA 4X conforming to UL 508 (indoor)
Overvoltage category class I conforming to IEC 60536
Ambient air temperature for storage -20-70 °C
Vibration resistance 5 gn conforming to IEC 60068-2-6
IP degree of protection IP65 conforming to IEC 60529
Shock resistance 25 gn conforming to IEC 60068-2-27
Standards EN/IEC 60947-5-1
Ambient air temperature for operation -10-50 °C
Product certifications CSA, AS-Interface No 25701
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.2 cm
Package 1 Width 7.8 cm
Package 1 Length 7.8 cm
Package 1 Weight 238.0 g
Unit Type of Package 2 2
Number of Units in Package 2 36
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 9.079 kg
