Picture of Harmony XVR, Illuminated beacon with buzzer, orange, Ø100, 70...90 dB, integral LED, 12...24 V DC
SKU:

XVR3B04S

Harmony XVR, Illuminated beacon with buzzer, orange, Ø100, 70...90 dB, integral LED, 12...24 V DC

$316.69
Available for Shipping : 06-Apr-2025
Harmony XVR, Illuminated beacon with buzzer, orange, Ø100, 70...90 dB, integral LED, 12...24 V DC
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product environmental
Instruction sheet
Declaration of conformity
End of life manual
Brochure
Product Page Link
Product Data Sheet

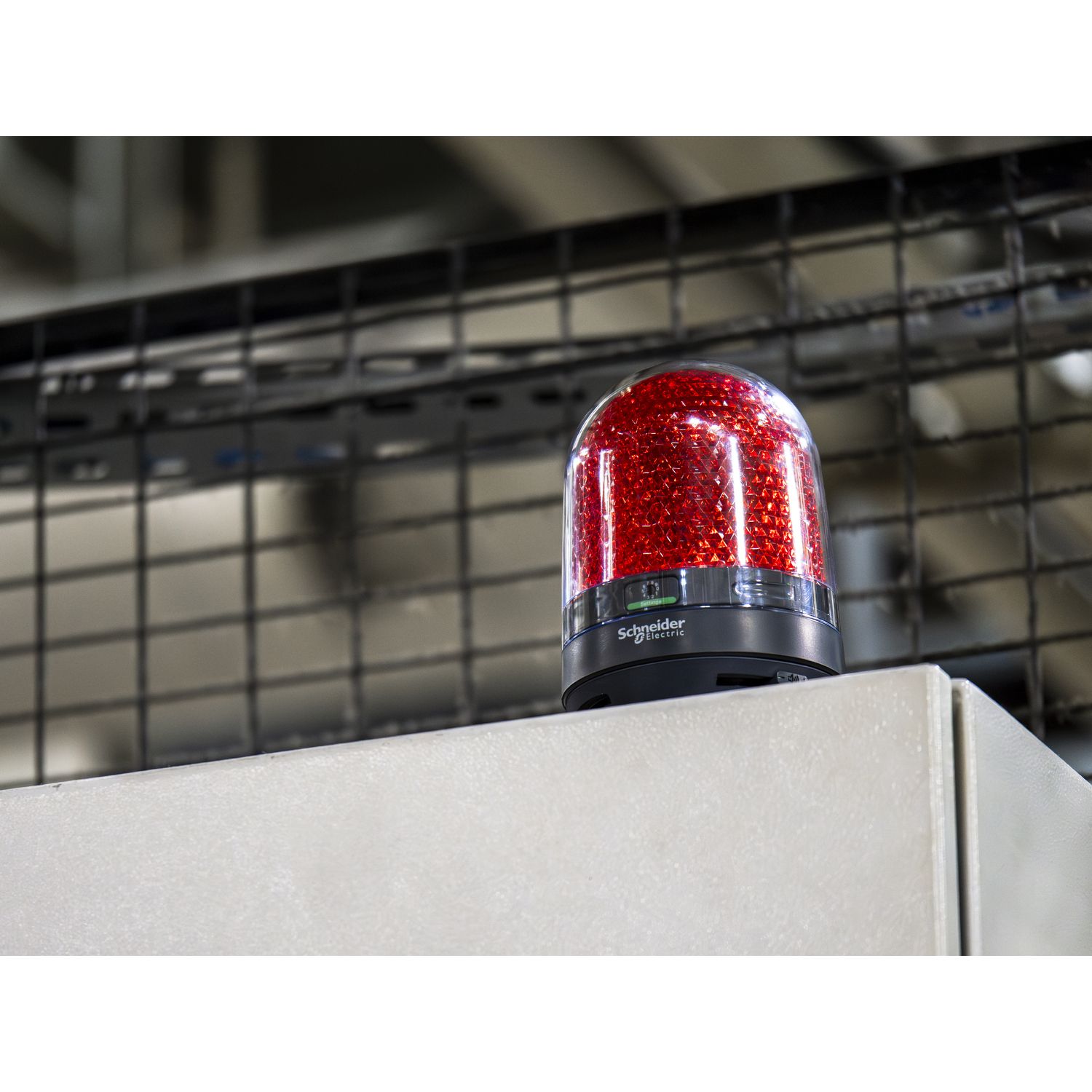

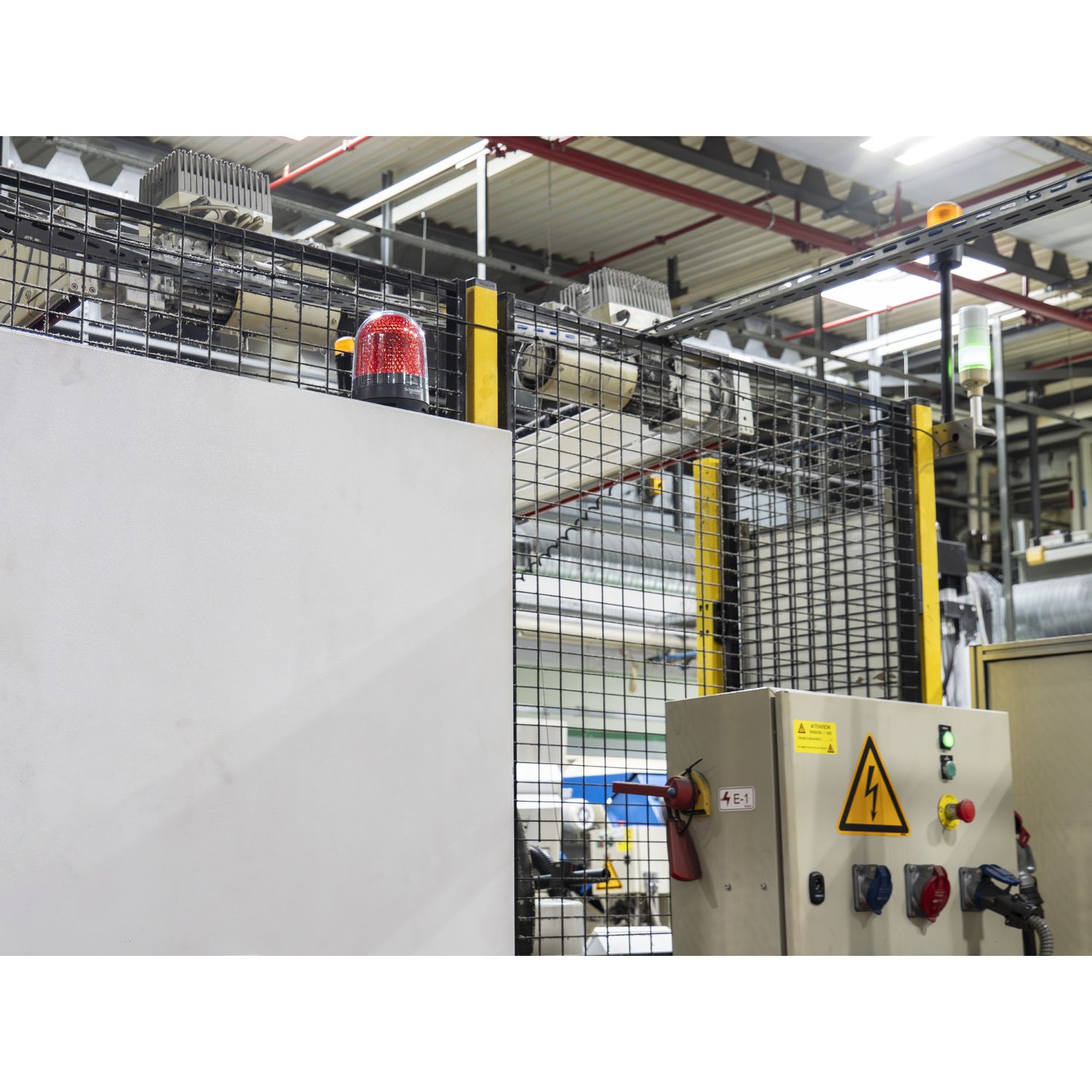

This illuminated beacon is designed as lighting accessory for tower light. Its integral LED offers a flashing / blinking / rotating light pattern and an audible unit allowing it to clearly display the status of your machines in applications such as forklift, bulldozer and automated guided vehicle (AGV). It is vibration resistant thanks to its IP23.

Products specifications

Attribute name Attribute value
Main
Device short name XVR3
Device application automated guided vehicle (AGV), bulldozer, forklift
Beacon or indicator bank unit type LED unit
Sound signalling buzzer: 70-90 dB at 1 m
Product or component type beacon
Light source LED, red
Mounting diameter 100 mm
Range of product Harmony XVR
Complementary
[Ue] rated operational voltage 10...30 V DC
Width 100 mm
Material EPDM (ethylene propylene diene monomer): base, PBT (polybutylene terephthalate) + PC (polycarbonate): body, PC (polycarbonate): lenses
Installation direction upright outdoor, inverted indoor, sideways indoor, upright indoor
Assembly style ready assembled
Signalling type flashing, blinking, rotating
[Us] rated supply voltage 12...24 V DC
Electrical insulation class class II
Net weight 0.538 kg
Length 100 mm
Current consumption 3000 mA
Marking CE
Power consumption in W 3.1 W
Inrush current 3 A
Height 139 mm
Environment
Relative humidity 35-85 % without condensation
Ambient air temperature for storage -35-70 °C
Vibration resistance 7.1 gn (upright), 4.6 gn (inverted), 4.6 gn (sideways)
IP degree of protection IP23 (upright), IP23 (inverted), IP23 (sideways)
Ambient air temperature for operation -20-50 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.5 cm
Package 1 Width 13.85 cm
Package 1 Length 18.5 cm
Package 1 Weight 660 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30 cm
Package 2 Width 40 cm
Package 2 Length 60 cm
Package 2 Weight 6.4 kg
Unit Type of Package 3 3
Number of Units in Package 3 32
Package 3 Height 71.5 cm
Package 3 Width 68 cm
Package 3 Length 80 cm
Package 3 Weight 29.8 kg
