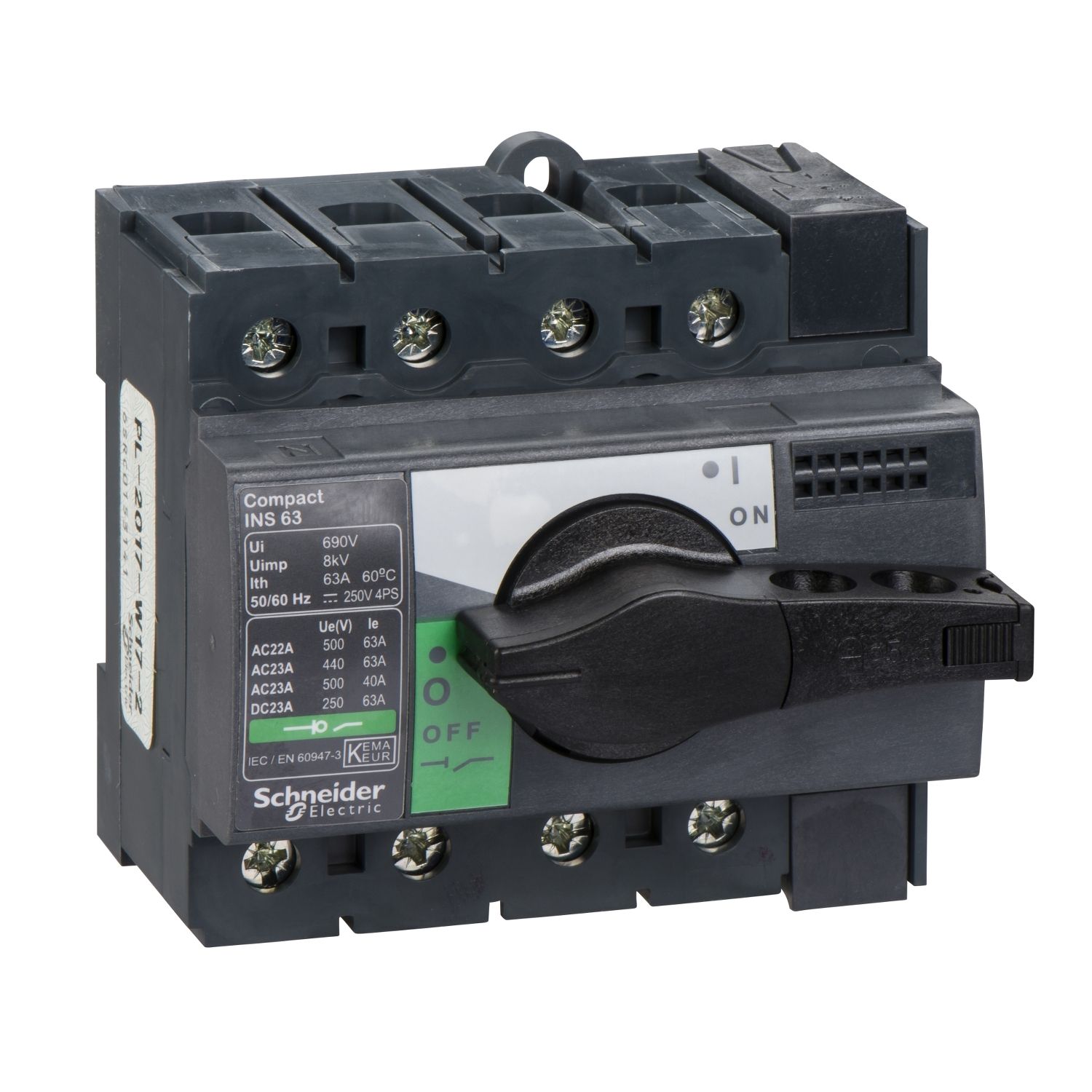

Picture of switch disconnector, Compact INS63, 63A, standard version with black rotary handle, 4 poles
SKU:

28903

switch disconnector, Compact INS63, 63A, standard version with black rotary handle, 4 poles

$284.00
Available for Shipping : 24-Nov-2024
Product Selector
switch disconnector, Compact INS63, 63A, standard version with black rotary handle, 4 poles
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Instruction sheet
Product environmental
Catalogue
Product Page Link
Product Data Sheet
This Compact INS63 is a 4 poles non-automatic switch-disconnector with black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 63A at 415VAC in categories AC22A and AC23A. The rated voltage is 500VAC 50/60Hz or 250VDC. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS63 is a class II insulation level front-face device as per IEC 60664 standard.

Products specifications

Attribute name Attribute value
Main
Device short name Compact INS63
[Uimp] rated impulse withstand voltage 8 kV
[Ie] rated operational current DC-23A: 63 A DC 250 V 4 poles in series, DC-22A: 63 A DC 50/60 Hz 250 V 4 poles in series, DC-23A: 63 A DC 50/60 Hz 125 V 2 poles in series, DC-22A: 63 A DC 50/60 Hz 125 V 2 poles in series, AC-23A: 63 A AC 50/60 Hz 440/480 V, AC-23A: 63 A AC 50/60 Hz 380/415 V, AC-23A: 63 A AC 50/60 Hz 220/240 V, AC-23A: 40 A AC 50/60 Hz 500 V, AC-22A: 63 A AC 50/60 Hz 500 V 4 poles in series, AC-22A: 63 A AC 50/60 Hz 440/480 V 4 poles in series, AC-22A: 63 A AC 50/60 Hz 380/415 V 2 poles in series, AC-22A: 63 A AC 50/60 Hz 220/240 V
Suitability for isolation yes
Pollution degree 3
Switch-disconnector name Compact INS63
Range ComPacT
[Ith] conventional free air thermal current 63 A at 60 °C
Range of product INS40...160
Poles description 4P
[Ui] rated insulation voltage 690 V AC 50/60 Hz
[Icm] rated short-circuit making capacity 75 kA with upstream protection circuit breaker 500 V AC at 50/60 Hz, 15 kA switch-disconnector alone 500 V AC at 50/60 Hz
Product name ComPacT INS
Product or component type switch disconnector
Visible break no
Network type AC, DC
Contact position indicator yes
[Ue] rated operational voltage 250 V DC, 500 V AC 50/60 Hz
Network frequency 50/60 Hz
Complementary
Rated duty uninterrupted
[Icw] rated short-time withstand current 0.55 kA during 30 s conforming to IEC 60947-3, 3 kA during 1 s conforming to IEC 60947-3, 1.73 kA during 3 s conforming to IEC 60947-3, 0.67 kA during 20 s conforming to IEC 60947-3
Compatibility code INS63
Cable cross section 1.5-50 mm²
Electrical durability DC-23A: 1500 cycles 250 V DC 4 poles in series, DC-22A: 1500 cycles 250 V DC 50/60 Hz 4 poles in series, AC-23A: 1500 cycles 500 V AC 50/60 Hz, AC-23A: 1500 cycles 440 V AC 50/60 Hz, AC-23A: 1500 cycles 380/415 V AC 50/60 Hz, AC-23A: 1500 cycles 220/240 V AC 50/60 Hz, AC-22A: 1500 cycles 500 V AC 50/60 Hz, AC-22A: 1500 cycles 440 V AC 50/60 Hz, AC-22A: 1500 cycles 380/415 V AC 50/60 Hz 4 poles in series, AC-22A: 1500 cycles 220/240 V AC 50/60 Hz
Mounting mode fixed
Upside connection front
Control type rotary handle
Downside connection front
Connection pitch 18 mm
Intermittent duty class class 120 - 60 %
Height 85 mm
Maximum power AC-23: 30 kW at 440 V AC 50/60 Hz, AC-23: 30 kW at 380/415 V AC 50/60 Hz, AC-23: 22 kW at 500/525 V AC 50/60 Hz, AC-23: 15 kW at 220/240 V AC 50/60 Hz
Depth 62.5 mm
Width 90 mm
Enclosure dimensions for Ithe 190 mm x 115 mm x 55 mm
Mechanical durability 20000 cycles
Net weight 0.6 kg
Handle colour black
Mounting support DIN rail, plate
Environment
Ambient air temperature for storage -50-85 °C
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
IK degree of protection IK07 conforming to EN 50102
Standards IEC 60947-1, IEC 60947-3
Product certifications KEMA-KEUR, CCC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.000 cm
Package 1 Width 9.200 cm
Package 1 Length 10.000 cm
Package 1 Weight 650.000 g
Unit Type of Package 2 2
Number of Units in Package 2 18
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 12.064 kg
Unit Type of Package 3 3
Number of Units in Package 3 144
Package 3 Height 50.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 109.784 kg
