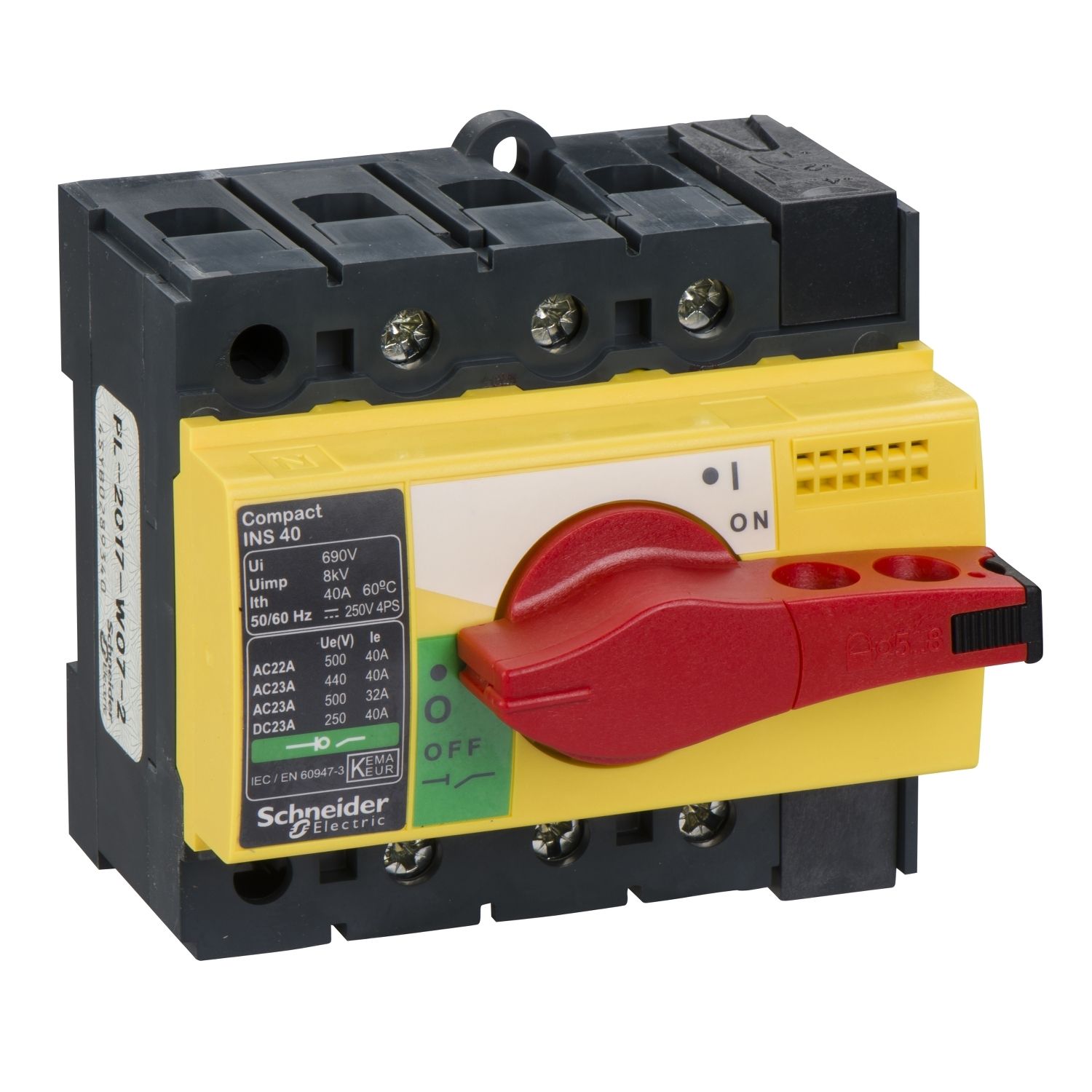

Picture of switch disconnector, Compact INS40, 40A, with red rotary handle and yellow front, 3 poles
SKU:

28916

switch disconnector, Compact INS40, 40A, with red rotary handle and yellow front, 3 poles

$304.00
Available for Shipping : 10-Dec-2024
Product Selector
switch disconnector, Compact INS40, 40A, with red rotary handle and yellow front, 3 poles
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Instruction sheet
Catalogue
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet
This Compact INS40 is a 3 poles non-automatic switch-disconnector with red rotary handle and yellow front. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 40A at 415VAC in categories AC22A and AC23A. The rated voltage is 500VAC 50/60Hz or 250VDC. It can be used as an emergency-off device. For easy identification, it uses special colours stipulated by the standards. The red rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS40 is a class II insulation level front-face device as per IEC 60664 standard.

Products specifications

Attribute name Attribute value
Main
Device short name Compact INS40
[Uimp] rated impulse withstand voltage 8 kV
[Ie] rated operational current DC-23A: 40 A DC 125 V 2 poles in series, DC-22A: 40 A DC 50/60 Hz 125 V 2 poles in series, AC-23A: 40 A AC 50/60 Hz 440/480 V, AC-23A: 40 A AC 50/60 Hz 380/415 V, AC-23A: 40 A AC 50/60 Hz 220/240 V, AC-23A: 32 A AC 50/60 Hz 500 V, AC-22A: 40 A AC 50/60 Hz 500 V, AC-22A: 40 A AC 50/60 Hz 440/480 V, AC-22A: 40 A AC 50/60 Hz 380/415 V 2 poles in series, AC-22A: 40 A AC 50/60 Hz 220/240 V
Suitability for isolation yes
Pollution degree 3
Switch-disconnector name Compact INS40
Range ComPacT
[Ith] conventional free air thermal current 40 A at 60 °C
Range of product INS40...160
Poles description 3P
[Ui] rated insulation voltage 690 V AC 50/60 Hz
[Icm] rated short-circuit making capacity 75 kA with upstream protection circuit breaker 500 V AC at 50/60 Hz, 15 kA switch-disconnector alone 500 V AC at 50/60 Hz
Product name ComPacT INS
Product or component type switch disconnector
Visible break no
Network type AC, DC
Contact position indicator yes
[Ue] rated operational voltage 500 V AC 50/60 Hz, 125 V DC
Network frequency 50/60 Hz
Complementary
Rated duty uninterrupted
[Icw] rated short-time withstand current 5.5 kA during 30 s conforming to IEC 60947-3, 3 kA during 1 s conforming to IEC 60947-3, 1.73 kA during 3 s conforming to IEC 60947-3, 0.067 kA during 20 s conforming to IEC 60947-3
Compatibility code INS40
Cable cross section 1.5-50 mm²
Electrical durability DC-23A: 1500 cycles 250 V DC 2 poles in series, DC-22A: 1500 cycles 250 V DC 50/60 Hz 2 poles in series, AC-23A: 1500 cycles 500 V AC 50/60 Hz, AC-23A: 1500 cycles 440 V AC 50/60 Hz, AC-23A: 1500 cycles 380/415 V AC 50/60 Hz, AC-23A: 1500 cycles 220/240 V AC 50/60 Hz, AC-22A: 1500 cycles 500 V AC 50/60 Hz, AC-22A: 1500 cycles 440 V AC 50/60 Hz, AC-22A: 1500 cycles 380/415 V AC 50/60 Hz 2 poles in series, AC-22A: 1500 cycles 220/240 V AC 50/60 Hz
Mounting mode fixed
Upside connection front
Control type rotary handle
Downside connection front
Connection pitch 18 mm
Intermittent duty class class 120 - 60 %
Height 85 mm
Maximum power AC-23: 22 kW at 440 V AC 50/60 Hz, AC-23: 20 kW at 380/415 V AC 50/60 Hz, AC-23: 18.5 kW at 500/525 V AC 50/60 Hz, AC-23: 11 kW at 220/240 V AC 50/60 Hz
Depth 62.5 mm
Width 90 mm
Enclosure dimensions for Ithe 190 mm x 115 mm x 55 mm
Mechanical durability 20000 cycles
Net weight 0.5 kg
Handle colour red
Mounting support plate, DIN rail
Environment
Ambient air temperature for storage -50-85 °C
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
IK degree of protection IK07 conforming to EN 50102
Standards IEC 60947-3, IEC 60947-1
Product certifications CCC, KEMA-KEUR
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.1 cm
Package 1 Width 10.2 cm
Package 1 Length 10.1 cm
Package 1 Weight 603.0 g
Unit Type of Package 2 2
Number of Units in Package 2 18
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 11.265 kg

Related products

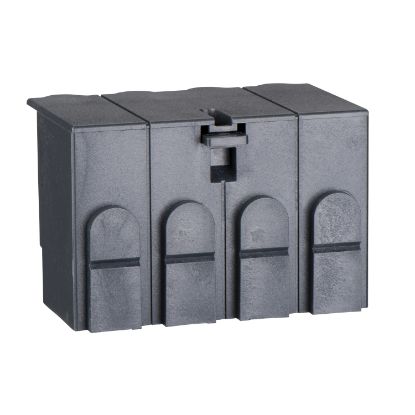

Picture of terminal shields, Compact INS40 to 80, insulation accessories, 3 and 4 poles, set of 2 parts
