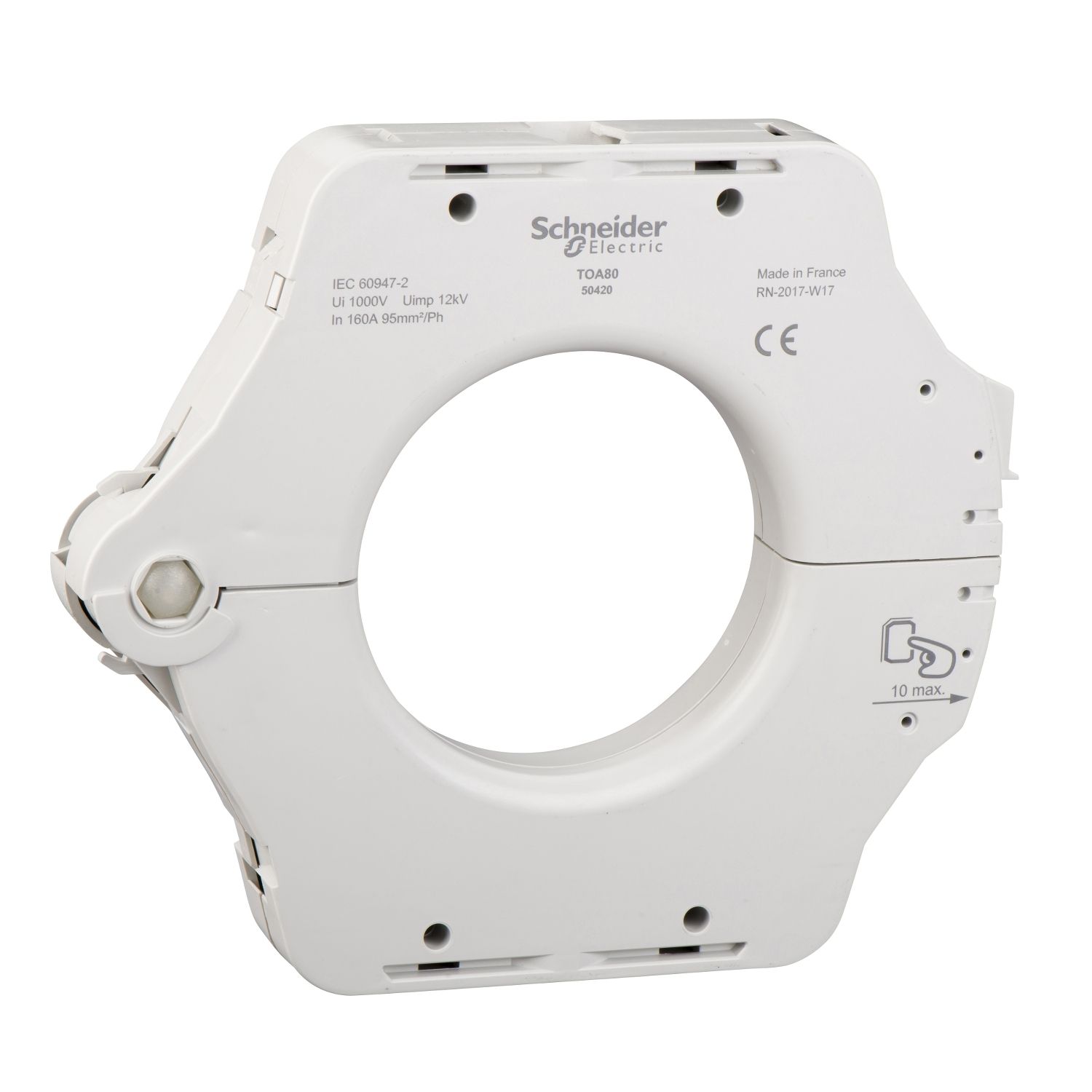

Picture of Split toroid OA type, VigiPacT, Vigilohm, TOA80, inner diameter 80mm, rated current 160A
SKU:

50420

Split toroid OA type, VigiPacT, Vigilohm, TOA80, inner diameter 80mm, rated current 160A

$3,885.50
Available for Shipping : 28-Nov-2024
Product Selector
Split toroid OA type, VigiPacT, Vigilohm, TOA80, inner diameter 80mm, rated current 160A
  • VigiPacT relays ensure coordination with ComPacT circuit breakers (switch off within 40ms)
  • Continuous monitoring of the power supply, the relay/toroid link and internal electronics
  • Reinforced insulation of VigiPacT relays (overvoltage category IV)
  • Access to settings protected by a lead-sealable cover or password
  • Green Premium labelled products, RoHS and REACH compliant
  • RMS measurement of earth-leakage currents
  • No trip under leakage currents below 80% of the threshold
  • No trip under transient leakage currents
  • Inverse-time tripping curve
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Catalogue
Product environmental
End of life manual
Instruction sheet
Product Page Link
Product Data Sheet
This toroid is dedicated to Vigilohm Insulation Fault locators, and to VigiPacT type A residual current protection and monitoring relays. It allows the monitoring of the injected component from Vigilohm Insulation Monitor, and the measurement of a current rating up to 160A for VigiPacT monitoring and protection relays. The transformer ratio is 1/1000. The inner diameter of the toroid is 80 millimeters and the weight is 0.9kg. The cables must be centered within the toroid and the diameter represented by all these cables should not exceed 40 millimeters. The maximum cross section per phase (R, S, T, N) is 95mm² for a copper conductor.

Products specifications

Attribute name Attribute value
Main
Device short name TOA
Device application equipment monitoring and control
Current transformer type OA type split toroid
Range VigiPacT
[Ie] rated operational current 160 A
Product or component type earth leakage current sensor
Range compatibility VigiPacT RMH residual current protection relay, VigiPacT RHUs residual current protection relay, VigiPacT RHU residual current protection relay, VigiPacT RH197P residual current protection relay, VigiPacT RH197M residual current protection relay, VigiPacT RH99P residual current protection relay, VigiPacT RH99M residual current protection relay, VigiPacT RH86P residual current protection relay, VigiPacT RH86M residual current protection relay, VigiPacT RH68M residual current protection relay, VigiPacT RH21P residual current protection relay, VigiPacT RH21M residual current protection relay, VigiPacT RH10P residual current protection relay, VigiPacT RH10M residual current protection relay
Complementary
Diameter 80 mm inner:
[Icw] rated short-time withstand current 85 kA for 0.5 s
Calorific value 8.02 MJ
Connections - terminals screw 0.22-0.22 mm²
[Uimp] rated impulse withstand voltage 12 kV
Height 148 mm
Transformer ratio 1/1000
Depth 38 mm
Overvoltage category IV
Width 148 mm
Cable outer diameter 23-23 mm: 50-50 mm² (maximum)
Net weight 0.85 kg
[Ui] rated insulation voltage 1000 V
Network type AC/DC
Residual short-circuit withstand current 85 kA / 0.5 s conforming to IEC 60947-2
Network frequency 50...400 Hz
Mounting mode fixed (slotted backplate), fixed (profiled sheet metal), fixed (plain backplate), fixed (cables)
Environment
IP degree of protection IP30, connectors: IP20
Ambient air temperature for storage -55-85 °C
Pollution degree level 3 conforming to IEC 60664-1
Ambient air temperature for operation -35-70 °C
IK degree of protection IK07 conforming to EN 62262
Environmental characteristic salt mist: Kb/2 conforming to IEC 60068-2-52, exposure to damp heat not in service (25...55 °C, RH 95 %) : 28 cycles conforming to IEC 60068-2-30, exposure to damp heat in service (environment category C2) : 48 hours conforming to IEC 60068-2-56
Standards IEC 60947-2
Product certifications CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.200 cm
Package 1 Width 17.800 cm
Package 1 Length 20.200 cm
Package 1 Weight 982.000 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 12.250 kg

Related products

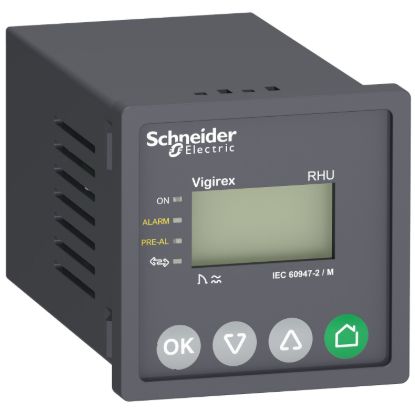

Picture of Residual current protection relay, VigiPacT RHUs, 30mA-30A, 220/240VAC 50/60Hz, without communication, front panel

Residual current protection relay, VigiPacT RHUs, 30mA-30A, 220/240VAC 50/60Hz, without communication, front panel

LV481001
$3,349.25
View Detail
Picture of Residual current protection relay, VigiPacT RHU, 30mA-30A, 220/240VAC 50/60Hz, communicating, front panel mounting

Residual current protection relay, VigiPacT RHU, 30mA-30A, 220/240VAC 50/60Hz, communicating, front panel mounting

LV481003
$3,476.26
View Detail

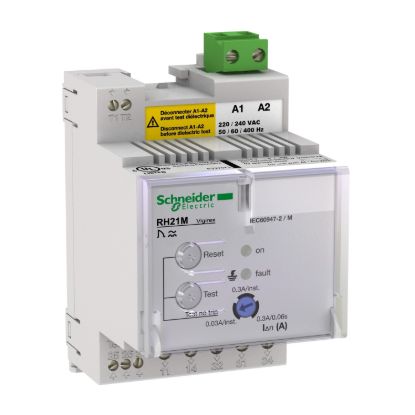

Picture of Residual current protection relay, VigiPacT RH21M, 30mA or 300mA, 220/240VAC 50/60Hz, DIN rail mounting

Residual current protection relay, VigiPacT RH21M, 30mA or 300mA, 220/240VAC 50/60Hz, DIN rail mounting

56163
$1,161.89
View Detail

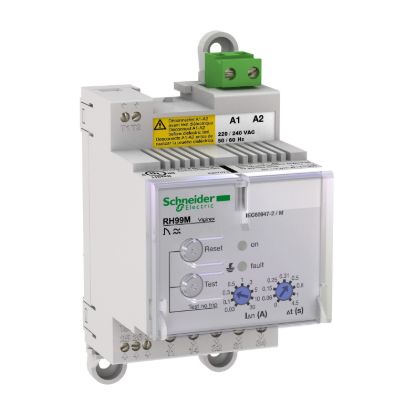

Picture of Residual current protection relay, VigiPacT RH99M, 30mA-30A, 220/240VAC 50/60Hz, DIN rail mounting

Residual current protection relay, VigiPacT RH99M, 30mA-30A, 220/240VAC 50/60Hz, DIN rail mounting

56173
$1,223.04
View Detail
Picture of Residual current protection relay, VigiPacT RH10M, 30mA, 220/240VAC 50/60Hz, DIN rail mounting

Residual current protection relay, VigiPacT RH10M, 30mA, 220/240VAC 50/60Hz, DIN rail mounting

56130
$1,064.28
View Detail

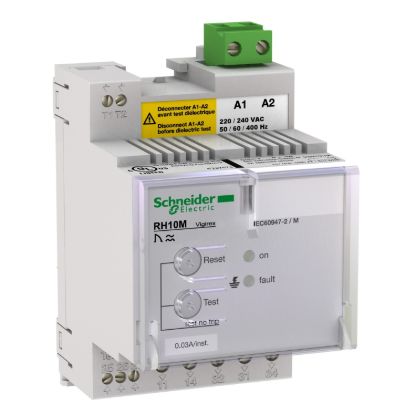

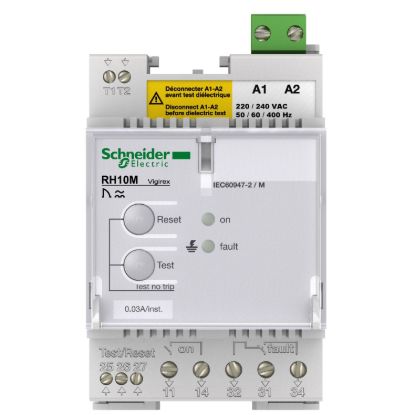

Residual current protection relay, VigiPacT RH10M, 300mA, 220/240VAC 50/60Hz, DIN rail mounting

56135
$1,064.28
View Detail

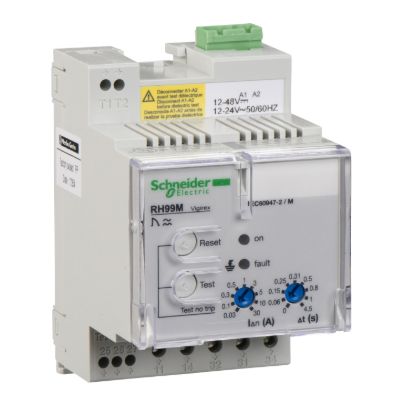

Picture of Residual current protection relay, VigiPacT RH99M, 30mA-30A, 12/24VAC 50/60Hz, 12/48VDC, DIN rail mounting
