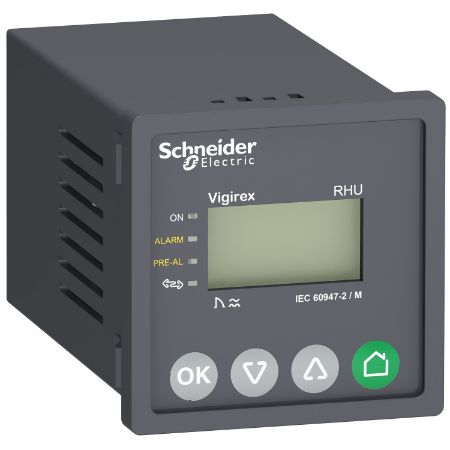

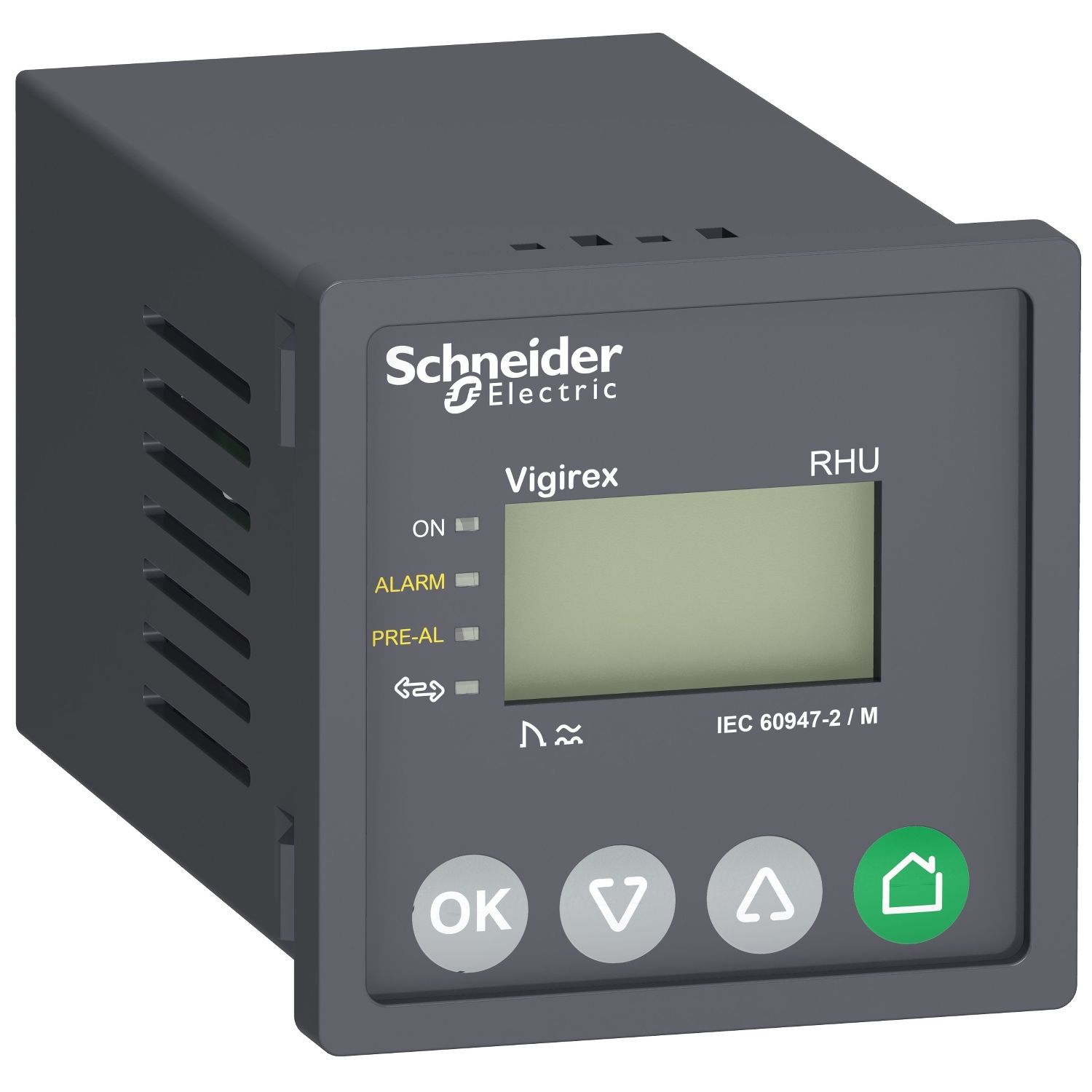

Picture of Residual current protection relay, VigiPacT RHU, 30mA-30A, 220/240VAC 50/60Hz, communicating, front panel mounting
SKU:

LV481003

Residual current protection relay, VigiPacT RHU, 30mA-30A, 220/240VAC 50/60Hz, communicating, front panel mounting

$3,476.26
Available for Shipping : 03-Dec-2024
Product Selector
Residual current protection relay, VigiPacT RHU, 30mA-30A, 220/240VAC 50/60Hz, communicating, front panel mounting
  • VigiPacT relays ensure coordination with ComPacT circuit breakers (switch off within 40ms)
  • Continuous monitoring of the power supply, the relay/toroid link and internal electronics
  • Reinforced insulation of VigiPacT relays (overvoltage category IV)
  • Access to settings protected by a lead-sealable cover or password
  • Green Premium labelled products, RoHS and REACH compliant
  • RMS measurement of earth-leakage currents
  • No trip under leakage currents below 80% of the threshold
  • No trip under transient leakage currents
  • Inverse-time tripping curve
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Declaration of conformity
User guide
Instruction sheet
Catalogue
Product environmental
Product Page Link
Product Data Sheet
VigiPacT RHU is a front panel mounting communicating residual current protection relay. It protects against people direct or indirect contact, property fire hazards and motors. It measures the earth leakage current in an electrical installation via its associated toroid. It trips the associated circuit breaker when the set residual operation current is overrun. It can activate an alarm and a pre-alarm. The operational supply voltage is 220/240VAC 50/60Hz. It is a type A earth-leakage protection class. The current sensitivity is from 30mA to 30A. The time delay is adjustable from 0 to 4.5s. It is installed on a front panel switchboard and the protection degree is IP40. It must be associated with a compatible Schneider Electric type A toroid or rectangular sensor. It complies with IEC 60755, IEC 60947-2 annex M and IEC 60947-5-1 standards. RUH is integrated in the Smart Panel architecture with the Modbus communication.
