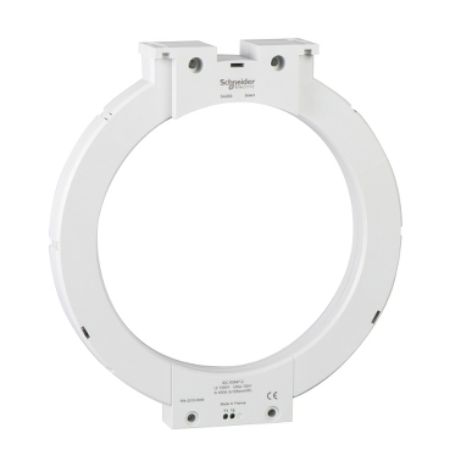

Picture of Closed toroid A type, VigiPacT, Vigilohm, GA300, inner diameter 300mm, rated current 630A
SKU:

50442

Closed toroid A type, VigiPacT, Vigilohm, GA300, inner diameter 300mm, rated current 630A

$4,993.30
Available for Shipping : 10-Dec-2024
Product Selector
Closed toroid A type, VigiPacT, Vigilohm, GA300, inner diameter 300mm, rated current 630A
  • VigiPacT relays ensure coordination with ComPacT circuit breakers (switch off within 40ms)
  • Continuous monitoring of the power supply, the relay/toroid link and internal electronics
  • Reinforced insulation of VigiPacT relays (overvoltage category IV)
  • Access to settings protected by a lead-sealable cover or password
  • Green Premium labelled products, RoHS and REACH compliant
  • RMS measurement of earth-leakage currents
  • No trip under leakage currents below 80% of the threshold
  • No trip under transient leakage currents
  • Inverse-time tripping curve
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Catalogue
End of life manual
User guide
Instruction sheet
Product Page Link
Product Data Sheet
This toroid is dedicated to Vigilohm Insulation Fault locators, and to VigiPacT type A residual current protection and monitoring relays. It allows the monitoring of the injected component from Vigilohm Insulation Monitor, and the measurement of a current rating up to 630A for VigiPacT monitoring and protection relays. The transformer ratio is 1/1000. The inner diameter of the toroid is 300 millimeters and the weight is 2.280kg. The cables must be centered within the toroid and the diameter represented by all these cables should not exceed 150 millimeters. The maximum cross section per phase (R, S, T, N) is 2 cables of 240mm² for a copper conductor.

Products specifications

Attribute name Attribute value
Main
Device application equipment monitoring and control
Current transformer type A type closed toroid
[Ie] rated operational current 630 A
Range compatibility VigiPacT RMH residual current protection relay, VigiPacT RHUs residual current protection relay, VigiPacT RHU residual current protection relay, VigiPacT RH197P residual current protection relay, VigiPacT RH197M residual current protection relay, VigiPacT RH99P residual current protection relay, VigiPacT RH99M residual current protection relay, VigiPacT RH86P residual current protection relay, VigiPacT RH86M residual current protection relay, VigiPacT RH68M residual current protection relay, VigiPacT RH21P residual current protection relay, VigiPacT RH21M residual current protection relay, VigiPacT RH10P residual current protection relay, VigiPacT RH10M residual current protection relay
Device short name GA300
Range VigiPacT
Product or component type earth leakage current sensor
Complementary
Diameter 291 mm inner:
Compatibility code GA300
Width outside: 390 mm, 390 mm
Depth outside: 46 mm, 46 mm
Connections - terminals connection by clip 6.35-6.35 mm²
[Uimp] rated impulse withstand voltage 12 kV
Height 360 mm, outside: 360 mm
Transformer ratio 1/1000
Overvoltage category IV
Market segment residential, small commercial
Net weight 2.23 kg
Network type AC/DC
Mounting mode fixed (cables)
[Icw] rated short-time withstand current 85 kA for 0.5 s
Cable outer diameter 150-150 mm for 2 cables : 240-240 mm² (maximum)
[Ui] rated insulation voltage 1000 V
Residual short-circuit withstand current 85 kA / 0.5 s conforming to IEC 60947-2
Network frequency 45...440 Hz
Environment
Ambient air temperature for storage -55-85 °C
Product certifications CE
IP degree of protection IP30, connectors: IP20
Pollution degree level 3 conforming to IEC 60664-1
Ambient air temperature for operation -35-70 °C
Environmental characteristic exposure to damp heat in service: category C2: 48 hours conforming to IEC 60068-2-56, salt mist: Kb/2 conforming to IEC 60068-2-52, exposure to damp heat not in service (25...55 °C, RH 95 %) : 28 cycles conforming to IEC 60068-2-30
Standards IEC 60947-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.4 cm
Package 1 Width 36.8 cm
Package 1 Length 40.2 cm
Package 1 Weight 2.152 kg
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 11.526 kg
