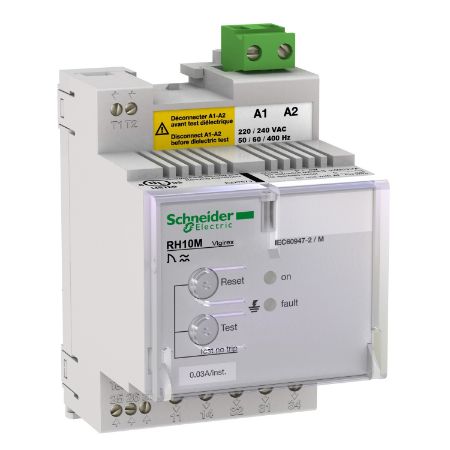

Picture of Residual current protection relay, VigiPacT RH10M, 300mA, 220/240VAC 50/60Hz, DIN rail mounting

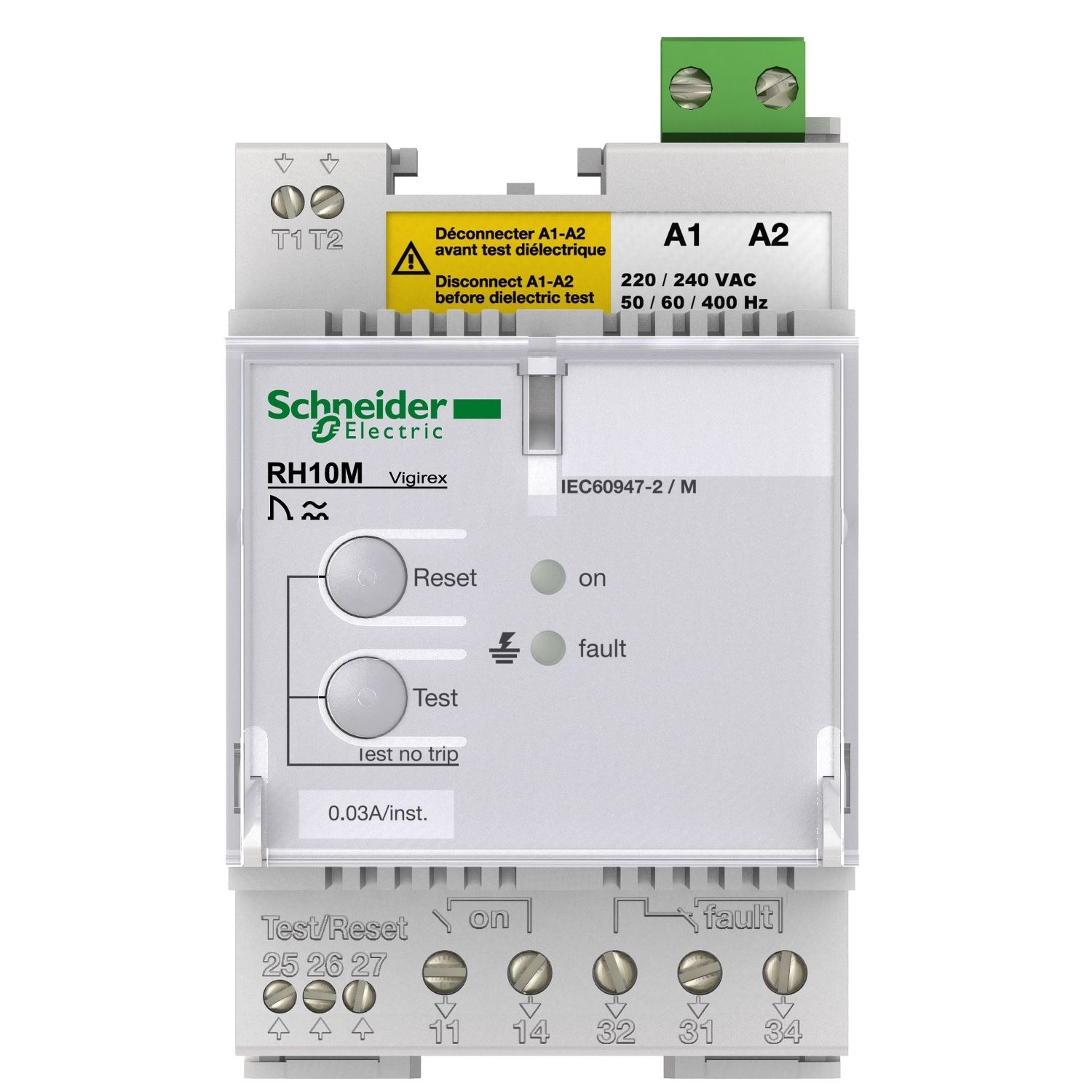

Picture of Residual current protection relay, VigiPacT RH10M, 300mA, 220/240VAC 50/60Hz, DIN rail mounting

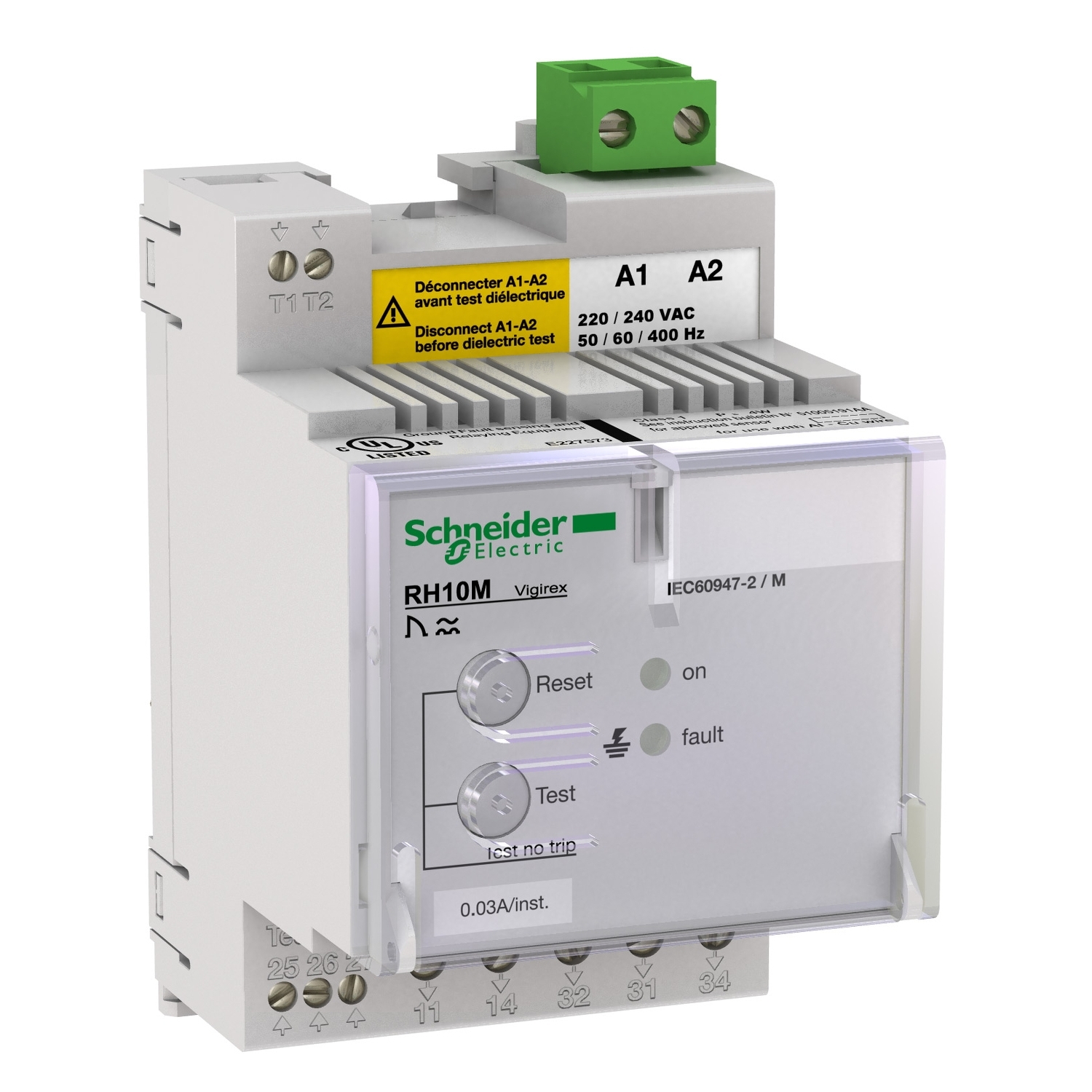

Picture of Residual current protection relay, VigiPacT RH10M, 300mA, 220/240VAC 50/60Hz, DIN rail mounting
SKU:

56135

Residual current protection relay, VigiPacT RH10M, 300mA, 220/240VAC 50/60Hz, DIN rail mounting

$1,064.28
Available for Shipping : 03-Dec-2024
Product Selector
Residual current protection relay, VigiPacT RH10M, 300mA, 220/240VAC 50/60Hz, DIN rail mounting
  • VigiPacT relays ensure coordination with ComPacT circuit breakers (switch off within 40ms)
  • Continuous monitoring of the power supply, the relay/toroid link and internal electronics
  • Reinforced insulation of VigiPacT relays (overvoltage category IV)
  • Access to settings protected by a lead-sealable cover or password
  • Green Premium labelled products, RoHS and REACH compliant
  • RMS measurement of earth-leakage currents
  • No trip under leakage currents below 80% of the threshold
  • No trip under transient leakage currents
  • Inverse-time tripping curve
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Instruction sheet
Product environmental
End of life manual
Catalogue
Product Page Link
Product Data Sheet
VigiPacT RH10M is a DIN rail mounting residual current protection relay. It protects against people direct or indirect contact, property fire hazards and motors. It measures the earth leakage current in an electrical installation via its associated toroid. It trips the associated circuit breaker when the set residual operation current is overrun. The operational supply voltage is 220/240VAC 50/60Hz. It is a type A earth-leakage protection class. The current sensitivity (IDn) is fixed to 300mA. The time delay (Dt) is instantaneous. It requires a local manual reset after a fault clearance. The monitored distribution system voltage is up to 1000VAC 50/60/400Hz. It is installed on a DIN-rail inside a switchboard and the protection degree is IP40. It must be associated with a compatible Schneider Electric type A toroid or rectangular sensor.

Products specifications

Attribute name Attribute value
Main
Minimum load 10 mA at 12 V
[Uimp] rated impulse withstand voltage 8 kV
[Us] rated supply voltage 220...240 V AC 50/60 Hz 55...110 %
Residual earth-leakage time delay adjustment type instantaneous
Earth-leakage protection class type A
Reset manual reset
[Ithe] conventional enclosed thermal current 8 A
Network rated voltage 1000-1000 V - AC at 400 Hz (maximum) , 1000-1000 V - AC at 50/60 Hz (maximum)
Range compatibility VigiPacT L earth leakage current sensor, VigiPacT A earth leakage current sensor, VigiPacT TOA earth leakage current sensor
Device short name RH10M
Range VigiPacT
Earthing system TN-S, IT, TT
Power consumption in VA 4 VA
Residual earth-leakage sensitity adjustment type fixed
Product or component type residual current protection relay
Relay application protection relay
Mounting support DIN rail
Earth leakage current 0.3-0.3 A
Type of setting none
Complementary
Compatibility code RH10M
Height 81 mm
Monitoring relay/sensor link (continuous) , power supply (continuous) , electronics (continuous)
Net weight 0.3 kg
9 mm pitches 6
Tightening torque voltage presence: 0.6-0.6 N.m bottom, sensor: 0.25-0.25 N.m top, relay test and fault reset: 0.25-0.25 N.m bottom, fault: 0.6-0.6 N.m bottom, auxiliary power supply: 0.6-0.6 N.m top
IP degree of protection IP20 on connection terminals: conforming to EN/IEC 60529, IP30 on side parts: conforming to EN/IEC 60529, IP40 on front face: conforming to EN/IEC 60529
Wire stripping length voltage presence: 8 mm for bottom connection, sensor: 5 mm for top connection, relay test and fault reset: 5 mm for bottom connection, fault: 8 mm for bottom connection, auxiliary power supply: 7 mm for top connection
Type of measurement earth fault current internal measurement, range: 80...100 %
Mechanical robustness vibrations 2...13.2 Hz: +/- 1 mm, vibrations 13.2...100 Hz: 0.7 g, IK protection 2 joules: IK07 conforming to EN 50102, fire resistance conforming to IEC 60695-2-1
IK degree of protection IK07 conforming to EN 50102
Depth 74 mm
Width 54 mm
Test function local, remote test
Connections - terminals voltage presence: screw terminal cable(s) 0.25-2.5 mm² flexible AWG 24...AWG 12, voltage presence: screw terminal cable(s) 0.2-4 mm² rigid AWG 24...AWG 12, voltage presence: screw terminal cable(s) 0.2-2.5 mm² flexible AWG 24...AWG 12, sensor: screw terminal cable(s) 0.25-0.5 mm² flexible AWG 26...AWG 16, sensor: screw terminal cable(s) 0.14-1.5 mm² rigid AWG 26...AWG 16, sensor: screw terminal cable(s) 0.14-1 mm² flexible AWG 26...AWG 16, relay test and fault reset: screw terminal cable(s) 0.25-0.5 mm² flexible AWG 26...AWG 16, relay test and fault reset: screw terminal cable(s) 0.14-1.5 mm² rigid AWG 26...AWG 16, relay test and fault reset: screw terminal cable(s) 0.14-1 mm² flexible AWG 26...AWG 16, fault: screw terminal cable(s) 0.25-2.5 mm² flexible AWG 24...AWG 12, fault: screw terminal cable(s) 0.2-4 mm² rigid AWG 24...AWG 12, fault: screw terminal cable(s) 0.2-2.5 mm² flexible AWG 24...AWG 12, auxiliary power supply: terminal block cable(s) 0.25-2.5 mm² flexible AWG 24...AWG 12, auxiliary power supply: terminal block cable(s) 0.2-2.5 mm² rigid AWG 24...AWG 12, auxiliary power supply: terminal block cable(s) 0.2-2.5 mm² flexible AWG 24...AWG 12
Tamperproof of settings protected by sealable cover
Standards CAN/CSA C22.2 No. 144, UL 1053, EN/IEC 60755, EN/IEC 60947-2 Annex M
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -55-85 °C
Overvoltage category IV
Pollution degree 3 conforming to IEC 60664-1
Electromagnetic compatibility radiated susceptibility: , 3, conforming to IEC 61000-4-3, low-energy conducted susceptibility: , 4, conforming to IEC 61000-4-4, high-energy conducted susceptibility: , 4, conforming to IEC 61000-4-5, electrostatic discharge immunity test: , 4, conforming to IEC 61000-4-2, conducted radio-frequency immunity test: , 3, conforming to IEC 61000-4-6, conducted and radiated emissions: , B, conforming to CISPR 11
Ambient air temperature for operation -35-70 °C
Electrical shock protection class class II
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.5 cm
Package 1 Width 7.6 cm
Package 1 Length 9.1 cm
Package 1 Weight 276.0 g
Unit Type of Package 2 2
Number of Units in Package 2 36
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 10.135 kg
