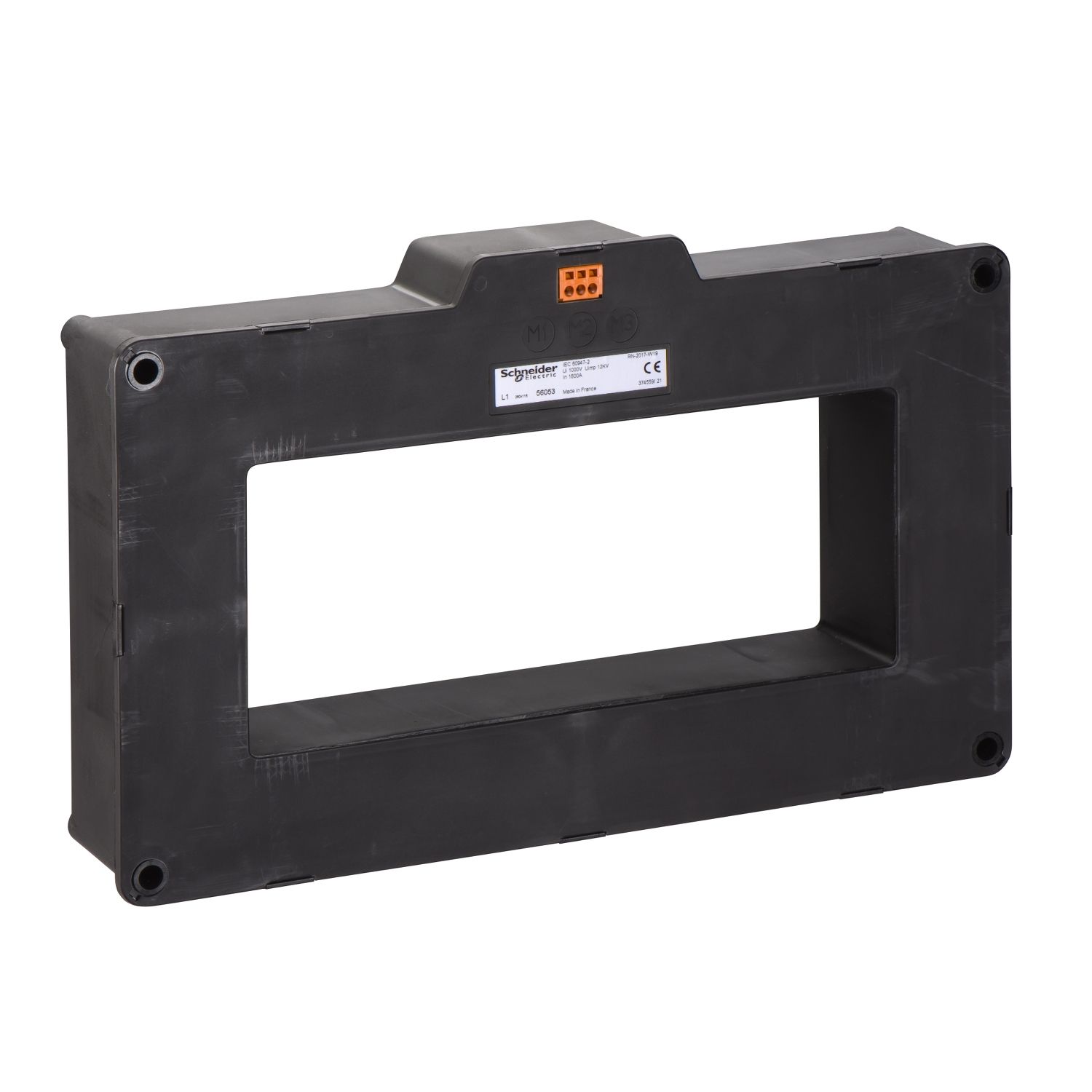

Picture of Rectangular sensor L1 type, VigiPacT, 280mmx115mm, 1600A
SKU:

56053

Rectangular sensor L1 type, VigiPacT, 280mmx115mm, 1600A

$9,531.48
Available for Shipping : 10-Dec-2024
Rectangular sensor L1 type, VigiPacT, 280mmx115mm, 1600A
  • VigiPacT relays ensure coordination with ComPacT circuit breakers (switch off within 40ms)
  • Continuous monitoring of the power supply, the relay/toroid link and internal electronics
  • Reinforced insulation of VigiPacT relays (overvoltage category IV)
  • Access to settings protected by a lead-sealable cover or password
  • Green Premium labelled products, RoHS and REACH compliant
  • RMS measurement of earth-leakage currents
  • No trip under leakage currents below 80% of the threshold
  • No trip under transient leakage currents
  • Inverse-time tripping curve
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
This toroid is dedicated to VigiPacT type A residual current protection and monitoring relays. It allows the measurement of a current rating up to 1600A for VigiPacT monitoring and protection relays. The transformer ratio is 1/1000. The inner dimensions of the toroid are 280mm X 155mm and the weight is 11kg. The wiring size must be from 0.5 to 2.5 mm². The wiring length should not exceed 10m.

Products specifications

Attribute name Attribute value
Main
Device short name L
Device application equipment monitoring and control
Current transformer type rectangular sensor
[Ie] rated operational current 1600 A
Range VigiPacT
Product or component type earth leakage current sensor
Range compatibility VigiPacT RMH residual current protection relay, VigiPacT RHUs residual current protection relay, VigiPacT RHU residual current protection relay, VigiPacT RH197P residual current protection relay, VigiPacT RH197M residual current protection relay, VigiPacT RH99P residual current protection relay, VigiPacT RH99M residual current protection relay, VigiPacT RH86P residual current protection relay, VigiPacT RH86M residual current protection relay, VigiPacT RH68M residual current protection relay, VigiPacT RH21P residual current protection relay, VigiPacT RH21M residual current protection relay, VigiPacT RH10P residual current protection relay, VigiPacT RH10M residual current protection relay
Complementary
Transformer ratio 1/1000
[Icw] rated short-time withstand current 100 kA for 0.5 s
Depth 71 mm, inside: 71 mm, outside: 71 mm
Overvoltage category IV
Width 381 mm, inside: 280 mm, outside: 381 mm
Height inside: 115 mm, outside: 233 mm, 233 mm
Net weight 13.26 kg
Connections - terminals screw connection 0.2-2.5 mm²
[Uimp] rated impulse withstand voltage 12 kV
Residual short-circuit withstand current 85 kA / 0.5 s
Mounting mode fixed (busbar), fixed (cables)
Environment
IP degree of protection IP30, connectors: IP20
Ambient air temperature for storage -55-100 °C
Environmental characteristic exposure to damp heat in service: category C2: 48 hours conforming to IEC 60068-2-56, salt mist: Kb/2 conforming to IEC 60068-2-52, exposure to damp heat not in service (25...55 °C, RH 95 %) : 28 cycles conforming to IEC 60068-2-30
Standards IEC 60947-2
Ambient air temperature for operation -35-80 °C
Product certifications CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 17.000 cm
Package 1 Width 30.000 cm
Package 1 Length 46.000 cm
Package 1 Weight 10.692 kg
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 67.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 193.425 kg
