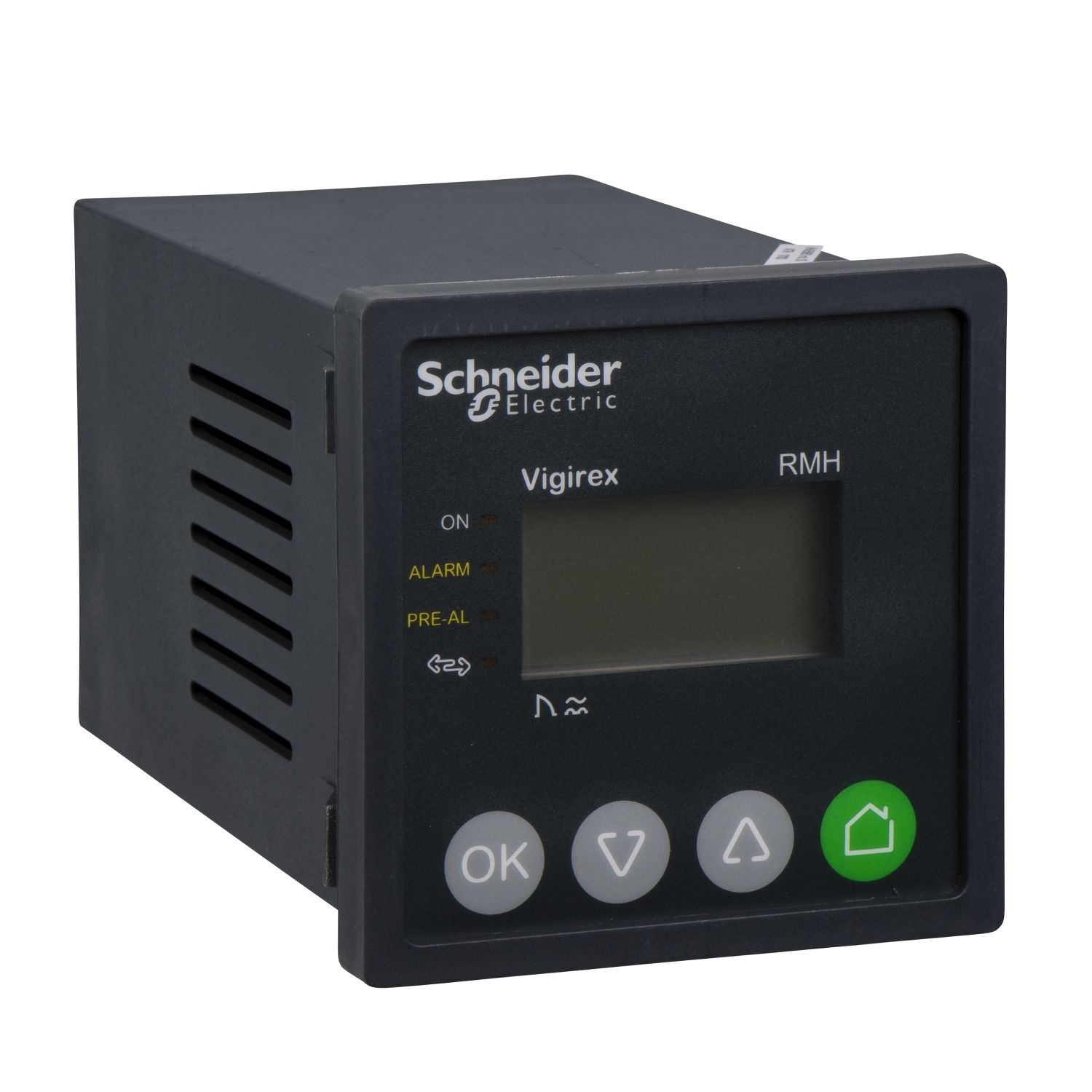

Picture of Residual current monitoring relay, VigiPacT RMH, 30mA-30A, 220/240VAC 50/60Hz, front panel mounting
SKU:

LV481004

Residual current monitoring relay, VigiPacT RMH, 30mA-30A, 220/240VAC 50/60Hz, front panel mounting

$3,880.21
Product Selector
Residual current monitoring relay, VigiPacT RMH, 30mA-30A, 220/240VAC 50/60Hz, front panel mounting
  • VigiPacT relays ensure coordination with ComPacT circuit breakers (switch off within 40ms)
  • Continuous monitoring of the power supply, the relay/toroid link and internal electronics
  • Reinforced insulation of VigiPacT relays (overvoltage category IV)
  • Access to settings protected by a lead-sealable cover or password
  • Green Premium labelled products, RoHS and REACH compliant
  • RMS measurement of earth-leakage currents
  • No trip under leakage currents below 80% of the threshold
  • No trip under transient leakage currents
  • Inverse-time tripping curve
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
End of life manual
Instruction sheet
Product environmental
Catalogue
User guide
Product Page Link
Product Data Sheet
VigiPacT RMH is a front panel mounting communicating residual current monitoring relay. It monitor drops in electrical insulation due to ageing of cables or extensions in the installation. It measures the earth leakage current in an electrical installation via its associated toroid. A control signal is issued by the relay when the residual-current operating threshold is overrun. It is used with a VigiPacT RM12T multiplexer, allowing connection of 12 measurement channels maximum. The operational supply voltage is 220/240VAC 50/60Hz. It is a type A earth-leakage protection class. The current sensitivity (IDn) is adjustable from 30mA to 30A by channel. The time delay (Dt) is adjustable from instantaneous to 4.5s by channel. There is an automatic reset after a fault clearance. The monitored distribution system voltage is up to 1000VAC 50/60/400Hz. It is installed on a front panel switchboard and the protection degree is IP40. It must be associated with a compatible Schneider Electric type A toroid or rectangular sensor.
