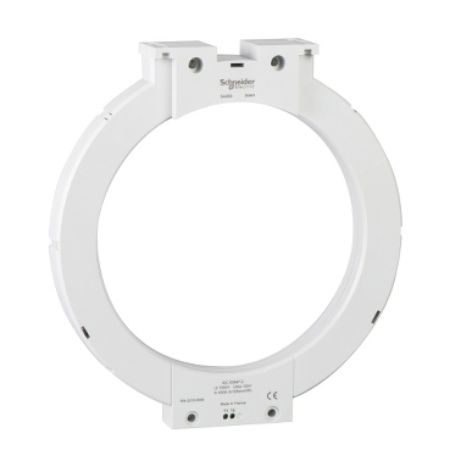

Picture of Closed toroid A type, VigiPacT, Vigilohm, SA200, inner diameter 200mm, rated current 400A
SKU:

50441

Closed toroid A type, VigiPacT, Vigilohm, SA200, inner diameter 200mm, rated current 400A

$2,838.86
Available for Shipping : 17-Nov-2024
Product Selector
Closed toroid A type, VigiPacT, Vigilohm, SA200, inner diameter 200mm, rated current 400A
  • VigiPacT relays ensure coordination with ComPacT circuit breakers (switch off within 40ms)
  • Continuous monitoring of the power supply, the relay/toroid link and internal electronics
  • Reinforced insulation of VigiPacT relays (overvoltage category IV)
  • Access to settings protected by a lead-sealable cover or password
  • Green Premium labelled products, RoHS and REACH compliant
  • RMS measurement of earth-leakage currents
  • No trip under leakage currents below 80% of the threshold
  • No trip under transient leakage currents
  • Inverse-time tripping curve
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Product environmental
Catalogue
End of life manual
Instruction sheet
Product Page Link
Product Data Sheet

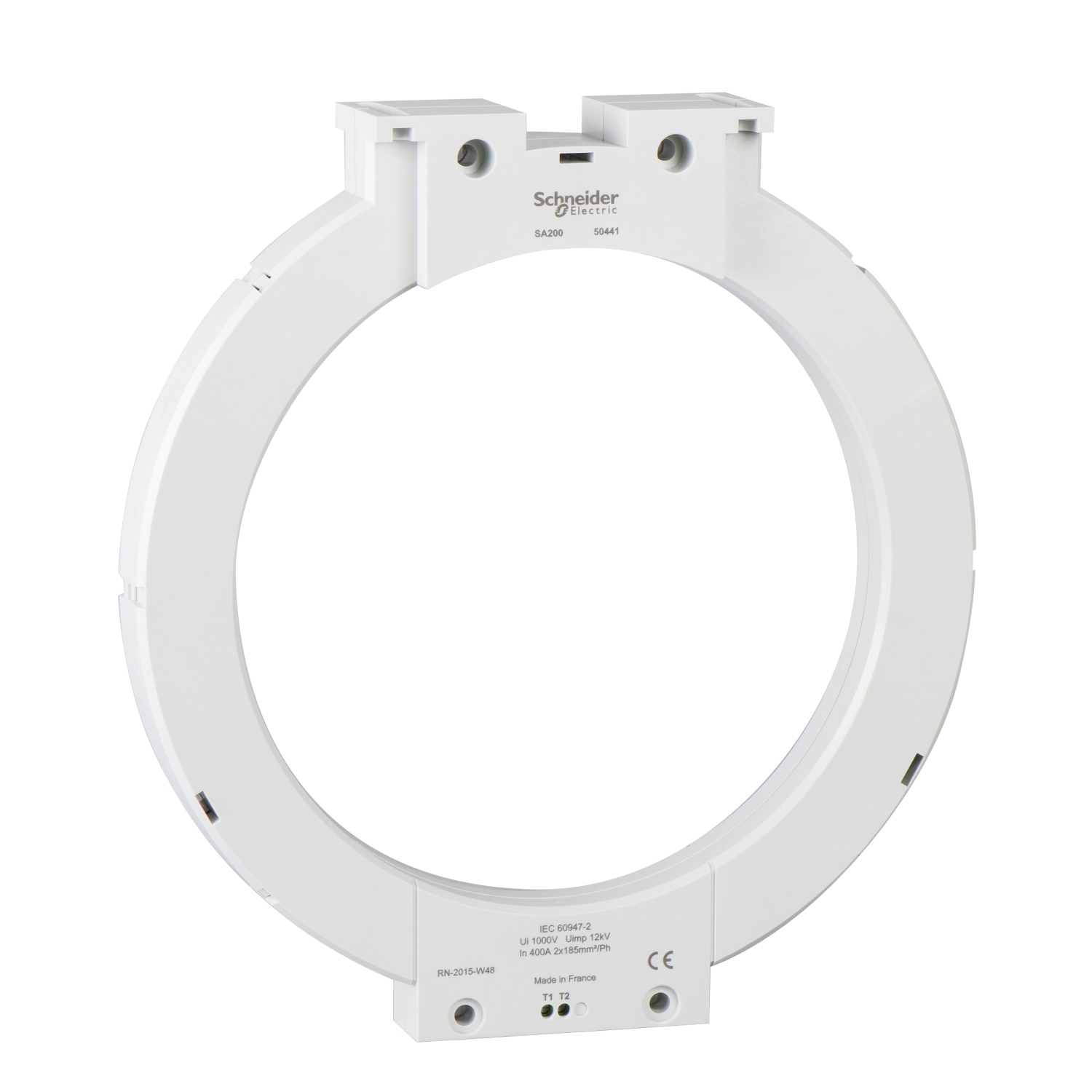

This toroid is dedicated to Vigilohm Insulation Fault locators, and to VigiPacT type A residual current protection and monitoring relays. It allows the monitoring of the injected component from Vigilohm Insulation Monitor, and the measurement of a current rating up to 400A for VigiPacT monitoring and protection relays. The transformer ratio is 1/1000. The inner diameter of the toroid is 200 millimeters and the weight is 1.320kg. The cables must be centered within the toroid and the diameter represented by all these cables should not exceed 100 millimeters. The maximum cross section per phase (R, S, T, N) is 2 cables of 185mm² for a copper conductor.

Products specifications

Attribute name Attribute value
Main
Device application equipment monitoring and control
Current transformer type A type closed toroid
[Ie] rated operational current 400 A
Range compatibility VigiPacT RMH residual current protection relay, VigiPacT RHUs residual current protection relay, VigiPacT RHU residual current protection relay, VigiPacT RH197P residual current protection relay, VigiPacT RH197M residual current protection relay, VigiPacT RH99P residual current protection relay, VigiPacT RH99M residual current protection relay, VigiPacT RH86P residual current protection relay, VigiPacT RH86M residual current protection relay, VigiPacT RH68M residual current protection relay, VigiPacT RH21P residual current protection relay, VigiPacT RH21M residual current protection relay, VigiPacT RH10P residual current protection relay, VigiPacT RH10M residual current protection relay
Device short name SA200
Range VigiPacT
Product or component type earth leakage current sensor
Complementary
Diameter 196 mm inner:
Compatibility code SA200
Calorific value 7.05 MJ
Connections - terminals screw connection 0.22-0.22 mm²
[Uimp] rated impulse withstand voltage 12 kV
Height 256 mm
Transformer ratio 1/1000
Overvoltage category IV
Market segment residential, small commercial
Net weight 1.32 kg
Network type AC/DC
Mounting mode fixed (slotted backplate), fixed (profiled sheet metal), fixed (plain backplate), fixed (cables)
[Icw] rated short-time withstand current 85 kA for 0.5 s
Depth 46 mm
Width 274 mm
Cable outer diameter 100-100 mm for 2 cables : 185-185 mm² (maximum)
[Ui] rated insulation voltage 1000 V
Residual short-circuit withstand current 85 kA / 0.5 s conforming to IEC 60947-2
Network frequency 45...440 Hz
Environment
Ambient air temperature for storage -55-85 °C
Product certifications CE
IP degree of protection IP30, connectors: IP20
Pollution degree level 3 conforming to IEC 60664-1
Ambient air temperature for operation -35-70 °C
Environmental characteristic exposure to damp heat in service: category C2: 48 hours conforming to IEC 60068-2-56, salt mist: Kb/2 conforming to IEC 60068-2-52, exposure to damp heat not in service (25...55 °C, RH 95 %) : 28 cycles conforming to IEC 60068-2-30
Standards IEC 60947-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.500 cm
Package 1 Width 27.000 cm
Package 1 Length 28.400 cm
Package 1 Weight 1.100 kg
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 13.800 kg
Unit Type of Package 3 3
Number of Units in Package 3 48
Package 3 Height 50.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 67.864 kg
