A9N61501

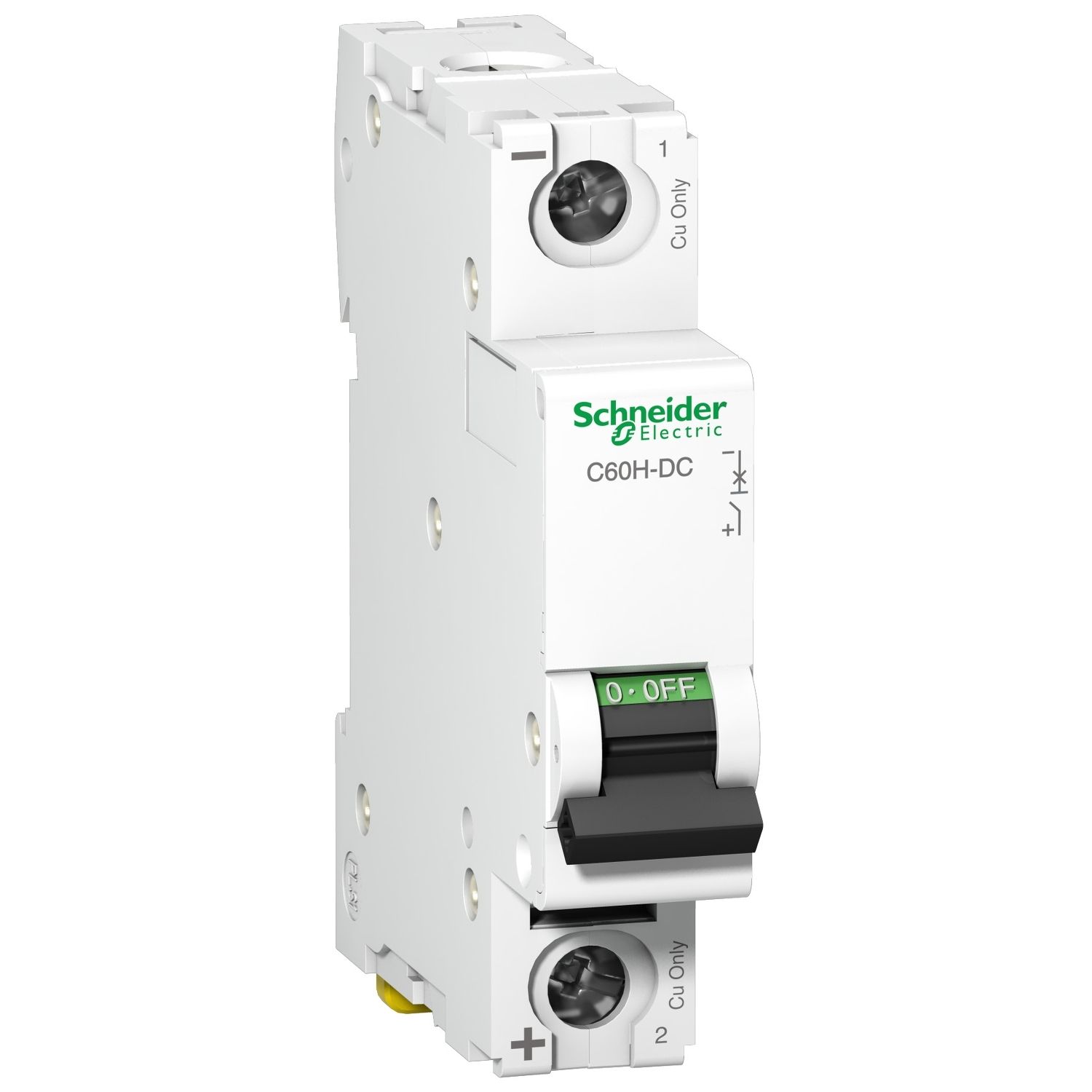

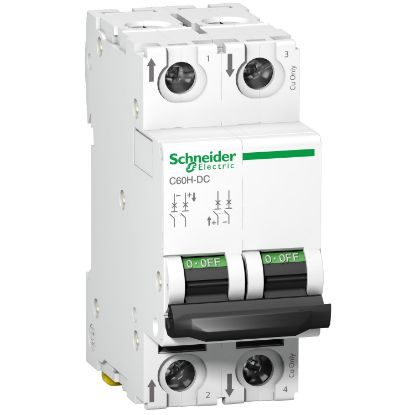

Acti9, Miniature circuit breaker (MCB), Acti9 C60H-DC, 1P, 1A, C curve, 6kA (IEC/EN 60947-2)

$54.60

Qty:

Available for Shipping : 04-Dec-2024

Product Selector

Acti9, Miniature circuit breaker (MCB), Acti9 C60H-DC, 1P, 1A, C curve, 6kA (IEC/EN 60947-2)

Be the first to review this product

Manufacturer: Schneider Electric

Declaration of conformity

Product environmental

Product Page Link

Product Data Sheet

This Acti9 C60H-DC is a low voltage direct current miniature circuit breaker (MCB). It has 1P, rated current 1A and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 220VDC conforming to EN 60947-2 standard and 10kA at 220VDC conforming to EN 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuit against short circuit and overload current. It offers VisiTrip for safety during maintenance and VisiSafe to reduce intervention time. The Acti9 C60H-DC is used in direct current circuit (industrial control and automation, transport, renewable energy). This device is dedicated to industrial control, automations, transport and renewable energy applications. It has an electrical endurance going up to 3000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 250VDC. The Ui rated insulation voltage is 500VDC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. It is DIN rail mountable. Its width is 2 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The weight is 0.128kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 85°C.

Products specifications

Attribute name	Attribute value
Main
Device application	distribution
Suitability for isolation	yes conforming to EN 60947-2, yes conforming to IEC 60947-2
Number of protected poles	1
Trip unit technology	thermal-magnetic
Network type	DC
Device short name	C60H-DC
Breaking capacity	20 kA Icu at 110 V DC conforming to IEC 60947-2, 20 kA Icu at 110 V DC conforming to EN 60947-2, 6 kA Icu at 250 V DC conforming to IEC 60947-2, 6 kA Icu at 250 V DC conforming to EN 60947-2, 10 kA Icu at 220 V DC conforming to IEC 60947-2, 10 kA Icu at 220 V DC conforming to EN 60947-2
Range	Acti9
Curve code	C
Range of product	C60
Poles description	1P
Utilisation category	category A conforming to IEC 60947-2, category A conforming to EN 60947-2
Product name	Acti9 C60H-DC
Product or component type	miniature circuit-breaker
Breaking capacity code	H
[In] rated current	1 A at 25 °C
Complementary
Provision for padlocking	padlockable
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-2, 6 kV conforming to EN 60947-2
Compatibility code	C60H-DC
Electrical durability	3000 cycles L/R = 2 ms
Comb busbar and distribution block compatibility	top or bottom: standard
Locking options description	in position O
Earth-leakage protection	without
[Ics] rated service breaking capacity	7.5 kA 75 % conforming to IEC 60947-2 - 220 V DC, 7.5 kA 75 % conforming to EN 60947-2 - 220 V DC, 4.5 kA 75 % conforming to IEC 60947-2 - 250 V DC, 4.5 kA 75 % conforming to EN 60947-2 - 250 V DC, 15 kA 75 % conforming to IEC 60947-2 - 110 V DC, 15 kA 75 % conforming to EN 60947-2 - 110 V DC
Market segment	residential, small commercial
[Ui] rated insulation voltage	500 V DC conforming to EN 60947-2, 500 V DC conforming to IEC 60947-2
Net weight	0.128 kg
9 mm pitches	2
Product compatibility	C60 auxiliary, C60 accessories
Tightening torque	power circuit: 2.5-2.5 N.m top or bottom
Colour	white
Mechanical durability	20000 cycles
Mounting mode	fixed
Control type	toggle
[Ue] rated operational voltage	250 V DC
Local signalling	ON/OFF indication
Mounting support	35 mm symmetrical DIN rail
Contact position indicator	yes
Network frequency	50/60 Hz
Environment
Ambient air temperature for storage	-40-85 °C
Standards	IEC 60947-2, EN 60947-2
Tropicalisation	2 conforming to IEC 60068-2
Ambient air temperature for operation	-25-70 °C
Operating altitude	2000 m
Overvoltage category	IV
Pollution degree	3 conforming to IEC 60947-2, 3 conforming to EN 60947-2
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	7.0 cm
Package 1 Width	1.8 cm
Package 1 Length	8.5 cm
Package 1 Weight	111.0 g
