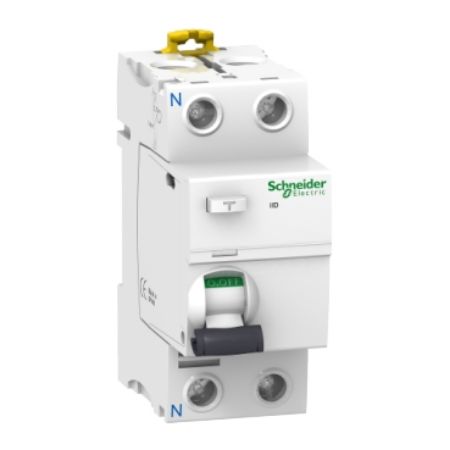

Acti9, Residual current circuit breaker (RCCB), Acti9 iID, 2P, 63A, A-SI type, 30mA

$87.46

Qty:

Product Selector

Acti9, Residual current circuit breaker (RCCB), Acti9 iID, 2P, 63A, A-SI type, 30mA

Protection of persons against electric shock by direct contact

Suitability for residential isolation according to IEC 61008-1 and IEC 61008-2-1 standards

Easy to install with unified terminal design and wiring indication

Earth fault indication by a red mechanical indicator in front face

Compatible with Acti9 captive padlocking device

Type A-SI provides increased immunity from electrical interference and polluted or corrosive environments

Compliant with global RoHS/Reach regulation to protect your family and environment

Be the first to review this product

Manufacturer: Schneider Electric

Estimated Delivery Date: 26-Sep-2024

User guide

Declaration of conformity

Product environmental

Product Page Link

Product Data Sheet

This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB). It is a 2P circuit breaker with 63A In rated current, a sensitivity of 30mA with a A-SI type protection class. This product protects against electrical shock by direct or indirect contact and fire hazards. It performs the function of disconnection of electrical circuits in case of earth fault. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face. This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance This product is compliant with EN/IEC 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. The mechanical endurance is going up to 20000 cycles and electrical endurance going up to 15000 cycles. The Ue operational voltage is 220VAC to 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 91mm x (D) 73.5mm. The weight is 0.21kg. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 85°C.

Products specifications

Attribute name	Attribute value
Main
Device short name	iID
Range	Acti9
Earth-leakage protection class	type A-SI (Super Immunised)
Range of product	iID
Neutral position	left
Poles description	2P
Earth-leakage protection time delay	instantaneous
Product name	Acti9 iID
Product or component type	residual current circuit breaker (RCCB)
Earth-leakage sensitivity	30 mA
Network type	AC
[In] rated current	63 A
Complementary
Tightening torque	3.5-3.5 N.m top or bottom
Colour	white
Connection pitch	18 mm between phase and neutral
[Uimp] rated impulse withstand voltage	6 kV
Compatibility code	iID
Mechanical durability	20000 cycles
Rated breaking and making capacity	Im 1500 A, Idm 1500 A
Electrical durability	AC-1: 15000 cycles
Mounting mode	clip-on
Residual current tripping technology	voltage independent
Control type	toggle
Wire stripping length	14 mm for top or bottom connection
Comb busbar and distribution block compatibility	top or bottom: tooth
Connections - terminals	single terminal top or bottom 1-25 mm² flexible with ferrule, single terminal top or bottom 1-25 mm² flexible, single terminal top or bottom 1-35 mm² rigid
Locking options description	padlocking device
Height	91 mm
[Ue] rated operational voltage	220...240 V AC 50/60 Hz
Rated conditional short-circuit current	10 kA
Depth	73.5 mm
Width	36 mm
[Ui] rated insulation voltage	500 V AC 50/60 Hz
Net weight	0.21 kg
Surge current	3000 A
9 mm pitches	4
Device location in system	outgoer
Mounting support	DIN rail
Contact position indicator	yes
Network frequency	50/60 Hz
Environment
Ambient air temperature for storage	-40-85 °C
Pollution degree	3
IP degree of protection	IP40 (modular enclosure) conforming to IEC 60529, IP20 conforming to IEC 60529
Electromagnetic compatibility	8/20 µs impulse withstand, 3000 A conforming to EN/IEC 61008-1
Standards	EN/IEC 61008-1
Ambient air temperature for operation	-25-60 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	4 cm
Package 1 Width	8.3 cm
Package 1 Length	10 cm
Package 1 Weight	236 g
Unit Type of Package 2	2
Number of Units in Package 2	54
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	13.185 kg
Unit Type of Package 3	3
Number of Units in Package 3	432
Package 3 Height	44.4 cm
Package 3 Width	80 cm
Package 3 Length	120 cm
Package 3 Weight	117.480 kg
