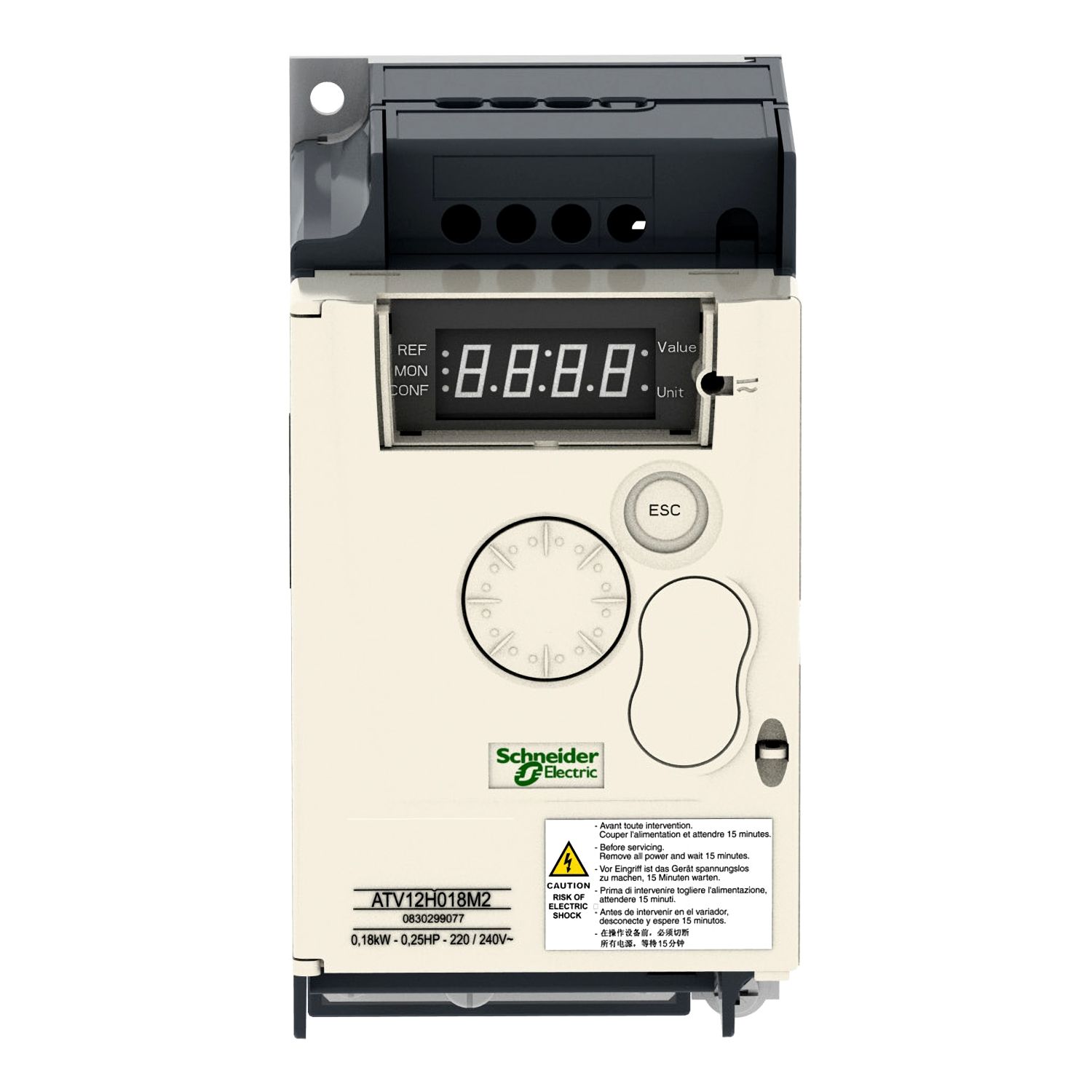

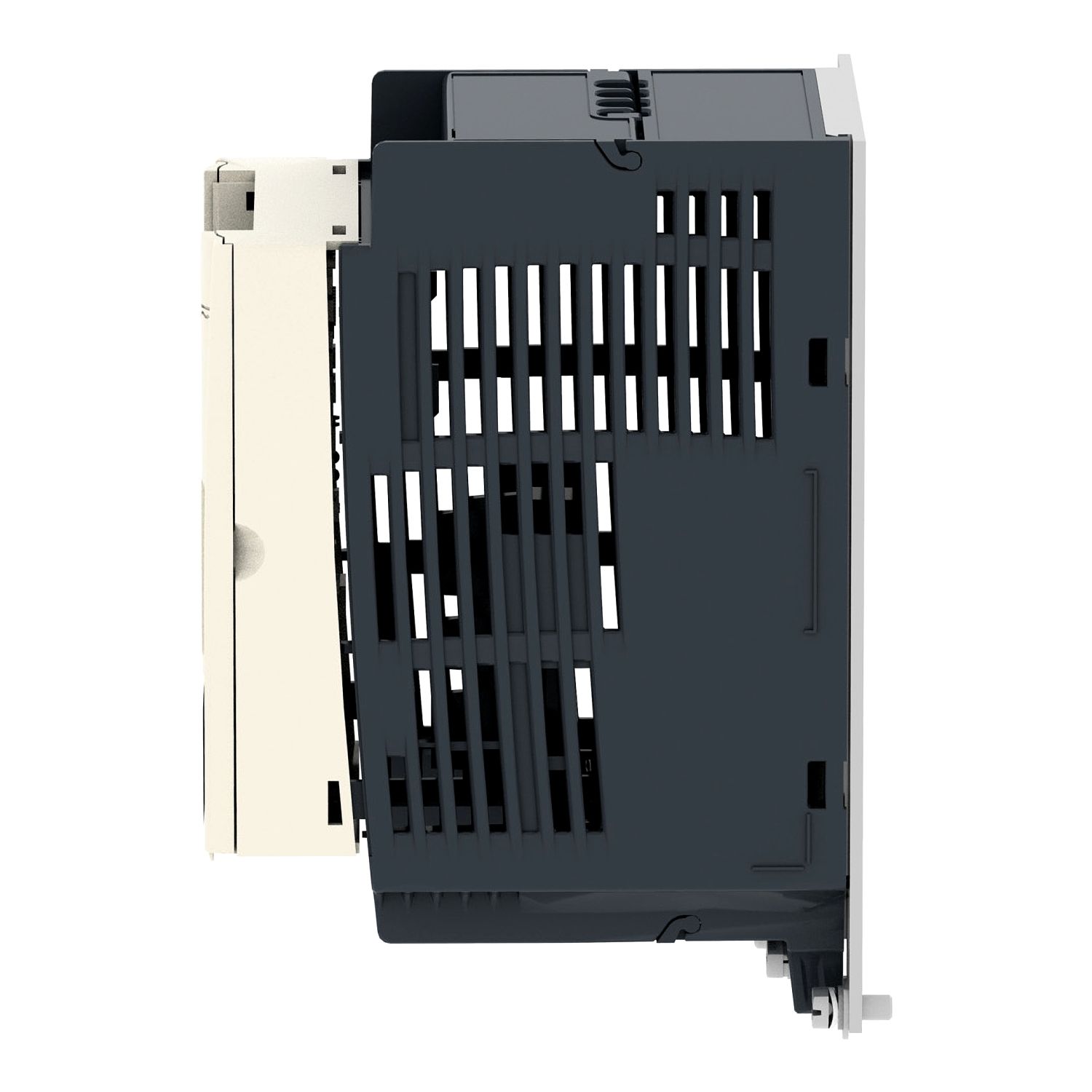

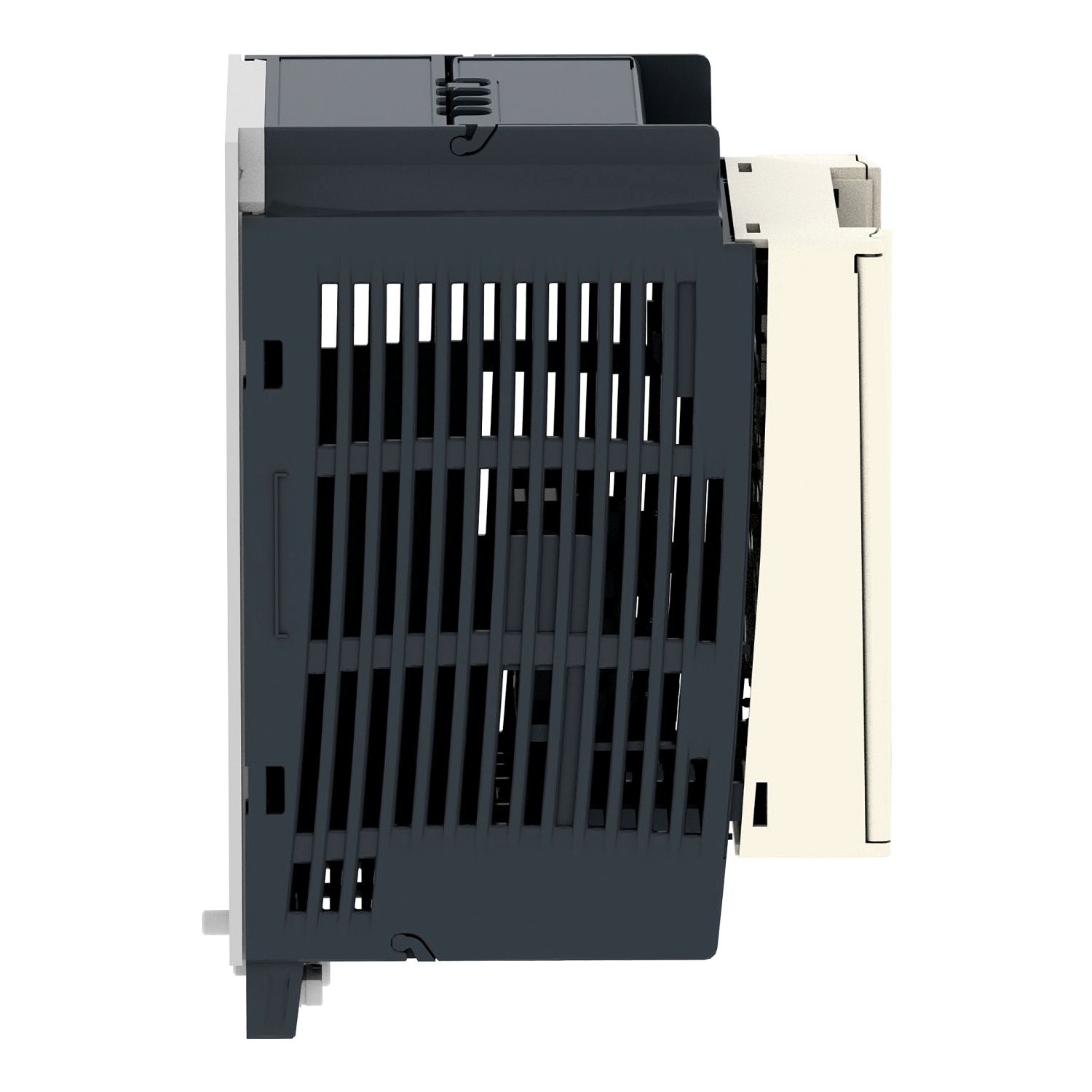

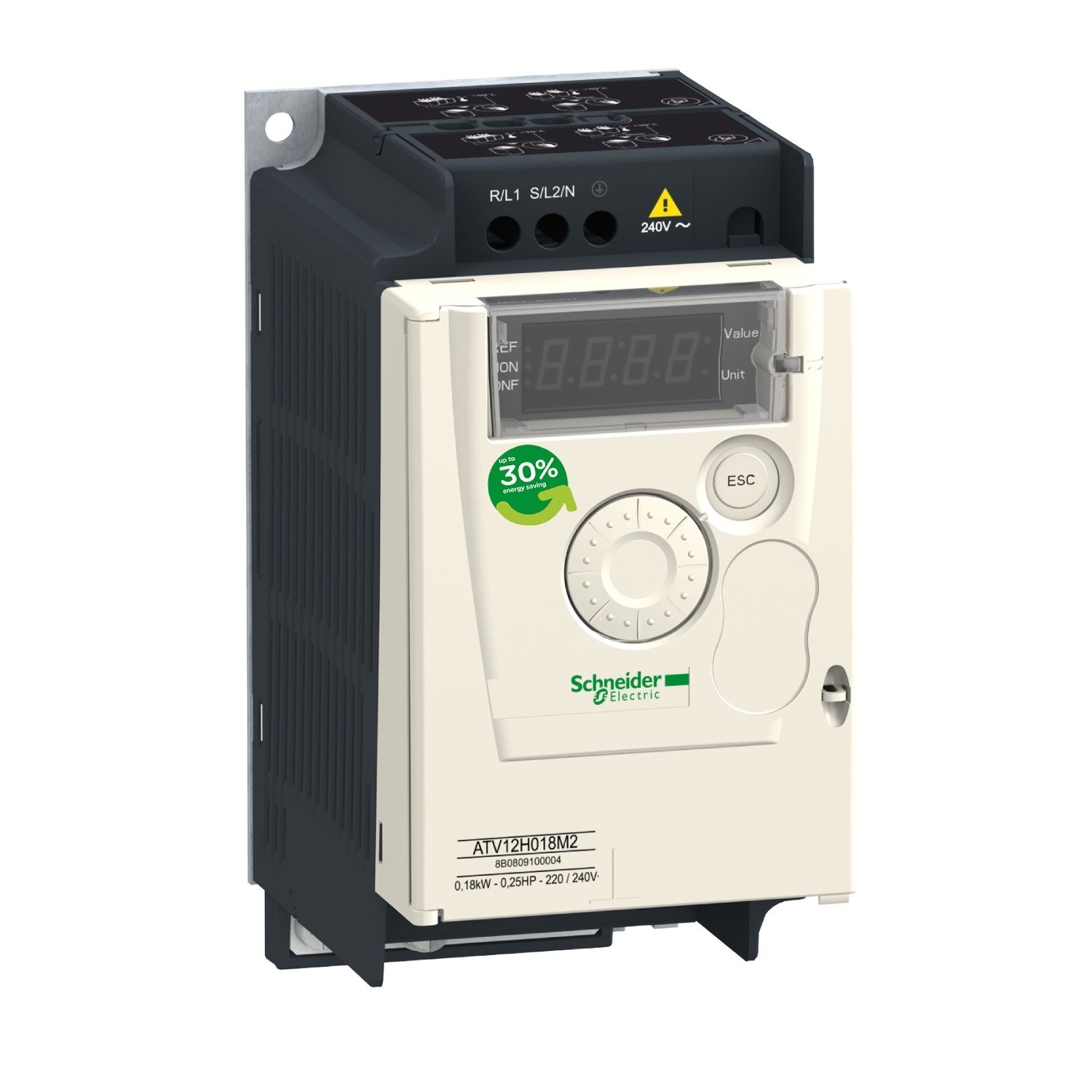

Picture of Altivar 12, Variable speed drive ATV12, 0.18kW, 0.25hp, 200..240V, 1ph
SKU:

ATV12H018M2

Altivar 12, Variable speed drive ATV12, 0.18kW, 0.25hp, 200..240V, 1ph

$299.87
Available for Shipping : 05-Dec-2024
Product Selector
Altivar 12, Variable speed drive ATV12, 0.18kW, 0.25hp, 200..240V, 1ph
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Instruction sheet
End of life manual
Catalogue
User guide
Product Page Link
Product Data Sheet
Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 0.18kW / 0.25hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings.

Products specifications

Attribute name Attribute value
Main
EMC filter integrated
Mounting mode cabinet mount
[Us] rated supply voltage 200...240 V - 15...10 %, 200...240 V
Motor power kW 0.18 kW
Range of product Altivar 12
Supply frequency 50/60 Hz +/- 5 %
Number of output phases 3
Motor power hp 0.25 hp
Number of input phases 3
Design of frequency changer U converter
Product specific application simple machine
Nominal output current 1.4 A
Communication port protocol Modbus
Relative symmetric mains voltage tolerance 10 %
IP degree of protection IP20
Product or component type variable speed drive
Complementary
With safety function Safely Limited Speed (SLS) False
Number of HW interfaces other 0
Number of HW interfaces serial TTY 0
Protection type thermal motor protection via the drive by continuous calculation of I²t, against input phase loss in three-phase, short-circuit between motor phases, overheating protection, overcurrent between output phases and earth, line supply undervoltage, line supply overvoltage
Braking to standstill by DC injection
Capacity of DC link 220.0 µF
Supporting protocol for SUCONET False
Power loss static current independent 8.0 W
Quantity per set set of 1
Nominal switching frequency 4 kHz
Brake chopper integrated False
With safety function Safe programmable logic False
Number of inputs, bidirectional, not potential-free 0
Number of inputs, potential-free 0
Continuous output current 1.4 A at 4 kHz
Tightening torque 0.8 N.m
Supporting protocol for EtherNet/IP False
Supporting protocol for DeviceNet False
Insulation electrical between power and control
Physical interface 2-wire RS 485
Analogue output number 1
Operating element present True
Supporting protocol for PROFINET IO False
Supporting protocol for Data-Highway False
Connector type 1 RJ45
Number of HW interfaces serial RS232 0
Number of HW interfaces serial RS485 1
Supporting protocol for PROFINET CBA False
Supporting protocol for PROFIBUS False
Supporting protocol for ASI False
Data format 8 bits, configurable odd, even or no parity
Number of HW interfaces USB 0
With safety function Safe torque off (STO) False
Transient overtorque 150-170 % of nominal motor torque depending on drive rating and type of motor
Relay output number 1
Supporting protocol for SERCOS False
With safety function Safe Speed Monitor (SSM) False
Supporting protocol for SafetyBUS P False
Supporting protocol for AS-Interface Safety at Work False
Transmission frame RTU
Speed drive output frequency 0.5-400 Hz
Base load current at high overload 1.4 A
Maximum output voltage 240 V
Time constant 20 ms +/- 1 ms for reference change
Acceleration and deceleration ramps S, linear from 0 to 999.9 s, U
Height 143 mm
With safety function Safe brake management (SBC/SBT) False
Number of HW interfaces serial RS422 0
Supporting protocol for TCP/IP False
Optical interface present False
Maximum output frequency 4 kHz
Supporting protocol for other bus systems False
Supporting protocol for Foundation Fieldbus False
Sampling duration 10 ms for analogue input, 20 ms, tolerance +/- 1 ms for logic input
Computer port True
Application in industrial area permitted True
Supporting protocol for PROFIsafe False
Depth 102.2 mm
Supporting protocol for KNX False
Transmission rate 38.4 kbit/s, 19.2 kbit/s, 9.6 kbit/s
Width 72 mm
With safety function Safe Stop 1 (SS1) False
With sft fct Safe Stop 2 (SS2) False
Housing material plastic
Supporting protocol for LON False
Supporting protocol for BACnet False
Linearity error +/- 0.3 % of maximum value for analogue input
Number of HW interfaces parallel 0
Power loss per device current dependent 18.0 W
Discrete input number 4
Speed range 1/20/2024 12:00:00 AM
Number of addresses 1-247
With safety function Safe Operating Stop (SOS) False
Method of access server Modbus serial
With safety function Safely Limited Position (SLP) False
With safety function Safe Position (SP) False
Supporting protocol for DeviceNet Safety False
Discrete output number 2
Supporting protocol for MODBUS True
Motor slip compensation adjustable, preset in factory
Analogue input number 1
Application in domestic and commercial area permitted False
Supporting protocol for CAN False
Communication service read device identification (43), read/write multiple registers (23) 4/4 words, write multiple registers (16) 27 words, write single register (06) 29 words, read holding registers (03) 29 words
Maximum transient current 2.3 A during 2 s (heavy duty), 2.1 A during 60 s (heavy duty)
Switching frequency 4...16 kHz with derating factor, 2...16 kHz adjustable
1 phase low current possible False
Frequency resolution display unit: 0.1 Hz, analog input: converter A/D, 10 bits
Type of polarization no impedance
With safety function Safe Direction (SDI) False
Net weight 0.7 kg
Maximum associated fuse rating 12.5 A
EMC limit value (complied) True
Nominal output power 180.0 W
Apparent power 0.7 kVA at 240 V (heavy duty)
Relative symmetric network frequency tolerance 5 %
Supporting protocol for INTERBUS-Safety False
Supporting protocol for INTERBUS False
4 quadrant operation possible False
Number of HW interfaces industrial Ethernet 0
Asynchronous motor control profile quadratic voltage/frequency ratio, sensorless flux vector control, voltage/frequency ratio (V/f)
Number of HW interfaces PROFINET 0
Line current 2.8 A at 120 V (heavy duty), 3.4 A at 100 V (heavy duty)
Power dissipation in W natural: 18.0 W
Network frequency 50...60 Hz
Prospective line Isc 1 kA
Environment
Maximum deflection under vibratory load (during storage) 1.5 mm at 2...13 Hz
Ambient air transport temperature -25-70 °C
Maximum acceleration under shock load (during storage) 150 m/s² at 11 ms
Operating position vertical +/- 10 degree
Assembly style on base plate
Relative humidity 5-95 % without dripping water conforming to IEC 60068-2-3, 5-95 % without condensation conforming to IEC 60068-2-3
Ambient air temperature for storage -25-70 °C
Noise level 0 dB
Maximum acceleration under vibratory load (during storage) 10 m/s² at 13...200 Hz
Maximum acceleration under vibrational stress (during operation) 10 m/s² at 13...200 Hz
Marking CE
Environmental class (during transport) class 2S1 according to IEC 60721-3-2, class 2C3 according to IEC 60721-3-2
Ambient air temperature for operation 40-60 °C with current derating 2.2 % per °C, -10-40 °C without derating, -10-60 °C
Electromagnetic compatibility voltage dips and interruptions immunity test conforming to IEC 61000-4-11, surge immunity test level 3 conforming to IEC 61000-4-5, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, immunity to conducted disturbances level 3 conforming to IEC 61000-4-6, electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4
Pollution degree 2
Maximum acceleration under shock impact (during operation) 150 m/s² at 11 ms
Maximum acceleration under shock load (during transport) 150 m/s² at 11 ms
Maximum acceleration under vibratory load (during transport) 10 m/s² at 13...200 Hz
Electromagnetic emission conducted emissions with additional EMC filter environment 2 category C3 conforming to IEC 61800-3 4...12 kHz shielded motor cable <50 m, conducted emissions with additional EMC filter environment 1 category C2 conforming to IEC 61800-3 4...12 kHz shielded motor cable <50 m, conducted emissions with additional EMC filter environment 1 category C1 conforming to IEC 61800-3 4...12 kHz shielded motor cable <20 m, conducted emissions with integrated EMC filter environment 1 category C2 conforming to IEC 61800-3 2, 4 and 16 kHz shielded motor cable <10 m, conducted emissions with integrated EMC filter environment 1 category C2 conforming to IEC 61800-3 2...12 kHz shielded motor cable <5 m, conducted emissions with integrated EMC filter environment 1 category C1 conforming to IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5 m, radiated emissions environment 1 category C2 conforming to IEC 61800-3 2...16 kHz shielded motor cable
Environmental class (during operation) class 3S2 according to IEC 60721-3-3, class 3C3 according to IEC 60721-3-3
Environmental class (during storage) class 1S2 according to IEC 60721-3-1, class 1C3 according to IEC 60721-3-1
Overvoltage category class III
Operating altitude <= 1000 m without derating, > 1000...2000 m with current derating 1 % per 100 m
Regulation loop adjustable PID regulator
Vibration resistance 1.5 mm peak to peak (f = 3-13 Hz) - drive unmounted on symmetrical DIN rail - conforming to IEC 60068-2-6, 1 gn (f = 13-200 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn conforming to IEC 60068-2-27 for 11 ms
Maximum deflection under vibratory load (during transport) 1.5 mm at 2...13 Hz
Standards IEC 61800-3, IEC 61800-5-1, UL 618000-5-1, UL 508C
Maximum deflection under vibratory load (during operation) 1.5 mm at 2...13 Hz
Product certifications KC, RCM, GOST, UL, C-Tick, CSA, NOM
Maximum input current 2.8 A
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.000 cm
Package 1 Width 18.600 cm
Package 1 Length 19.500 cm
Package 1 Weight 895.000 g
Unit Type of Package 2 2
Number of Units in Package 2 45
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 52.780 kg

Related products

Picture of line/motor choke - 10 mH - 4 A - 3 phases - 45 W - for variable speed drive

line/motor choke - 10 mH - 4 A - 3 phases - 45 W - for variable speed drive

VW3A4551
$399.18
View Detail

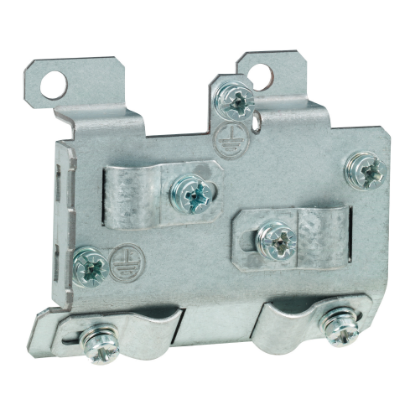

Picture of EMC conformity kits, Altivar Machine ATV320, Altivar 12, for variable speed drive size 1

EMC conformity kits, Altivar Machine ATV320, Altivar 12, for variable speed drive size 1

VW3A9523
$45.94
View Detail

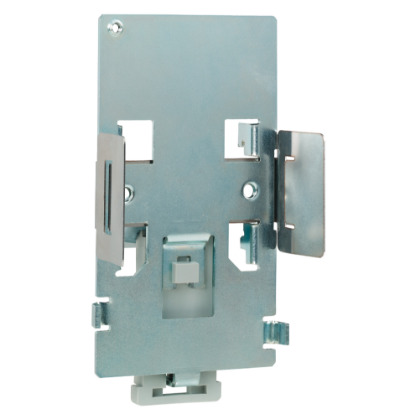

Picture of Altivar 12, Plate for mounting on symmetrical DIN rail, for variable speed drive, size 1
