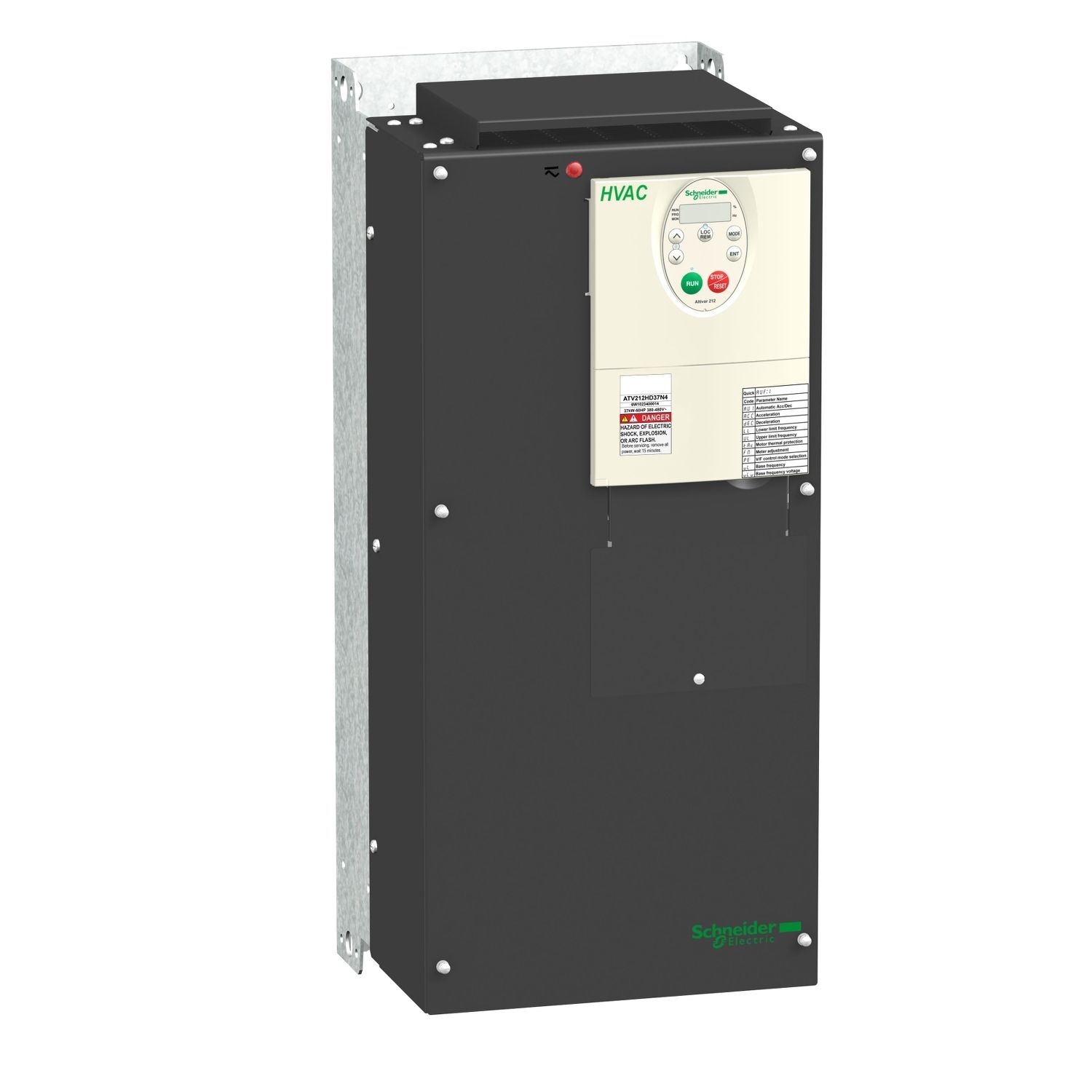

Picture of variable speed drive, Altivar 212, 37kW, 50hp, 480V, 3 phases, with EMC, IP21

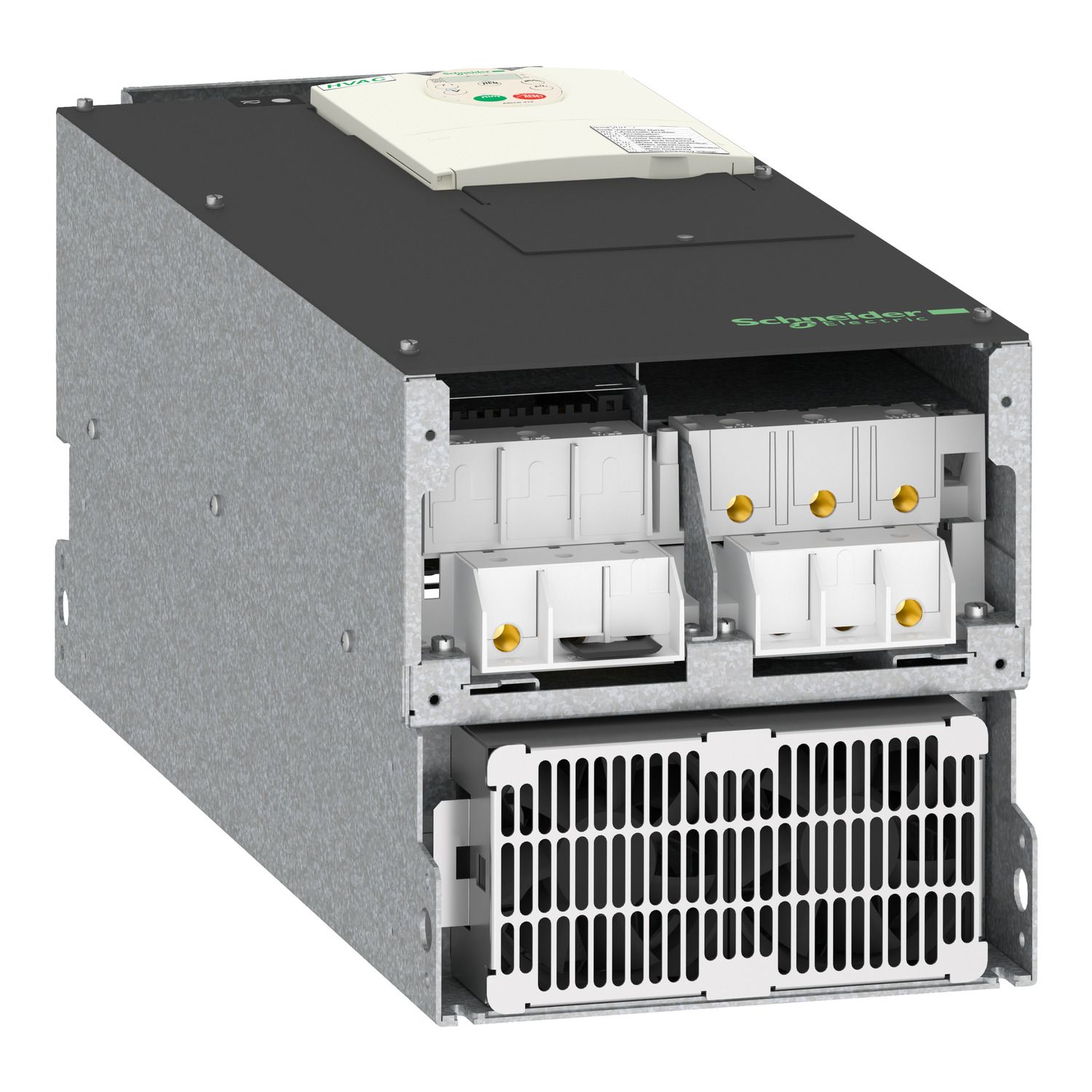

Picture of variable speed drive, Altivar 212, 37kW, 50hp, 480V, 3 phases, with EMC, IP21

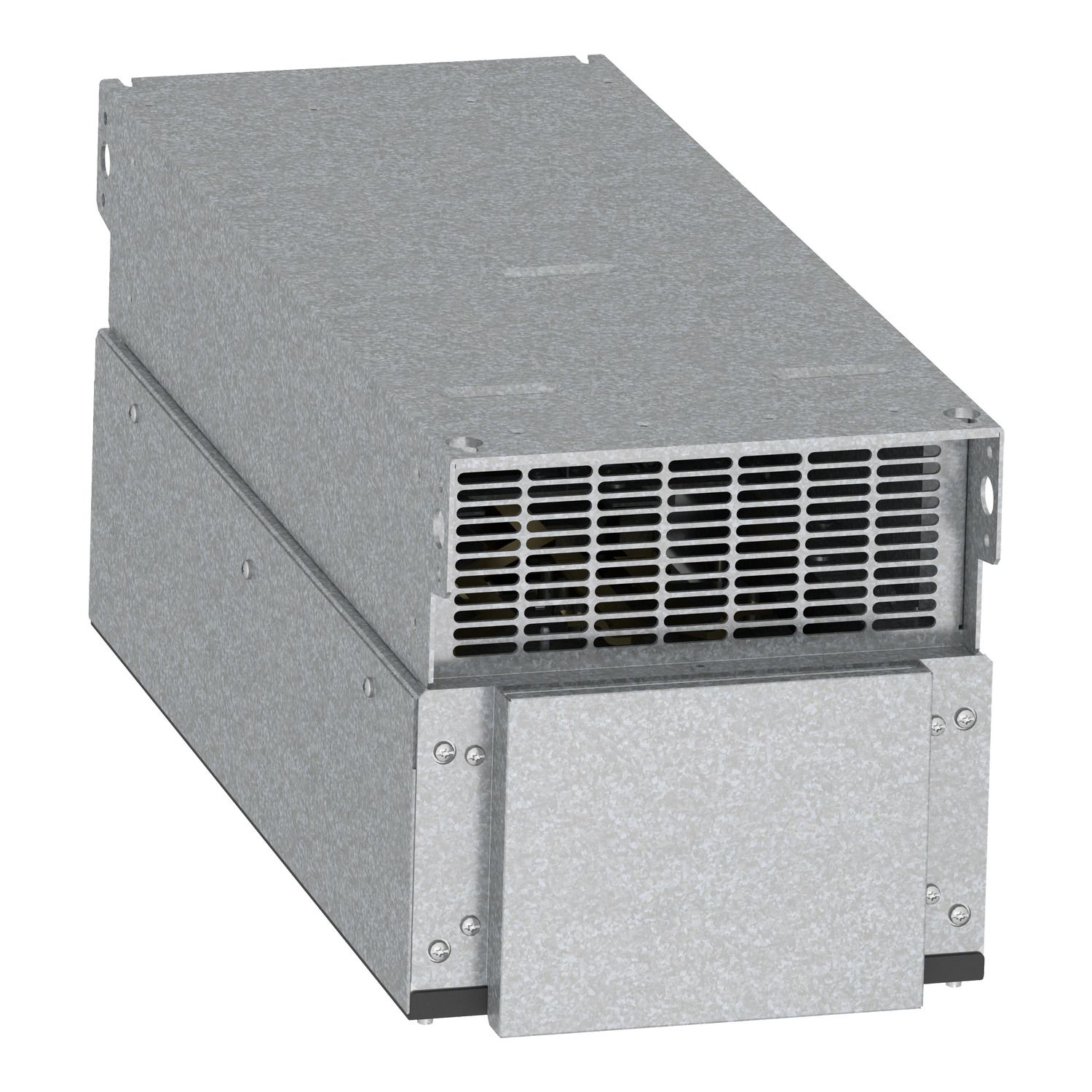

Picture of variable speed drive, Altivar 212, 37kW, 50hp, 480V, 3 phases, with EMC, IP21
Picture of variable speed drive, Altivar 212, 37kW, 50hp, 480V, 3 phases, with EMC, IP21
SKU:

ATV212HD37N4

variable speed drive, Altivar 212, 37kW, 50hp, 480V, 3 phases, with EMC, IP21

$6,207.38
Product Selector
variable speed drive, Altivar 212, 37kW, 50hp, 480V, 3 phases, with EMC, IP21
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 13-Oct-2024
Image of product
End of life manual
Declaration of conformity
Instruction sheet
Image of product
Product environmental
Catalogue
User guide
Product Page Link
Product Data Sheet
This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP21 and it has a built-in EMC filter. It works at a rated power up to 37kW / 50hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 38.1kg and its dimensions are, 240mm wide, 550mm high, 244mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet. It complies with directives such as RoHS, WEEE, etc.relating to environmental protection.

Products specifications

Attribute nameAttribute value
Main
Device short nameATV212
EMC filterClass C2 EMC filter integrated
Supply voltage limits323-528 V
[Us] rated supply voltage380...480 V - 15...10 %
Line current54.4 A at 480 V, 68.9 A at 380 V
Motor power kW37 kW
Range of productAltivar 212
Supply frequency50...60 Hz - 5...5 %
Motor power hp50 hp
Product specific applicationpumps and fans in HVAC
Communication port protocolLonWorks, APOGEE FLN, Modbus, BACnet, METASYS N2
Network number of phases3 phases
IP degree of protectionIP21
Product or component typevariable speed drive
Product destinationasynchronous motors
Complementary
Speed accuracy+/- 10 % of nominal slip 0.2 Tn to Tn
Supplyinternal supply: 24 V DC (21-27 V), <200 A, protection type: overload and short-circuit protection, internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 A, protection type: overload and short-circuit protection
Protection typewith PTC probes: motor, motor phase break: motor, thermal protection: motor, against input phase loss: drive, line supply undervoltage: drive, line supply overvoltage and undervoltage: drive, against exceeding limit speed: drive, break on the control circuit: drive, overvoltages on the DC bus: drive, overcurrent between output phases and earth: drive, input phase breaks: drive, short-circuit between motor phases: drive, thermal power stage: drive, overheating protection: drive
Braking to standstillby DC injection
Nominal switching frequency8 kHz
Output voltage<= power supply voltage
Isolationelectrical between power and control
Discrete input typeRES programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm, R programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm, F programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm
Tightening torque24 N.m, 212 lb.in (L1/R, L2/S, L3/T), 0.6 N.m (VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)
Continuous output current79 A at 460 V, 79 A at 380 V
Power dissipation in W976 W
Physical interface2-wire RS 485
Minimum switching current3 mA at 24 V DC for configurable relay logic
Analogue output number1
Motor starter typevariable speed drive
Functionalitymid
Connector type1 RJ45, 1 open style
Maximum transient current86.9 A for 60 s
Accuracy+/- 1 % (FM) for a temperature variation 60 °C, +/- 0.6 % (VIB) for a temperature variation 60 °C, +/- 0.6 % (VIA) for a temperature variation 60 °C
Data format8 bits, 1 stop, odd even or no configurable parity
Transient overtorque120-120 % of nominal motor torque +/- 10 % for 60 s
Communication serviceread device identification (43), time out setting from 0.1 to 100 s, write multiple registers (16) 2 words maximum, write single register (06), monitoring inhibitable, read holding registers (03) 2 words maximum
Torque accuracy+/- 15 %
Transmission frameRTU
Speed drive output frequency0.5-200 Hz
Acceleration and deceleration rampsautomatic based on the load, linear adjustable separately from 0.01 to 3200 s
Height550 mm
Electrical connectionL1/R, L2/S, L3/T: terminal 50-50 mm² / AWG 1/0, VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES: terminal 2.5-2.5 mm² / AWG 14
Option cardcommunication card for LonWorks
Sampling duration22 ms +/- 0.5 ms VIB analog, 3.5 ms +/- 0.5 ms VIA analog, 2 ms +/- 0.5 ms RES discrete, 2 ms +/- 0.5 ms R discrete, 2 ms +/- 0.5 ms F discrete
Discrete and process manufacturingbuilding - HVAC pump, building - HVAC fan, building - HVAC compressor for scroll
Analogue input typeVIA switch-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 10 bits, VIB configurable PTC probe: 0...6 probes, impedance: 1500 Ohm, VIB configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 10 bits, VIA switch-configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 10 bits
Depth244 mm
Air flow334 m3/h
Transmission rate9600 bps or 19200 bps
Width240 mm
Specific applicationHVAC
Linearity errorFM: +/- 0.2 % for output, VIB: +/- 0.15 % of maximum value for input, VIA: +/- 0.15 % of maximum value for input
Local signalling1 LED (red) for DC bus energized
Speed range1/10/2024 12:00:00 AM
Number of addresses1-247
Discrete output number2
Motor slip compensationadjustable, automatic whatever the load, not available in voltage/frequency ratio motor control
Analogue input number2
Switching frequency8...16 kHz with derating factor, 6...16 kHz adjustable
Frequency resolutionanalog input: 0.024/50 Hz, display unit: 0.1 Hz
Type of polarizationno impedance
Power range30-50 kW at 480-500 V 3 phases, 30-50 kW at 380-440 V 3 phases
Apparent power52 kVA at 380 V
Dielectric strength5092 V DC between control and power terminals, 3535 V DC between earth and power terminals
Response timeRY, RC 7 ms, tolerance +/- 0.5 ms for discrete output(s), FLB, FLC 7 ms, tolerance +/- 0.5 ms for discrete output(s), FLA, FLC 7 ms, tolerance +/- 0.5 ms for discrete output(s), FM 2 ms, tolerance +/- 0.5 ms for analog output(s)
Insulation resistance>= 1 mOhm 500 V DC for 1 minute
Maximum switching current2 A at 30 V DC on inductive load - cos phi = 0.4 - L/R = 7 ms (FL, R), 2 A at 250 V AC on inductive load - cos phi = 0.4 - L/R = 7 ms (FL, R), 5 A at 30 V DC on resistive load - cos phi = 1 - L/R = 0 ms (FL, R), 5 A at 250 V AC on resistive load - cos phi = 1 - L/R = 0 ms (FL, R)
Asynchronous motor control profilevoltage/frequency ratio, automatic IR compensation (U/f + automatic Uo), voltage/frequency ratio - Energy Saving, quadratic U/f, voltage/frequency ratio, 2 points, voltage/frequency ratio, 5 points, flux vector control without sensor, standard
Discrete output typeconfigurable relay logic: (RY, RC) NO - 100000 cycles, configurable relay logic: (FLB, FLC) NC - 100000 cycles, configurable relay logic: (FLA, FLC) NO - 100000 cycles
Analogue output typeFM switch-configurable current 0...20 mA, impedance: 970 Ohm, resolution 10 bits, FM switch-configurable voltage 0...10 V DC, impedance: 7620 Ohm, resolution 10 bits
Type of cablewith UL Type 1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC, without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC, without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR
Discrete input logicnegative logic (sink) (F, R, RES), >= 16 V (state 0), <= 10 V (state 1), positive logic (source) (F, R, RES), <= 5 V (state 0), >= 11 V (state 1)
Network frequency47.5...63 Hz
Prospective line Isc22 kA
Environment
Operating positionvertical +/- 10 degree
IP degree of protectionIP41 on upper part conforming to IEC 60529, IP41 on upper part conforming to IEC 61800-5-1, IP21 conforming to IEC 60529, IP21 conforming to IEC 61800-5-1, IP20 on upper part without blanking plate on cover conforming to IEC 60529, IP20 on upper part without blanking plate on cover conforming to IEC 61800-5-1
Assembly stylewith heat sink
Relative humidity5-95 % without dripping water conforming to IEC 60068-2-3, 5-95 % without condensation conforming to IEC 60068-2-3
Ambient air temperature for storage-25-70 °C
Pollution degree3 conforming to IEC 61800-5-1
MarkingCE
Ambient air temperature for operation40-50 °C (with derating factor), -10-40 °C (without derating)
Electromagnetic compatibilityvoltage dips and interruptions immunity test conforming to IEC 61000-4-11, conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Operating altitude<= 1000 m without derating, 1000...3000 m limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m
Regulation loopadjustable PI regulator
Noise level64 dB conforming to 86/188/EEC
Vibration resistance1 gn (f= 13-200 Hz) conforming to EN/IEC 60068-2-8, 1.5 mm (f= 3-13 Hz) conforming to IEC 60068-2-6
Environmental characteristicclasses 3S2 conforming to IEC 60721-3-3, classes 3C1 conforming to IEC 60721-3-3
Shock resistance15 gn for 11 ms conforming to IEC 60068-2-27
StandardsEN 55011 class A group 1, IEC 61800-3 environments 1 category C2, IEC 61800-3 environments 2 category C3, UL Type 1, IEC 61800-3 environments 2 category C2, EN 61800-3 category C3, IEC 61800-5-1, IEC 61800-3 environments 1 category C1, IEC 61800-3, IEC 61800-3 category C2, IEC 61800-3 category C3, IEC 61800-3 environments 1 category C3, IEC 61800-3 environments 2 category C1
Product certificationsCSA, C-Tick, NOM 117, UL
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height45 cm
Package 1 Width38.5 cm
Package 1 Length70 cm
Package 1 Weight23.5 kg

Related products

Picture of connection cable USB/RJ45 - for connection between PC and drive

connection cable USB/RJ45 - for connection between PC and drive

TCSMCNAM3M002P
$153.72
View Detail
Picture of remote graphic terminal, Altivar, 240 x 160pixels, IP54

remote graphic terminal, Altivar, 240 x 160pixels, IP54

VW3A1101
$327.17
View Detail
Picture of communication card LonWorks

communication card LonWorks

VW3A21212
$308.27
View Detail

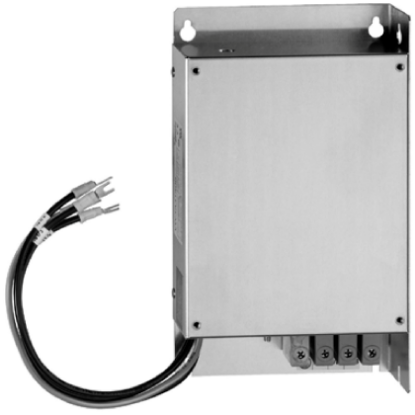

Picture of additionnal EMC input filter - 3-phase supply - 92 A
