SKU:

ATV320U07M2C

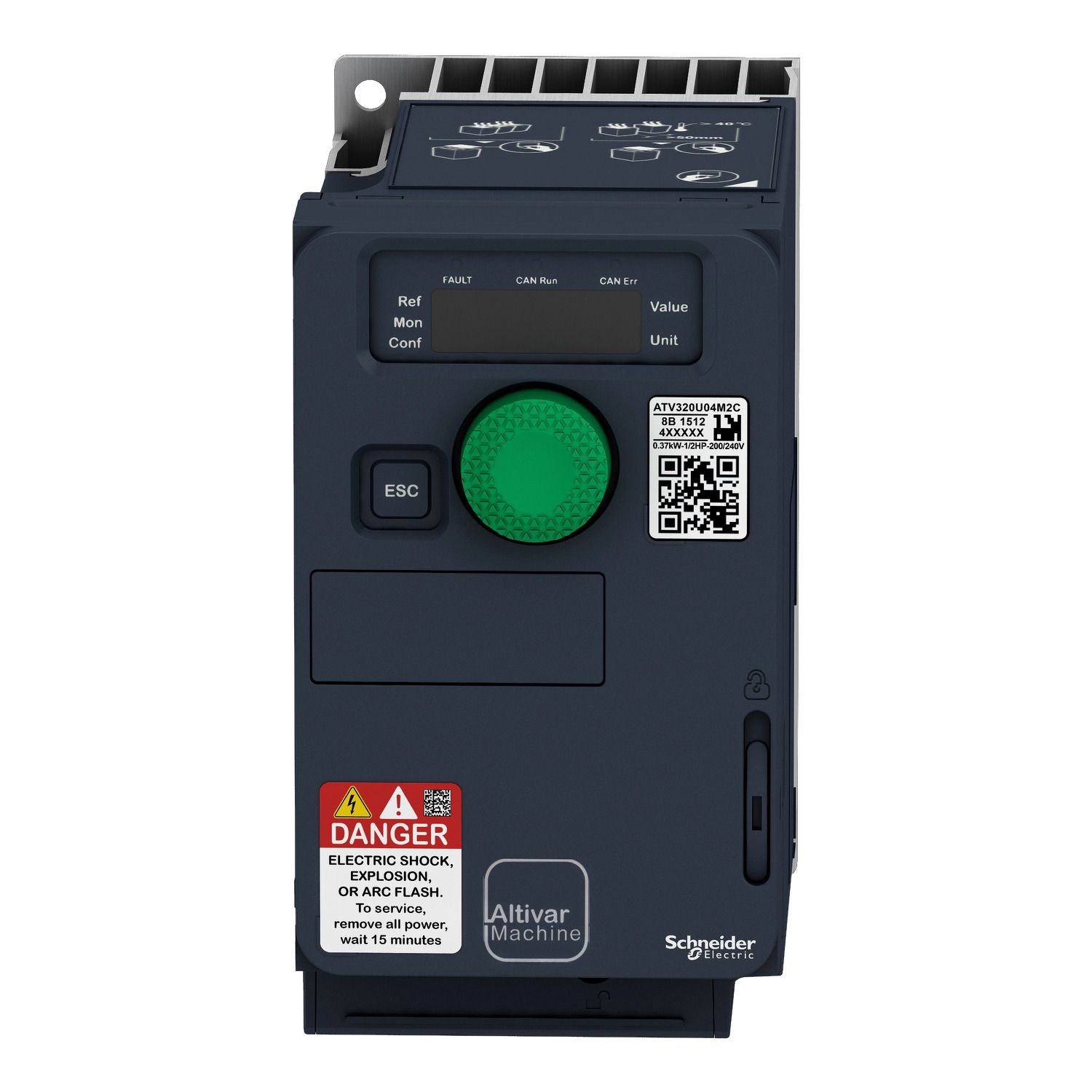

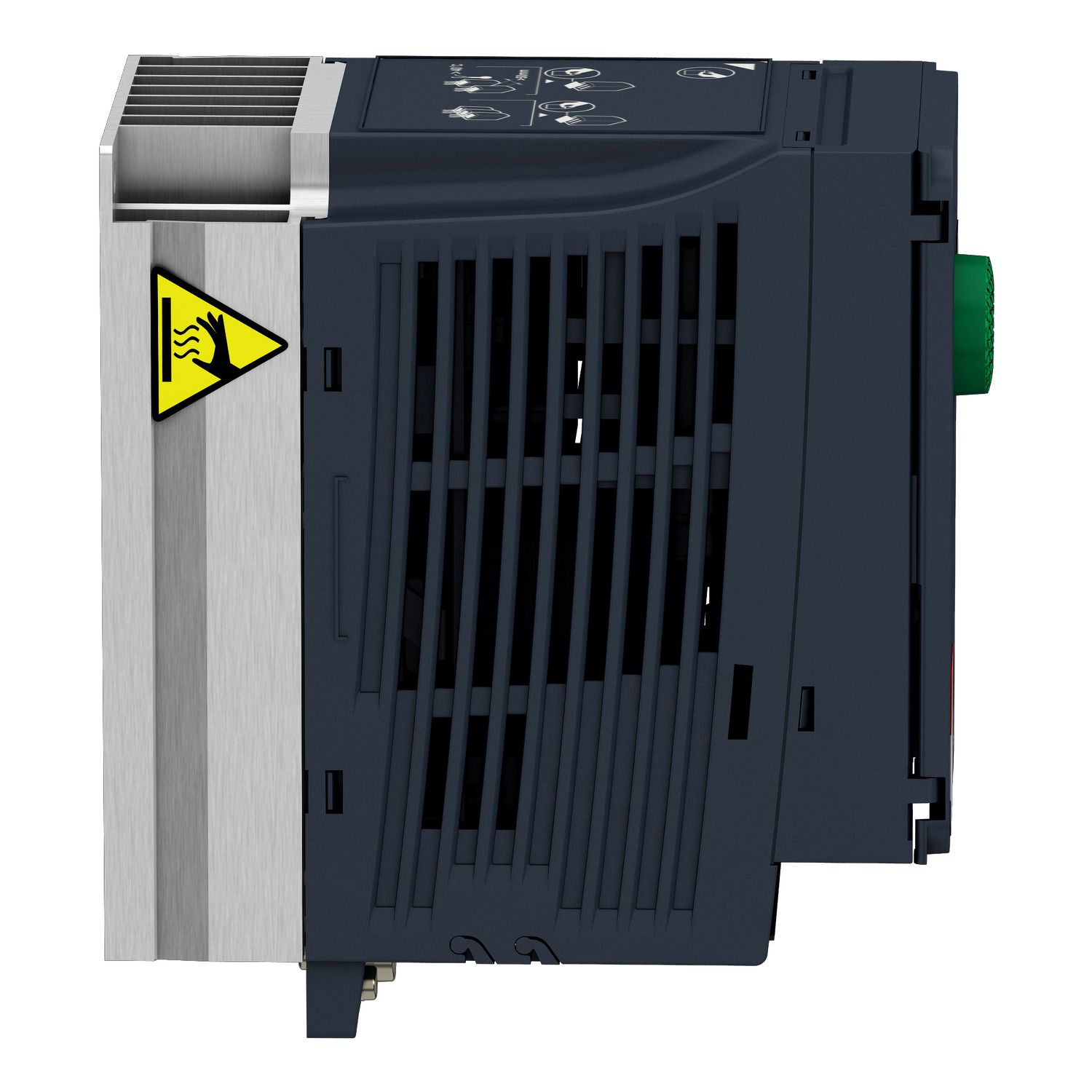

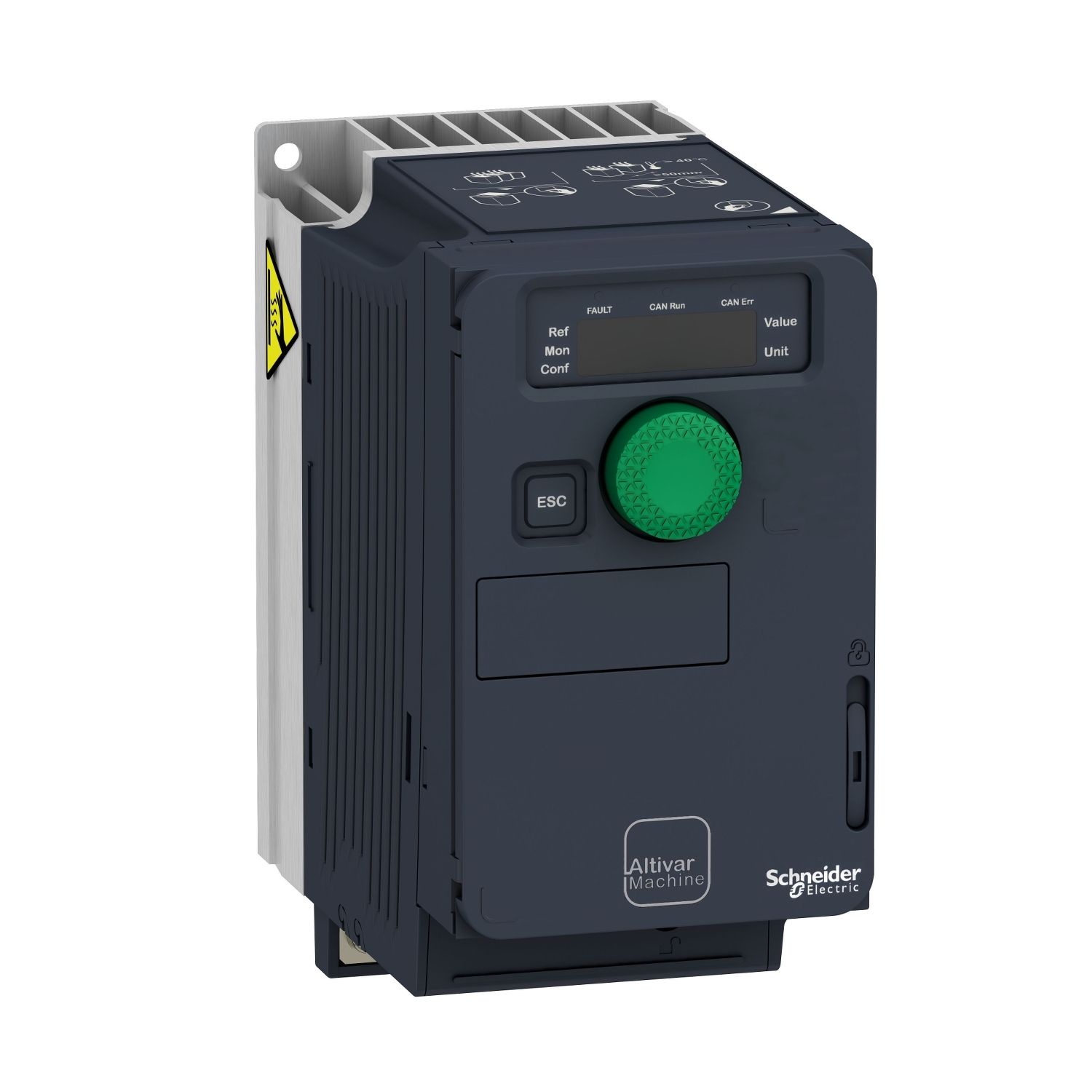

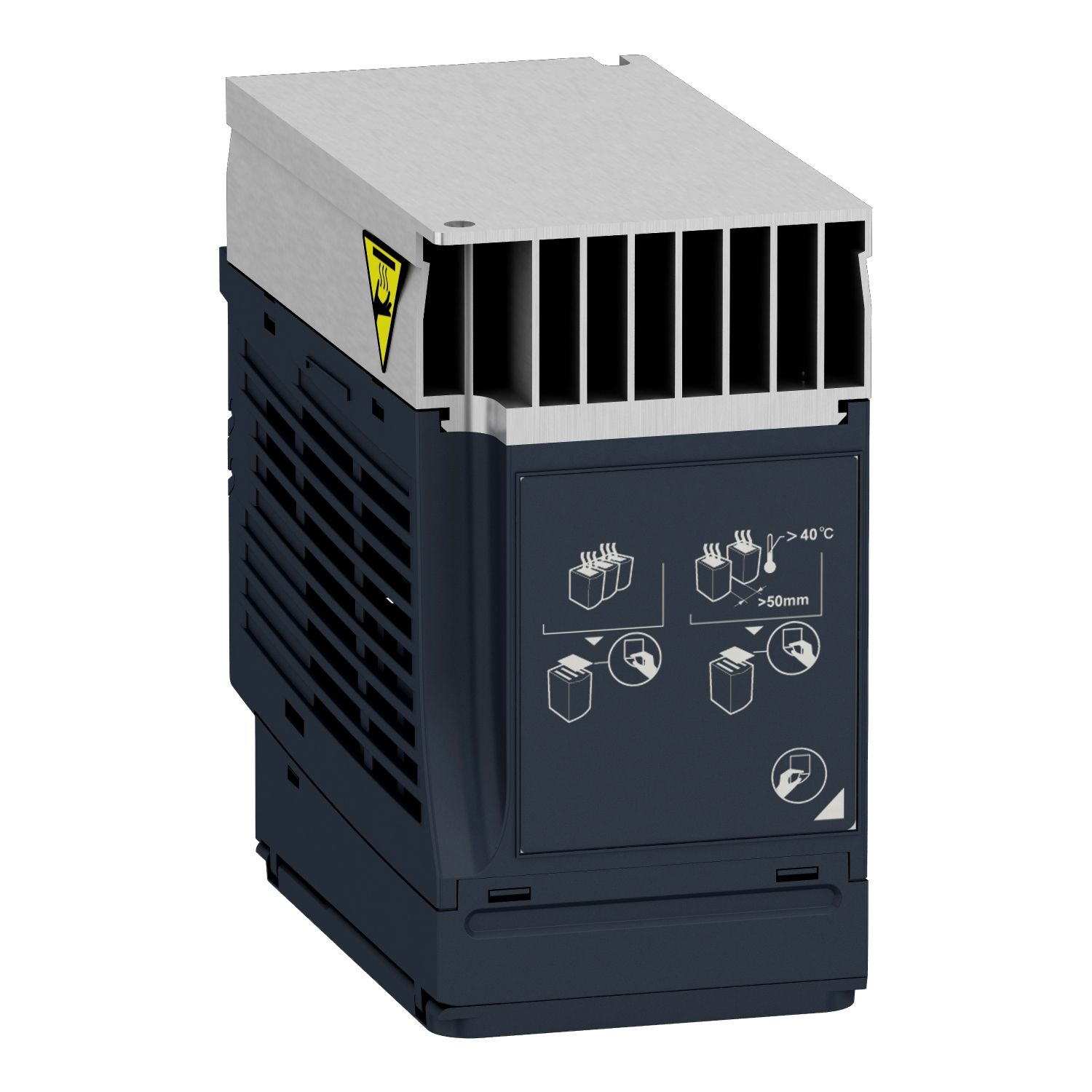

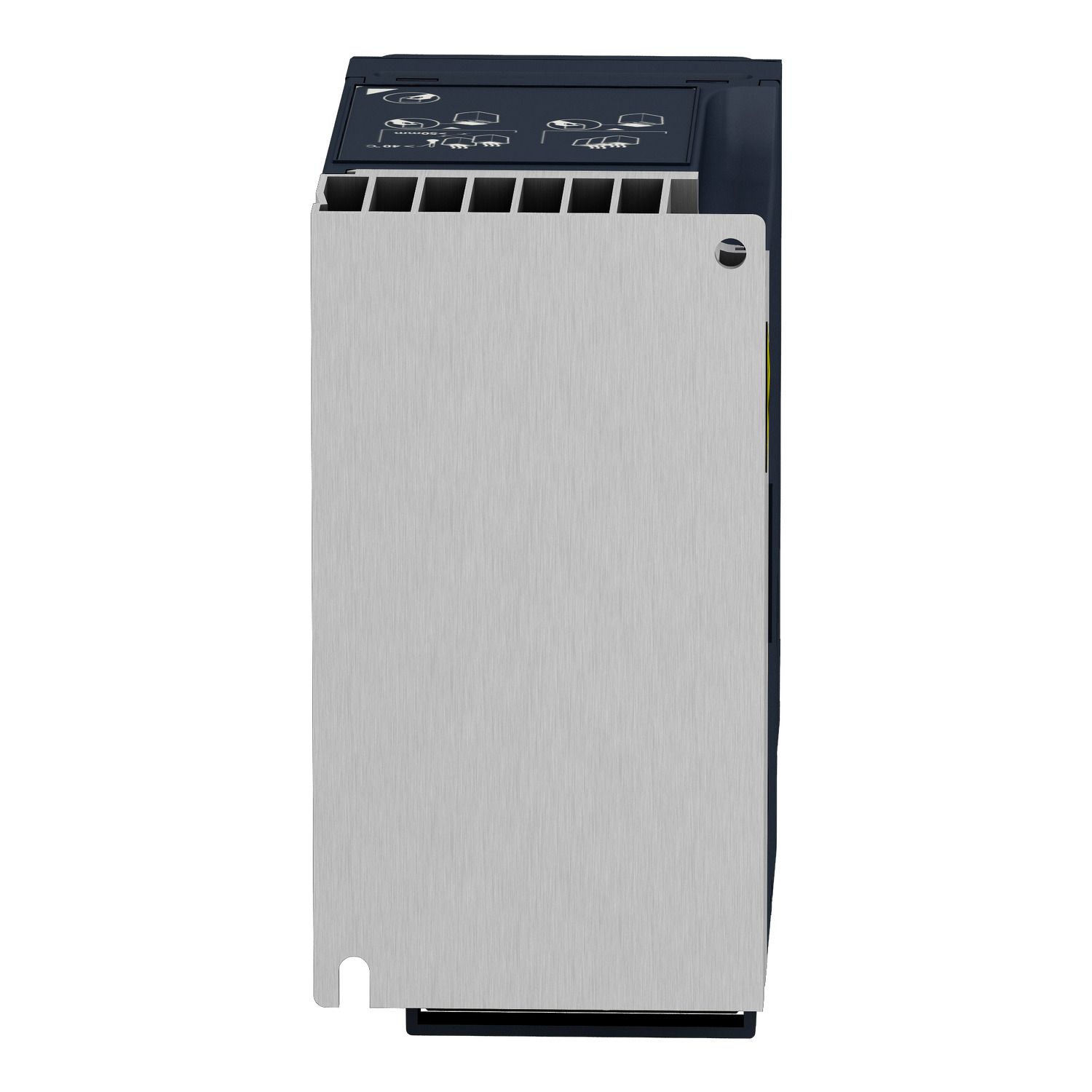

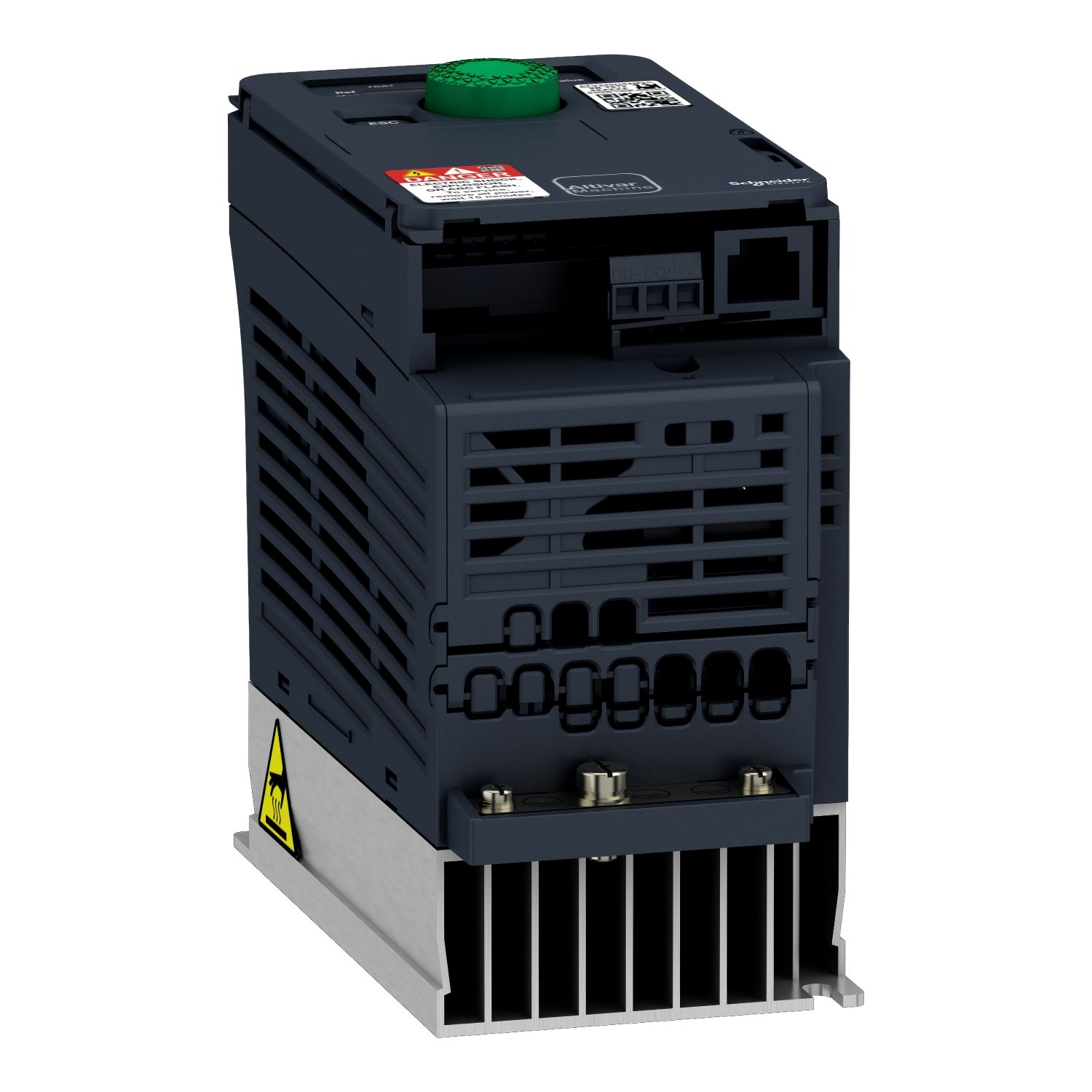

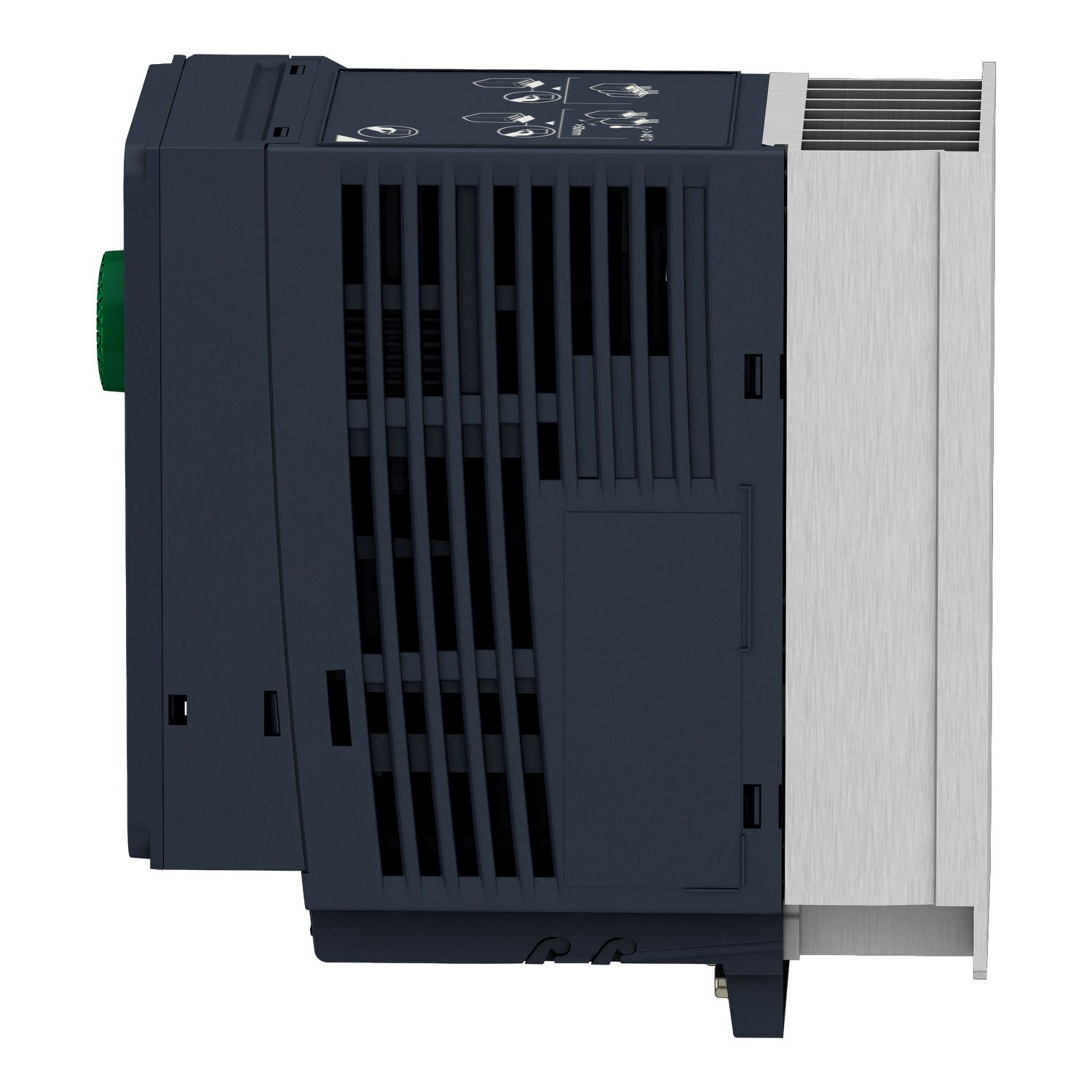

variable speed drive, Altivar Machine ATV320, 0.75kW, 200 to 240V, 1 phase, compact

$537.16

Qty:

Available for Shipping : 24-Nov-2024

Product Selector

variable speed drive, Altivar Machine ATV320, 0.75kW, 200 to 240V, 1 phase, compact

Be the first to review this product

Manufacturer: Schneider Electric

Catalogue

Product environmental

Instruction sheet

User guide

End of life manual

Declaration of conformity

Product Page Link

Product Data Sheet

This Altivar 320 variable speed drive can feed single-phase synchronous and asynchronous motors. Its compact form factor allows vertical stacking of drives inside machine frames. It works at a rated power up to 0.75kW / 1hp and a rated voltage from 200V to 240V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module. These safety functions are configured using SoMove software. Altivar Machine ATV320 was designed for Original Equipment Manufacturers (OEMs) that meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, NOM, EAC and RCM certified. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It complies with directives such as RoHS, WEEE, etc.relating to environmental protection.

Products specifications

Attribute name	Attribute value
Main
[Us] rated supply voltage	200...240 V - 15...10 %, 200...240 V
Number of output phases	1
Design of frequency changer	U converter
Product specific application	complex machines
Nominal output current	4.8 A
Communication port protocol	CANopen, Modbus serial
IP degree of protection	IP20
Format of the drive	compact
Variant	standard version
EMC filter	Class C2 EMC filter integrated
Mounting mode	wall mount
Motor power kW	0.75 kW for heavy duty
Range of product	Altivar Machine ATV320
Option card	communication module, DeviceNet, communication module, EtherNet/IP, communication module, Ethernet Powerlink, communication module, PROFINET, communication module, Profibus DP V1, communication module, EtherCAT, communication module, CANopen
Number of input phases	1
Network number of phases	single phase
Relative symmetric mains voltage tolerance	10 %
Product or component type	variable speed drive
Complementary
Synchronous motor control profile	vector control without sensor
Braking to standstill	by DC injection
Capacity of DC link	1120 µF
Supporting protocol for SUCONET	False
Brake chopper integrated	True
Supporting protocol for DeviceNet	True
Minimum switching current	relay output R1A, R1B, R1C, R2A, R2C: 5 mA at 24 V DC
Operating element present	True
Supporting protocol for PROFINET IO	True
Supporting protocol for Data-Highway	False
Number of HW interfaces serial RS232	0
Accuracy	+/- 2 % AQ1 for a temperature of -10...60 °C analog output, +/- 1 % AQ1 for a temperature of 25 °C analog output, +/- 0.5 % AI1, AI2, AI3 for a temperature of 25 °C analog input, +/- 0.7 % AI1, AI2, AI3 for a temperature of -10...60 °C analog input
Number of HW interfaces serial RS485	1
Supporting protocol for PROFIBUS	True
With safety function Safe torque off (STO)	True
Transient overtorque	170-200 % of nominal motor torque
With safety function Safe Speed Monitor (SSM)	False
Supporting protocol for SafetyBUS P	False
Supporting protocol for AS-Interface Safety at Work	False
Encoder protocol	RS 422
Acceleration and deceleration ramps	acceleration/deceleration automatic stop with DC injection, acceleration/deceleration ramp adaptation, ramp switching, CUS, S, U, linear
Height	143.0 mm
Number of HW interfaces serial RS422	0
Optical interface present	False
Supporting protocol for TCP/IP	True
Supporting protocol for Foundation Fieldbus	False
Sampling duration	2 ms (AQ1) - analog output, 2 ms (AI1, AI2, AI3) - analog input
Supporting protocol for PROFIsafe	False
Analogue input type	AI3 current: 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration), impedance: 250 Ohm, resolution 10 bits, AI2 bipolar differential voltage: +/- 10 V DC, impedance: 30 kOhm, resolution 10 bits, AI1 voltage: 0...10 V DC, impedance: 30 kOhm, resolution 10 bits
With safety function Safe Stop 1 (SS1)	True
With sft fct Safe Stop 2 (SS2)	False
Housing material	plastic
Supporting protocol for LON	False
Supporting protocol for BACnet	False
Discrete input number	7
With safety function Safe Operating Stop (SOS)	False
Method of access	slave CANopen
With safety function Safely Limited Position (SLP)	False
With safety function Safe Position (SP)	False
Supporting protocol for DeviceNet Safety	False
Discrete output number	3
Supporting protocol for MODBUS	True
Analogue input number	3
Switching frequency	4...16 kHz with derating factor, 2...16 kHz adjustable
With safety function Safe Direction (SDI)	False
Net weight	1.1 kg
EMC limit value (complied)	True
Apparent power	2.0 kVA at 240 V (heavy duty)
Relative symmetric network frequency tolerance	5 %
Supporting protocol for INTERBUS	False
Asynchronous motor control profile	voltage/frequency ratio, 2 points, flux vector control without sensor - Energy Saving, voltage/frequency ratio - Energy Saving, quadratic U/f, flux vector control without sensor, standard, voltage/frequency ratio, 5 points
Discrete output type	open collector DQ- 0-1 kHz 30 V DC 100 mA, open collector DQ+ 0-1 kHz 30 V DC 100 mA
Analogue output type	software-configurable voltage AQ1: 0...10 V DC impedance 470 Ohm, resolution 10 bits, software-configurable current AQ1: 0...20 mA impedance 800 Ohm, resolution 10 bits
Line current	8.4 A at 240 V (heavy duty), 10.1 A at 200 V (heavy duty)
Prospective line Isc	1 kA
With safety function Safely Limited Speed (SLS)	True
Number of HW interfaces other	1
Number of HW interfaces serial TTY	0
Protection type	thermal protection: drive, short-circuit between motor phases: drive, overheating protection: drive, overcurrent between output phases and earth: drive, input phase breaks: drive
Discrete input type	DI5 programmable as pulse input: 0-30 kHz, 24 V DC (30 V), DI1...DI6 logic inputs, 24 V DC (30 V), STO safe torque off, 24 V DC, impedance: 1.5 kOhm
Power loss static current independent	45.0 W
Nominal switching frequency	4 kHz
With safety function Safe programmable logic	False
Number of inputs, bidirectional, not potential-free	0
Number of inputs, potential-free	0
Supporting protocol for EtherNet/IP	True
Refresh time	relay output (R2A, R2C): 2 ms, relay output (R1A, R1B, R1C): 2 ms, logic input (DI1...DI4): 8 ms
Discrete input logic	negative logic (sink), positive logic (source)
Analogue output number	1
Supporting protocol for PROFINET CBA	False
Supporting protocol for ASI	False
Number of HW interfaces USB	0
Supporting protocol for SERCOS	False
Base load current at high overload	33.0 A
Maximum output voltage	240 V
With safety function Safe brake management (SBC/SBT)	False
Maximum output frequency	0.599 kHz
Supporting protocol for other bus systems	True
Computer port	True
Application in industrial area permitted	True
Depth	138.0 mm
Supporting protocol for KNX	False
Width	72.0 mm
Linearity error	AQ1: +/- 0.3 % for analog output, AI1, AI2, AI3: +/- 0.2...0.5 % of maximum value for analog input
Number of HW interfaces parallel	0
Power loss per device current dependent	45.0 W
Motor slip compensation	not available in voltage/frequency ratio (2 or 5 points), adjustable 0...300 %, automatic whatever the load
Application in domestic and commercial area permitted	False
Supporting protocol for CAN	True
1 phase low current possible	False
Relay output type	configurable relay logic R2C, configurable relay logic R2A 1 NO electrical durability 100000 cycles, configurable relay logic R1C, configurable relay logic R1B 1 NC electrical durability 100000 cycles, configurable relay logic R1A 1 NO electrical durability 100000 cycles
Maximum associated fuse rating	20 A
Nominal output power	0.75 kW
Supporting protocol for INTERBUS-Safety	False
4 quadrant operation possible	True
Maximum switching current	relay output R2A, R2C on resistive load, cos phi = 1 : 5 A at 30 V DC, relay output R2A, R2C on resistive load, cos phi = 1 : 5 A at 250 V AC, relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC, relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC, relay output R1A, R1B, R1C on resistive load, cos phi = 1 : 3 A at 30 V DC, relay output R1A, R1B, R1C on resistive load, cos phi = 1 : 3 A at 250 V AC
Number of HW interfaces industrial Ethernet	0
Number of HW interfaces PROFINET	0
Power dissipation in W	self-cooled: 45.0 W at 200 V, switching frequency 4 kHz
Network frequency	50...60 Hz
Environment
Maximum deflection under vibratory load (during storage)	3.5 mm at 2...13 Hz
Operating position	vertical +/- 10 degree
Ambient air temperature for storage	-25-70 °C
NEMA degree of protection	NEMA 1
Maximum acceleration under vibratory load (during storage)	10 m/s² at 13...200 Hz
Maximum acceleration under shock impact (during operation)	150 m/s² at 11 ms
Maximum acceleration under shock load (during transport)	150 m/s² at 11 ms
Maximum acceleration under vibratory load (during transport)	10 m/s² at 13...200 Hz
Environmental class (during storage)	class 1S2 according to EN 60721-3, class 1C3 according to EN 60721-3
Overvoltage category	III
Permitted relative humidity (during operation)	class 3K5 according to EN 60721-3
Permitted relative humidity (during storage)	class 1K5 according to EN 60721-3
Maximum deflection under vibratory load (during transport)	3.5 mm at 2...13 Hz
Maximum deflection under vibratory load (during operation)	1.5 mm at 2...13 Hz
Product certifications	KC, RCM, EAC, GOST, NOM, ATEX, CE
Speed accuracy	+/- 10 % of nominal slip 0.2 Tn to Tn
Ambient air transport temperature	-25-70 °C
Maximum acceleration under shock load (during storage)	150 m/s² at 11 ms
Permitted relative humidity (during transport)	class 2K5 according to EN 60721-3
Maximum acceleration under vibrational stress (during operation)	10 m/s² at 13...200 Hz
Marking	RCM, EAC, CSA, UL, ATEX, CE
Environmental class (during transport)	class 2S1 according to EN 60721-3, class 2C3 according to EN 60721-3
Ambient air temperature for operation	50-60 °C with derating factor, -10-50 °C without derating, -10-60 °C
Electromagnetic compatibility	voltage dips and interruptions immunity test conforming to IEC 61000-4-11, conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Pollution degree	2
Environmental class (during operation)	class 3S2 according to IEC 60721-3-3, class 3C3 according to IEC 60721-3-3
Regulation loop	adjustable PID regulator
Standards	IEC 61800-5-1

Maximum input current	10.1 A
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	11.500 cm
Package 1 Width	18.500 cm
Package 1 Length	19.000 cm
Package 1 Weight	1.285 kg
Unit Type of Package 2	2
Number of Units in Package 2	45
Package 2 Height	75.000 cm
Package 2 Width	60.000 cm
Package 2 Length	80.000 cm
Package 2 Weight	72.940 kg
