SKU:

BMXDDO6402K

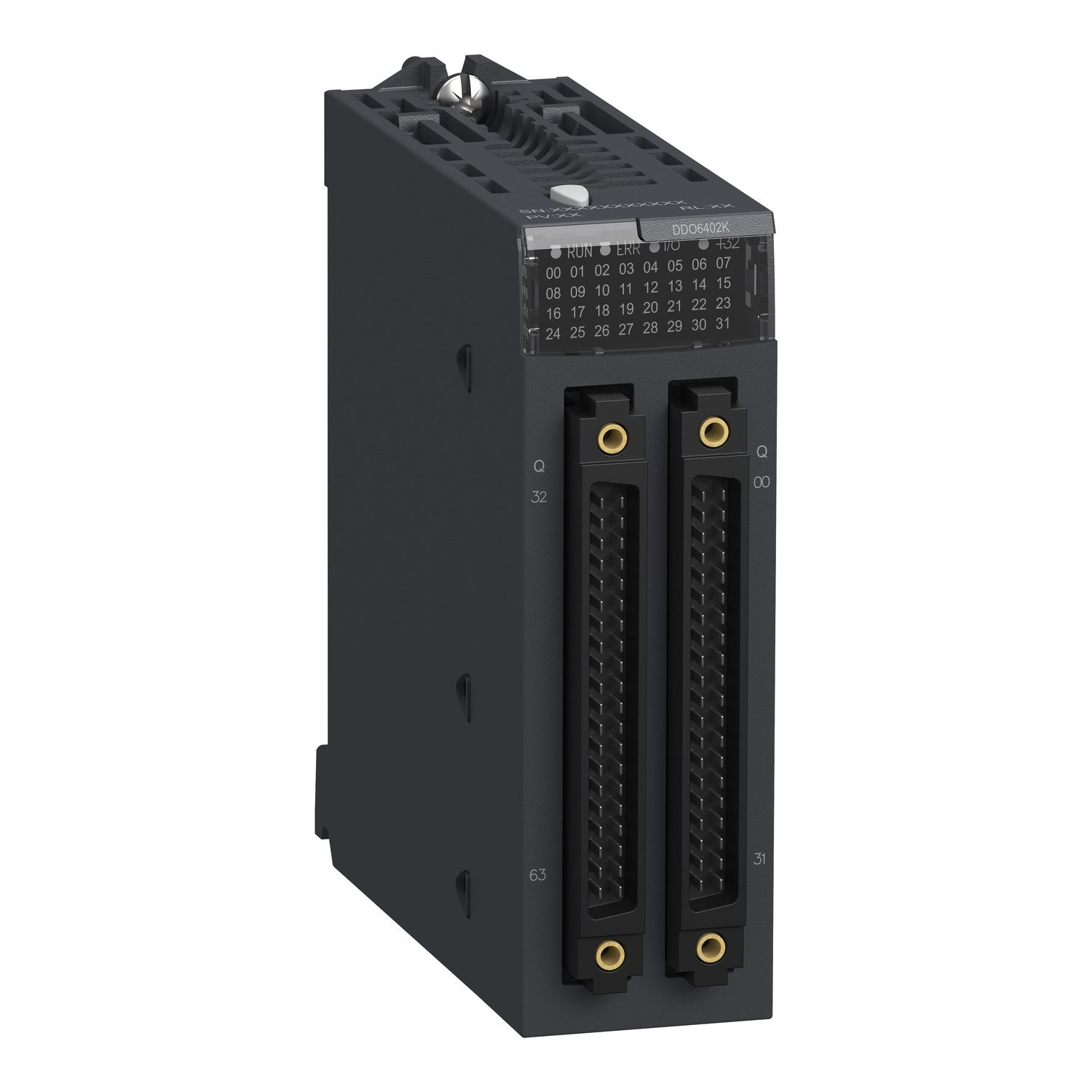

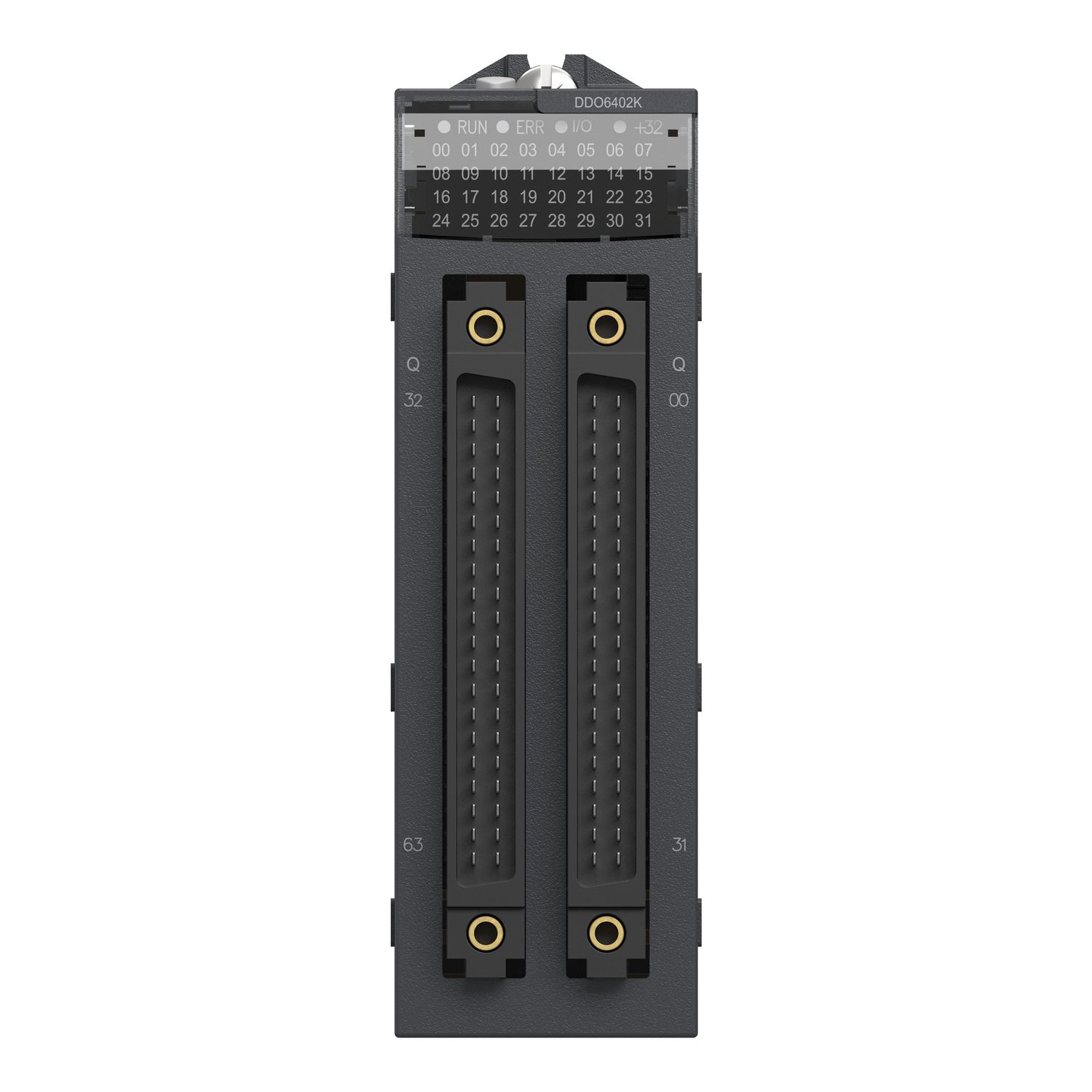

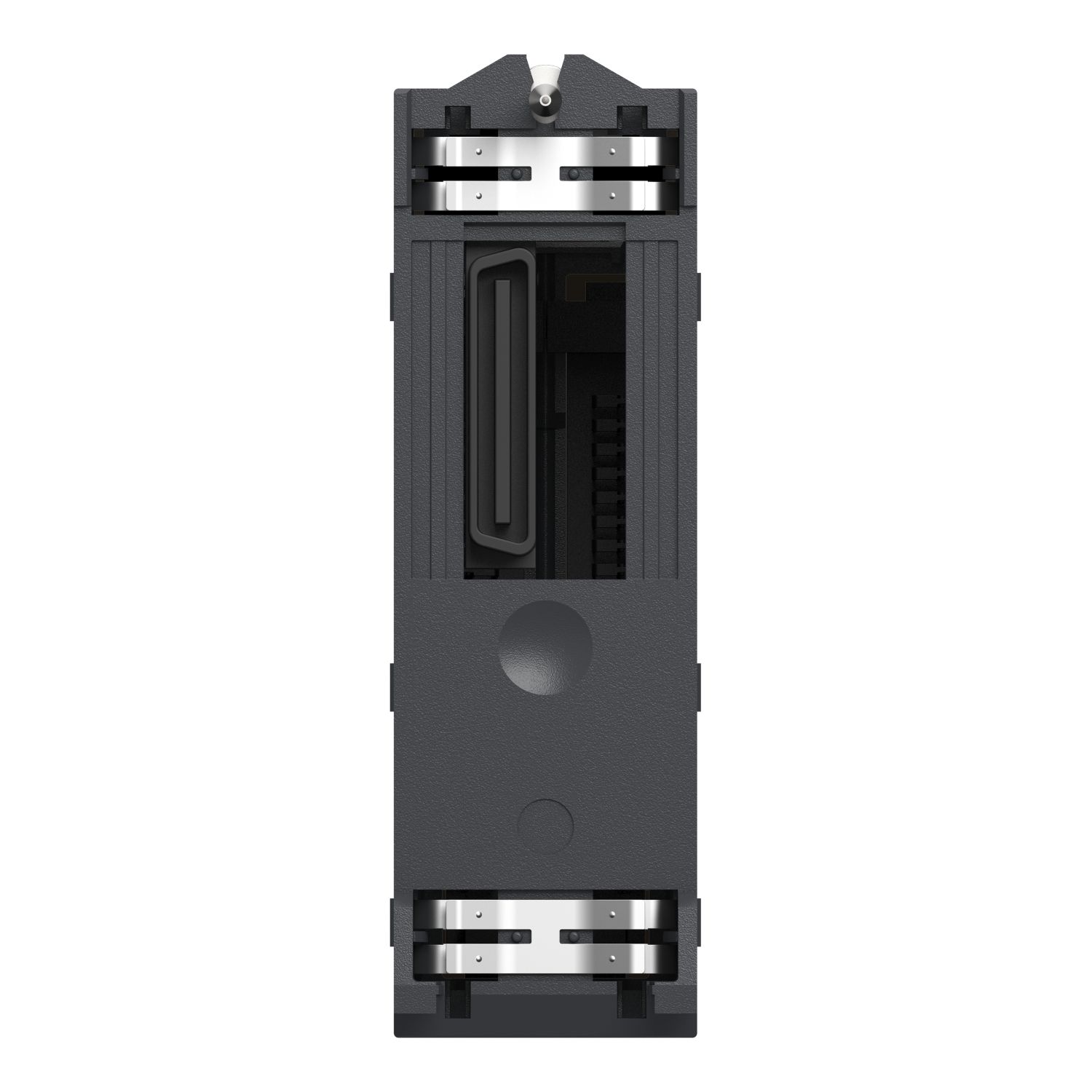

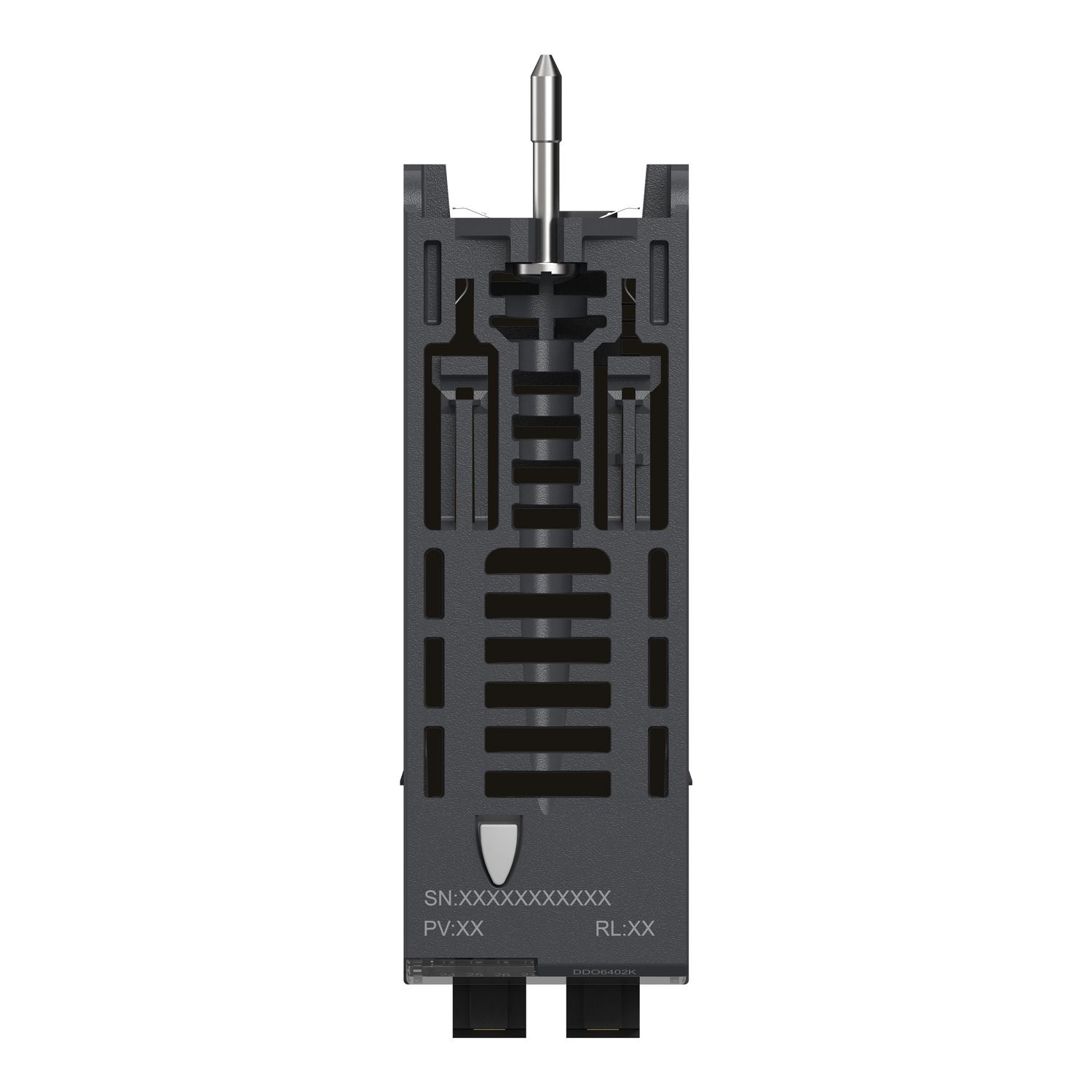

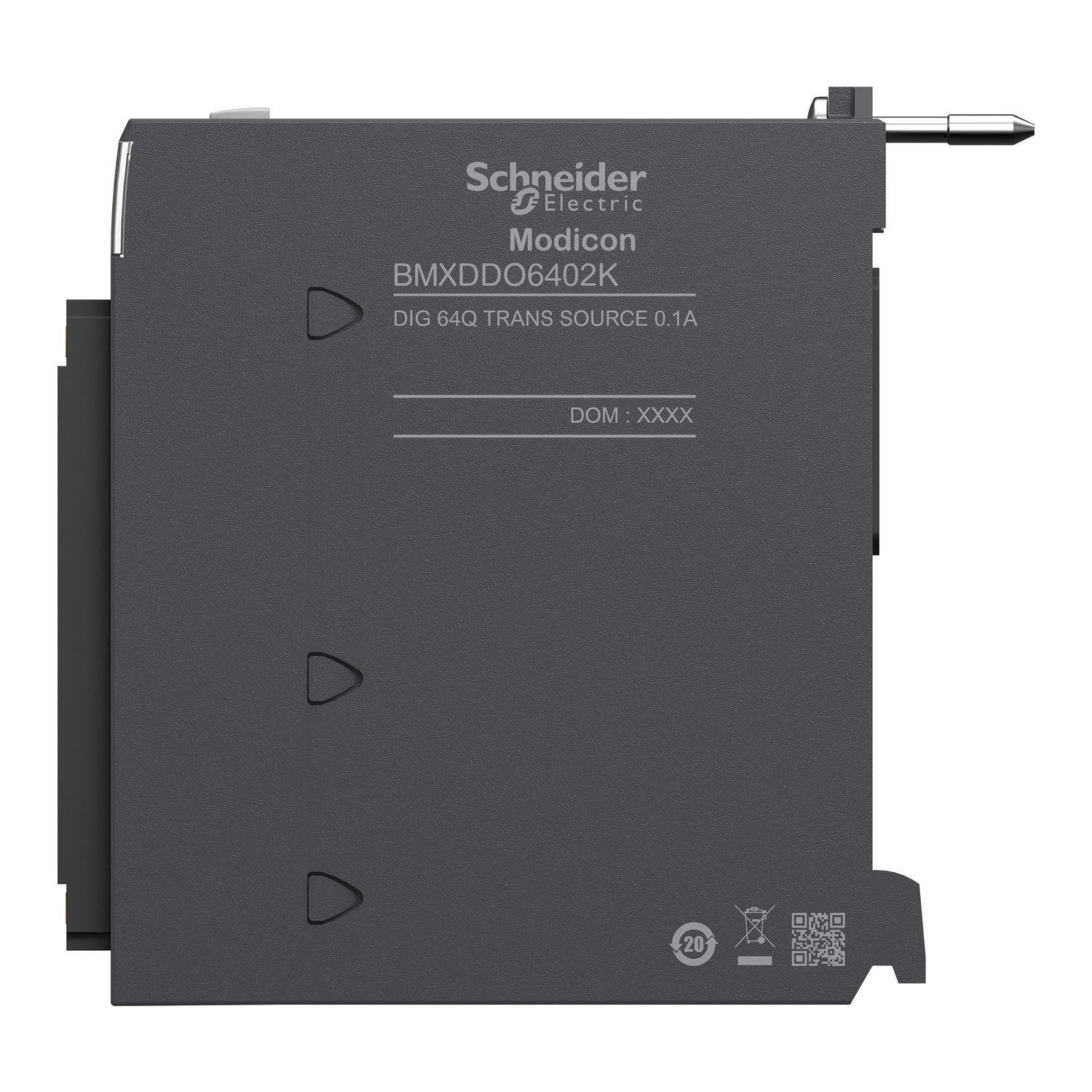

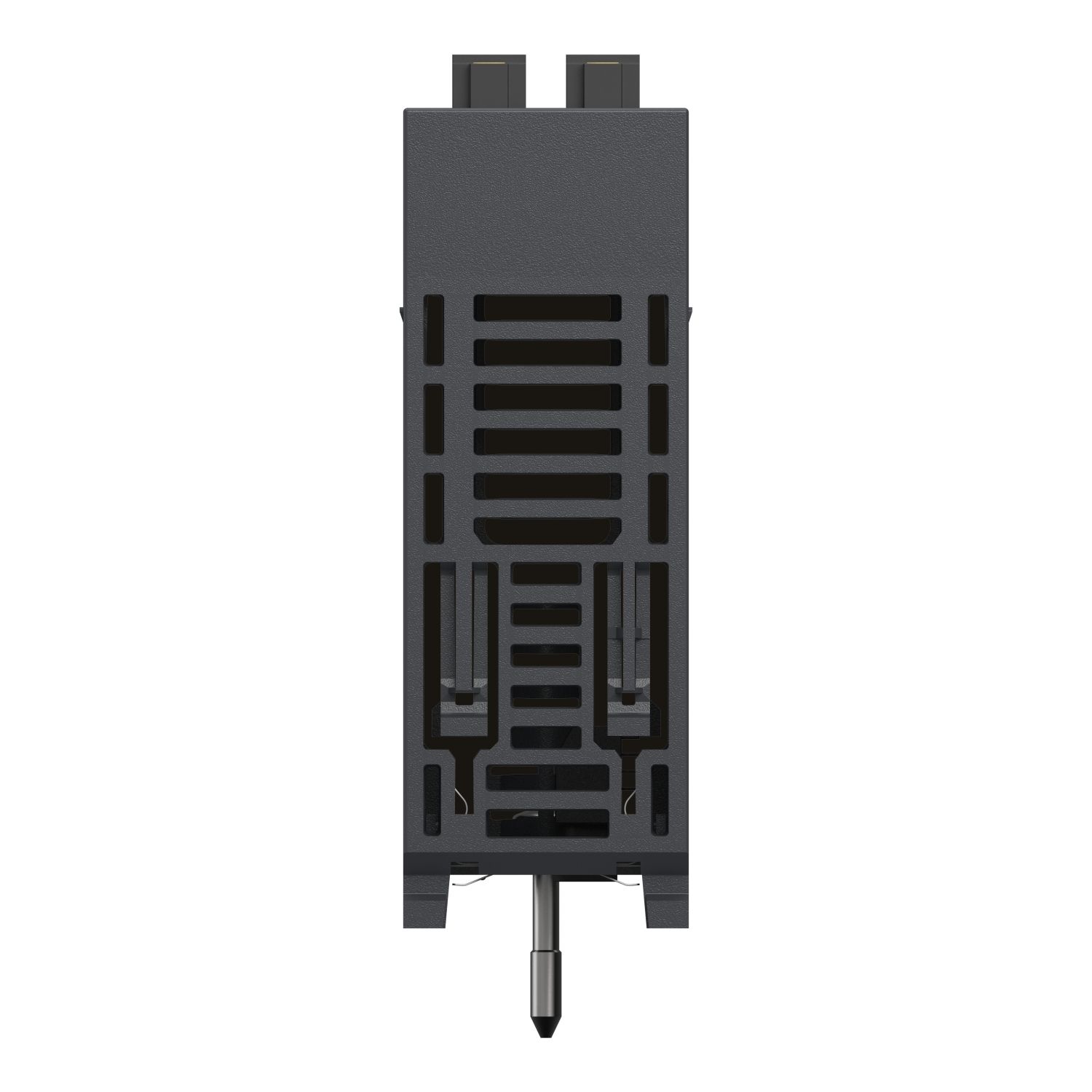

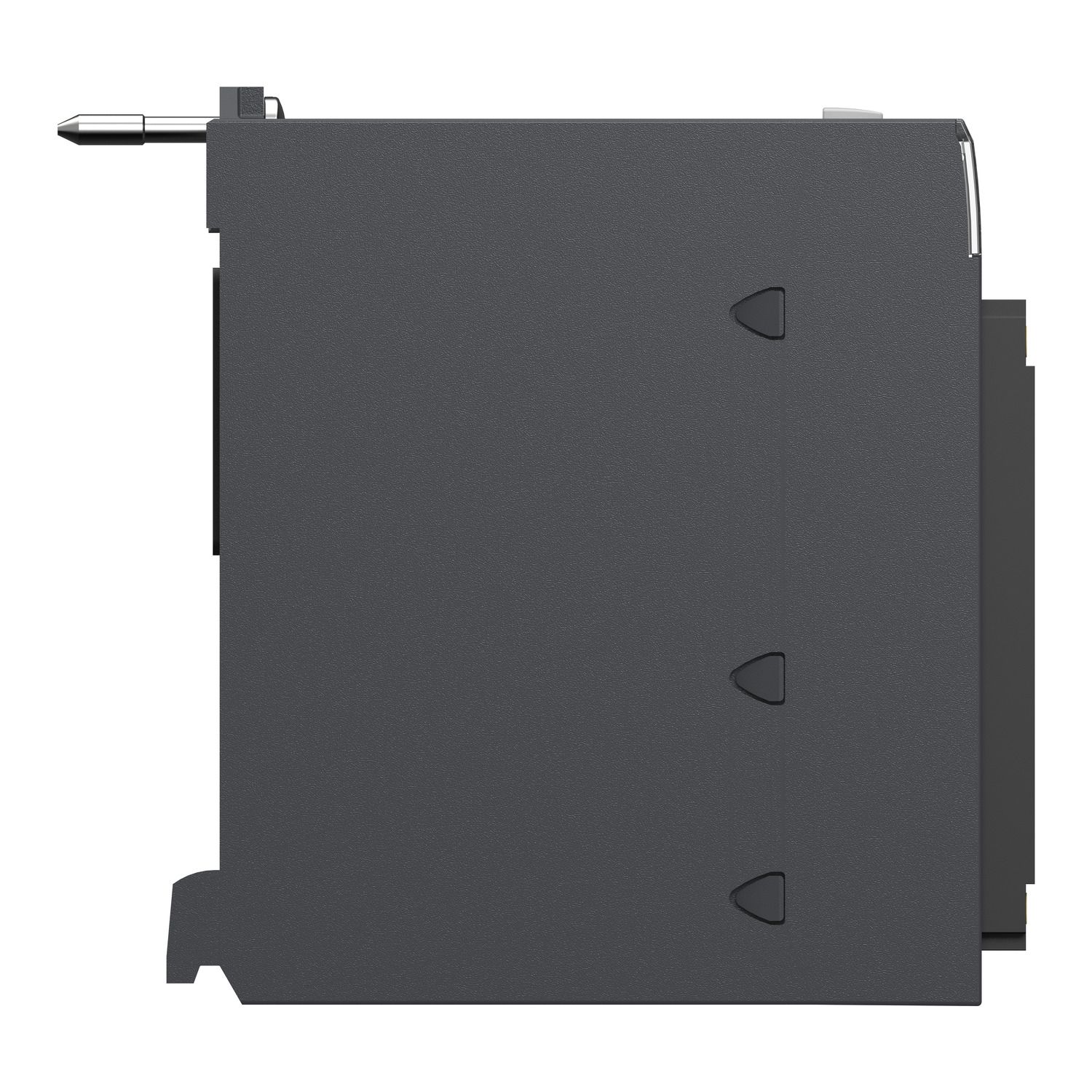

discrete output module, Modicon X80, 64 transistor outputs, 24V DC positive

$2,560.36 INC GST

Qty:

Available for Shipping : 08-Dec-2025

Product Selector

discrete output module, Modicon X80, 64 transistor outputs, 24V DC positive

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 08-Dec-2025

Catalog

User guide

Circularity Profile

Declaration of conformity

Environmental Disclosure

Product Page Link

Product Data Sheet

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module has 64 outputs with sink (positive) logic. It is a discrete output module with an output voltage of 24V, 19V DC to 30V DC, a typical current consumption of 79mA at 3.3V DC and an output current of 0.5A. This product is robust, high quality and based on the latest innovative technology. Protection types are reverse polarity protection, external short-circuit protection, overload protection and overvoltage protection. It offers 159924 hours of MTBF. It is an IP20 rated product. It weighs 0.15kg. It is suitable for medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name	Attribute value
Main
Discrete output current	0.1 A
Discrete output voltage	24 V 19...30 V DC
Discrete output logic	positive
Range of product	Modicon X80
Discrete output type	solid state
Product or component type	discrete output module
Discrete output number	64 conforming to EN/IEC 61131-2
Complementary
Response time on output	1.2 ms
Output overload protection	with electronic circuit breaker 0.125 A < Id < 0.185 A, with current limiter
Output short-circuit protection	with 2 A external fuse
Output overvoltage protection	with transil diode
Typical current consumption	160 mA at 3.3 V DC
Power dissipation in W	6.85 W
Protection type	overvoltage protection, overload protection, short-circuit protection, external fuse reverse polarity protection
Voltage detection threshold	> 18 V DC preactuator at state 0, < 14 V DC preactuator fault
Current per channel	0.125 A
Status LED	1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN), 1 LED (green) +32 channels indicator
Maximum overload time	15 ms
Switching frequency	0.5/LI² Hz
Maximum current per module	6.4 A
MTBF reliability	150000 H
Reverse polarity protection	reverse mounted diode
Maximum tungsten load	1.2 W
Paralleling of outputs	yes : 3 maximum
Load impedance ohmic	>= 220 Ohm
Net weight	0.15 kg
Insulation resistance	> 10 MOhm 500 V DC
Environment
IP degree of protection	IP20
Relative humidity	5-95 % at 55-55 °C without condensation
Ambient air temperature for storage	-40-85 °C
Directives	2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Ambient air temperature for operation	0-60 °C
Operating altitude	2000...5000 m with derating factor, 0...2000 m
Vibration resistance	3 gn
Dielectric strength	500 V DC 1 minute, between group of channels, 1500 V AC at 50/60 Hz 1 minute, output/internal logic, 1500 V AC at 50/60 Hz 1 minute, output/ground
Shock resistance	30 gn
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	5.800 cm
Package 1 Width	11.300 cm
Package 1 Length	11.300 cm
Package 1 Weight	180.000 g
Unit Type of Package 2	2
Number of Units in Package 2	15
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	3.085 kg
