SKU:

BMXP341000

processor, Modicon M340, max 512 discrete, 128 analog IO, Modbus

$2,078.09 INC GST

Qty:

Available for Shipping : 24-Jul-2025

Product Selector

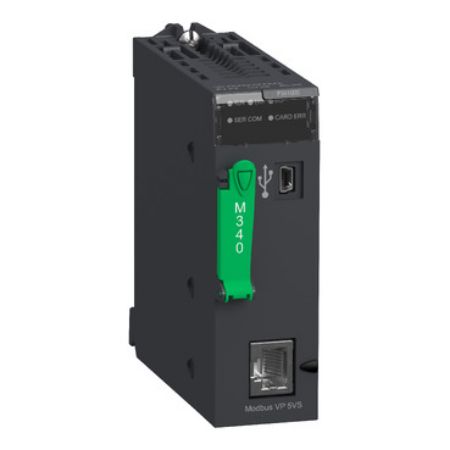

processor, Modicon M340, max 512 discrete, 128 analog IO, Modbus

Be the first to review this product

Manufacturer: Schneider Electric

Catalogue

Declaration of conformity

Product environmental

User guide

End of life manual

Product Page Link

Product Data Sheet

This processor module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). It offers a maximum of 2 rack configuration, 20 application specific channels and 11 slots. It is a module with a current consumption of 72mA at 24V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. Communication processor module interfaces are 2 Ethernet modules and 2 AS-Interface modules. It is supplied with a memory card for backup of programs, constants, symbols and data. It is an IP20 rated product. The module has 512 multi-rack configuration discrete I/O processor capacity and 128 multi-rack, 66 single-rack configuration analog I/O processor capacity. It supports 128kb data, 2048kb, 1792kb program internal RAM memory capacity. It weighs 0.2kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This processor module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is delivered in 2 packages (PCE and SO2 types). Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.

Products specifications

Attribute name	Attribute value
Main
Discrete I/O processor capacity	512 I/O single-rack configuration
Number of application specific channel	20
Number of slots	11
Number of racks	2
Range of product	Modicon M340 automation platform
Monitoring	event counters Modbus, diagnostic counters Modbus
Analogue I/O processor capacity	128 I/O multi-rack configuration, 66 I/O single-rack configuration
Product or component type	processor module
Complementary
Control channels	programmable loops
Memory description	supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data, internal RAM 1792 kB program constants and symbols, internal RAM 128 kB data, internal RAM 2048 kB
Bus length	0-15 m Modbus point-to-point, 0-15 m character mode point-to-point, 0-1000 m serial link isolated Modbus segment, 0-1000 m serial link isolated character mode segment, 0-10 m serial link non isolated Modbus segment, 0-10 m serial link non isolated character mode segment
Number of instructions per ms	5.4 Kinst/ms 100 % Boolean, 4.2 Kinst/ms 65 % Boolean + 35 % fixed arithmetic
Number of devices	2 point-to-point Modbus, 2 point-to-point character mode
Maximum tap links length	<40 m serial link isolated Modbus segment, <40 m serial link isolated character mode segment, <15 m serial link non isolated Modbus segment, <15 m serial link non isolated character mode segment
Application structure	no auxiliary task, 1 cyclic/periodic master task, 32 event tasks, 1 periodic fast task
Marking	CE
Status LED	1 LED (yellow) activity on Modbus (SER COM), 1 LED (red) processor or system fault (ERR), 1 LED (red) memory card fault (CARD ERR), 1 LED (red) I/O module fault (I/O), 1 LED (green) processor running (RUN)
Number of devices per segment	0-32 (Modbus), 0-32 (character mode)
Number of addresses	0-248 for Modbus, 0-248 for character mode
Control parameter	one LRC on each frame (ASCII) Modbus, one LRC on each frame (ASCII) character mode, one CRC on each frame (RTU) Modbus
Execution time per instruction	1.74 µs floating points, 0.38 µs single-length words, 0.26 µs double-length words, 0.18 µs Boolean
Maximum size of object areas	32760 %KWi constant words located internal data, 32464 %MWi internal words located internal data, 16250 %Mi located internal bits, 128 kB unlocated internal data
System overhead	1.05 ms for master task, 0.2 ms for fast task
Net weight	0.2 kg
Current consumption	72 mA at 24 V DC
Default size of object areas	512 %MWi internal words located internal data, 256 %Mi located internal bits, 128 %KWi constant words located internal data
Supply	internal power supply via rack
Requests	504 data bytes per ASCII request Modbus, 252 data bytes per RTU request Modbus, 1 K data bytes per request character mode
Communication module processor capacity	2 AS-Interface module, 2 Ethernet communication module
Integrated connection type	USB port at 12 Mbit/s, non isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex, non isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS232C, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex, non isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex, non isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS232C, transmission mode: 2 twisted shielded pairs at 0.3...19.2 kbit/s full duplex
Environment
IP degree of protection	IP20
Protective treatment	TC
Relative humidity	10-95 % without condensation
Directives	2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certifications	Merchant Navy, EAC, RCM, CSA, UL, CE
Standards	EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN 61131-2
Ambient air temperature for operation	0-60 °C
Environmental characteristic	hazardous location class I division 2
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	5.500 cm
Package 1 Width	11.000 cm
Package 1 Length	12.000 cm
Package 1 Weight	237.000 g
Unit Type of Package 2	2
Number of Units in Package 2	15
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	3.900 kg
