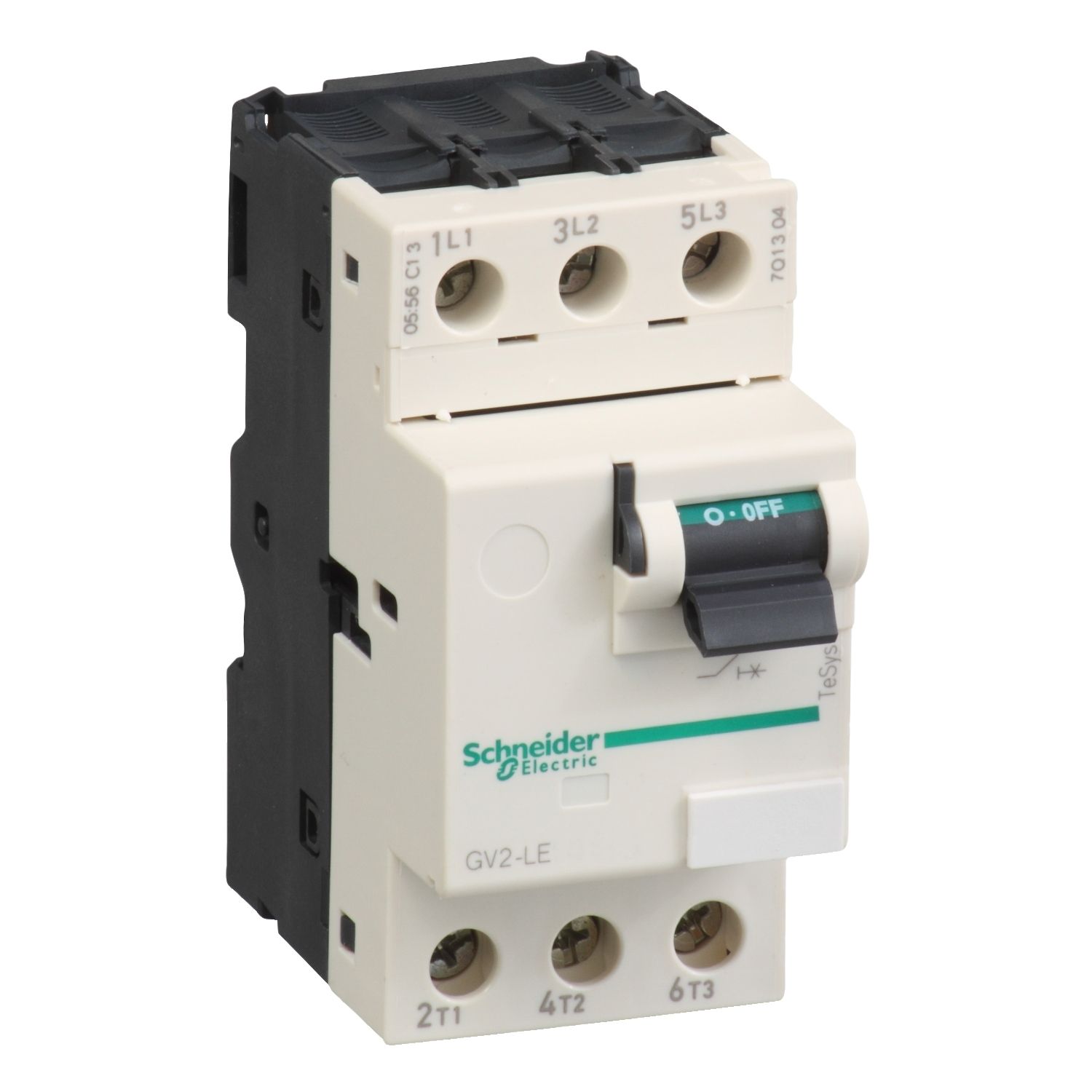

TeSys Deca, Motor circuit breaker,TeSys Deca,3P,4A,magnetic,toggle control,screw clamp terminals

$163.50

Qty:

Product Selector

TeSys Deca, Motor circuit breaker,TeSys Deca,3P,4A,magnetic,toggle control,screw clamp terminals

New modern look & feel of all machines

Wide range of GVs: Magnetic, thermal magnetic, different sizes (GV2,GV3,GV4)

Easier to install and operate with multi-standard screws

Safe and long-lasting power connection with EverLink terminals

Digital customer experience for technical documents

Maintenance guide via EcoStruxureTM Facility Expect

Be the first to review this product

Manufacturer: Schneider Electric

Estimated Delivery Date: 18-Oct-2024

Catalogue

End of life manual

Instruction sheet

Product environmental

Product Page Link

Product Data Sheet

TeSys GV motor circuit breaker, 3 poles (3P), 4A/690V, for 3-phase motor applications 1.1-1.5kW@400V. It provides a magnetic protection with a tripping level at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by toggle guaranteed for 100 000 cycles AC-3. To complete motor protection, use in association with a thermal overload relay LRD08 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name	Attribute value
Main
Device application	motor protection
Trip unit technology	magnetic
Device short name	GV2LE
Range	TeSys Deca
Range of product	TeSys GV2
Product name	TeSys GV2
Product or component type	motor circuit breaker
Complementary
Compatibility code	GV2LE
Suitability for isolation	yes conforming to IEC 60947-1 § 7-1-6
Electrical durability	100000 cycles for AC-3e at 415 V In, 100000 cycles for AC-3 at 415 V In
Power dissipation per pole	1.8 W
[Ics] rated service short-circuit breaking capacity	75 % at 690 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
Height	89 mm
[Ui] rated insulation voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
Net weight	0.33 kg
[Ith] conventional free air thermal current	4 A conforming to IEC 60947-4-1
Network type	AC
Rated duty	continuous conforming to IEC 60947-4-1
Colour	dark grey
Mechanical durability	100000 cycles
Tightening torque	1.7 N.m - on screw clamp terminal
Breaking capacity	3 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
Control type	toggle
Fixing mode	panel: screwed (with adaptor plate), 35 mm symmetrical DIN rail: clipped
Maximum operating rate	40 cyc/h
Magnetic tripping current	51-51 A
Network frequency	50/60 Hz conforming to IEC 60947-2
Depth	78.5 mm
Width	45 mm
Poles description	3P
Direct connector	without
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-2
Utilisation category	AC-3e conforming to IEC 60947-4-1, AC-3 conforming to IEC 60947-4-1, category A conforming to IEC 60947-2
Motor power kW	3-3 kW at 690 V AC 50/60 Hz, 2.2-2.2 kW at 500 V AC 50/60 Hz, 1.5-1.5 kW at 500 V AC 50/60 Hz, 1.5-1.5 kW at 400/415 V AC 50/60 Hz
[Ue] rated operational voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[In] rated current	4 A
Environment
Fire resistance	960 °C conforming to IEC 60695-2-11
Ambient air temperature for storage	-40-80 °C
Climatic withstand	conforming to IACS E10
Ambient air temperature for operation	-20-60 °C
Operating altitude	2000 m
Product certifications	IECEE CB Scheme, UKCA, DNV-GL, RINA, BV, LROS (Lloyds register of shipping), EAC, CSA, UL, CCC
IP degree of protection	IP20 conforming to IEC 60529
Mechanical robustness	vibrations: 5 Gn, 5...150 Hz, shocks: 30 Gn for 11 ms
IK degree of protection	IK04
Standards	CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	8.500 cm
Package 1 Width	9.200 cm
Package 1 Length	5.000 cm
Package 1 Weight	251.000 g
Unit Type of Package 2	2
Number of Units in Package 2	24
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	6.350 kg
Unit Type of Package 3	3
Number of Units in Package 3	384
Package 3 Height	75.000 cm
Package 3 Width	60.000 cm
Package 3 Length	80.000 cm
Package 3 Weight	112.164 kg
