SKU:

GV2ME213

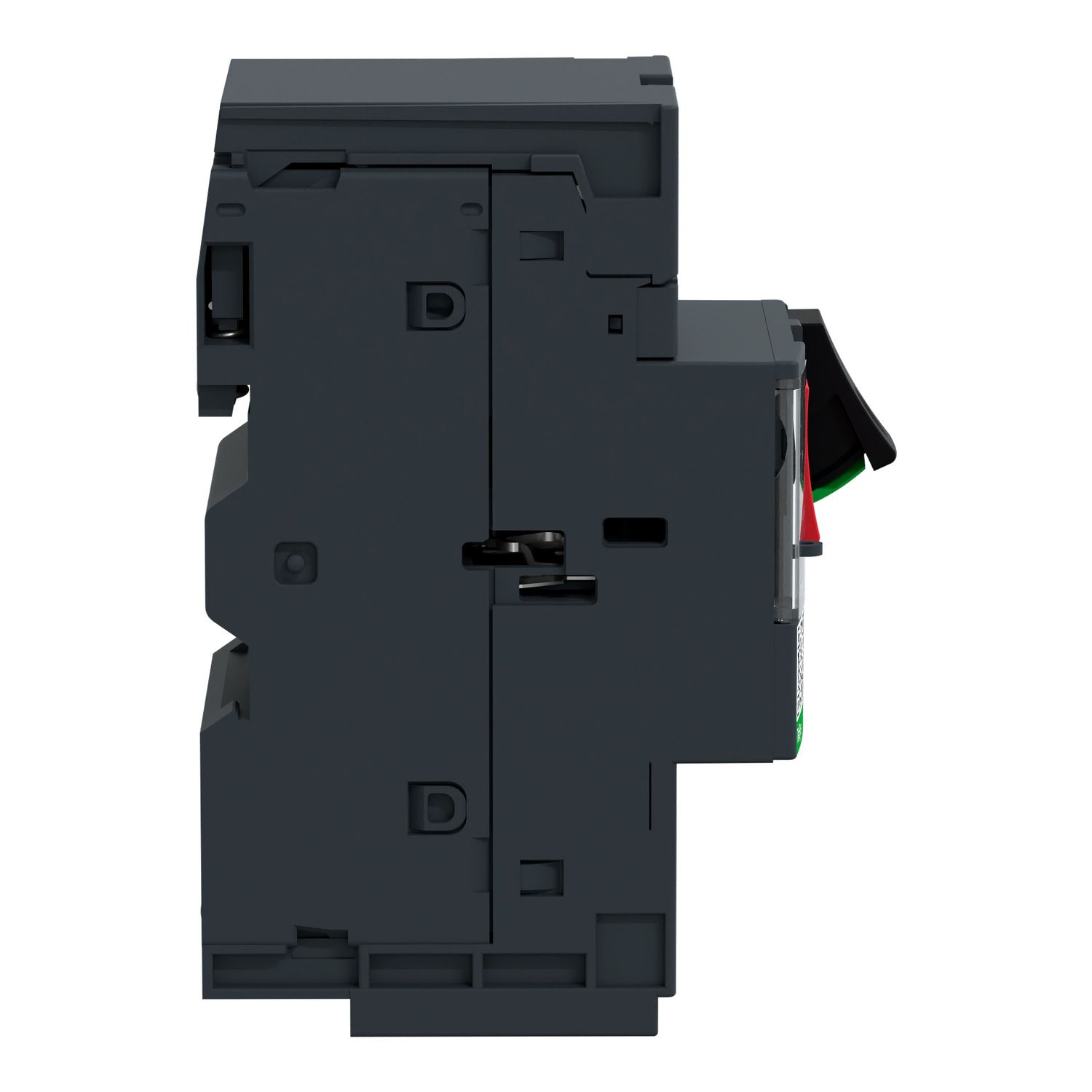

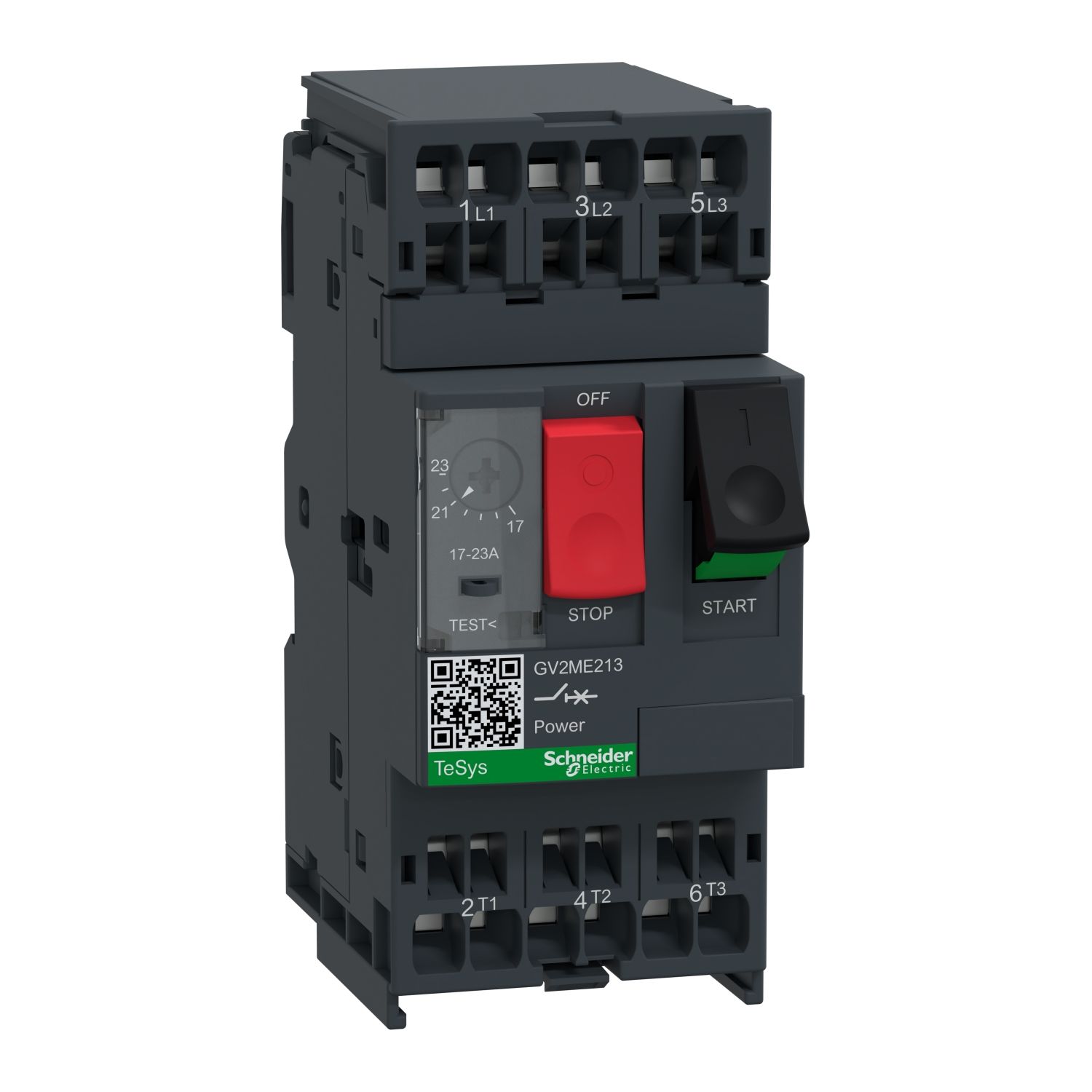

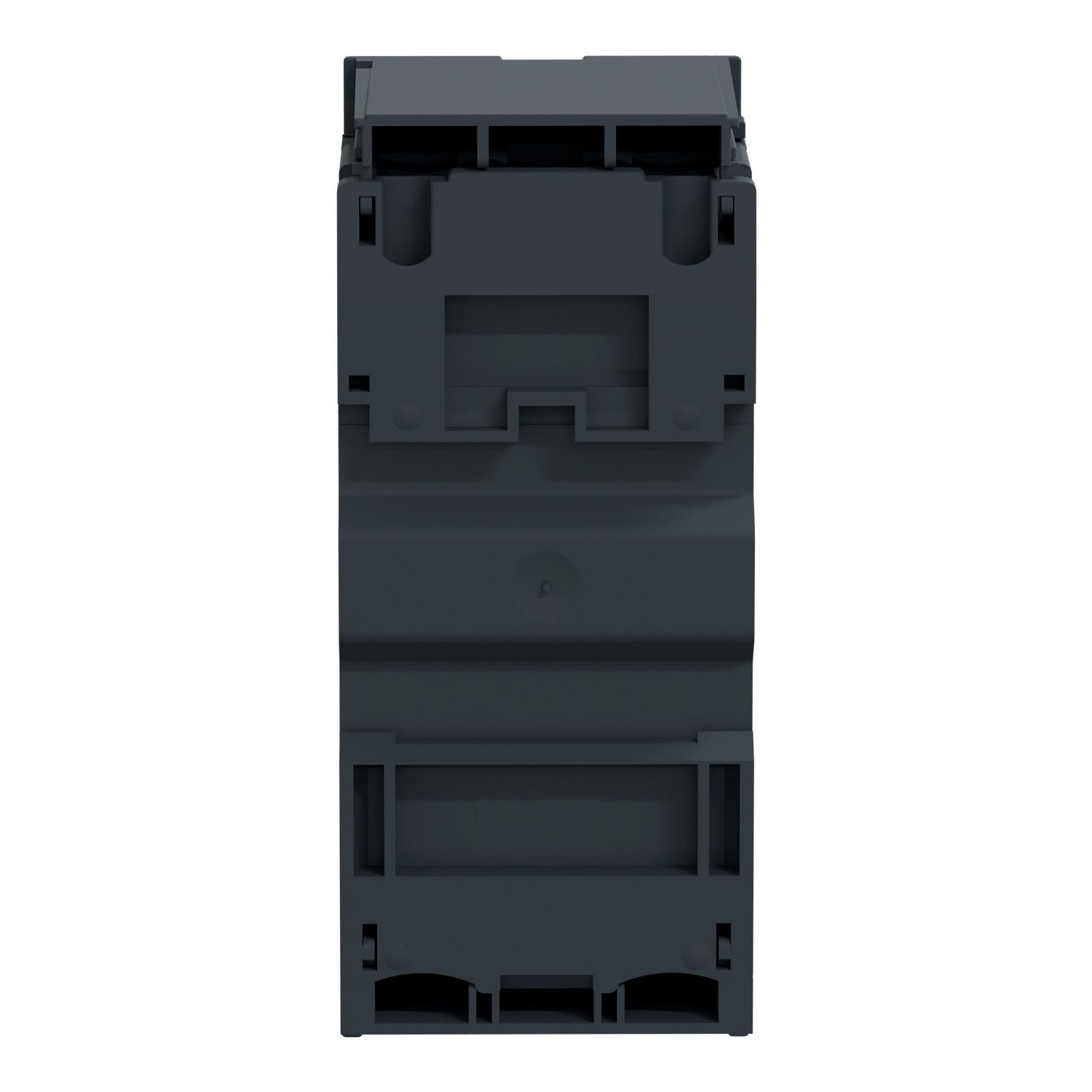

Motor circuit breaker,TeSys Deca frame 2,3P,17-23A,thermal magnetic,push button,spring terminals

$260.92

Qty:

Available for Shipping : 10-Dec-2024

Product Selector

Motor circuit breaker,TeSys Deca frame 2,3P,17-23A,thermal magnetic,push button,spring terminals

New modern look & feel of all machines

Wide range of GVs: Magnetic, thermal magnetic, different sizes (GV2,GV3,GV4)

Easier to install and operate with multi-standard screws

Safe and long-lasting power connection with EverLink terminals

Digital customer experience for technical documents

Maintenance guide via EcoStruxureTM Facility Expect

Be the first to review this product

Manufacturer: Schneider Electric

Product environmental

Catalogue

CAD

End of life manual

Instruction sheet

User guide

Product Page Link

Product Data Sheet

TeSys GV motor circuit breaker, 3 poles (3P), 23A/690V, for 3-phase motor applications 9kW@400V. It provides a thermal-magnetic protection with a thermal setting range 17-23A, magnetic tripping at 13xIn, high breaking capacity Icu 15kA@400V. Connection by spring terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name	Attribute value
Main
Device application	motor protection
Trip unit technology	thermal-magnetic
Device short name	GV2ME
Range	TeSys Deca
Range of product	TeSys GV2
Product name	TeSys Deca, TeSys GV2
Product or component type	motor circuit breaker
Complementary
Compatibility code	GV2ME
Suitability for isolation	yes conforming to IEC 60947-1 § 7-1-6
Electrical durability	100000 cycles for AC-3e at 415 V In, 100000 cycles for AC-3 at 415 V In
Power dissipation per pole	2.5 W
[Ics] rated service short-circuit breaking capacity	75 % at 690 V AC 50/60 Hz conforming to IEC 60947-2, 75 % at 500 V AC 50/60 Hz conforming to IEC 60947-2, 50 % at 440 V AC 50/60 Hz conforming to IEC 60947-2, 40 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
Height	101 mm
Thermal protection adjustment range	17-23 A conforming to IEC 60947-4-1
[Ui] rated insulation voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
Net weight	0.28 kg
[Ith] conventional free air thermal current	23 A conforming to IEC 60947-4-1
Network type	AC
Rated duty	continuous conforming to IEC 60947-4-1
Colour	dark grey
Mechanical durability	100000 cycles
Breaking capacity	3 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2, 4 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 6 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 15 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
Control type	push-button
Fixing mode	panel: screwed (with adaptor plate), 35 mm symmetrical DIN rail: clipped
Maximum operating rate	25 cyc/h
Magnetic tripping current	327-327 A
Phase failure sensitivity	yes conforming to IEC 60947-4-1
Network frequency	50/60 Hz conforming to IEC 60947-4-1
Depth	78.5 mm
Width	45 mm
Poles description	3P
Direct connector	without
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-2
Utilisation category	AC-3e conforming to IEC 60947-4-1, AC-3 conforming to IEC 60947-4-1, category A conforming to IEC 60947-2
Motor power kW	11-11 kW at 500 V AC 50/60 Hz, 11-11 kW at 400/415 V AC 50/60 Hz, 9-9 kW at 400/415 V AC 50/60 Hz
[Ue] rated operational voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[In] rated current	23 A
Environment
Fire resistance	960 °C conforming to IEC 60695-2-11
Ambient air temperature for storage	-40-80 °C
Climatic withstand	conforming to IACS E10
Ambient air temperature for operation	-20-60 °C
Operating altitude	2000 m
Product certifications	UKCA, DNV-GL, RINA, BV, LROS (Lloyds register of shipping), ATEX, EAC, CSA, UL, CCC
IP degree of protection	IP20 conforming to IEC 60529
Mechanical robustness	vibrations: 5 Gn, 5...150 Hz, shocks: 30 Gn for 11 ms
IK degree of protection	IK04
Standards	EN/IEC 60947-4-1, EN/IEC 60947-2
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	5.5 cm
Package 1 Width	11.1 cm
Package 1 Length	8.5 cm
Package 1 Weight	323 g
Unit Type of Package 2	2
Number of Units in Package 2	20
Package 2 Height	15 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	6.797 kg
Unit Type of Package 3	3
Number of Units in Package 3	320
Package 3 Height	75 cm
Package 3 Width	60 cm
Package 3 Length	80 cm
Package 3 Weight	120.1 kg
