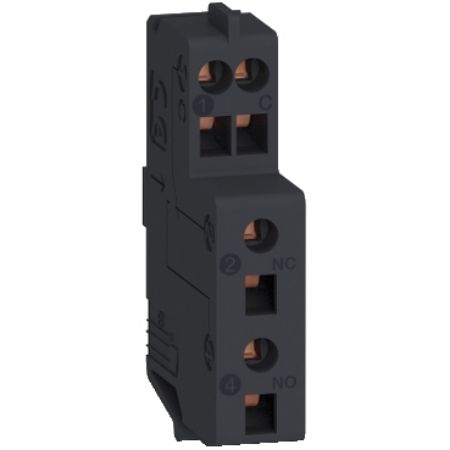

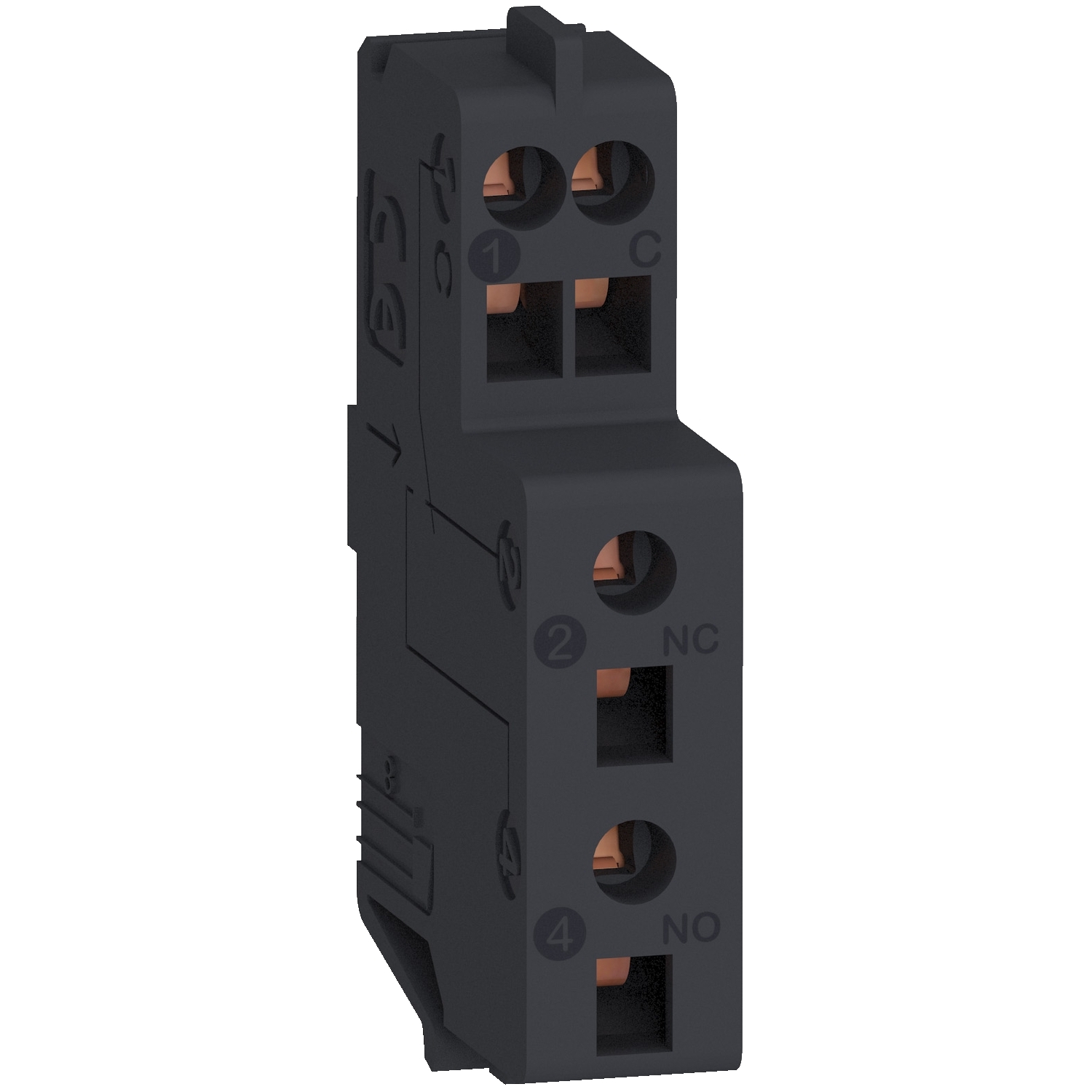

Picture of Auxiliary contact, TeSys GV4, 690VAC, 1 NO/NC
SKU:

GV4AE11

Auxiliary contact, TeSys GV4, 690VAC, 1 NO/NC

$23.40
Available for Shipping : 24-Nov-2024
Auxiliary contact, TeSys GV4, 690VAC, 1 NO/NC
  • Auxiliary contact block, for motor circuit breakers GV4
  • Connection by spring terminals
  • Easy installation thanks to universal fixing arrangement Screw fixing or clip-on mounting
  • Wide range of accessories and auxiliaries provide flexibility
  • Suitable for isolation, provides user safety
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Catalogue
User guide
End of life manual
Instruction sheet
Product Page Link
Product Data Sheet
TeSys GV4 auxiliary contact block, for motor circuit breakers GV4. 1C/O contact, it performs Open/Close OF function or Trip alarm SD function, depending of its location in the circuit breaker. Rated for operation up to 5A/690V AC and 5A/250V DC. To be plugged inside the circuit breaker, in the right-hand cavity for OF function, in the left-hand cavity for SD function, connection by spring terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name GV4AE
Device application signalling
Mounting mode internal mounting
Range TeSys
Product or component type auxiliary contact
[Ith] conventional free air thermal current 5 A conforming to UL 508, 5 A conforming to CSA C22.2 No 14, 5 A conforming to IEC 60947-5-1
Range compatibility TeSys TeSys BV4, TeSys TeSys GV4
[Ue] rated operational voltage <= 690 V
Auxiliary contact composition 1 NO/NC
Complementary
Mechanical durability 40000 cycles
Minimum switching voltage 17 V
[Ie] rated operational current 0.6 A 110/127 V DC-12 conforming to IEC 60947-5-1, 2.5 A 48 V DC-12 conforming to IEC 60947-5-1, 5 A <= 24 V DC-12 conforming to IEC 60947-5-1, 0.11 A 660/690 V AC-15 conforming to IEC 60947-5-1, 2.5 A 380...440 V AC-15 conforming to IEC 60947-5-1, 3 A 220/240 V AC-15 conforming to IEC 60947-5-1, 4 A 110/127 V AC-15 conforming to IEC 60947-5-1, 5 A <= 48 V AC-15 conforming to IEC 60947-5-1, 0.03 A 250 V DC-12 conforming to IEC 60947-5-1, 0.05 A 110/127 V DC-12 conforming to IEC 60947-5-1, 0.2 A 48 V DC-12 conforming to IEC 60947-5-1, 1 A <= 24 V DC-12 conforming to IEC 60947-5-1, 0.05 A 250 V DC-12 conforming to IEC 60947-5-1, 0.35 A 110/127 V DC-12 conforming to IEC 60947-5-1, 1.2 A 48 V DC-12 conforming to IEC 60947-5-1, 2.5 A <= 24 V DC-12 conforming to IEC 60947-5-1, 0.3 A 250 V DC-12 conforming to IEC 60947-5-1, 5 A <= 690 V AC-12 conforming to IEC 60947-5-1
[Ui] rated insulation voltage 690 V conforming to IEC 60947-1
Wire stripping length 8 mm
Connections - terminals spring terminals 1 0.5-1.5 mm² - cable stiffness: flexible without cable end
Associated fuse rating 5 A gG at 690 V conforming to IEC 60947-5-1
Rated power in VA 3450 VA AC-12 at 660/690 V conforming to IEC 60947-5-1, 2200 VA AC-12 at 380/440 V conforming to IEC 60947-5-1, 1200 VA AC-12 at 230/240 V conforming to IEC 60947-5-1, 635 VA AC-12 at 110/127 V conforming to IEC 60947-5-1, 240 VA AC-12 at 48 V conforming to IEC 60947-5-1, 120 VA AC-12 at 24 V conforming to IEC 60947-5-1
Minimum switching current 2 mA
Rated power in W DC-12: 75 W 250 V conforming to IEC 60947-5-1, DC-12: 66 W 110 V conforming to IEC 60947-5-1, DC-12: 120 W 48 V conforming to IEC 60947-5-1, DC-12: 120 W 24 V conforming to IEC 60947-5-1
Environment
Quantity per set set of 1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.000 cm
Package 1 Width 8.000 cm
Package 1 Length 11.000 cm
Package 1 Weight 24.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 4.000 cm
Package 2 Width 16.000 cm
Package 2 Length 27.000 cm
Package 2 Weight 251.000 g
Unit Type of Package 3 3
Number of Units in Package 3 220
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 6.353 kg
Unit Type of Package 4 4
Number of Units in Package 4 1760
Package 4 Height 75.000 cm
Package 4 Width 60.000 cm
Package 4 Length 80.000 cm
Package 4 Weight 58.824 kg
