SKU:

GV4LE80B

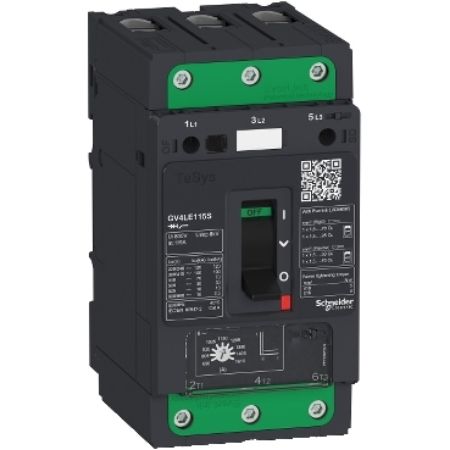

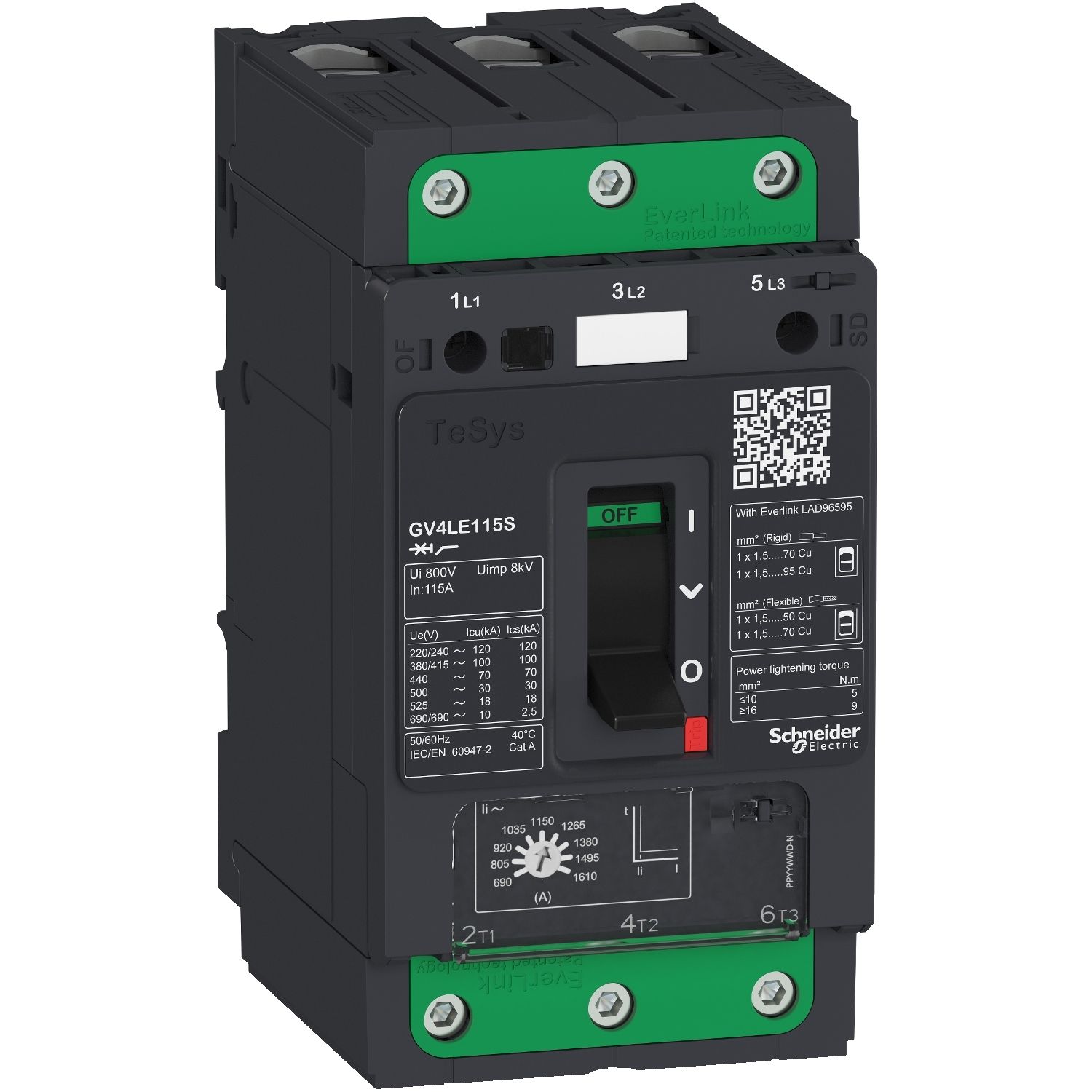

TeSys Deca, Motor circuit breaker, TeSys GV4, 3P, 80A, Icu 25kA, magnetic, EverLink terminals

$513.65

Qty:

Product Selector

TeSys Deca, Motor circuit breaker, TeSys GV4, 3P, 80A, Icu 25kA, magnetic, EverLink terminals

New modern look & feel of all machines

Wide range of GVs: Magnetic, thermal magnetic, different sizes (GV2,GV3,GV4)

Easier to install and operate with multi-standard screws

Safe and long-lasting power connection with EverLink terminals

Digital customer experience for technical documents

Maintenance guide via EcoStruxureTM Facility Expect

Be the first to review this product

Manufacturer: Schneider Electric

Estimated Delivery Date: 18-Oct-2024

Catalogue

Product environmental

End of life manual

Product Page Link

Product Data Sheet

TeSys GV motor circuit breaker, 3 poles (3P), 80A/690V, for protection of 3-phase motors 22-37kW@400V. It provides magnetic protection, breaking capacity Icu 25kA@400V, start-stop control by toggle, connection by Everlink BTR screw terminals. Magnetic protection adjustable by dial, setting range 6-14 In. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). To be used in association with a class 10 or 20 thermal overload relay to complete motor protection. Multi standards certified (IEC, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name	Attribute value
Main
Device short name	GV4L
Device application	motor protection
Range	TeSys Deca
Range of product	TeSys GV4
Trip unit technology	electronic, magnetic
Product name	TeSys Deca, TeSys GV4
Product or component type	motor circuit breaker
Complementary
Colour	grey (RAL 7016)
Mechanical durability	40000 cycles
Tightening torque	5 N.m for cable 1.5-10 mm², 9 N.m for cable 16-95 mm²
Suitability for isolation	yes conforming to IEC 60947-1
Breaking capacity	10 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
Electrical durability	7000 cycles for AC-3 at 440 V In, 14000 cycles for AC-3 at 440 V In/2
Power dissipation per pole	6.1 W
Control type	toggle
Maximum operating rate	25 cyc/h
Magnetic tripping current	480-1120 A
Height	155 mm
Mechanical robustness	shocks: 15 gn 11 ms conforming to IEC 60068-2-27, vibrations: 0.7 gn 13.2...100 Hz conforming to IEC 60068-2-6, vibrations: +/- 1 mm 2...13.2 Hz conforming to IEC 60068-2-6
Depth	116 mm
Width	81 mm
Poles description	3P
Direct connector	without
[Ui] rated insulation voltage	800 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage	8 kV conforming to IEC 60947-2
Net weight	1.5 kg
Utilisation category	AC-3 conforming to IEC 60947-4-1, category A conforming to IEC 60947-2
Connections - terminals	EverLink BTR screw connectors (bottom) 1 cable(s) 2.5-70 mm² - flexible, EverLink BTR screw connectors (bottom) 1 cable(s) 2.5-95 mm² - solid, EverLink BTR screw connectors (top) 1 cable(s) 1.5-50 mm² - flexible, EverLink BTR screw connectors (top) 1 cable(s) 1.5-70 mm² - solid
Operating position	any position
Motor power kW	37-37 kW at 500 V AC 50/60 Hz, 30-30 kW at 400...415 V AC 50/60 Hz, 55-55 kW at 660...690 V AC 50/60 Hz, 45-45 kW at 660...690 V AC 50/60 Hz, 37-37 kW at 660...690 V AC 50/60 Hz, 30-30 kW at 500 V AC 50/60 Hz, 22-22 kW at 400...415 V AC 50/60 Hz, 55-55 kW at 500 V AC 50/60 Hz, 45-45 kW at 500 V AC 50/60 Hz, 37-37 kW at 400...415 V AC 50/60 Hz
[Ith] conventional free air thermal current	115 A conforming to IEC 60947-4-1
Rated duty	continuous conforming to IEC 60947-4-1
[Ue] rated operational voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[In] rated current	80 A
Environment
Fire resistance	960 °C conforming to IEC 60695-2-11
IP degree of protection	IP40 conforming to IEC 60529
Ambient air temperature for storage	-50-85 °C
Pollution degree	3
Climatic withstand	conforming to IACS E10
Ambient air temperature for operation	-25-70 °C
IK degree of protection	IK07 conforming to IEC 62262
Operating altitude	5000 m
Standards	EN/IEC 60947-2, EN/IEC 60947-4-1
Product certifications	EU-RO MR, EAC, CCC, IEC
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	16.4 cm
Package 1 Width	10.7 cm
Package 1 Length	22.0 cm
Package 1 Weight	1.683 kg
Unit Type of Package 2	2
Number of Units in Package 2	5
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	8.65 kg
