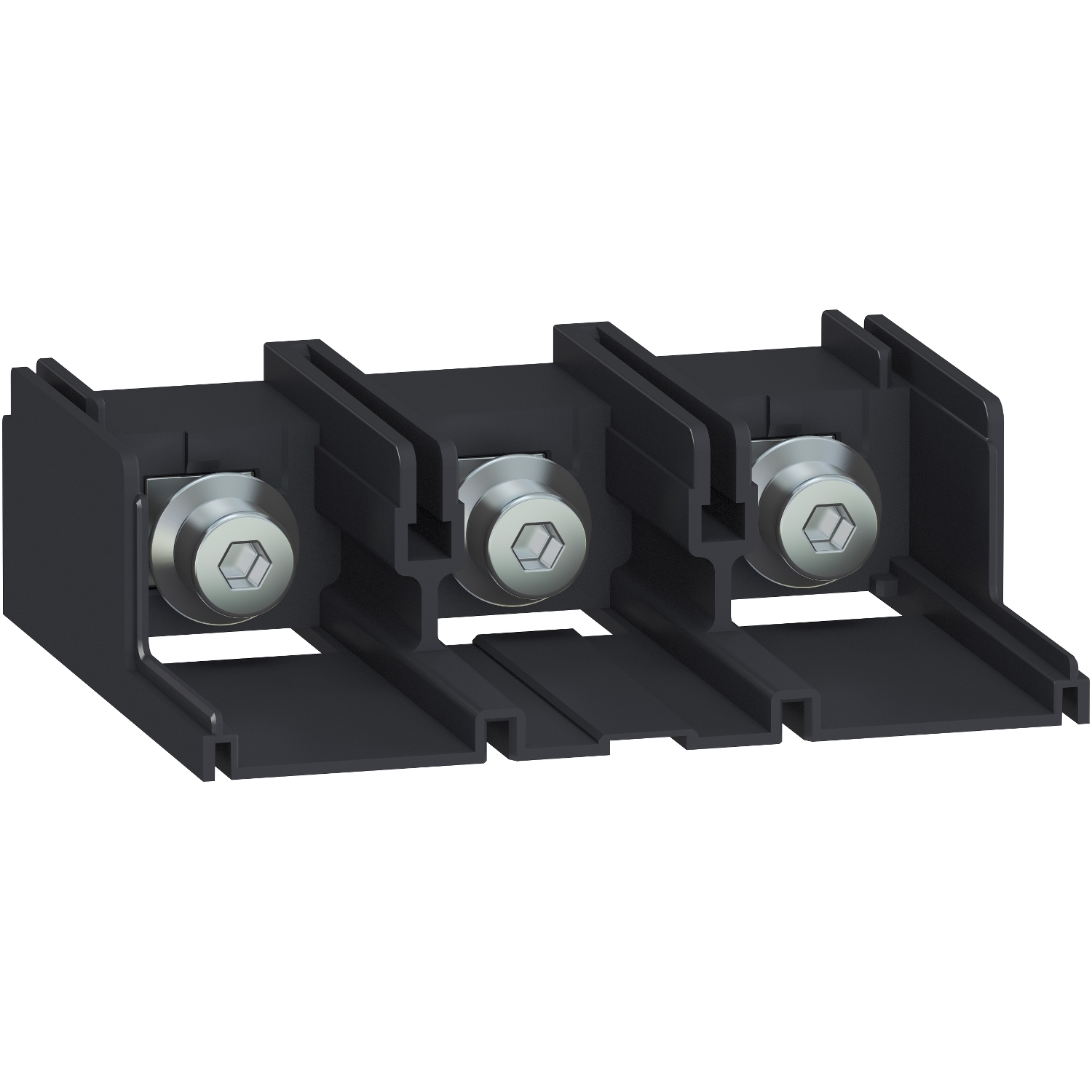

Picture of Lug connector, TeSys GV4, 3P, 2 to 115A, screw terminal
SKU:

GV4LUG

Lug connector, TeSys GV4, 3P, 2 to 115A, screw terminal

$9.97
Available for Shipping : 24-Nov-2024
Lug connector, TeSys GV4, 3P, 2 to 115A, screw terminal
  • lug connector with screws, for motor circuit breakers GV4
  • Used to allow connection of cables with lugs
  • Easy installation thanks to universal fixing arrangement Screw fixing or clip-on mounting
  • Wide range of accessories and auxiliaries provide flexibility
  • Suitable for isolation, provides user safety
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Product environmental
End of life manual
Product Page Link
Product Data Sheet
TeSys GV lug connector with screws, for motor circuit breakers GV4. Tu put in place of an EverLink connector, it is used to allow connection of cables with lugs. A terminal shield LAD96590 can complete the lug connections for protection agianst direct contact. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name connectors
Accessory / separate part type connection accessories
Poles description 3P
Range TeSys
Product or component type lug connector
Range of product TeSys
Complementary
[In] rated current 2-115 A
Connections - terminals screw terminal1 cable(s)
Range compatibility TeSys TeSys BV4, TeSys TeSys GV4
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.0 cm
Package 1 Width 15.0 cm
Package 1 Length 24.0 cm
Package 1 Weight 70.0 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 4.0 kg
