SKU:

GV4P115B

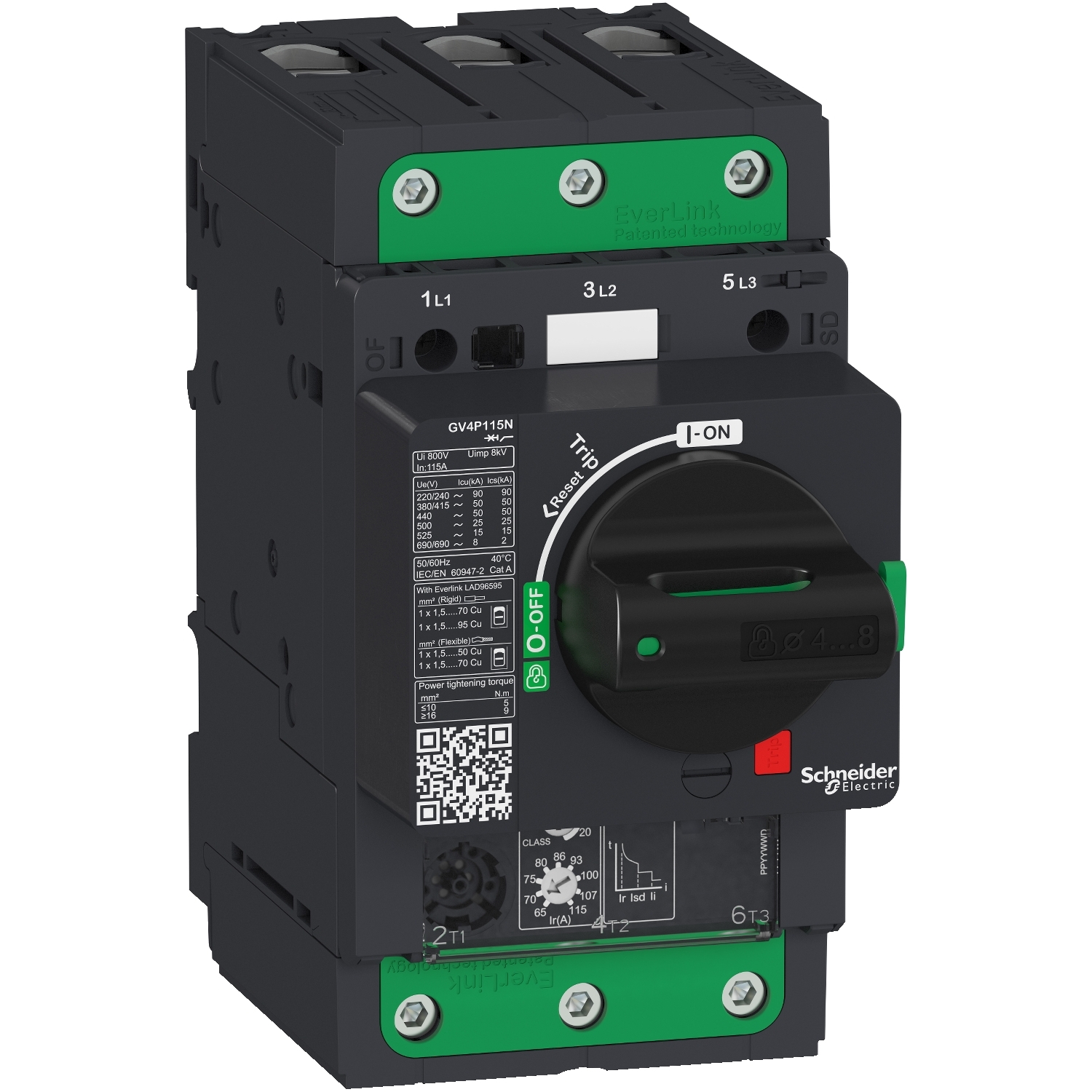

TeSys Deca, Motor circuit breaker, TeSys GV4, 3P, 115A, Icu 25kA, thermal magnetic, Everlink terminals

$1,001.14

Qty:

Available for Shipping : 03-Dec-2024

Product Selector

TeSys Deca, Motor circuit breaker, TeSys GV4, 3P, 115A, Icu 25kA, thermal magnetic, Everlink terminals

New modern look & feel of all machines

Wide range of GVs: Magnetic, thermal magnetic, different sizes (GV2,GV3,GV4)

Easier to install and operate with multi-standard screws

Safe and long-lasting power connection with EverLink terminals

Digital customer experience for technical documents

Maintenance guide via EcoStruxureTM Facility Expect

Be the first to review this product

Manufacturer: Schneider Electric

Catalogue

Product environmental

User guide

Instruction sheet

End of life manual

Product Page Link

Product Data Sheet

TeSys GV motor circuit breaker, 3 poles (3P), 115A/690V, for protection of 3-phase motors 37-55kW@400V. It provides thermal magnetic protection and additional motor protection functions, breaking capacity Icu 25kA@400V, start-stop control by rotary handle, connection by Everlink BTR screw terminals. Thermal protection adjustable by dials with a setting current Ir in range 65-115A and a selectable tripping class 10 or 20, magnetic protection at 17 In. Additional protections have fixed pick-up and include short time delay protection Isd at 13 Ir, phase unbalance and loss protection, ground fault protection. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name	Attribute value
Main
Device short name	GV4P
Device application	motor protection
Range	TeSys Deca
Range of product	TeSys GV4
Trip unit technology	electronic, thermal-magnetic
Product name	TeSys Deca, TeSys GV4
Product or component type	motor circuit breaker
Complementary
Colour	grey (RAL 7016)
Mechanical durability	40000 cycles
Tightening torque	5 N.m for cable 1.5-10 mm², 9 N.m for cable 16-95 mm²
Suitability for isolation	yes conforming to IEC 60947-1
Breaking capacity	14 kA at 600Y/347 V AC 50/60 Hz conforming to UL 60947, 18 kA at 480Y/277 V AC 50/60 Hz conforming to UL 60947, 35 kA at 240 V AC 50/60 Hz conforming to UL 60947, 35 kA at 208Y/120 V AC 50/60 Hz conforming to UL 60947, 10 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
Electrical durability	5000 cycles for AC-3 at 440 V In, 10000 cycles for AC-3 at 440 V In/2
Power dissipation per pole	4.6 W
Control type	rotary handle
Maximum operating rate	25 cyc/h
Magnetic tripping current	1955-1955 A
Phase failure sensitivity	yes conforming to IEC 60947-4-1
Height	155 mm
Mechanical robustness	shocks: 15 gn 11 ms conforming to IEC 60068-2-27, vibrations: 0.7 gn 13.2...100 Hz conforming to IEC 60068-2-6, vibrations: +/- 1 mm 2...13.2 Hz conforming to IEC 60068-2-6
Depth	165 mm
Width	81 mm
Poles description	3P
Direct connector	without
[Ui] rated insulation voltage	800 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage	8 kV conforming to IEC 60947-2
Net weight	1.6 kg
Utilisation category	AC-3 conforming to IEC 60947-4-1, category A conforming to IEC 60947-2
Connections - terminals	EverLink BTR screw connectors (bottom) 1 cable(s) 2.5-70 mm² - flexible, EverLink BTR screw connectors (bottom) 1 cable(s) 2.5-95 mm² - solid, EverLink BTR screw connectors (top) 1 cable(s) 1.5-50 mm² - flexible, EverLink BTR screw connectors (top) 1 cable(s) 1.5-70 mm² - solid
Operating position	any position
Motor power kW	110-110 kW at 660...690 V AC 50/60 Hz, 90-90 kW at 660...690 V AC 50/60 Hz, 75-75 kW at 660...690 V AC 50/60 Hz, 75-75 kW at 500 V AC 50/60 Hz, 55-55 kW at 500 V AC 50/60 Hz, 45-45 kW at 500 V AC 50/60 Hz, 55-55 kW at 400...415 V AC 50/60 Hz, 45-45 kW at 400...415 V AC 50/60 Hz, 37-37 kW at 400...415 V AC 50/60 Hz
[Ith] conventional free air thermal current	115 A conforming to IEC 60947-4-1
Rated duty	continuous conforming to IEC 60947-4-1
[Ue] rated operational voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[In] rated current	115 A
Environment
Fire resistance	960 °C conforming to IEC 60695-2-11
IP degree of protection	IP40 conforming to IEC 60529
Ambient air temperature for storage	-50-85 °C
Pollution degree	3
Climatic withstand	conforming to IACS E10
Ambient air temperature for operation	-25-70 °C
IK degree of protection	IK07 conforming to IEC 62262
Operating altitude	5000 m
Standards	EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1
Product certifications	EU-RO MR, ATEX, EAC, CCC, CSA, UL, IEC
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	21.0 cm
Package 1 Width	10.5 cm
Package 1 Length	22.0 cm
Package 1 Weight	1.84 kg
Unit Type of Package 2	2
Number of Units in Package 2	3
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	6.0 kg
