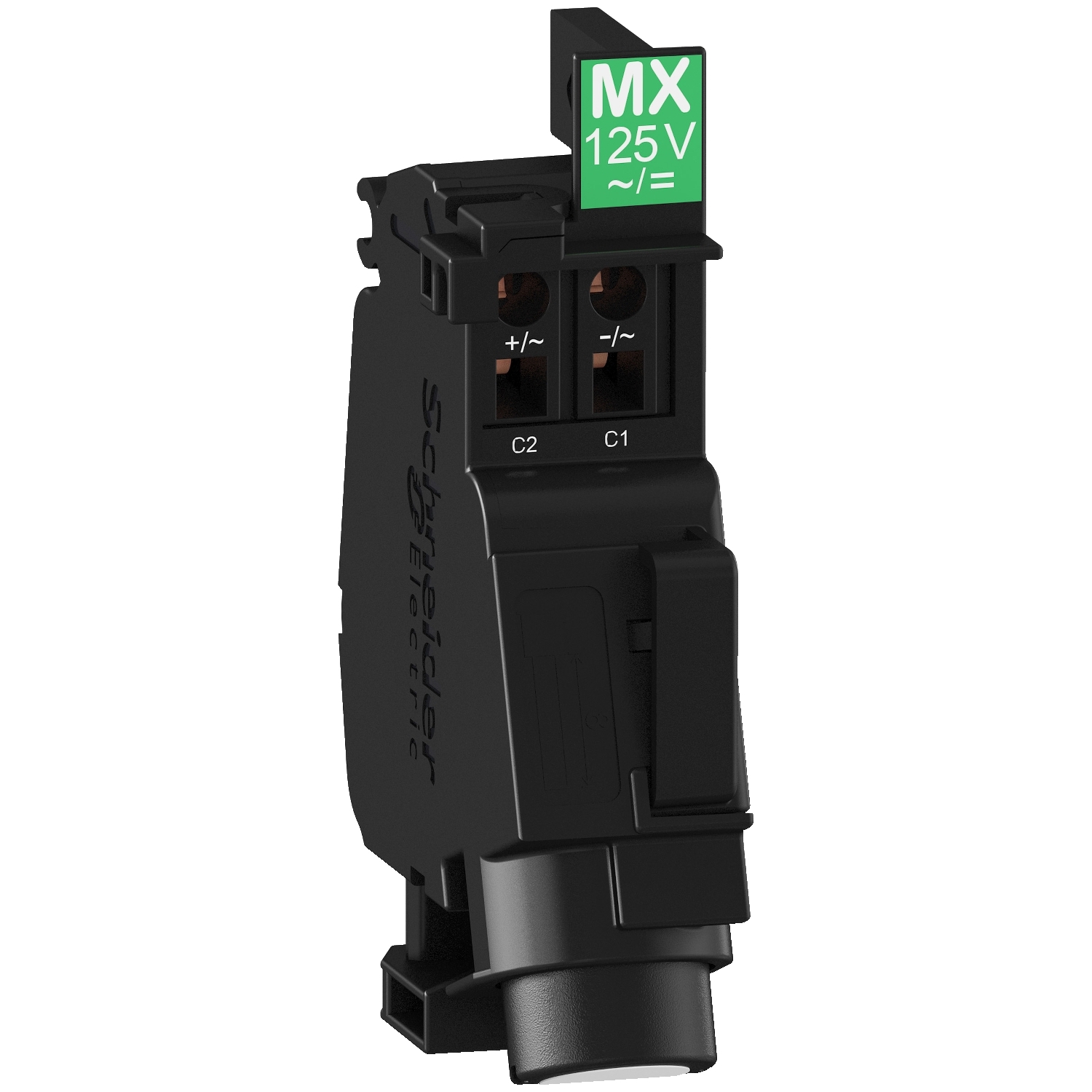

Picture of TeSys, Voltage release, TeSys GV4, MX coil, 380 to 415VAC 50Hz, 440 to 480VAC 60Hz
SKU:

GV4AS487

TeSys, Voltage release, TeSys GV4, MX coil, 380 to 415VAC 50Hz, 440 to 480VAC 60Hz

$270.31
Available for Shipping : 05-Jan-2025
TeSys, Voltage release, TeSys GV4, MX coil, 380 to 415VAC 50Hz, 440 to 480VAC 60Hz
  • Electrical trip unit for motor circuit breakers GV4
  • Plugged inside the circuit breaker and connected by spring terminals
  • Easy installation thanks to universal fixing arrangement Screw fixing or clip-on mounting
  • Wide range of accessories and auxiliaries provide flexibility
  • Suitable for isolation, provides user safety
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
End of life manual
Product environmental
User guide
Product Page Link
Product Data Sheet
TeSys GV electrical trip unit, MX shunt trip, 380-415V AC 50Hz / 440-480V AC 60Hz, for motor circuit breakers GV4. It trips the circuit breaker when the control voltage is applied in limits 0.7-1.1 Uc with an impulse duration greater than 20ms or a maintained signal. To be plugged inside the circuit breaker, connection by spring terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name MX
Device application control
Voltage release type shunt trip release
Range TeSys
Product or component type voltage release
Range compatibility TeSys TeSys BV4, TeSys TeSys GV4
[Uc] control circuit voltage 380...415 V AC 50 Hz, 440...480 V AC 60 Hz
Complementary
Operating time < 50 ms
Threshold tripping voltage < 0.7 Un possible opening, 0.7...1.1 Un failsafe opening
Maximum hold-in power consumption in VA 10 VA
Mechanical durability 20000 cycles
Mounting mode internal mounting
Impulse duration >= 20 ms
[Ui] rated insulation voltage 480 V conforming to IEC 60947-1
Wire stripping length 8 mm
Connections - terminals spring terminals 1 0.5-1.5 mm² - cable stiffness: flexible without cable end
Maximum inrush power in VA 6 VA
Environment
Quantity per set set of 1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.5 cm
Package 1 Width 6.0 cm
Package 1 Length 8.0 cm
Package 1 Weight 64.0 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 9.0 cm
Package 2 Width 13.0 cm
Package 2 Length 18.5 cm
Package 2 Weight 680.0 g
Unit Type of Package 3 3
Number of Units in Package 3 120
Package 3 Height 30.0 cm
Package 3 Width 30.0 cm
Package 3 Length 40.0 cm
Package 3 Weight 8.601 kg
