Picture of TeSys, Voltage release, TeSys GV4, MX coil coil, 24VAC/DC
SKU:

GV4AS027

TeSys, Voltage release, TeSys GV4, MX coil coil, 24VAC/DC

$270.31
Available for Shipping : 10-Dec-2024
TeSys, Voltage release, TeSys GV4, MX coil coil, 24VAC/DC
  • Electrical trip unit for motor circuit breakers GV4
  • Plugged inside the circuit breaker and connected by spring terminals
  • Easy installation thanks to universal fixing arrangement Screw fixing or clip-on mounting
  • Wide range of accessories and auxiliaries provide flexibility
  • Suitable for isolation, provides user safety
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
End of life manual
Product environmental
User guide
Product Page Link
Product Data Sheet
TeSys GV electrical trip unit, MX shunt trip, 24V AC 50Hz/60Hz or 24V DC, for motor circuit breakers GV4. It trips the circuit breaker when the control voltage is applied in limits 0.7-1.1 Uc with an impulse duration greater than 20ms or a maintained signal. To be plugged inside the circuit breaker, connection by spring terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name MX
Device application control
Voltage release type shunt trip release
Range TeSys
Product or component type voltage release
Range compatibility TeSys TeSys BV4, TeSys TeSys GV4
[Uc] control circuit voltage 24 V DC, 24 V AC 50/60 Hz
Complementary
Operating time < 50 ms
Threshold tripping voltage < 0.7 Un possible opening, 0.7...1.1 Un failsafe opening
Maximum hold-in power consumption in VA 10 VA
Mechanical durability 20000 cycles
Maximum hold-in power consumption in W 1 W
Mounting mode internal mounting
Impulse duration >= 20 ms
[Ui] rated insulation voltage 24 V conforming to IEC 60947-1
Wire stripping length 8 mm
Connections - terminals spring terminals 1 0.5-1.5 mm² - cable stiffness: flexible without cable end
Maximum inrush power in VA 6 VA
Maximum inrush power in W 4 W
Environment
Quantity per set set of 1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.500 cm
Package 1 Width 6.000 cm
Package 1 Length 8.500 cm
Package 1 Weight 64.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 9.000 cm
Package 2 Width 13.000 cm
Package 2 Length 18.500 cm
Package 2 Weight 690.000 g
Unit Type of Package 3 3
Number of Units in Package 3 120
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 8.500 kg

Related products

Picture of TeSys Deca, Motor circuit breaker, TeSys GV4, 3P, 80A, Icu 25kA, thermal magnetic multifunction, Everlink terminals

TeSys Deca, Motor circuit breaker, TeSys GV4, 3P, 80A, Icu 25kA, thermal magnetic multifunction, Everlink terminals

GV4PEM80B
$1,020.77
View Detail
Picture of TeSys Deca, Motor circuit breaker, TeSys GV4, 3P, 80A, Icu 50kA, thermal magnetic multifunction, Everlink terminals

TeSys Deca, Motor circuit breaker, TeSys GV4, 3P, 80A, Icu 50kA, thermal magnetic multifunction, Everlink terminals

GV4PEM80N
$1,073.11
View Detail

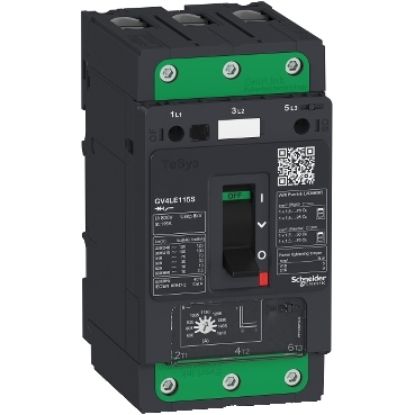

Picture of TeSys Deca, Motor circuit breaker, TeSys GV4, 3P, 50A, Icu 100kA, magnetic, EverLink terminals
