SKU:

GV4PEM12N

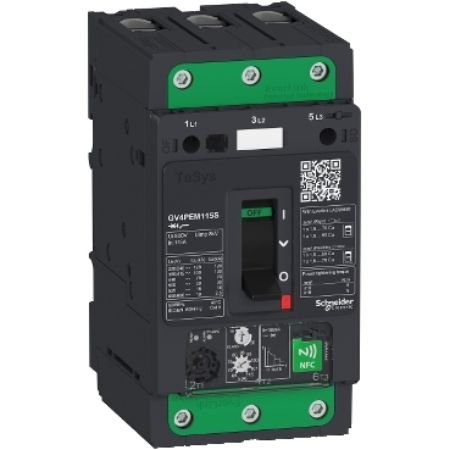

TeSys Deca, Motor circuit breaker, TeSys GV4, 3P, 12.5A, Icu 50kA, thermal magnetic multifunction, Everlink terminals

$988.04

Qty:

Product Selector

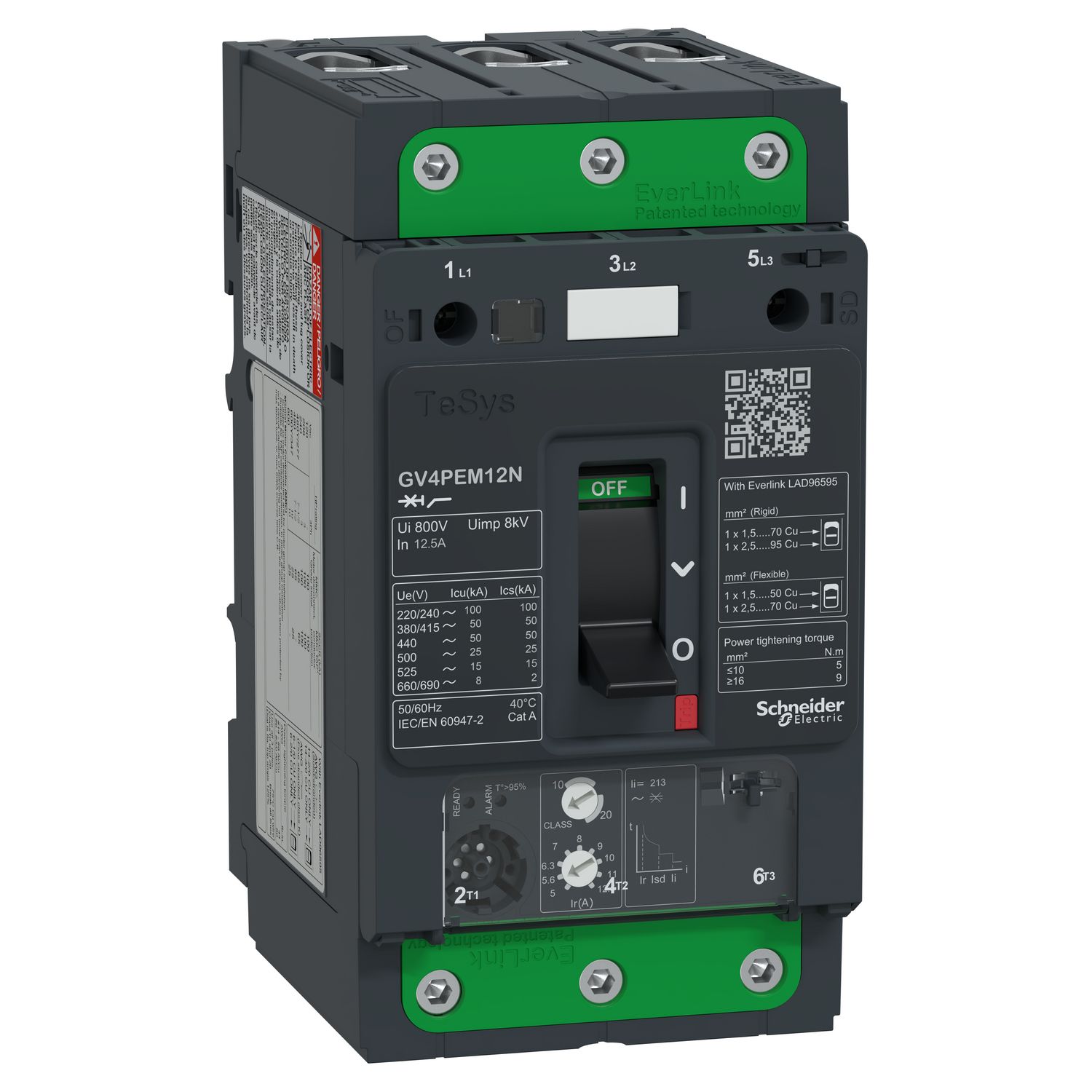

TeSys Deca, Motor circuit breaker, TeSys GV4, 3P, 12.5A, Icu 50kA, thermal magnetic multifunction, Everlink terminals

New modern look & feel of all machines

Wide range of GVs: Magnetic, thermal magnetic, different sizes (GV2,GV3,GV4)

Easier to install and operate with multi-standard screws

Safe and long-lasting power connection with EverLink terminals

Digital customer experience for technical documents

Maintenance guide via EcoStruxureTM Facility Expect

Be the first to review this product

Manufacturer: Schneider Electric

Estimated Delivery Date: 08-Nov-2024

Catalogue

Product environmental

TeSys GV motor circuit breaker, 3 poles (3P), 12.5A/690V, for protection of 3-phase motors 3-5.5kW@400V. Multifunction circuit breaker, it provides thermal magnetic protection and advanced motor protection, breaking capacity Icu 50kA@400V, start-stop control by toggle, connection by Everlink BTR screw terminals. Thermal protection adjustable by dials with a setting current Ir in range 5-12.5A and a selectable tripping class 10 or 20, magnetic protection at 17 In. Advanced protections are adjustable with a smartphone using wireless NFC and include short time delay protection Isd with a setting range 5-13 Ir, phase unbalance and loss protection, ground fault protection, locked rotor (jam), long start. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). It can be equiped externally with 1 or 2 auxiliary SDx modules in order to have alarming and fault differentiation. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
