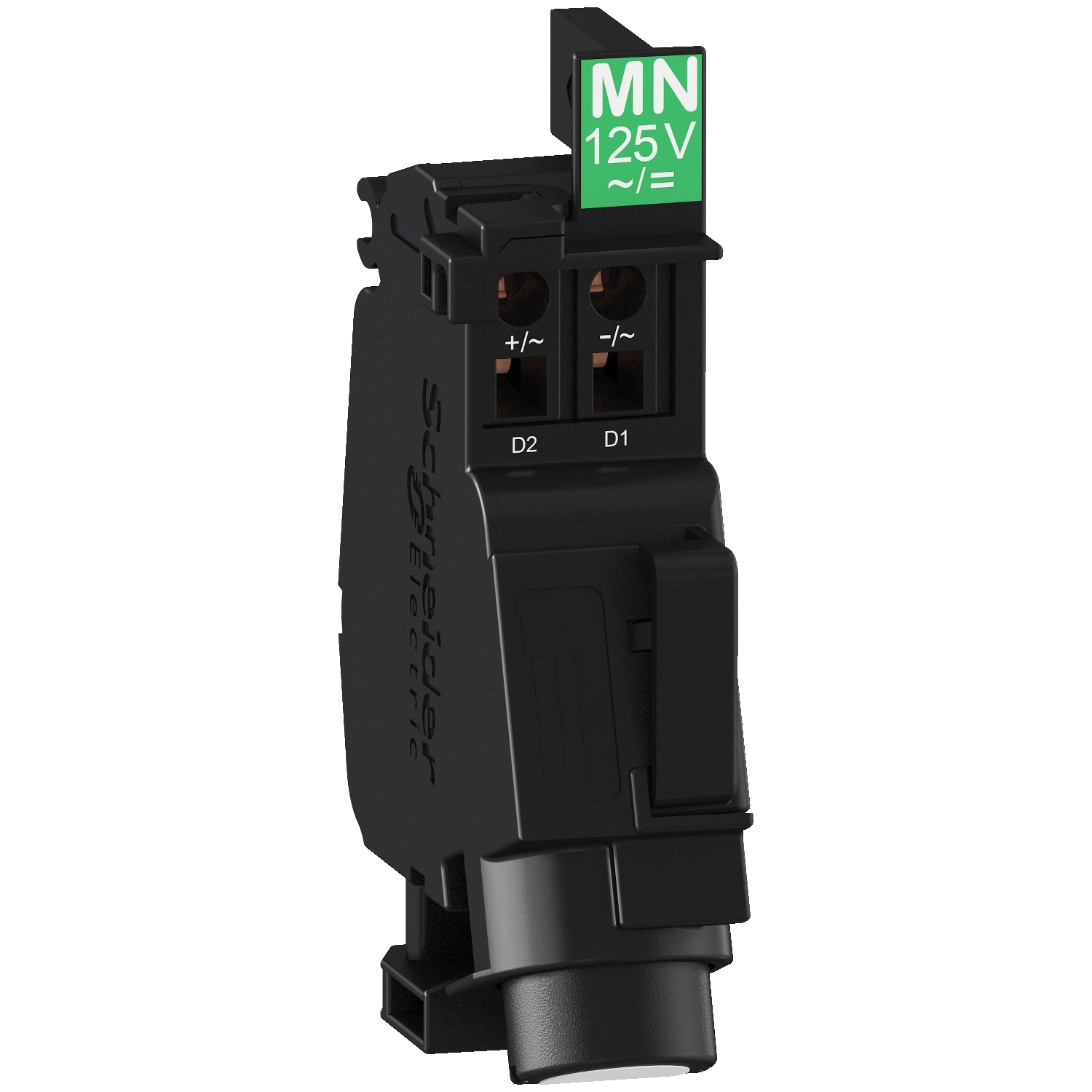

Picture of TeSys, Undervoltage release, TeSys GV4, MN coil, 24VAC/DC
SKU:

GV4AU027

TeSys, Undervoltage release, TeSys GV4, MN coil, 24VAC/DC

$270.31
Available for Shipping : 17-Dec-2024
TeSys, Undervoltage release, TeSys GV4, MN coil, 24VAC/DC
  • TeSys GV electrical trip unit for motor circuit breakers GV4
  • Above 70 % of the rated voltage, opening does not take place
  • Simple to specify, install and use for all applications
  • Compact, space-saving design
  • One-click accessories with spring terminal
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product environmental
User guide
End of life manual
Product Page Link
Product Data Sheet
TeSys GV electrical trip unit, MN undervoltage release, 24V AC 50/60Hz and 24V DC, for motor circuit breakers GV4. Opening of the the circuit breaker is ensured when the control voltage drops below 0.35 Uc, and possible between 0.35-0.7 Uc. Closing of the circuit breaker is possible when the control voltage is in limits 0.85-1.1 Uc. To be plugged inside the circuit breaker, connection by spring terminals. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name MN
Device application control
Voltage release type undervoltage release
Range TeSys
Product or component type voltage release
Range compatibility TeSys TeSys BV4, TeSys TeSys GV4
[Uc] control circuit voltage 24 V DC, 24 V AC 50/60 Hz
Complementary
Operating time < 50 ms
Threshold tripping voltage 0.85...1.1 Un enabled closing, 0.35...0.7 Un possible opening, < 0.35 Un failsafe opening
Maximum hold-in power consumption in VA 7 VA
Mechanical durability 20000 cycles
Maximum hold-in power consumption in W 2 W
Mounting mode internal mounting
[Ui] rated insulation voltage 24 V conforming to IEC 60947-1
Wire stripping length 8 mm
Connections - terminals spring terminals 1 0.5-1.5 mm² - cable stiffness: flexible without cable end
Maximum inrush power in VA 7 VA
Maximum inrush power in W 2 W
Environment
Quantity per set set of 1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.35 cm
Package 1 Width 8.636 cm
Package 1 Length 3.81 cm
Package 1 Weight 63.504 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 9 cm
Package 2 Width 13 cm
Package 2 Length 18.5 cm
Package 2 Weight 690 g
Unit Type of Package 3 3
Number of Units in Package 3 10
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 1.12 kg
