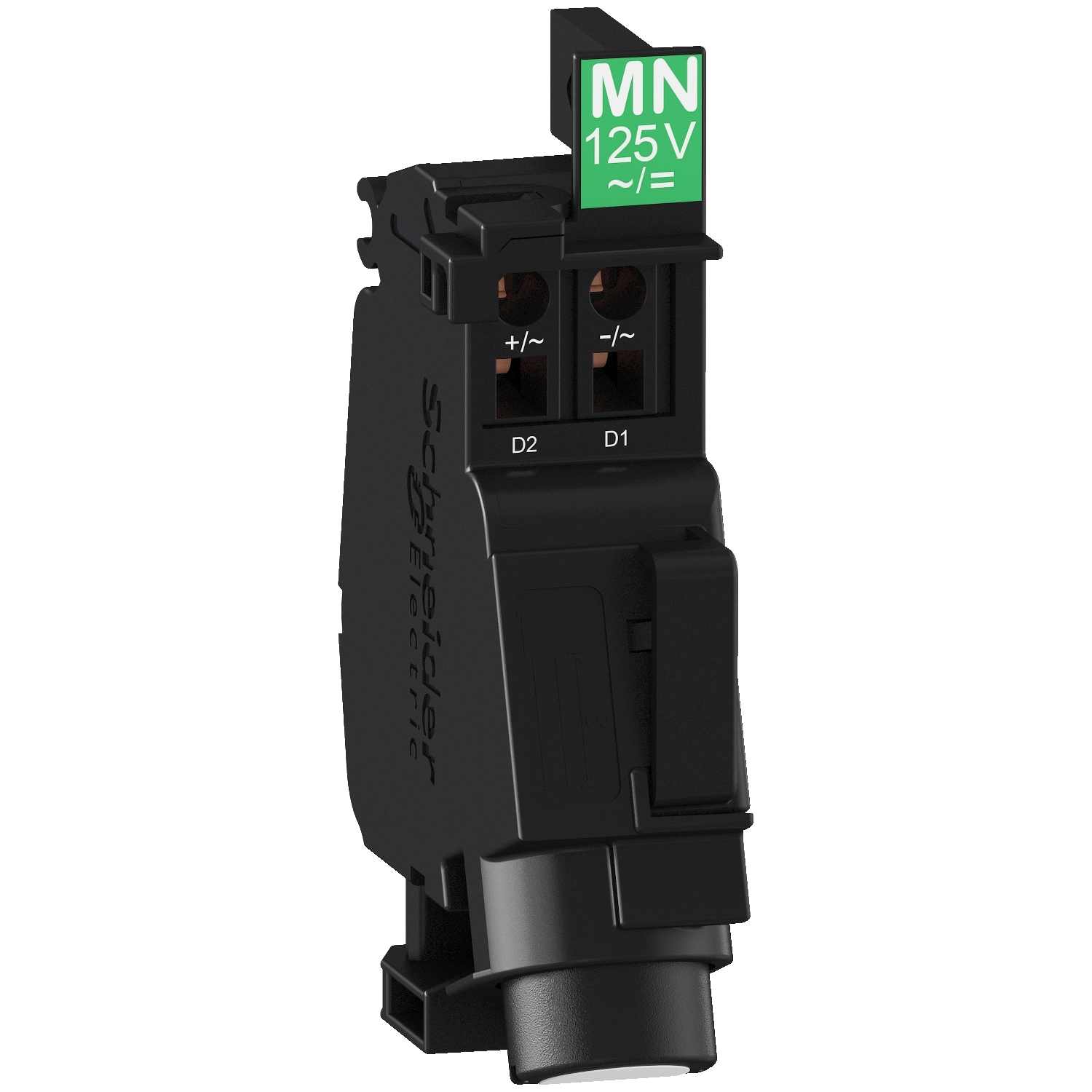

Picture of TeSys, Undervoltage release, TeSys GV4, MN coil, 110 to 130VAC 50/60Hz, 125VDC
SKU:

GV4AU137

TeSys, Undervoltage release, TeSys GV4, MN coil, 110 to 130VAC 50/60Hz, 125VDC

$270.31
Available for Shipping : 05-Jan-2025
TeSys, Undervoltage release, TeSys GV4, MN coil, 110 to 130VAC 50/60Hz, 125VDC
  • TeSys GV electrical trip unit for motor circuit breakers GV4
  • Above 70 % of the rated voltage, opening does not take place
  • Simple to specify, install and use for all applications
  • Compact, space-saving design
  • One-click accessories with spring terminal
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product environmental
User guide
End of life manual
Product Page Link
Product Data Sheet
TeSys GV electrical trip unit, MN undervoltage release, 110-130V AC 50/60Hz and 125V DC, for motor circuit breakers GV4. Opening of the the circuit breaker is ensured when the control voltage drops below 0.35 Uc, and possible between 0.35-0.7 Uc. Closing of the circuit breaker is possible when the control voltage is in limits 0.85-1.1 Uc. To be plugged inside the circuit breaker, connection by spring terminals. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name MN
Device application control
Voltage release type undervoltage release
Range TeSys
Product or component type voltage release
Range compatibility TeSys TeSys BV4, TeSys TeSys GV4
[Uc] control circuit voltage 125 V DC, 110...130 V AC 50/60 Hz
Complementary
Operating time < 50 ms
Threshold tripping voltage 0.85...1.1 Un enabled closing, 0.35...0.7 Un possible opening, < 0.35 Un failsafe opening
Maximum hold-in power consumption in VA 7 VA
Mechanical durability 20000 cycles
Maximum hold-in power consumption in W 2 W
Mounting mode internal mounting
[Ui] rated insulation voltage 130 V conforming to IEC 60947-1
Wire stripping length 8 mm
Connections - terminals spring terminals 1 0.5-1.5 mm² - cable stiffness: flexible without cable end
Maximum inrush power in VA 7 VA
Maximum inrush power in W 2 W
Environment
Quantity per set set of 1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.400 cm
Package 1 Width 6.200 cm
Package 1 Length 8.500 cm
Package 1 Weight 61.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 8.800 cm
Package 2 Width 13.000 cm
Package 2 Length 18.500 cm
Package 2 Weight 684.000 g
Unit Type of Package 3 3
Number of Units in Package 3 160
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 17.600 kg
