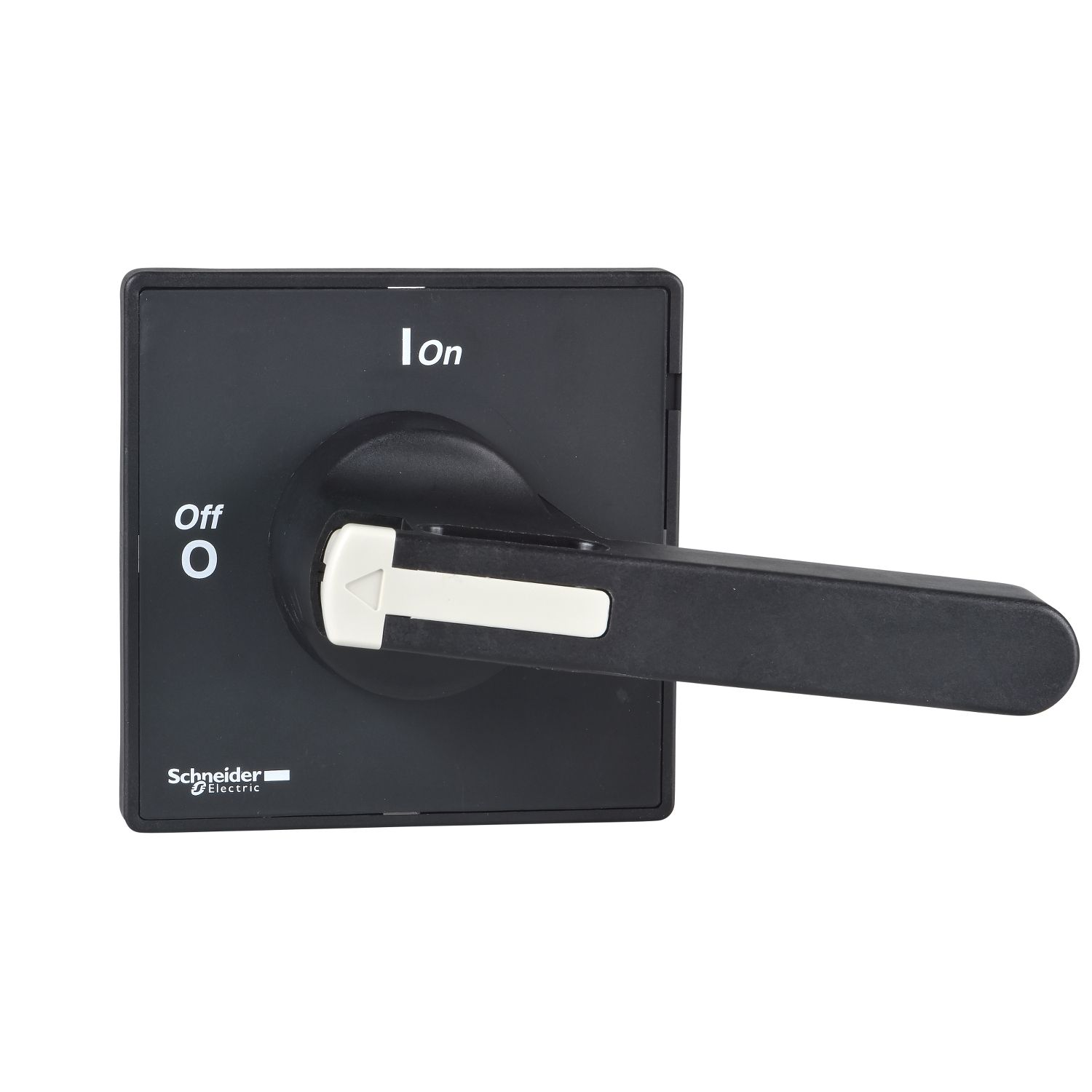

Picture of Handles and front plates,TeSys Control,black handle,black front,1-3 padlocking,4 screws fixing,for V5/V6
SKU:

KAF3PZ

Handles and front plates,TeSys Control,black handle,black front,1-3 padlocking,4 screws fixing,for V5/V6

$186.48
Available for Shipping : 03-Dec-2024
Handles and front plates,TeSys Control,black handle,black front,1-3 padlocking,4 screws fixing,for V5/V6
  • Reliable operation with padlockable handle
  • High protection degree of waterproof and dustproof for harsh environment
  • It is Green Premium product as it is environmentally friendly
  • It is suitable for 2 operation methods: directly on switch body or through a shaft extension
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Product environmental
Product Page Link
Product Data Sheet
TeSys Vario operating handle, for TeSys Vario switch bodies V5-V6. It provides a black long handle, and black front plate 90x90mm, for main switch-disconnector assembly. It operates a switch body directly or through a shaft extension (to be ordered seprately). Handle padlockable, for 3 padlocks (to be ordered separately). Front plate with I-O indicators and with 4 holes fixing, it ensures an IP65 protection (NEMA type 1 and 12) to the mounting. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name KAF3
Product compatibility V6, V5
Range TeSys
Product or component type rotary handle
Handle colour black
Complementary
Width 90 mm
Compatibility code KAF
Net weight 0.16 kg
Base dimension 90 x 90 mm
Marking 0 - 1
Fixing mode by 4 screws
Handle front plate colour black
Height 90 mm
Rotary handle padlocking 1 to 3 padlocks 4-8 mm
Environment
IP degree of protection IP65
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.6 cm
Package 1 Width 9.2 cm
Package 1 Length 15.0 cm
Package 1 Weight 194.0 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 2.17 kg
Unit Type of Package 3 3
Number of Units in Package 3 80
Package 3 Height 77.0 cm
Package 3 Width 80.0 cm
Package 3 Length 60.0 cm
Package 3 Weight 26.37 kg

Related products

Picture of TeSys, TeSys Mini-VARIO and VARIO - door interlock - set of 5

TeSys, TeSys Mini-VARIO and VARIO - door interlock - set of 5

KZ74
$34.27
View Detail

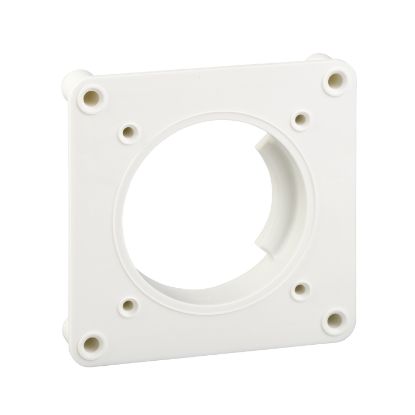

Picture of Mounting plate for handle,TeSys Control,for door mounting of handles with 4 screw fixing,set of 5,for V3-V6
