Picture of TeSys, TeSys VARIO - shaft extension - for V3 / V4 / V5 / V6
SKU:

VZ31

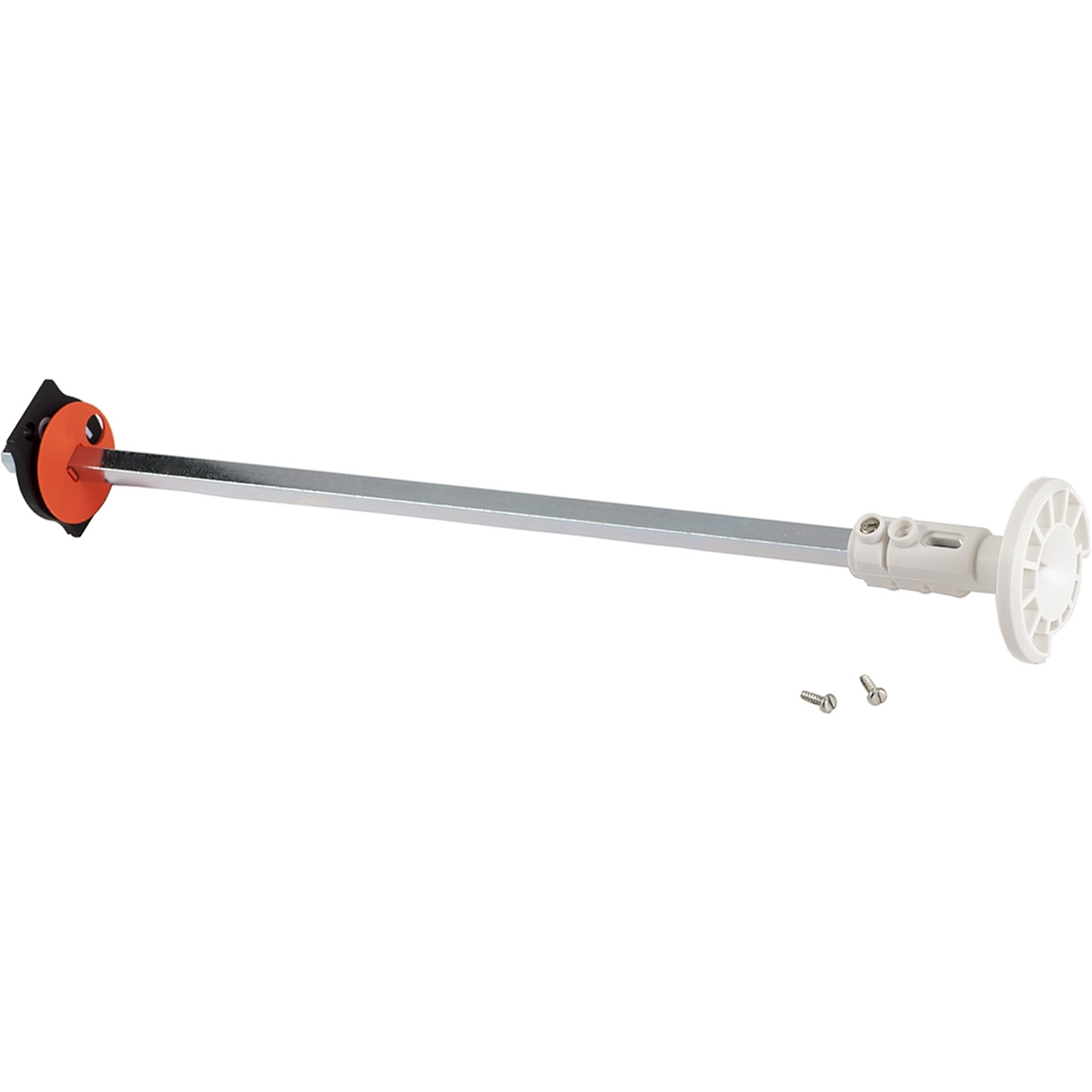

TeSys, TeSys VARIO - shaft extension - for V3 / V4 / V5 / V6

$91.28
Available for Shipping : 17-Nov-2024
TeSys, TeSys VARIO - shaft extension - for V3 / V4 / V5 / V6
  • Easy for operation on the back of enclosure with a door-mounted handle
  • It leaves sufficient and suitable distance between the door and the switch
  • Compliant with Green Premium
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product environmental
Instruction sheet
Product Page Link
Product Data Sheet
TeSys Vario shaft extension, for TeSys Vario switch bodiesV3 to V6. It allows the operation of a switch body located on the back of enclosure with a door-mounted handle. Possible distance between back of enclosure and door 400-420mm for V3-V4 and 430-450mm for V5-V6. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name VZ
Product compatibility V6, V5, V4, V3
Quantity per set set of 1
Range TeSys
Product or component type shaft extension
Accessory / separate part category locking accessory
Complementary
Width 8 mm
Compatibility code shaft extension
Mechanical interlocking door interlocking function
Net weight 215 g
Length 400 mm
Back/door distance 430-450 mm, 400-420 mm
Height 8 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.400 cm
Package 1 Width 5.000 cm
Package 1 Length 36.000 cm
Package 1 Weight 207.000 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.405 kg

Related products

Picture of TeSys, TeSys VARIO - front and black rotary handle - 1 to 3 padlocking

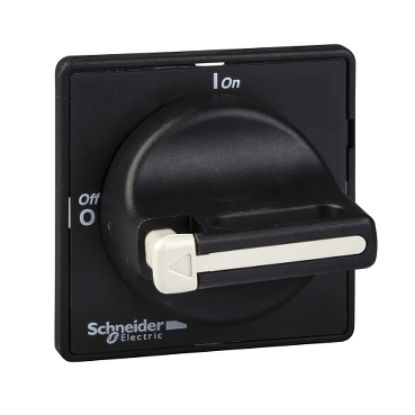

TeSys, TeSys VARIO - front and black rotary handle - 1 to 3 padlocking

KAF2PZ
$84.08
View Detail
Picture of Handles and front plates,TeSys Control,black handle,black front,1-3 padlocking,4 screws fixing,for V5/V6

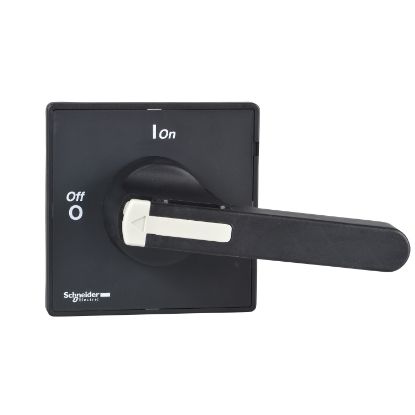

Handles and front plates,TeSys Control,black handle,black front,1-3 padlocking,4 screws fixing,for V5/V6

KAF3PZ
$186.48
View Detail
Picture of TeSys, TeSys VARIO - front and red rotary handle - 1 to 3 padlocking

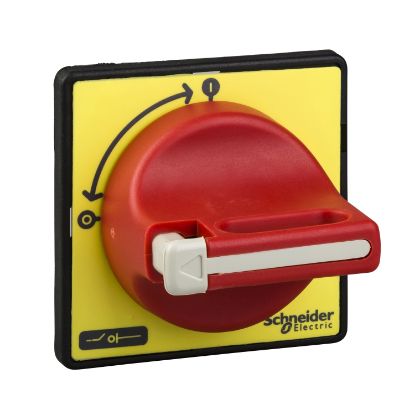

TeSys, TeSys VARIO - front and red rotary handle - 1 to 3 padlocking

KCF2PZ
$84.74
View Detail
Picture of TeSys, TeSys VARIO - Switch body for switch-disconnector - 3 poles - 63 A

TeSys, TeSys VARIO - Switch body for switch-disconnector - 3 poles - 63 A

V3
$240.05
View Detail
Picture of TeSys, TeSys VARIO - Switch body for switch-disconnector - 3 poles - 80 A

TeSys, TeSys VARIO - Switch body for switch-disconnector - 3 poles - 80 A

V4
$254.38
View Detail
Picture of TeSys, TeSys VARIO - Switch body for switch-disconnector - 3 poles - 125 A

TeSys, TeSys VARIO - Switch body for switch-disconnector - 3 poles - 125 A

V5
$587.27
View Detail
Picture of Handles and front plates,TeSys Control,red handle,yellow front,1-3 padlocking,4 screws fixing,for V5/V6

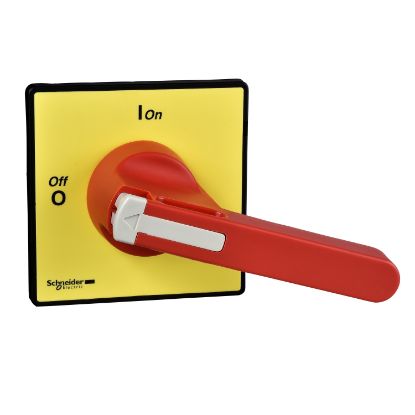

Handles and front plates,TeSys Control,red handle,yellow front,1-3 padlocking,4 screws fixing,for V5/V6

KCF3PZ
$186.07
View Detail
Picture of TeSys, TeSys VARIO - Switch body for switch-disconnector - 3 poles - 175 A

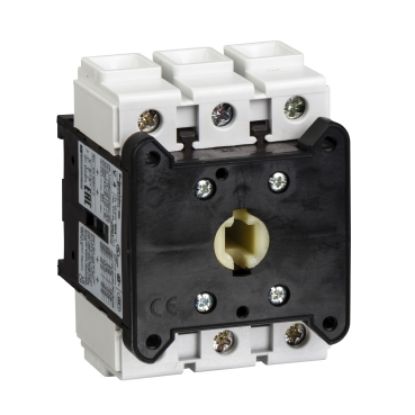

TeSys, TeSys VARIO - Switch body for switch-disconnector - 3 poles - 175 A
