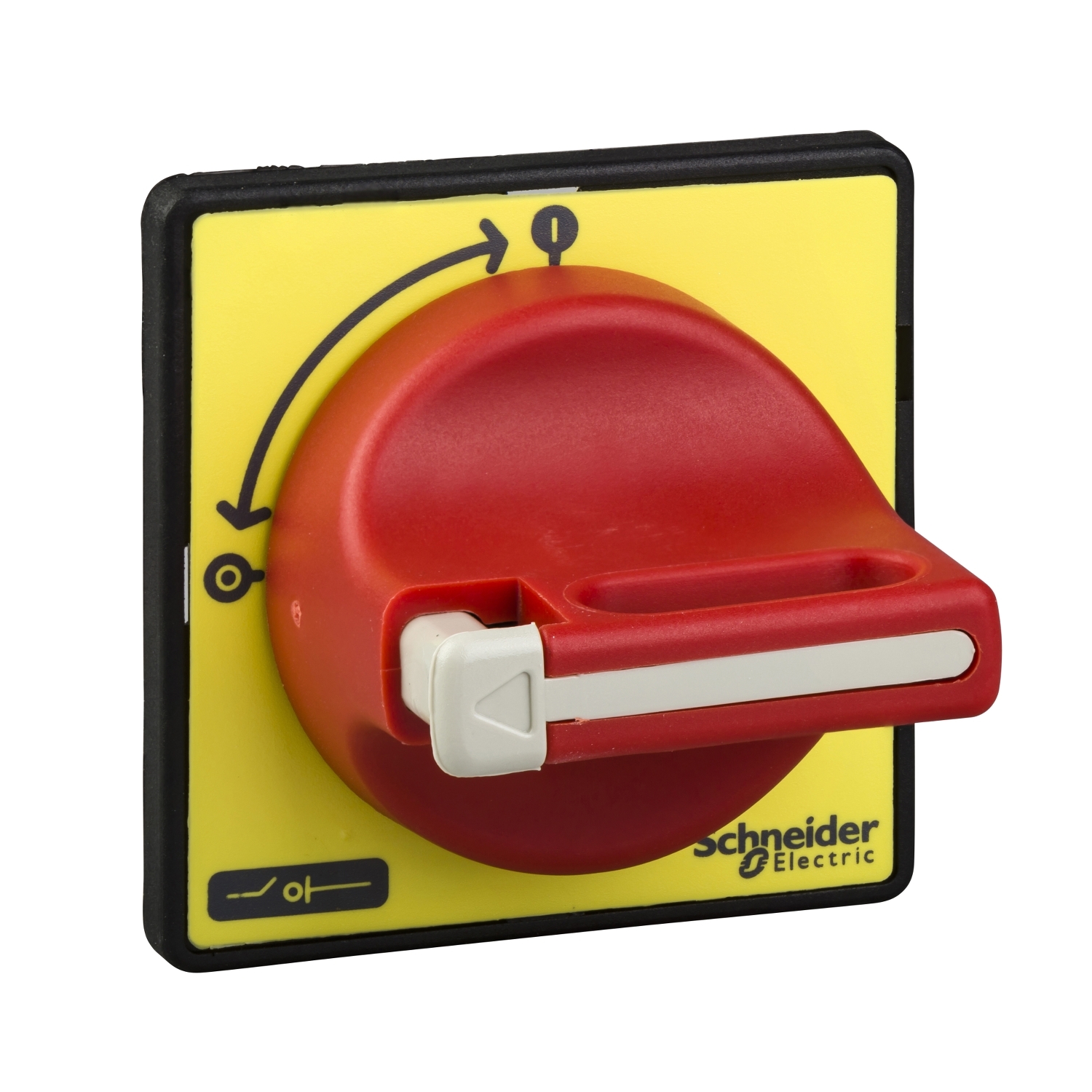

Picture of TeSys, TeSys VARIO - front and red rotary handle - 1 to 3 padlocking
SKU:

KCF2PZ

TeSys, TeSys VARIO - front and red rotary handle - 1 to 3 padlocking

$84.74
Available for Shipping : 17-Nov-2024
TeSys, TeSys VARIO - front and red rotary handle - 1 to 3 padlocking
  • It is suitable for 2 operation methods: directly on switch body or through a shaft extension
  • Reliable operation with padlockable handle
  • It ensures high protection degree to the mounting
  • It is Green Premium product as it is environmentally friendly
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Product environmental
Catalogue
Product Page Link
Product Data Sheet
TeSys Vario operating handle, for TeSys Vario switch bodies V3-V4. It provides a red handle and yellow front plate 60x60mm, for main and emergency stop switch-disconnector assembly. It operates a switch body directly or through a shaft extension (to be ordered seprately). Handle padlockable, for 3 padlocks (to be ordered separately). Front plate with I-O indicators and with 4 holes fixing, it ensures an IP65 protection (NEMA type 1 and 12) to the mounting. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name KCF2
Product compatibility V4, V3
Range TeSys
Product or component type rotary handle
Handle colour red
Complementary
Width 60 mm
Compatibility code main switch
Net weight 0.07 kg
Base dimension 60 x 60 mm
Marking 0 - 1
Fixing mode by 4 screws
Handle front plate colour yellow
Height 60 mm
Rotary handle padlocking 1 to 3 padlocks 4-8 mm
Environment
IP degree of protection IP65
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 7.000 cm
Package 1 Length 8.500 cm
Package 1 Weight 74.000 g
Unit Type of Package 2 2
Number of Units in Package 2 45
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.854 kg
Unit Type of Package 3 3
Number of Units in Package 3 360
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 43.755 kg
