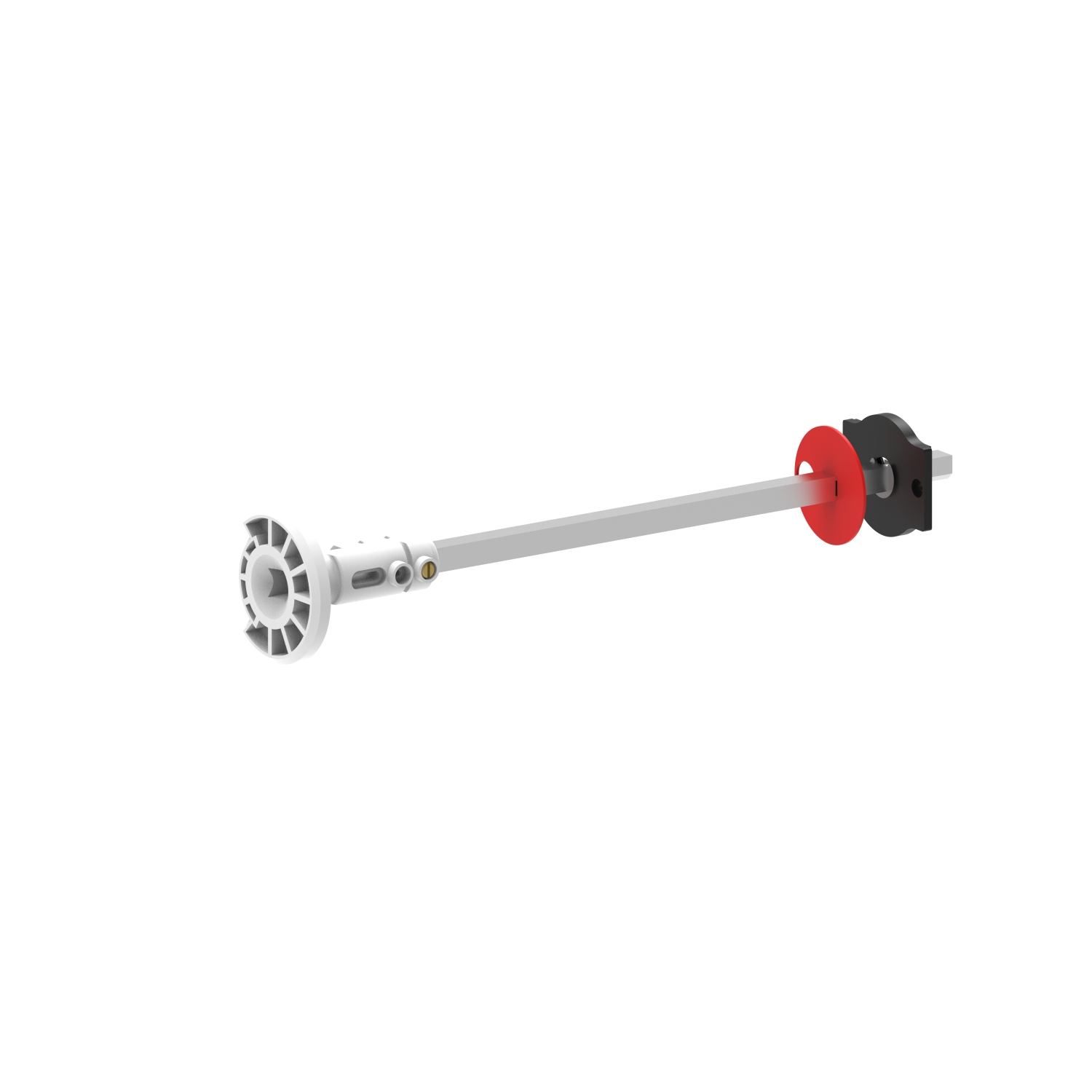

Picture of TeSys, TeSys VARIO - shaft extension - for V3 / V4 / V5 / V6
SKU:

VZ18

TeSys, TeSys VARIO - shaft extension - for V3 / V4 / V5 / V6

$87.36
Available for Shipping : 12-Dec-2024
TeSys, TeSys VARIO - shaft extension - for V3 / V4 / V5 / V6
  • Easy for operation on the back of enclosure with a door-mounted handle
  • It leaves sufficient and suitable distance between the door and the switch
  • Compliant with Green Premium
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
TeSys Vario shaft extension, for TeSys Vario switch bodies V3 to V6. It allows the operation of a switch body located on the back of enclosure with a door-mounted handle. Possible distance between back of enclosure and door 300-320mm for V3-V4 and 330-350mm for V5-V6. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name VZ
Product compatibility V3, V5, V6, V4
Quantity per set set of 1
Range TeSys
Product or component type shaft extension
Accessory / separate part category locking accessory
Complementary
Width 8 mm
Compatibility code shaft extension
Mechanical interlocking door interlocking function
Net weight 170 g
Back/door distance 330-350 mm, 300-320 mm
Height 8 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.9 cm
Package 1 Width 9.5 cm
Package 1 Length 28.8 cm
Package 1 Weight 158 g
Unit Type of Package 2 2
Number of Units in Package 2 35
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 5.92 kg
Unit Type of Package 3 3
Number of Units in Package 3 280
Package 3 Height 77 cm
Package 3 Width 80 cm
Package 3 Length 60 cm
Package 3 Weight 55.86 kg
