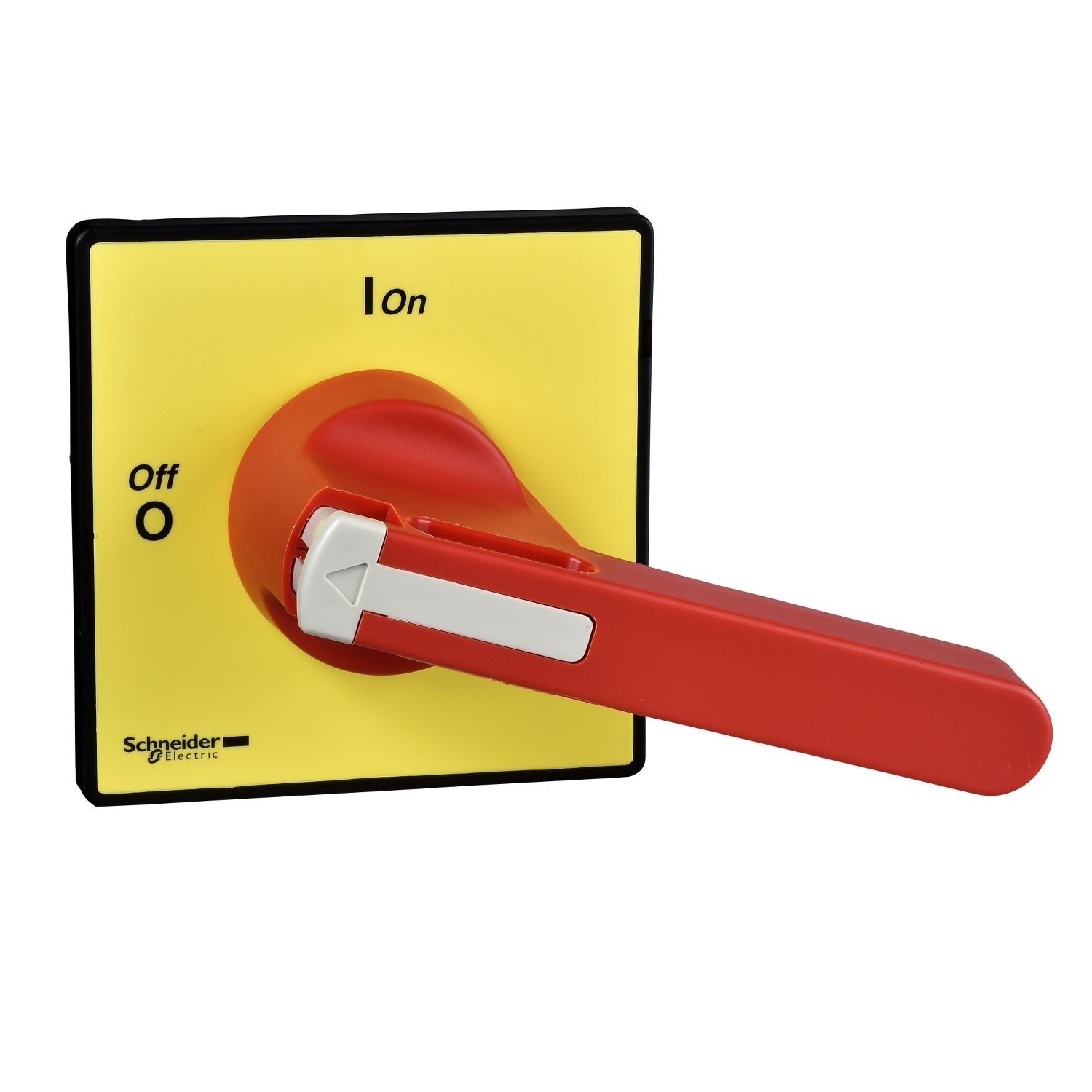

Picture of Handles and front plates,TeSys Control,red handle,yellow front,1-3 padlocking,4 screws fixing,for V5/V6
SKU:

KCF3PZ

Handles and front plates,TeSys Control,red handle,yellow front,1-3 padlocking,4 screws fixing,for V5/V6

$186.07
Available for Shipping : 17-Nov-2024
Handles and front plates,TeSys Control,red handle,yellow front,1-3 padlocking,4 screws fixing,for V5/V6
  • It is suitable for 2 operation methods: directly on switch body or through a shaft extension
  • Reliable operation with padlockable handle
  • It ensures high protection degree to the mounting
  • It is Green Premium product as it is environmentally friendly
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Product environmental
Product Page Link
Product Data Sheet
TeSys Vario operating handle, for TeSys Vario switch bodies V5-V6. It provides a red long handle and yellow front plate 90x90mm, for main and emergency stop switch-disconnector assembly. It operates a switch body directly or through a shaft extension (to be ordered seprately). Handle padlockable, for 3 padlocks (to be ordered separately). Front plate with I-O indicators and with 4 holes fixing, it ensures an IP65 protection (NEMA type 1 and 12) to the mounting. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name KCF3
Product compatibility V6, V5
Range TeSys
Product or component type rotary handle
Handle colour red
Complementary
Width 90 mm
Compatibility code switch operator
Net weight 0.16 kg
Base dimension 90 x 90 mm
Marking 0 - 1
Fixing mode by 4 screws
Handle front plate colour yellow
Height 90 mm
Rotary handle padlocking 1 to 3 padlocks 4-8 mm
Environment
IP degree of protection IP65
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.5 cm
Package 1 Width 10 cm
Package 1 Length 15.2 cm
Package 1 Weight 175 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 2.407 kg
Unit Type of Package 3 3
Number of Units in Package 3 80
Package 3 Height 80 cm
Package 3 Width 80 cm
Package 3 Length 60 cm
Package 3 Weight 29.995 kg
