SKU:

LA4DB3B

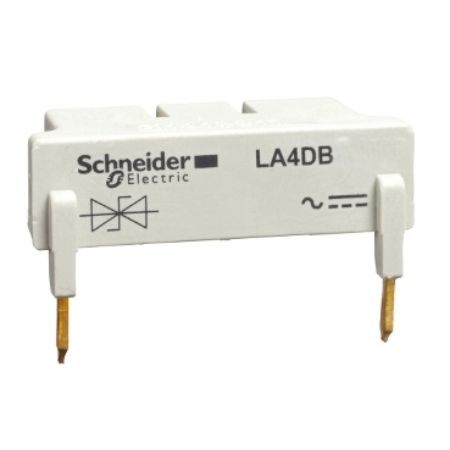

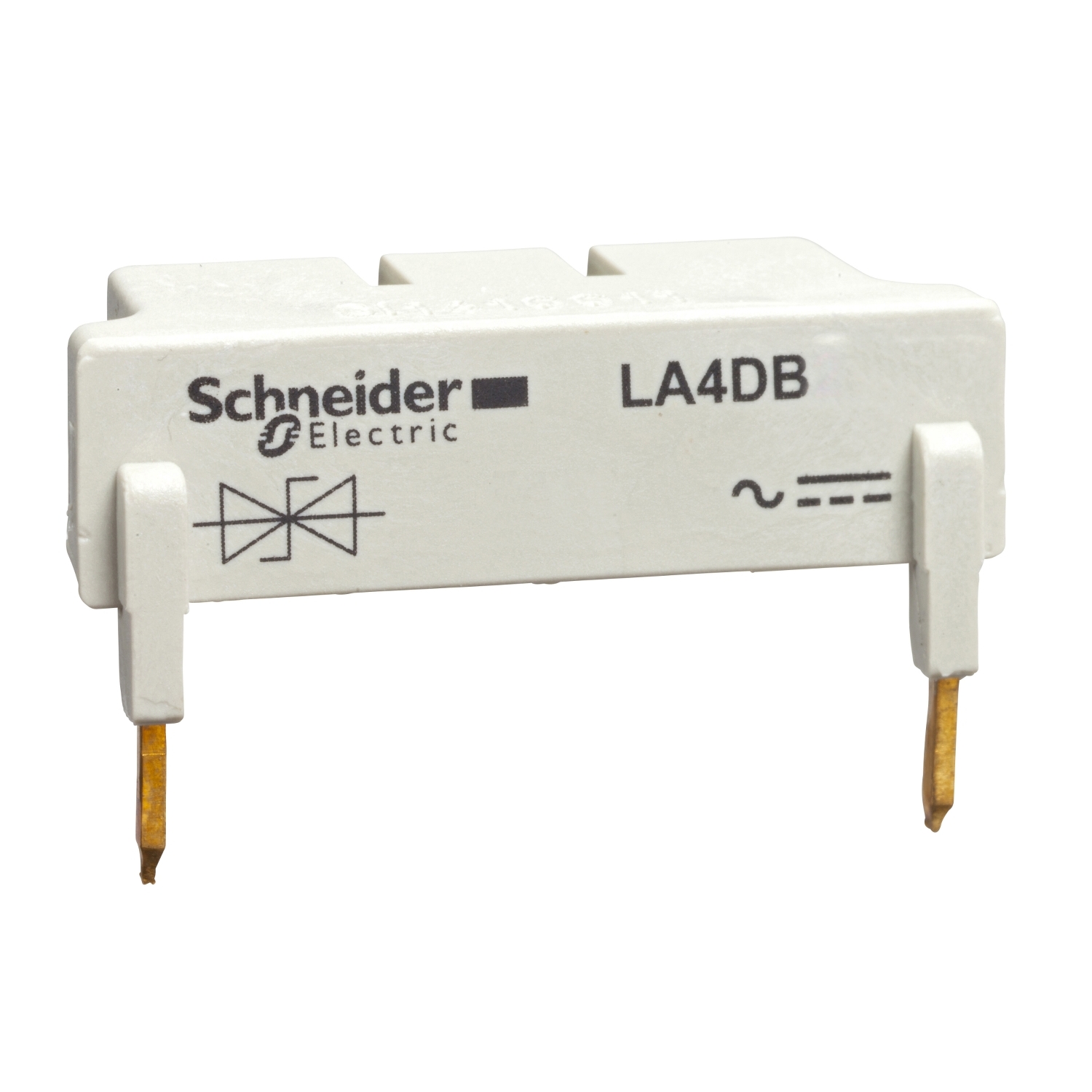

TeSys; TeSys Deca, suppressor module, bidirectional peak limiting diode, 24 V DC

$62.08
Available for Shipping : 10-Dec-2024
TeSys; TeSys Deca, suppressor module, bidirectional peak limiting diode, 24 V DC
  • Meet the need for coil protection for TeSys Deca contactor
  • New modern look & feel of all machines
  • Easier to install.
  • Digital customer experience for technical documents
Manufacturer: Schneider Electric
TeSys D suppressor module, for LC1D80-D95 (3P), LP1D40-D80 (4P) contactors. To be used with 24V DC control circuit voltage, it provides bidirectional peak limiting diodes protection limiting the transient voltage to 2 Uc max. Mounting on top of contactor, screw fixing and connection on coil terminals. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LA4D

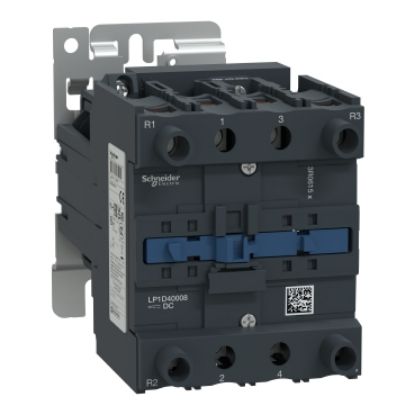

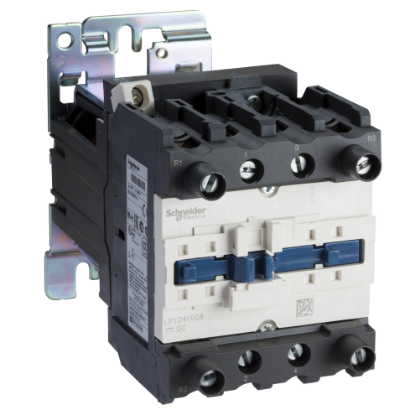

Product compatibility 4P LP1D40...D65, 3P LC1D80...D95, 4P LP1D80
Range TeSys
Product or component type suppressor module
Range of product TeSys Deca
Complementary
Suppressor technology bidirectional peak limiting diode
Compatibility code LA4D
Mounting mode by screws
Maximum peak voltage 2 Uc
Mounting location top
Net weight 0.018 kg
[Uc] control circuit voltage 24 V DC
Environment
Ambient air temperature for storage -40-80 °C
IP degree of protection IP2X conforming to IEC 60529
Standards GB/T 14048.5, UL 60947-5-1, CSA C22.2 No 60947-5-1, EN 60947-5-1, IEC 60947-5-1
Ambient air temperature for operation -25-55 °C
Product certifications CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.100 cm
Package 1 Width 4.200 cm
Package 1 Length 2.700 cm
Package 1 Weight 17.000 g
Unit Type of Package 2 2
Number of Units in Package 2 64
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 1.265 kg
