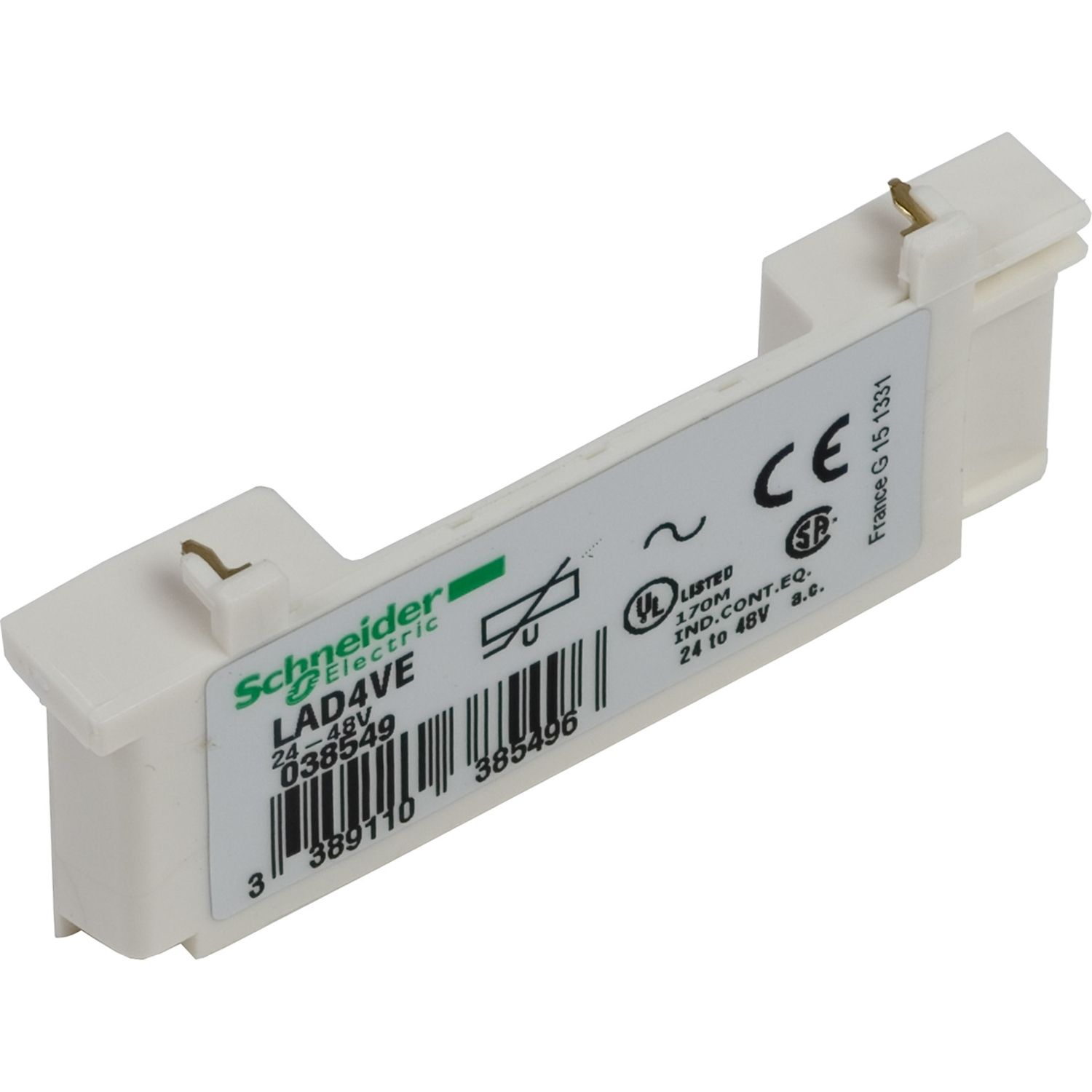

Picture of TeSys; TeSys Deca, suppressor module, varistor, 24...48 V AC
SKU:

LAD4VE

TeSys; TeSys Deca, suppressor module, varistor, 24...48 V AC

$71.57
Available for Shipping : 03-Dec-2024
TeSys; TeSys Deca, suppressor module, varistor, 24...48 V AC
  • Meet the need for coil protection for TeSys Deca contactor
  • New modern look & feel of all machines
  • Easier to install.
  • Digital customer experience for technical documents
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Product environmental
Product Page Link
Product Data Sheet
TeSys D suppressor module, for LC1D09-D38, LC1DT20-DT40 contactors and CAD control relays. To be used with 24-48V AC control circuit voltage, it provides a varistor protection limiting the transient voltage to 2 Uc max. Clip-on side mounting, overall size of the contactor is unchanged. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LAD4
Product compatibility CAD32, CAD50, 4P LC1D098...D258, 4P LC1DT20...DT40, 3P LC1D09...D38
Range TeSys
Product or component type suppressor module
Range of product TeSys Deca control relay, TeSys Deca
Complementary
Suppressor technology varistor (peak limiting)
Compatibility code LAD4
Mounting mode by clips
Maximum peak voltage 2 Uc
Mounting location front
Net weight 0.012 kg
[Uc] control circuit voltage 24...48 V AC
Environment
Ambient air temperature for storage -40-80 °C
IP degree of protection IP2X conforming to IEC 60529
Standards GB/T 14048.5, UL 60947-5-1, CSA C22.2 No 60947-5-1, EN 60947-5-1, IEC 60947-5-1
Ambient air temperature for operation -25-55 °C
Product certifications CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.100 cm
Package 1 Width 10.000 cm
Package 1 Length 5.000 cm
Package 1 Weight 13.700 g
Unit Type of Package 2 2
Number of Units in Package 2 70
Package 2 Height 15 cm
Package 2 Width 15 cm
Package 2 Length 40 cm
Package 2 Weight 1.169 kg
Unit Type of Package 3 3
Number of Units in Package 3 1120
Package 3 Height 45.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 38.980 kg
