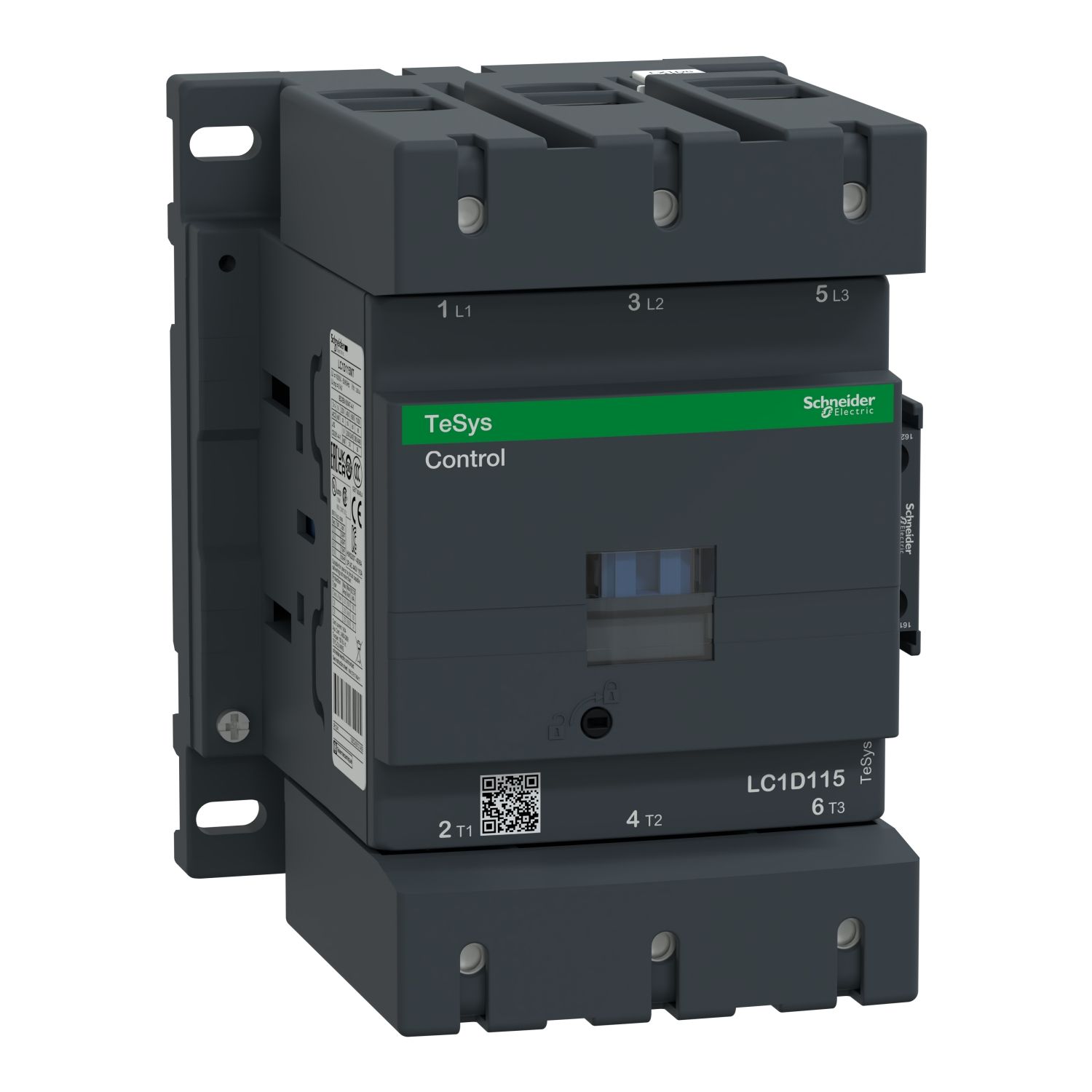

Picture of Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 220V AC 50/60Hz coil, screw clamp terminals
SKU:

LC1D115M7

Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 220V AC 50/60Hz coil, screw clamp terminals

$1,321.76
Product Selector
Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 220V AC 50/60Hz coil, screw clamp terminals
  • Long durability with high operating rate
  • Reliable performance under high environment
  • Green Premium product
  • Multi sdandards certified makes it possible to wide application
  • Easy installation and maintenance with compact design
  • Multiple and flexible mounting methods depending on exact need
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Brochure
Catalogue
Instruction sheet
Declaration of conformity
Product environmental
CAD
End of life manual
Product Page Link
Product Data Sheet
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 115A/1000V AC-3 (55kW@400V). It provides a 220V 50/60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror certified), power connection by screw connectors 2 inputs, control connection by screw clamp terminals. For operating rates until 2400 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (120mm width), mounting on 2 DIN-rails or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LC1D
Poles description 3P
[Ie] rated operational current 115 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 115 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
Utilisation category AC-3e, AC-3, AC-1, AC-4
Range TeSys
Product or component type contactor
Contactor application resistive load, motor control
Range of product TeSys Deca
[Ue] rated operational voltage power circuit: <= 300 V DC, power circuit: <= 1000 V AC 25...400 Hz
[Uc] control circuit voltage 220 V AC 50/60 Hz
Complementary
Protective cover with
Heat dissipation 3-8 W at 50/60 Hz
[Icw] rated short-time withstand current 140 A - 100 ms for signalling circuit, 120 A - 500 ms for signalling circuit, 100 A - 1 s for signalling circuit, 1100 A 40 °C - 1 s for power circuit, 950 A 40 °C - 10 s for power circuit, 550 A 40 °C - 1 min for power circuit, 250 A 40 °C - 10 min for power circuit
[Ui] rated insulation voltage signalling circuit: 600 V UL certified, signalling circuit: 600 V CSA certified, signalling circuit: 690 V conforming to IEC 60947-1, power circuit: 1000 V conforming to IEC 60947-4-1, power circuit: 600 V UL certified, power circuit: 600 V CSA certified
Motor power hp 100 hp at 575/600 V AC 50/60 Hz for 3 phases motors, 75 hp at 460/480 V AC 50/60 Hz for 3 phases motors, 40 hp at 230/240 V AC 50/60 Hz for 3 phases motors, 30 hp at 200/208 V AC 50/60 Hz for 3 phases motors
Motor power kW 65 kW at 1000 V AC 50/60 Hz (AC-3e), 80 kW at 660...690 V AC 50/60 Hz (AC-3e), 75 kW at 500 V AC 50/60 Hz (AC-3e), 59 kW at 415...440 V AC 50/60 Hz (AC-3e), 55 kW at 380...400 V AC 50/60 Hz (AC-3e), 30 kW at 220...230 V AC 50/60 Hz (AC-3e), 18.5 kW at 400 V AC 50/60 Hz (AC-4), 65 kW at 1000 V AC 50/60 Hz (AC-3), 80 kW at 660...690 V AC 50/60 Hz (AC-3), 75 kW at 500 V AC 50/60 Hz (AC-3), 59 kW at 415...440 V AC 50/60 Hz (AC-3), 55 kW at 380...400 V AC 50/60 Hz (AC-3), 30 kW at 220...230 V AC 50/60 Hz (AC-3)
Overvoltage category III
Hold-in power consumption in VA 2-18 VA 50 Hz cos phi 0.3 (at 20 °C), 2-18 VA 60 Hz cos phi 0.3 (at 20 °C)
Compatibility code LC1D
Auxiliary contacts type type mirror contact 1 NC conforming to IEC 60947-4-1,  type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
Mechanical durability 8 Mcycles
Electrical durability 0.95 Mcycles 115 A AC-3e at Ue <= 440 V, 0.95 Mcycles 115 A AC-3 at Ue <= 440 V, 0.8 Mcycles 200 A AC-1 at Ue <= 440 V
Tightening torque control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, power circuit: 12 N.m - on connector hexagonal screw head 4 mm, control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2, control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Signalling circuit frequency 25...400 Hz
Maximum operating rate 2400 cyc/h 60 °C
Minimum switching voltage 17 V for signalling circuit
Operating time 20...50 ms closing, 6...20 ms opening
Coil technology built-in bidirectional peak limiting diode suppressor
Connections - terminals power circuit: connector 2 10-50 mm² - cable stiffness: solid without cable end, power circuit: connector 1 10-120 mm² - cable stiffness: solid without cable end, power circuit: connector 2 10-50 mm² - cable stiffness: flexible with cable end, power circuit: connector 1 10-120 mm² - cable stiffness: flexible with cable end, power circuit: connector 2 10-50 mm² - cable stiffness: flexible without cable end, power circuit: connector 1 10-120 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end
Pole contact composition 3 NO
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947
Inrush power in VA 280-350 VA 50 Hz cos phi 0.8 (at 20 °C), 280-350 VA 60 Hz cos phi 0.8 (at 20 °C)
Associated fuse rating 10 A gG for signalling circuit, 200 A gG at <= 690 V coordination type 2 for power circuit, 250 A gG at <= 690 V coordination type 1 for power circuit
Irms rated making capacity 250 A DC for signalling circuit conforming to IEC 60947-5-1, 140 A AC for signalling circuit conforming to IEC 60947-5-1, 1260 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity 1100 A at 440 V for power circuit conforming to IEC 60947
Insulation resistance > 10 MOhm for signalling circuit
Pollution degree 3
Safety reliability level B10d = 10000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 684932 cycles contactor with nominal load conforming to EN/ISO 13849-1
Control circuit type AC at 50/60 Hz standard
Contact compatibility M13
Mounting support plate, rail
Control circuit voltage limits 1...1.15 Uc (55-70 °C):operational AC 50/60 Hz, 0.8...1.15 Uc (-40-55 °C):operational AC 50/60 Hz, 0.3...0.5 Uc (-40-70 °C):drop-out AC 50/60 Hz
[Ith] conventional free air thermal current 200 A (at 60 °C) for power circuit
Auxiliary contact composition 1 NO + 1 NC
Average impedance 0.6 mOhm - Ith 200 A 50 Hz for power circuit
Power dissipation per pole 7.9 W AC-3e, 7.9 W AC-3, 24 W AC-1
Minimum switching current 5 mA for signalling circuit
Non-overlap time 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact
Environment
Permissible ambient air temperature around the device 60-70 °C with derating, -40-60 °C
Depth 136 mm
Width 120 mm
Fire resistance 850 °C conforming to IEC 60695-2-1
Operating altitude 0...3000 m
Mechanical robustness shocks contactor open (6 Gn for 11 ms) , shocks contactor closed (15 Gn for 11 ms) , vibrations contactor closed (4 Gn, 5...300 Hz) , vibrations contactor open (2 Gn, 5...300 Hz)
IP degree of protection IP20 front face conforming to IEC 60529
Protective treatment TH conforming to IEC 60068-2-30
Flame retardance V1 conforming to UL 94
Net weight 2.5 kg
Climatic withstand conforming to IEC 60947-1 Annex Q category D exposure to damp heat,  conforming to IACS E10 exposure to damp heat
Standards UL 508, IEC 60947-5-1, IEC 60947-4-1, EN 60947-5-1, EN 60947-4-1, CSA C22.2 No 14
Height 158 mm
Product certifications UKCA, UL, DNV, GOST, GL, LROS (Lloyds register of shipping), BV, CCC, CSA, RINA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 19.000 cm
Package 1 Width 17.500 cm
Package 1 Length 21.500 cm
Package 1 Weight 2.469 kg
Unit Type of Package 2 2
Number of Units in Package 2 27
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 79.663 kg
