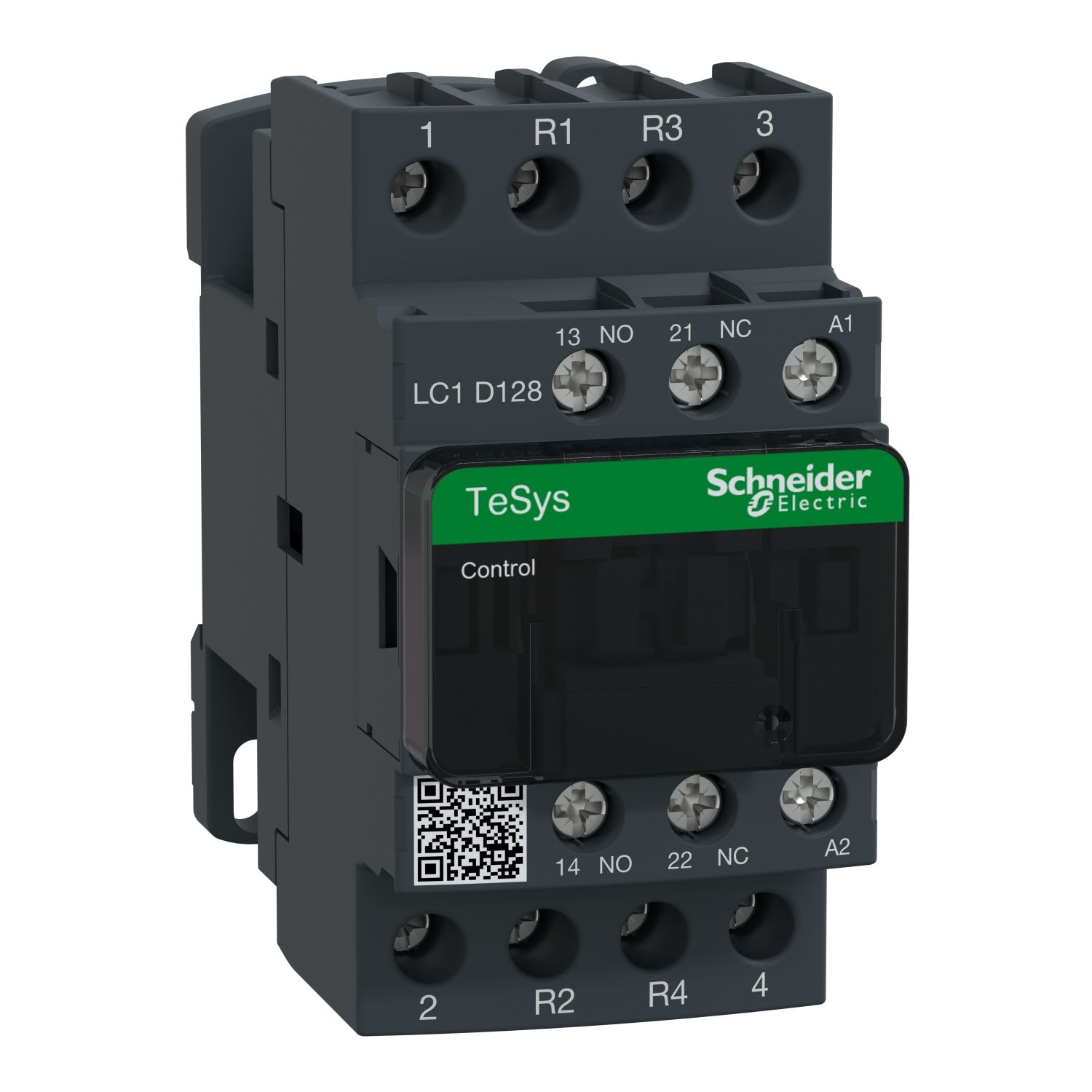

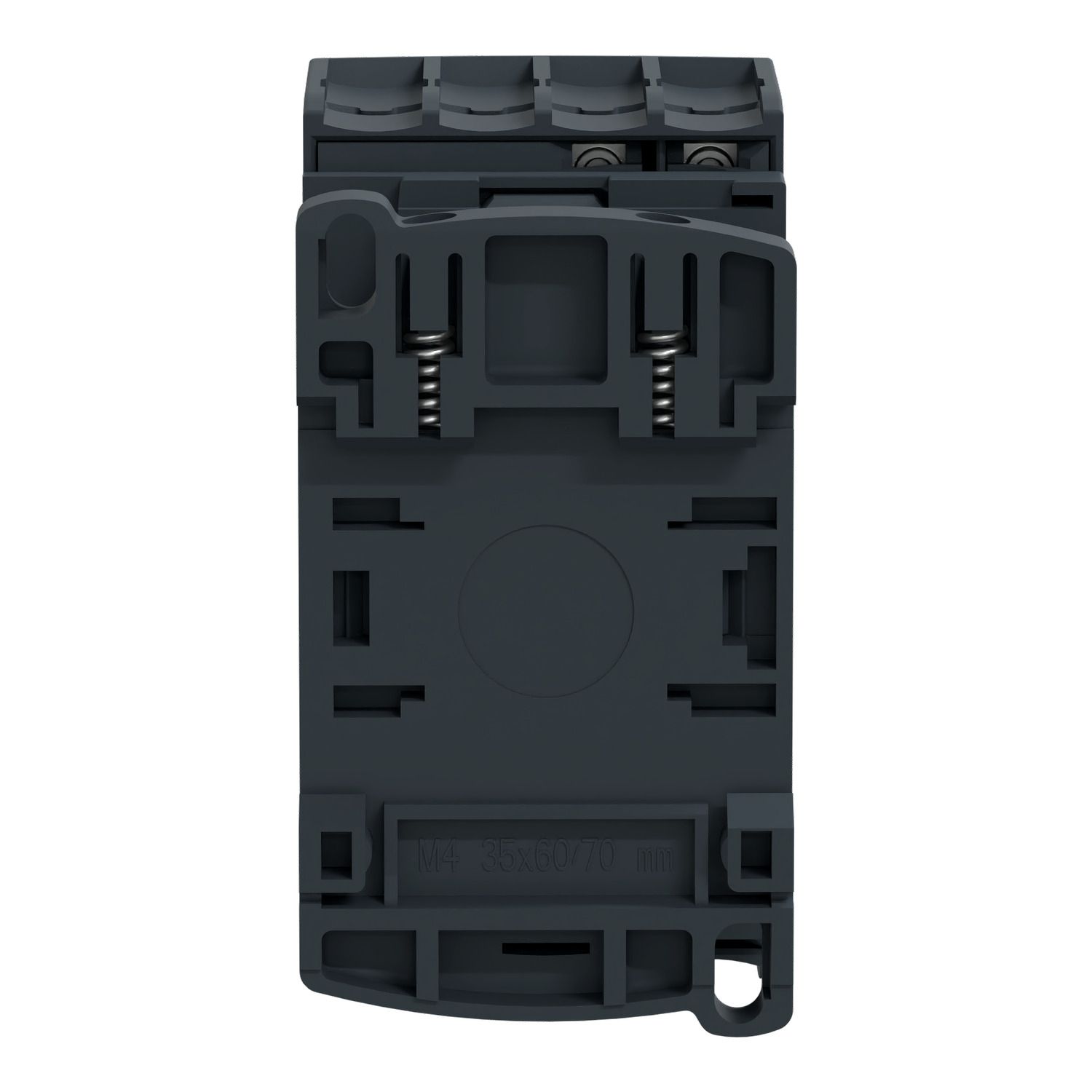

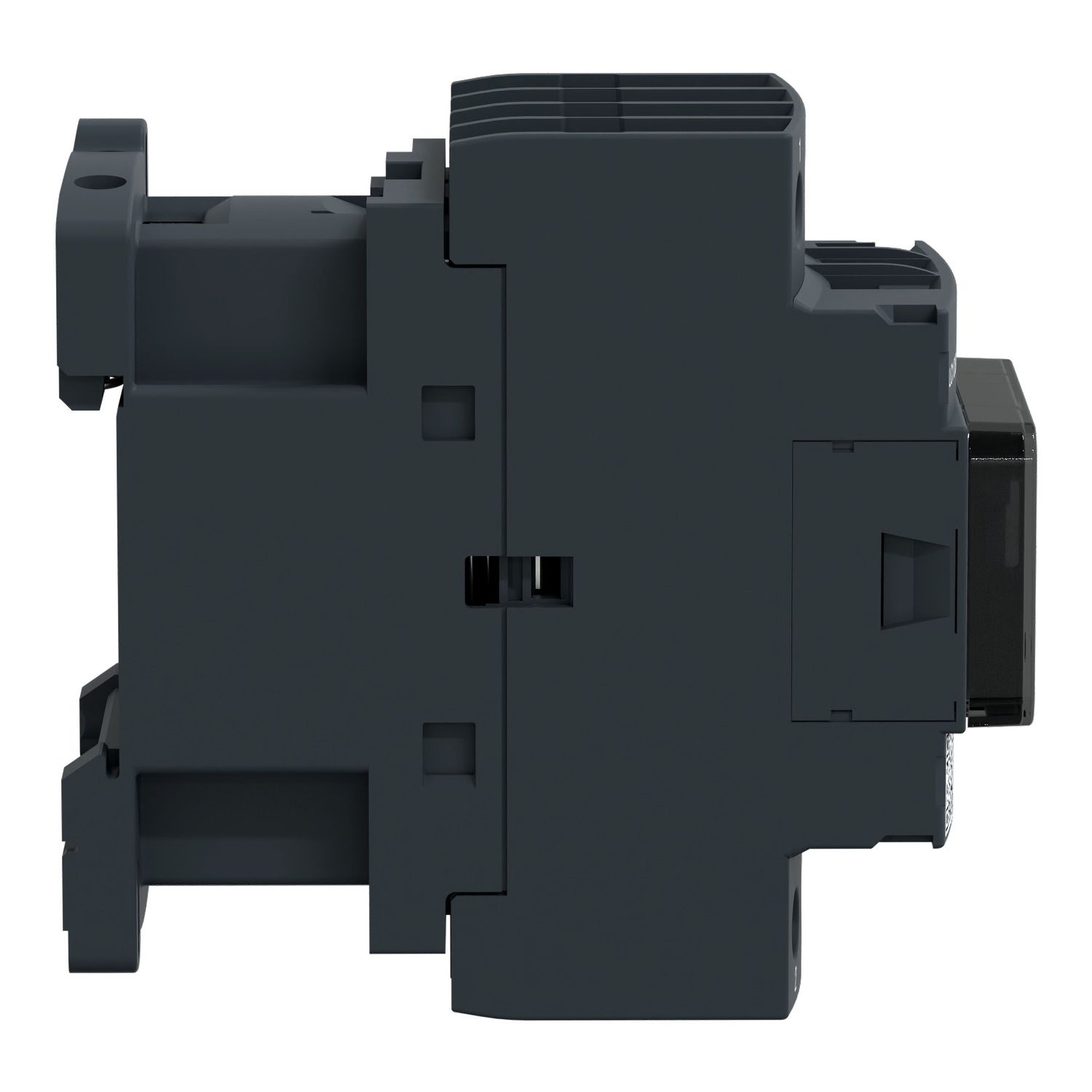

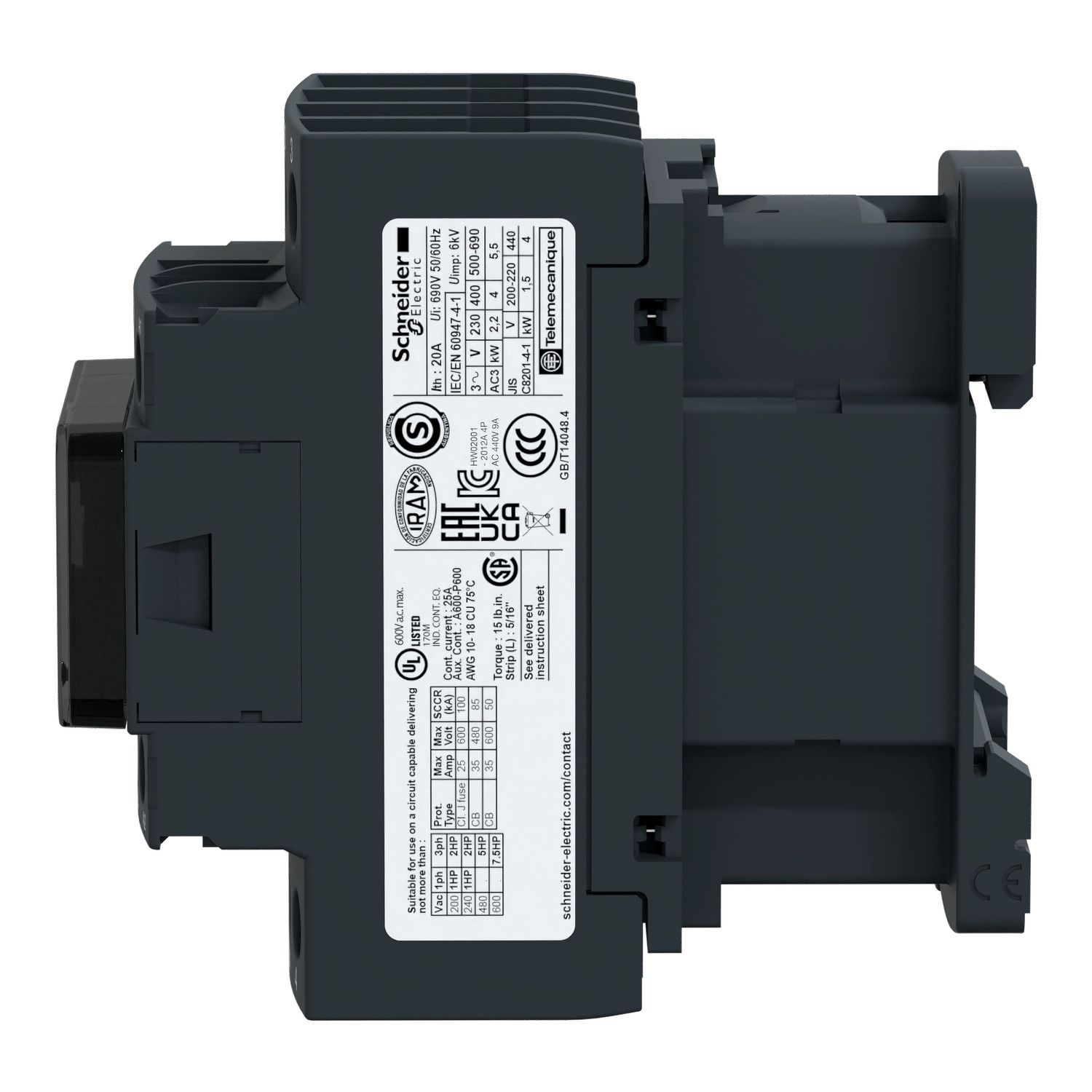

Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <=440V, 25A, 220VAC 50/60Hz coil, screw clamp terminal

$204.06
Product Selector
Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <=440V, 25A, 220VAC 50/60Hz coil, screw clamp terminal
  • New modern look & feel of all machines
  • Designed to meet the requirements of Electro domestic and HVAC applications
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Image of product
Image of product
End of life manual
Catalogue
CAD
Instruction sheet
Image of product
Product environmental
Product Page Link
Product Data Sheet
TeSys D contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 25A/690V AC-1. It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
[Ie] rated operational current 25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
Utilisation category AC-4, AC-3e, AC-3, AC-1
[Uc] control circuit voltage 220 V AC 50/60 Hz
Device short name LC1D
Range of product TeSys Deca
Poles description 4P
Product or component type contactor
Contactor application resistive load
[Ue] rated operational voltage power circuit: <= 300 V DC, power circuit: <= 690 V AC 25...400 Hz
Complementary
Compatibility code LC1D
Electrical durability 0.8 Mcycles 25 A AC-1 at Ue <= 440 V
Signalling circuit frequency 25...400 Hz
Associated fuse rating 25 A gG at <= 690 V coordination type 2 for power circuit, 40 A gG at <= 690 V coordination type 1 for power circuit, 10 A gG for signalling circuit conforming to IEC 60947-5-1
Control circuit type AC at 50/60 Hz
Protective cover with
[Ui] rated insulation voltage signalling circuit: 600 V UL certified, signalling circuit: 600 V CSA certified, signalling circuit: 690 V conforming to IEC 60947-1, power circuit: 600 V UL certified, power circuit: 600 V CSA certified, power circuit: 690 V conforming to IEC 60947-4-1
Overvoltage category III
Auxiliary contacts type type mirror contact 1 NC conforming to IEC 60947-4-1,  type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
Coil technology without built-in suppressor module
Inrush power in VA 70-70 VA 50 Hz cos phi 0.75 (at 20 °C), 70-70 VA 60 Hz cos phi 0.75 (at 20 °C)
Auxiliary contact composition 1 NO + 1 NC
Average impedance 2.5 mOhm - Ith 25 A 50 Hz for power circuit
Power dissipation per pole 1.56 W AC-1
Minimum switching current 5 mA for signalling circuit
Non-overlap time 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact
Heat dissipation 2-3 W at 50/60 Hz
[Icw] rated short-time withstand current 140 A - 100 ms for signalling circuit, 120 A - 500 ms for signalling circuit, 100 A - 1 s for signalling circuit, 61 A 40 °C - 1 min for power circuit, 30 A 40 °C - 10 min for power circuit, 210 A 40 °C - 1 s for power circuit, 105 A 40 °C - 10 s for power circuit
Mechanical durability 15 Mcycles
Tightening torque power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2, power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Minimum switching voltage 17 V for signalling circuit
Operating time 4...19 ms opening, 12...22 ms closing
Irms rated making capacity 250 A DC for signalling circuit conforming to IEC 60947-5-1, 140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity 250 A at 440 V for power circuit conforming to IEC 60947
Pollution degree 3
Safety reliability level B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Control circuit voltage limits 1...1.1 Uc (60-70 °C):operational AC 50/60 Hz, 0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz, 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz
[Ith] conventional free air thermal current 10 A (at 60 °C) for signalling circuit, 25 A (at 60 °C) for power circuit
Hold-in power consumption in VA 7-7 VA 50 Hz cos phi 0.3 (at 20 °C), 7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C)
Maximum operating rate 3600 cyc/h 60 °C
Connections - terminals control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
Pole contact composition 2 NO + 2 NC
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947
Insulation resistance > 10 MOhm for signalling circuit
Contact compatibility M6
Mounting support rail, plate
Environment
Fire resistance 850 °C conforming to IEC 60695-2-1
Mechanical robustness shocks contactor closed (15 Gn for 11 ms) , shocks contactor open (10 Gn for 11 ms) , vibrations contactor closed (4 Gn, 5...300 Hz) , vibrations contactor open (2 Gn, 5...300 Hz)
Climatic withstand conforming to IEC 60947-1 Annex Q category D exposure to damp heat,  conforming to IACS E10 exposure to damp heat
Standards IEC 60335-1, UL 508, IEC 60947-5-1, IEC 60947-4-1, EN 60947-5-1, EN 60947-4-1, CSA C22.2 No 14
Height 85 mm
Permissible ambient air temperature around the device 60-70 °C with derating, -40-60 °C
Operating altitude 0...3000 m
Net weight 0.365 kg
Product certifications UKCA, GL, GOST, RINA, CSA, BV, LROS (Lloyds register of shipping), CCC, DNV, UL
IP degree of protection IP20 front face conforming to IEC 60529
Protective treatment TH conforming to IEC 60068-2-30
Depth 92 mm
Width 45 mm
Flame retardance V1 conforming to UL 94
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 9.500 cm
Package 1 Length 12.000 cm
Package 1 Weight 389.000 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.710 kg
