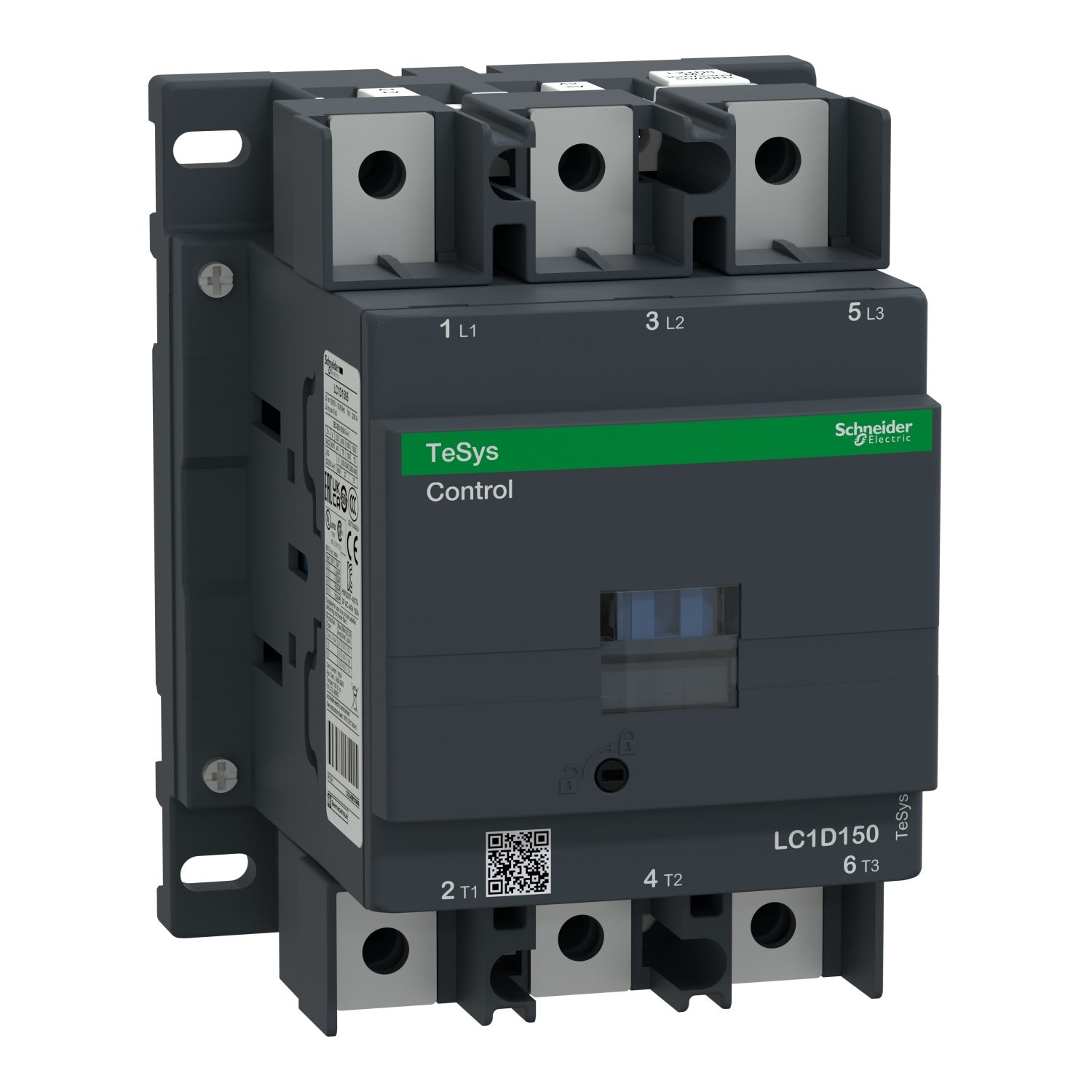

Picture of TeSys, Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 150A, 120V AC 50/60Hz coil, lugs/bars terminals
SKU:

LC1D1506G7

TeSys, Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 150A, 120V AC 50/60Hz coil, lugs/bars terminals

$1,429.73
Available for Shipping : 11-Dec-2024
Product Selector
TeSys, Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 150A, 120V AC 50/60Hz coil, lugs/bars terminals
  • Long durability with high operating rate
  • Reliable performance under high environment
  • Green Premium product
  • Multi sdandards certified makes it possible to wide application
  • Easy installation and maintenance with compact design
  • Multiple and flexible mounting methods depending on exact need
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product environmental
Declaration of conformity
End of life manual
Product Page Link
Product Data Sheet
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 150A/1000V AC-3 (75kW@400V). It provides a 120V 50/60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror certified), power connections for bars or lugs, control connections for lugs. For operating rates until 1200 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (120mm width), mounting on 2 DIN-rails or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LC1D
Range TeSys
Range of product TeSys Deca
Poles description 3P
[Ie] rated operational current 150 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 150 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
Utilisation category AC-3e, AC-1, AC-4, AC-3
Product or component type contactor
Contactor application resistive load, motor control
[Ue] rated operational voltage power circuit: <= 300 V DC, power circuit: <= 1000 V AC 25...400 Hz
[Uc] control circuit voltage 120 V AC 50/60 Hz
Complementary
Heat dissipation 3-4.5 W at 50/60 Hz
[Icw] rated short-time withstand current 140 A - 100 ms for signalling circuit, 120 A - 500 ms for signalling circuit, 100 A - 1 s for signalling circuit, 1400 A 40 °C - 1 s for power circuit, 1200 A 40 °C - 10 s for power circuit, 580 A 40 °C - 1 min for power circuit, 250 A 40 °C - 10 min for power circuit
Compatibility code LC1D
Mechanical durability 8 Mcycles
Electrical durability 0.85 Mcycles 150 A AC-3e at Ue <= 440 V, 1 Mcycles 200 A AC-1 at Ue <= 440 V, 0.85 Mcycles 150 A AC-3 at Ue <= 440 V
Tightening torque control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver pozidriv No 2 M3.5, power circuit: 12 N.m - on bars hexagonal screw head 13 mm M8, power circuit: 12 N.m - on lugs-ring terminals hexagonal screw head 13 mm M8, control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver Philips No 2 M3.5, control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver flat Ø 6 mm M3.5
Signalling circuit frequency 25...400 Hz
Minimum switching voltage 17 V for signalling circuit
Operating time 40...75 ms opening, 20...35 ms closing
Associated fuse rating 250 A gG at <= 690 V coordination type 2 for power circuit, 315 A gG at <= 690 V coordination type 1 for power circuit, 10 A gG for signalling circuit conforming to IEC 60947-5-1
Irms rated making capacity 1660 A at 440 V for power circuit conforming to IEC 60947, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 140 A AC for signalling circuit conforming to IEC 60947-5-1
Rated breaking capacity 1400 A at 440 V for power circuit conforming to IEC 60947
Pollution degree 3
Safety reliability level B10d = 10000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 684932 cycles contactor with nominal load conforming to EN/ISO 13849-1
Control circuit type AC at 50/60 Hz
Control circuit voltage limits 1...1.15 Uc (55-70 °C):operational AC 50/60 Hz, 0.8...1.15 Uc (-40-55 °C):operational AC 50/60 Hz, 0.3...0.5 Uc (-40-70 °C):drop-out AC 50/60 Hz
[Ith] conventional free air thermal current 200 A (at 60 °C) for power circuit
Protective cover with
[Ui] rated insulation voltage signalling circuit: 600 V UL certified, signalling circuit: 600 V CSA certified, signalling circuit: 690 V conforming to IEC 60947-1, power circuit: 1000 V conforming to IEC 60947-4-1, power circuit: 600 V UL certified, power circuit: 600 V CSA certified
Motor power hp 125 hp at 575/600 V AC 50/60 Hz for 3 phases motors, 100 hp at 460/480 V AC 50/60 Hz for 3 phases motors, 50 hp at 230/240 V AC 50/60 Hz for 3 phases motors, 40 hp at 200/208 V AC 50/60 Hz for 3 phases motors
Motor power kW 75 kW at 1000 V AC 50/60 Hz (AC-3e), 100 kW at 660...690 V AC 50/60 Hz (AC-3e), 90 kW at 500 V AC 50/60 Hz (AC-3e), 80 kW at 415...440 V AC 50/60 Hz (AC-3e), 75 kW at 380...400 V AC 50/60 Hz (AC-3e), 40 kW at 220...230 V AC 50/60 Hz (AC-3e), 22 kW at 400 V AC 50/60 Hz (AC-4), 75 kW at 1000 V AC 50/60 Hz (AC-3), 100 kW at 660...690 V AC 50/60 Hz (AC-3), 90 kW at 500 V AC 50/60 Hz (AC-3), 80 kW at 415...440 V AC 50/60 Hz (AC-3), 75 kW at 380...400 V AC 50/60 Hz (AC-3), 40 kW at 220...230 V AC 50/60 Hz (AC-3)
Overvoltage category III
Hold-in power consumption in VA 2-18 VA 50 Hz cos phi 0.9 (at 20 °C), 2-18 VA 60 Hz cos phi 0.9 (at 20 °C)
Auxiliary contacts type type mirror contact 1 NC conforming to IEC 60947-4-1,  type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
Maximum operating rate 1200 cyc/h 60 °C
Coil technology built-in bidirectional peak limiting diode suppressor
Connections - terminals power circuit: bars 1 - busbar cross section: 5 x 25 mm, power circuit: lugs-ring terminals - external diameter: 25 mm, control circuit: lugs-ring terminals - external diameter: 8 mm
Pole contact composition 3 NO
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947
Inrush power in VA 280-350 VA 50 Hz cos phi 0.9 (at 20 °C), 280-350 VA 60 Hz cos phi 0.9 (at 20 °C)
Insulation resistance > 10 MOhm for signalling circuit
Contact compatibility M13
Mounting support plate, rail
Auxiliary contact composition 1 NO + 1 NC
Average impedance 0.6 mOhm - Ith 200 A 50 Hz for power circuit
Power dissipation per pole 13.5 W AC-3e, 13.5 W AC-3, 24 W AC-1
Minimum switching current 5 mA for signalling circuit
Non-overlap time 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact
Environment
Fire resistance 850 °C conforming to IEC 60695-2-1
Mechanical robustness shocks contactor open (6 Gn for 11 ms) , shocks contactor closed (15 Gn for 11 ms) , vibrations contactor closed (4 Gn, 5...300 Hz) , vibrations contactor open (2 Gn, 5...300 Hz)
IP degree of protection IP20 front face conforming to IEC 60529
Protective treatment TH conforming to IEC 60068-2-30
Climatic withstand conforming to IACS E10 exposure to damp heat
Standards UL 508, IEC 60947-5-1, IEC 60947-4-1, EN 60947-5-1, EN 60947-4-1, CSA C22.2 No 14
Height 158 mm
Permissible ambient air temperature around the device 60-70 °C with derating, -40-60 °C
Depth 136 mm
Width 120 mm
Operating altitude 0...3000 m
Flame retardance V1 conforming to UL 94
Net weight 2.5 kg
Product certifications CE, UKCA, BV, CCC, GL, LROS (Lloyds register of shipping), RINA, GOST, DNV, UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 16.800 cm
Package 1 Width 20.800 cm
Package 1 Length 18.500 cm
Package 1 Weight 2.130 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 4.680 kg
Unit Type of Package 3 3
Number of Units in Package 3 16
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 45.440 kg
