SKU:

LC1D1506M7

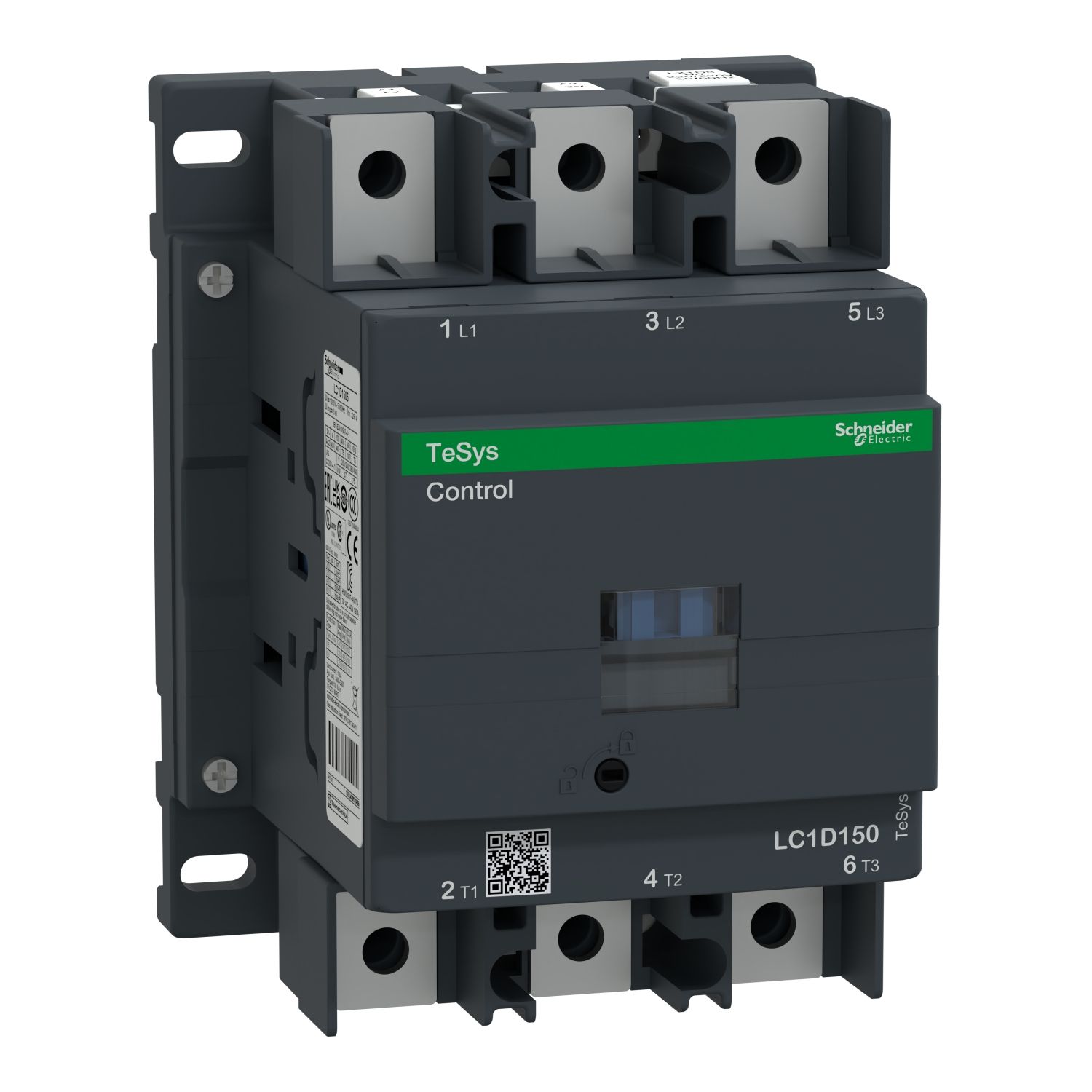

TeSys, Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 150A, 220V AC 50/60Hz coil, lugs/bars terminals

$1,046.94

Qty:

Available for Shipping : 05-Dec-2024

Product Selector

TeSys, Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 150A, 220V AC 50/60Hz coil, lugs/bars terminals

Long durability with high operating rate

Reliable performance under high environment

Green Premium product

Multi sdandards certified makes it possible to wide application

Easy installation and maintenance with compact design

Multiple and flexible mounting methods depending on exact need

Be the first to review this product

Manufacturer: Schneider Electric

Catalogue

Instruction sheet

Product environmental

Declaration of conformity

End of life manual

Product Page Link

Product Data Sheet

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 150A/1000V AC-3 (75kW@400V). It provides a 220V 50/60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror certified), power connections for bars or lugs, control connections for lugs. For operating rates until 1200 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (120mm width), mounting on 2 DIN-rails or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name	Attribute value
Main
Device short name	LC1D
Poles description	3P
[Ie] rated operational current	150 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 150 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
Utilisation category	AC-3e, AC-1, AC-4, AC-3
Range	TeSys
Product or component type	contactor
Contactor application	resistive load, motor control
Range of product	TeSys Deca
[Ue] rated operational voltage	power circuit: <= 300 V DC, power circuit: <= 1000 V AC 25...400 Hz
[Uc] control circuit voltage	220 V AC 50/60 Hz
Complementary
Protective cover	with
Heat dissipation	3-4.5 W at 50/60 Hz
[Icw] rated short-time withstand current	140 A - 100 ms for signalling circuit, 120 A - 500 ms for signalling circuit, 100 A - 1 s for signalling circuit, 1400 A 40 °C - 1 s for power circuit, 1200 A 40 °C - 10 s for power circuit, 580 A 40 °C - 1 min for power circuit, 250 A 40 °C - 10 min for power circuit
[Ui] rated insulation voltage	signalling circuit: 600 V UL certified, signalling circuit: 600 V CSA certified, signalling circuit: 690 V conforming to IEC 60947-1, power circuit: 1000 V conforming to IEC 60947-4-1, power circuit: 600 V UL certified, power circuit: 600 V CSA certified
Motor power hp	125 hp at 575/600 V AC 50/60 Hz for 3 phases motors, 100 hp at 460/480 V AC 50/60 Hz for 3 phases motors, 50 hp at 230/240 V AC 50/60 Hz for 3 phases motors, 40 hp at 200/208 V AC 50/60 Hz for 3 phases motors
Motor power kW	75 kW at 1000 V AC 50/60 Hz (AC-3e), 100 kW at 660...690 V AC 50/60 Hz (AC-3e), 90 kW at 500 V AC 50/60 Hz (AC-3e), 80 kW at 415...440 V AC 50/60 Hz (AC-3e), 75 kW at 380...400 V AC 50/60 Hz (AC-3e), 40 kW at 220...230 V AC 50/60 Hz (AC-3e), 22 kW at 400 V AC 50/60 Hz (AC-4), 75 kW at 1000 V AC 50/60 Hz (AC-3), 100 kW at 660...690 V AC 50/60 Hz (AC-3), 90 kW at 500 V AC 50/60 Hz (AC-3), 80 kW at 415...440 V AC 50/60 Hz (AC-3), 75 kW at 380...400 V AC 50/60 Hz (AC-3), 40 kW at 220...230 V AC 50/60 Hz (AC-3)
Overvoltage category	III
Hold-in power consumption in VA	2-18 VA 50 Hz cos phi 0.9 (at 20 °C), 2-18 VA 60 Hz cos phi 0.9 (at 20 °C)
Compatibility code	LC1D
Auxiliary contacts type	type mirror contact 1 NC conforming to IEC 60947-4-1, type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
Mechanical durability	8 Mcycles
Electrical durability	0.85 Mcycles 150 A AC-3e at Ue <= 440 V, 1 Mcycles 200 A AC-1 at Ue <= 440 V, 0.85 Mcycles 150 A AC-3 at Ue <= 440 V
Tightening torque	control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver pozidriv No 2 M3.5, power circuit: 12 N.m - on bars hexagonal screw head 13 mm M8, power circuit: 12 N.m - on lugs-ring terminals hexagonal screw head 13 mm M8, control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver Philips No 2 M3.5, control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver flat Ø 6 mm M3.5
Signalling circuit frequency	25...400 Hz
Maximum operating rate	1200 cyc/h 60 °C
Minimum switching voltage	17 V for signalling circuit
Operating time	40...75 ms opening, 20...35 ms closing
Coil technology	built-in bidirectional peak limiting diode suppressor
Connections - terminals	control circuit: lugs-ring terminals - external diameter: 8 mm
Pole contact composition	3 NO
[Uimp] rated impulse withstand voltage	8 kV conforming to IEC 60947
Inrush power in VA	280-350 VA 50 Hz cos phi 0.9 (at 20 °C), 280-350 VA 60 Hz cos phi 0.9 (at 20 °C)
Associated fuse rating	250 A gG at <= 690 V coordination type 2 for power circuit, 315 A gG at <= 690 V coordination type 1 for power circuit, 10 A gG for signalling circuit conforming to IEC 60947-5-1
Irms rated making capacity	1660 A at 440 V for power circuit conforming to IEC 60947, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 140 A AC for signalling circuit conforming to IEC 60947-5-1
Rated breaking capacity	1400 A at 440 V for power circuit conforming to IEC 60947
Insulation resistance	> 10 MOhm for signalling circuit
Pollution degree	3
Safety reliability level	B10d = 10000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 684932 cycles contactor with nominal load conforming to EN/ISO 13849-1
Control circuit type	AC at 50/60 Hz
Contact compatibility	M13
Mounting support	plate, rail
Control circuit voltage limits	1...1.15 Uc (55-70 °C):operational AC 50/60 Hz, 0.8...1.15 Uc (-40-55 °C):operational AC 50/60 Hz, 0.3...0.5 Uc (-40-70 °C):drop-out AC 50/60 Hz
[Ith] conventional free air thermal current	200 A (at 60 °C) for power circuit
Auxiliary contact composition	1 NO + 1 NC
Average impedance	0.6 mOhm - Ith 200 A 50 Hz for power circuit
Power dissipation per pole	13.5 W AC-3e, 13.5 W AC-3, 24 W AC-1
Minimum switching current	5 mA for signalling circuit
Non-overlap time	1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact
Environment
Permissible ambient air temperature around the device	60-70 °C with derating, -40-60 °C
Depth	136 mm
Width	120 mm
Fire resistance	850 °C conforming to IEC 60695-2-1
Operating altitude	0...3000 m
Mechanical robustness	shocks contactor open (6 Gn for 11 ms) , shocks contactor closed (15 Gn for 11 ms) , vibrations contactor closed (4 Gn, 5...300 Hz) , vibrations contactor open (2 Gn, 5...300 Hz)
IP degree of protection	IP20 front face conforming to IEC 60529
Protective treatment	TH conforming to IEC 60068-2-30
Flame retardance	V1 conforming to UL 94
Net weight	2.5 kg
Climatic withstand	conforming to IACS E10 exposure to damp heat
Standards	UL 508, IEC 60947-5-1, IEC 60947-4-1, EN 60947-5-1, EN 60947-4-1, CSA C22.2 No 14
Height	158 mm
Product certifications	CE, UKCA, DNV, CSA, GOST, UL, GL, CCC, RINA, BV, LROS (Lloyds register of shipping)
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	17.000 cm
Package 1 Width	18.800 cm
Package 1 Length	20.800 cm
Package 1 Weight	2.200 kg
Unit Type of Package 2	2
Number of Units in Package 2	27
Package 2 Height	75.000 cm
Package 2 Width	60.000 cm
Package 2 Length	80.000 cm
Package 2 Weight	72.562 kg
